ADU with New Detached Garage
A new ADU with a one-car garage and a separate two-car detached garage, each with its own wall, roof and foundation design.
Scope of work

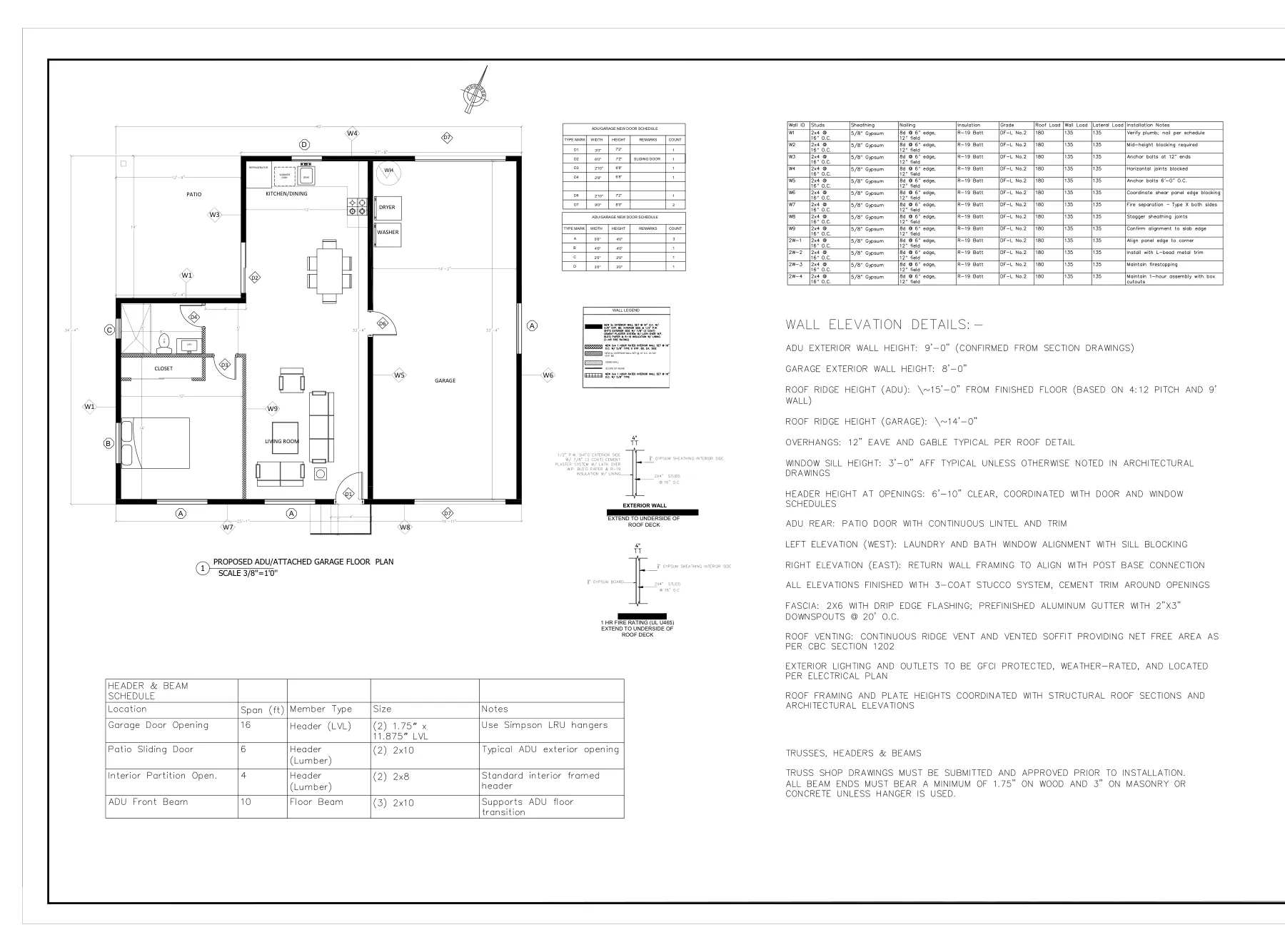

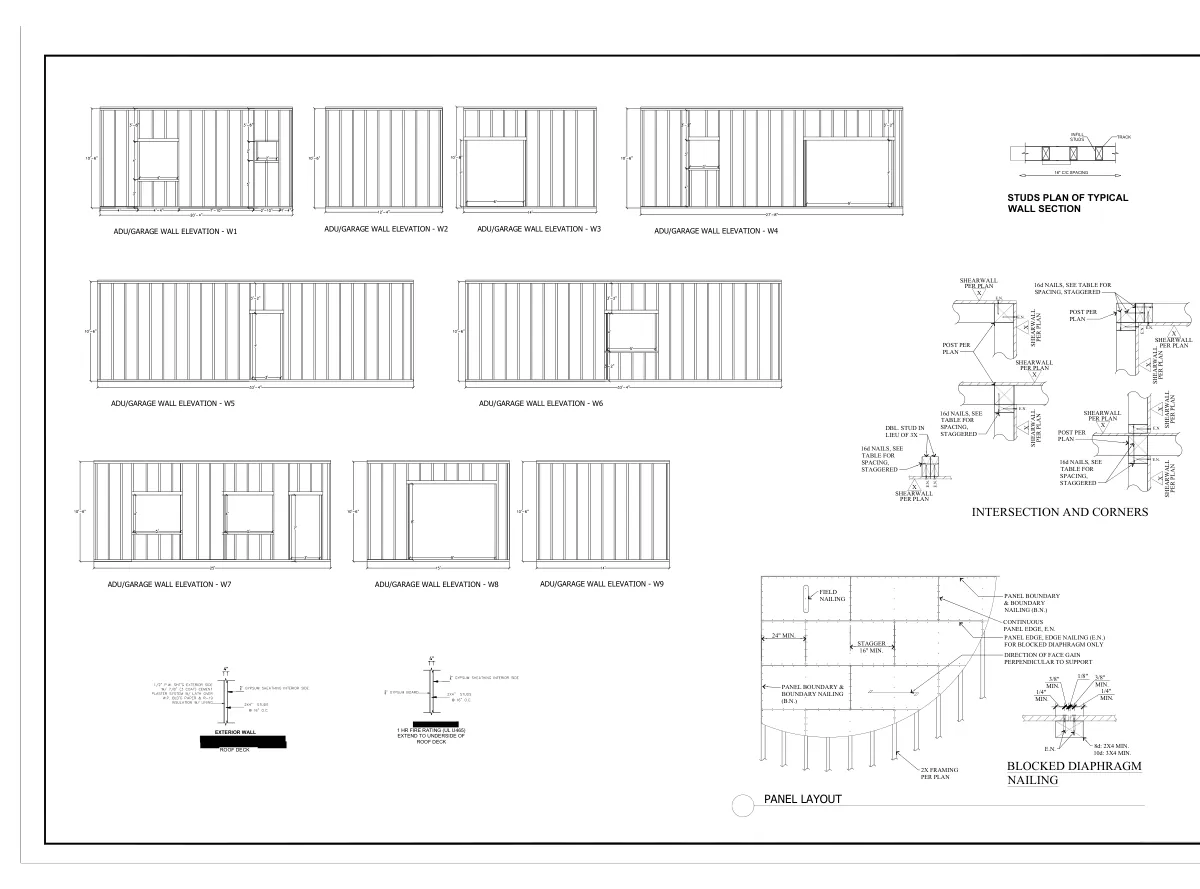

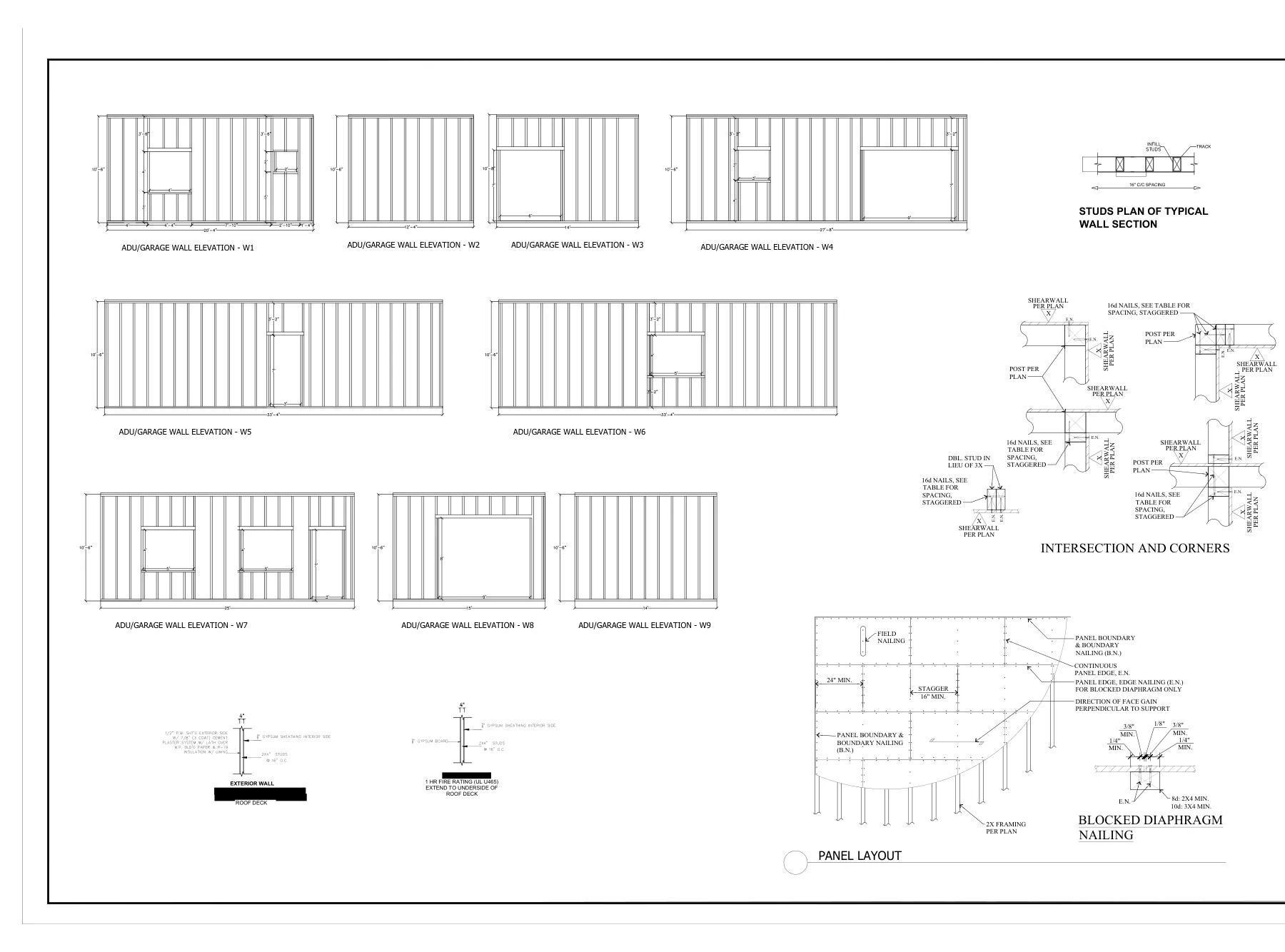

- Floor joist plan and ADU wall elevations

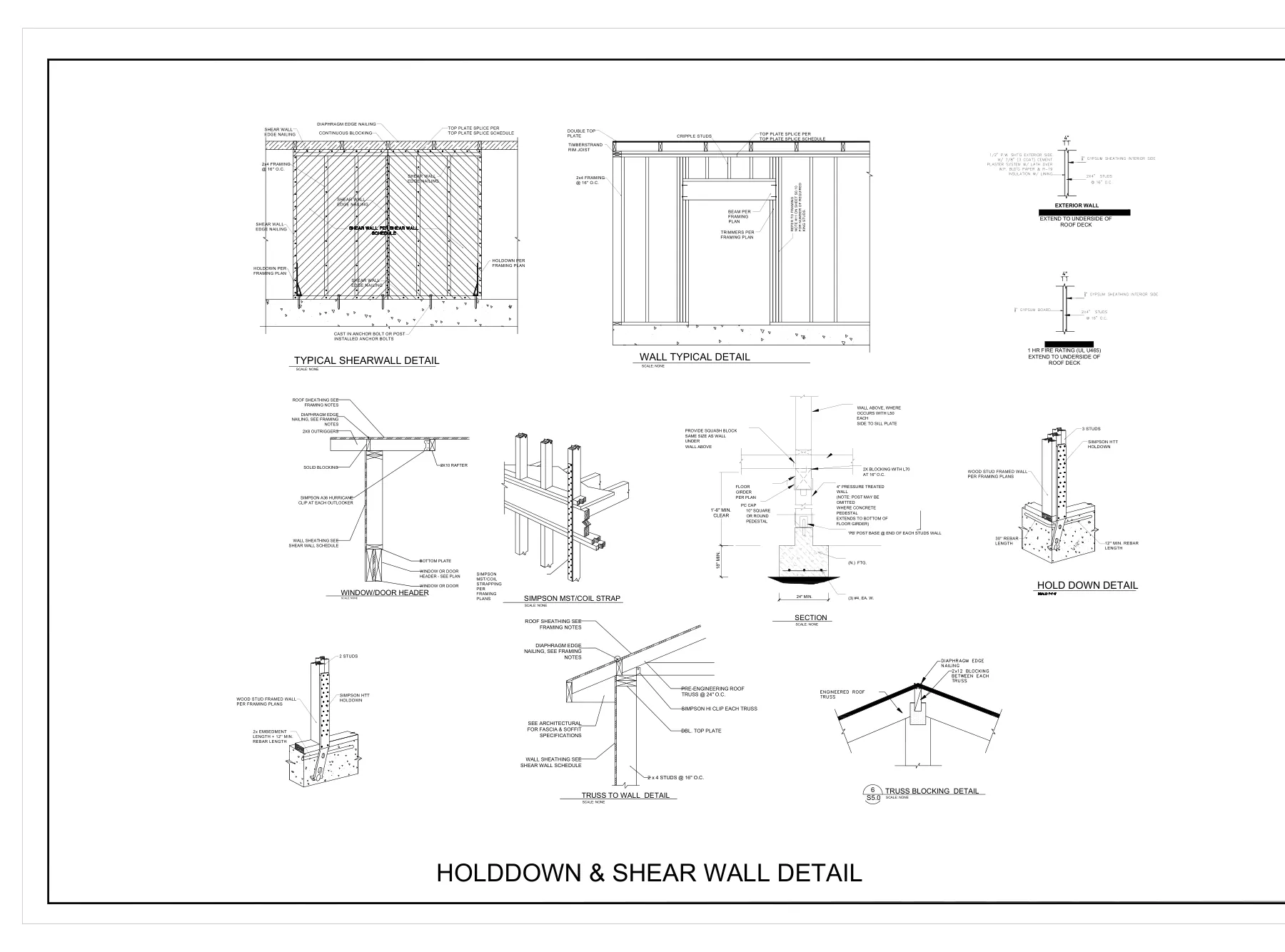

- Shear wall details

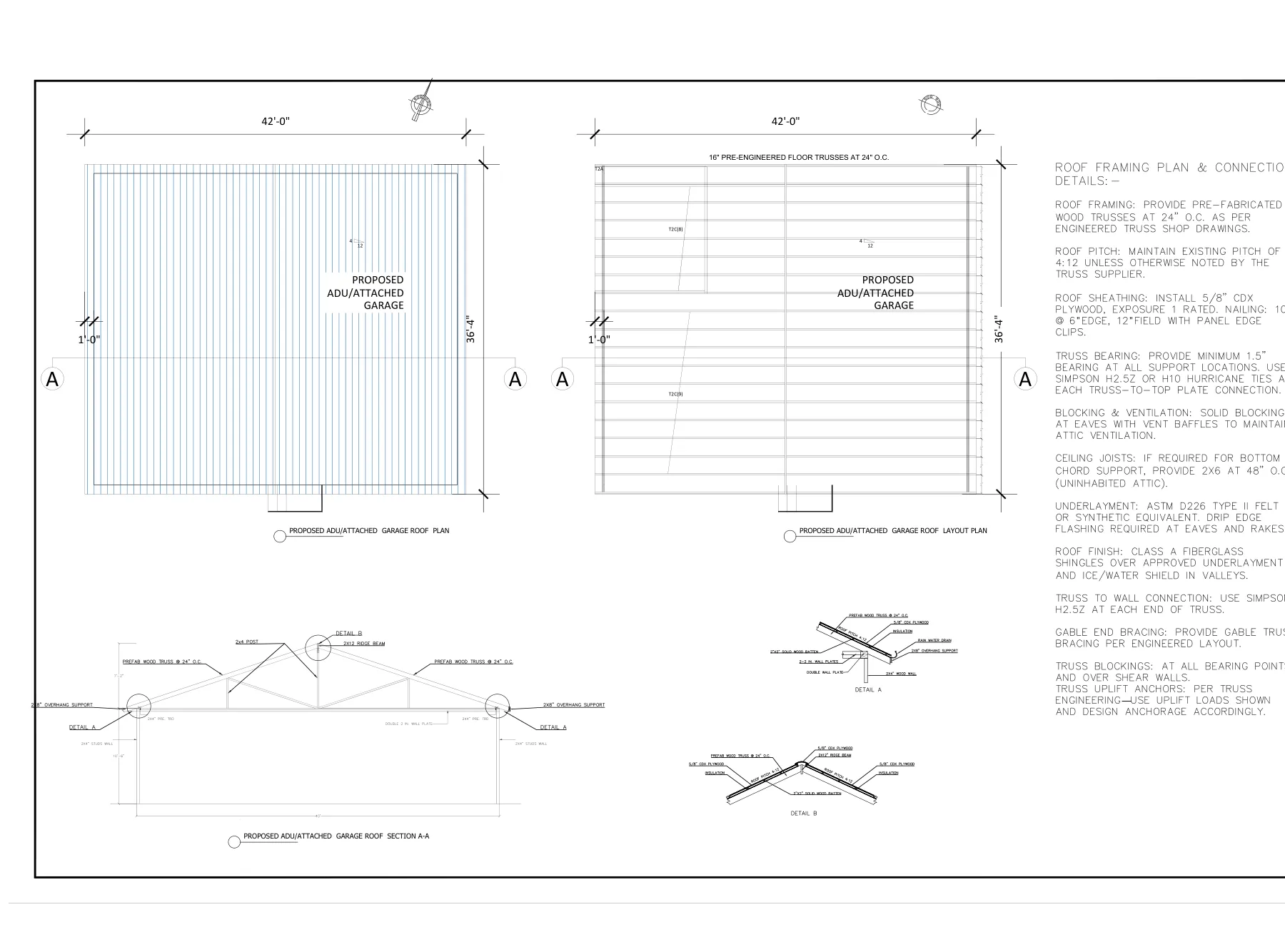

- ADU roof framing layout

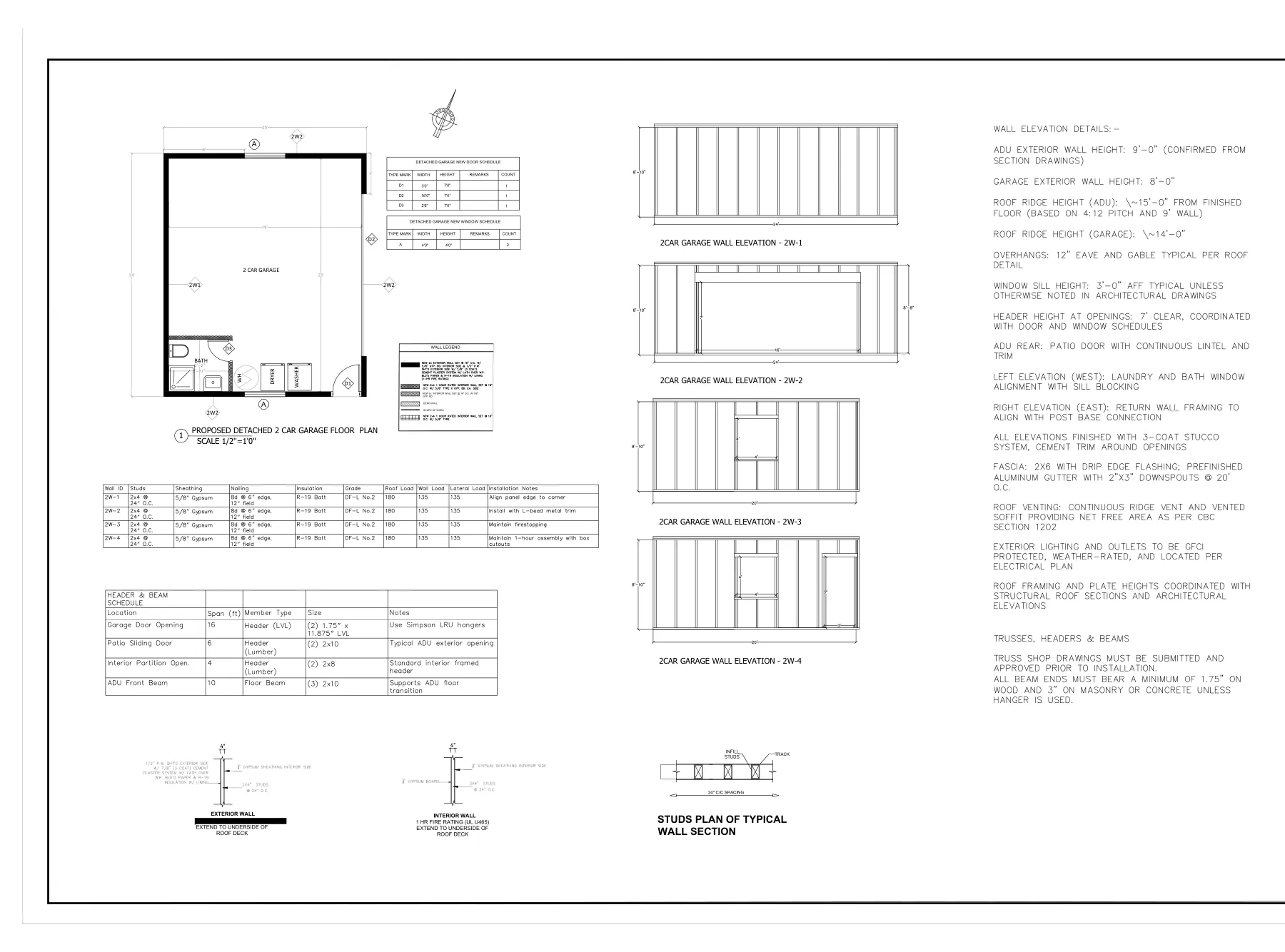

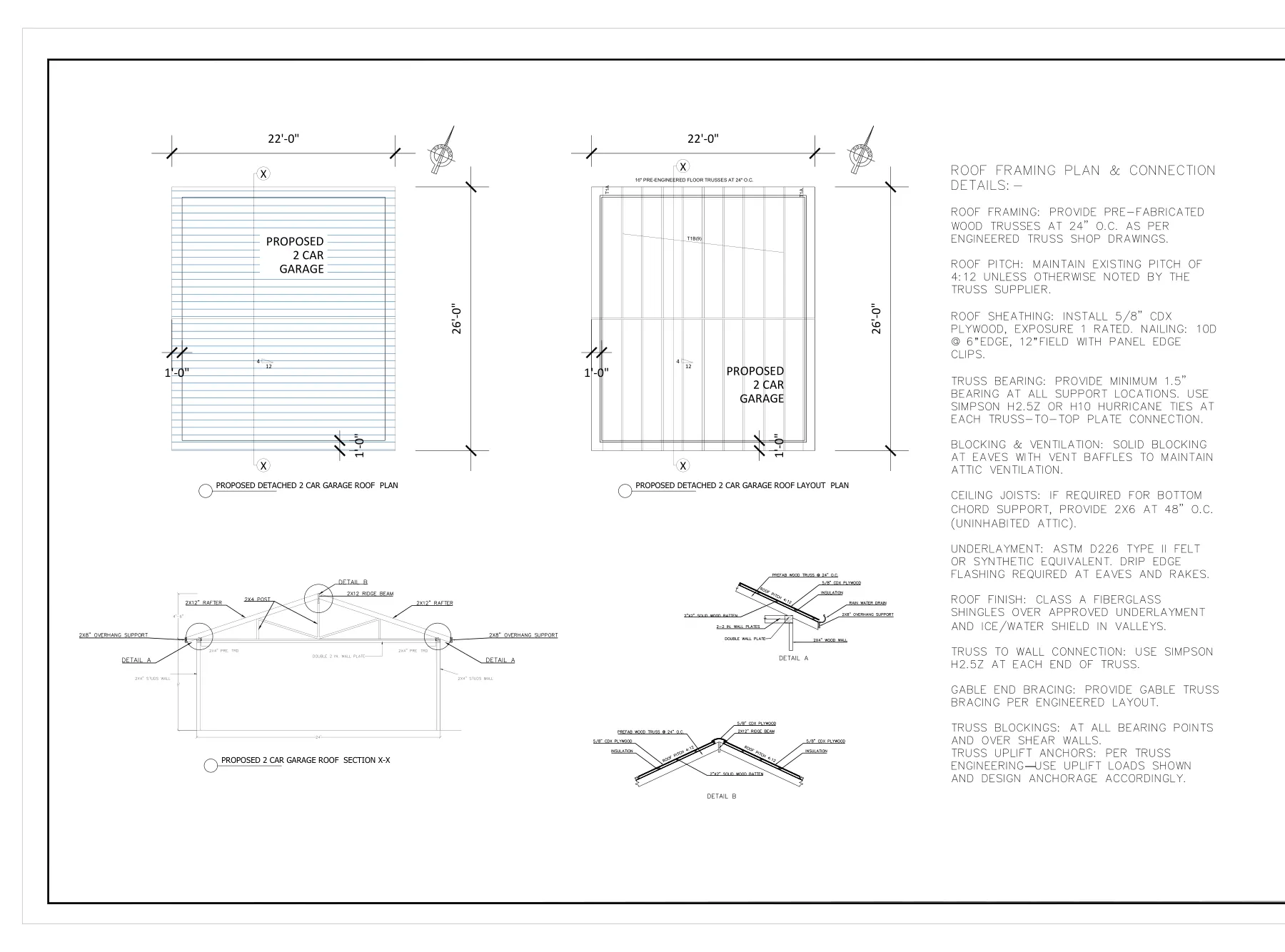

- 2-car garage wall details and roof framing

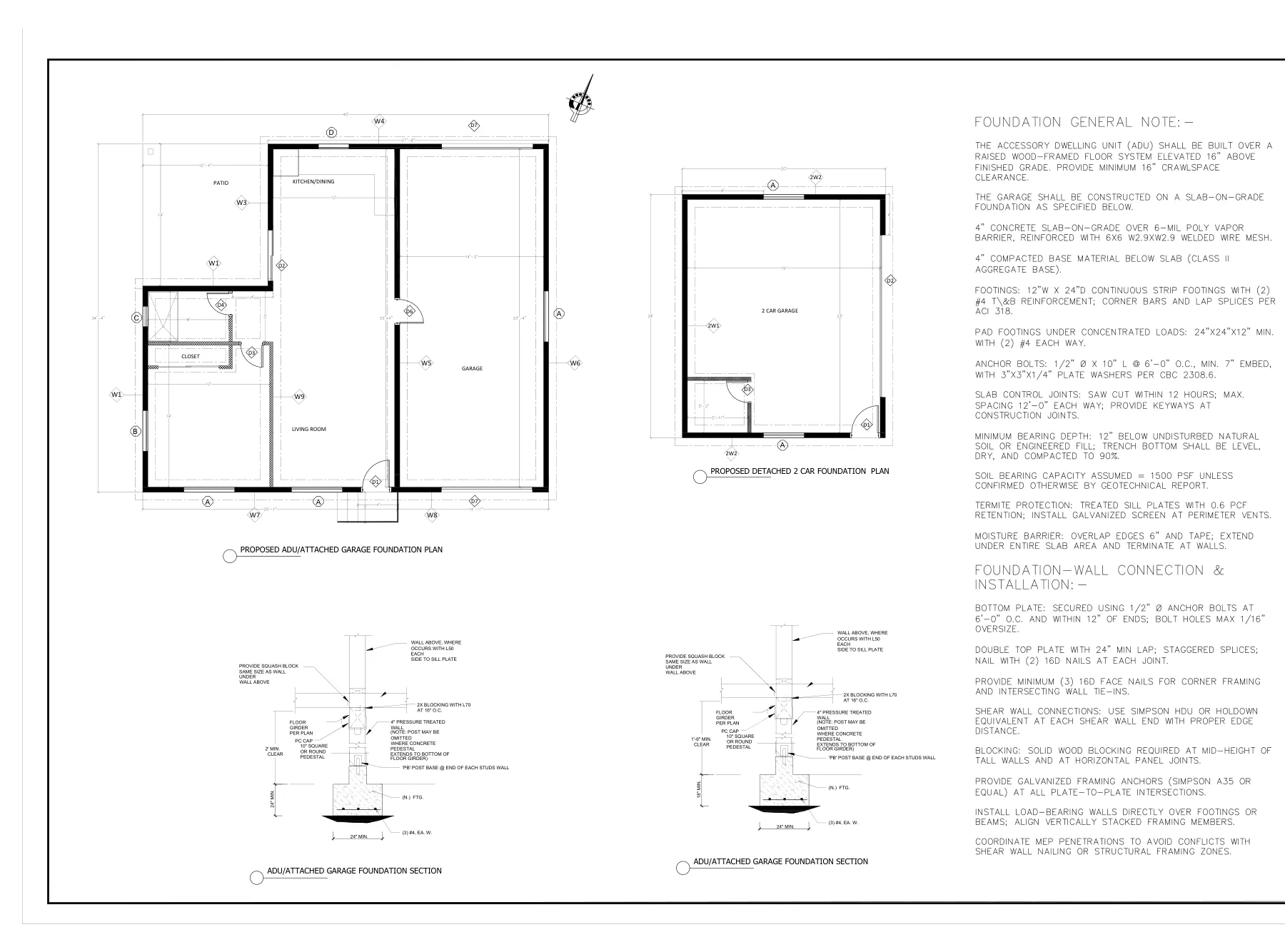

- Foundation plan
Drawings & calculations
7 sheets from the project — click any sheet to view it full size.
