Attached ADU Above Existing Garage

A new attached ADU built on top of an existing garage whose roof is removed, with the ADU walls, shear walls and stair framed into the existing structure.

Scope of work

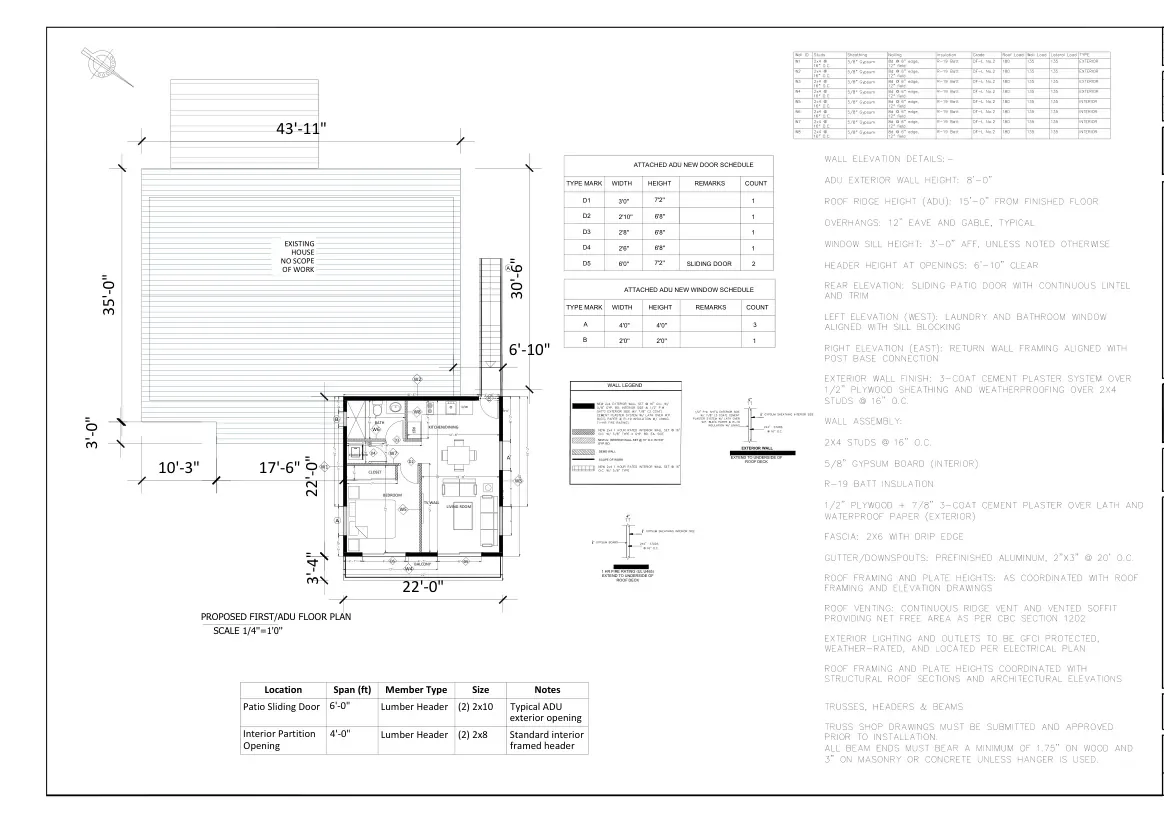

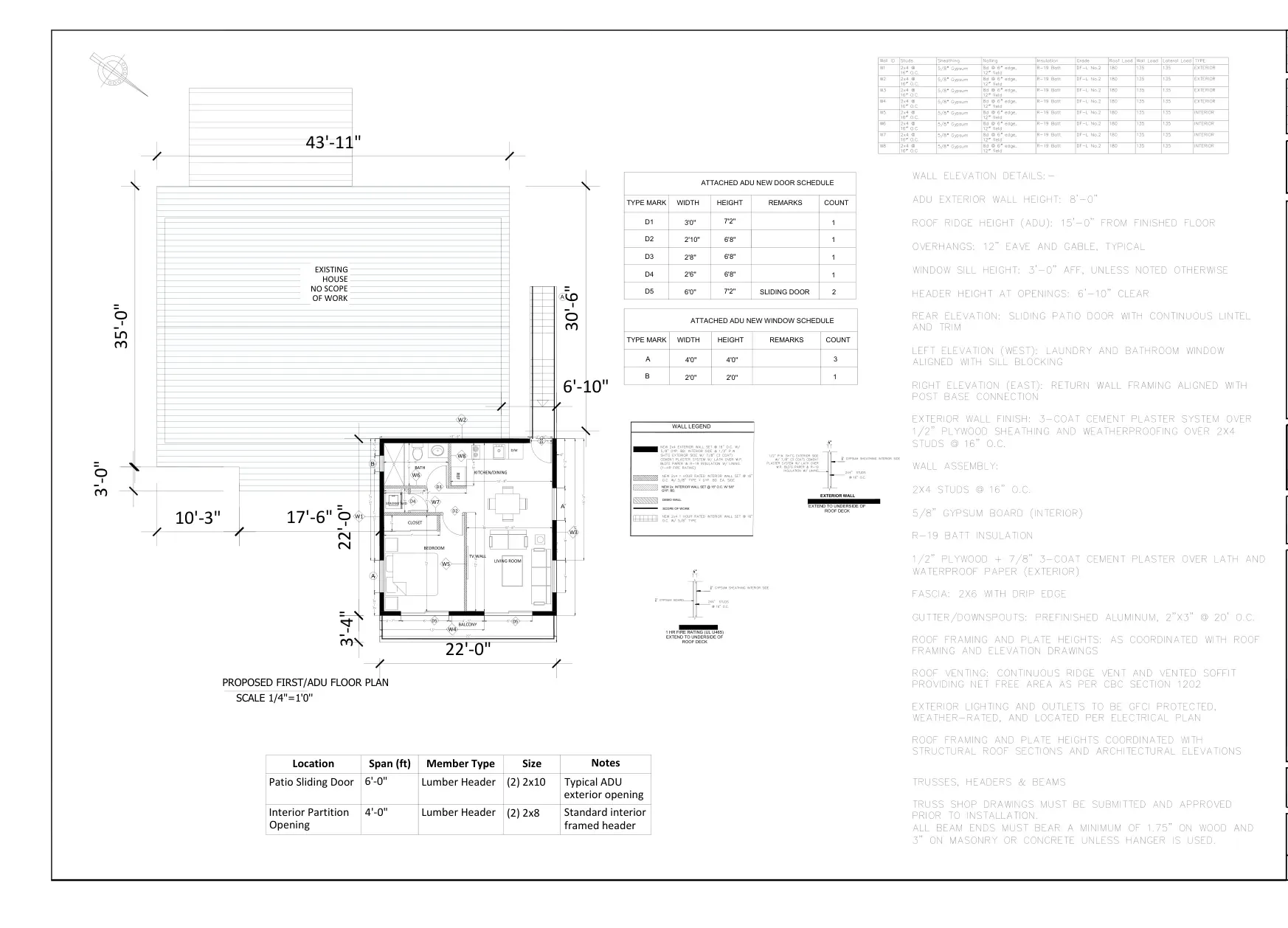

  • ADU wall framing plan and wall elevations

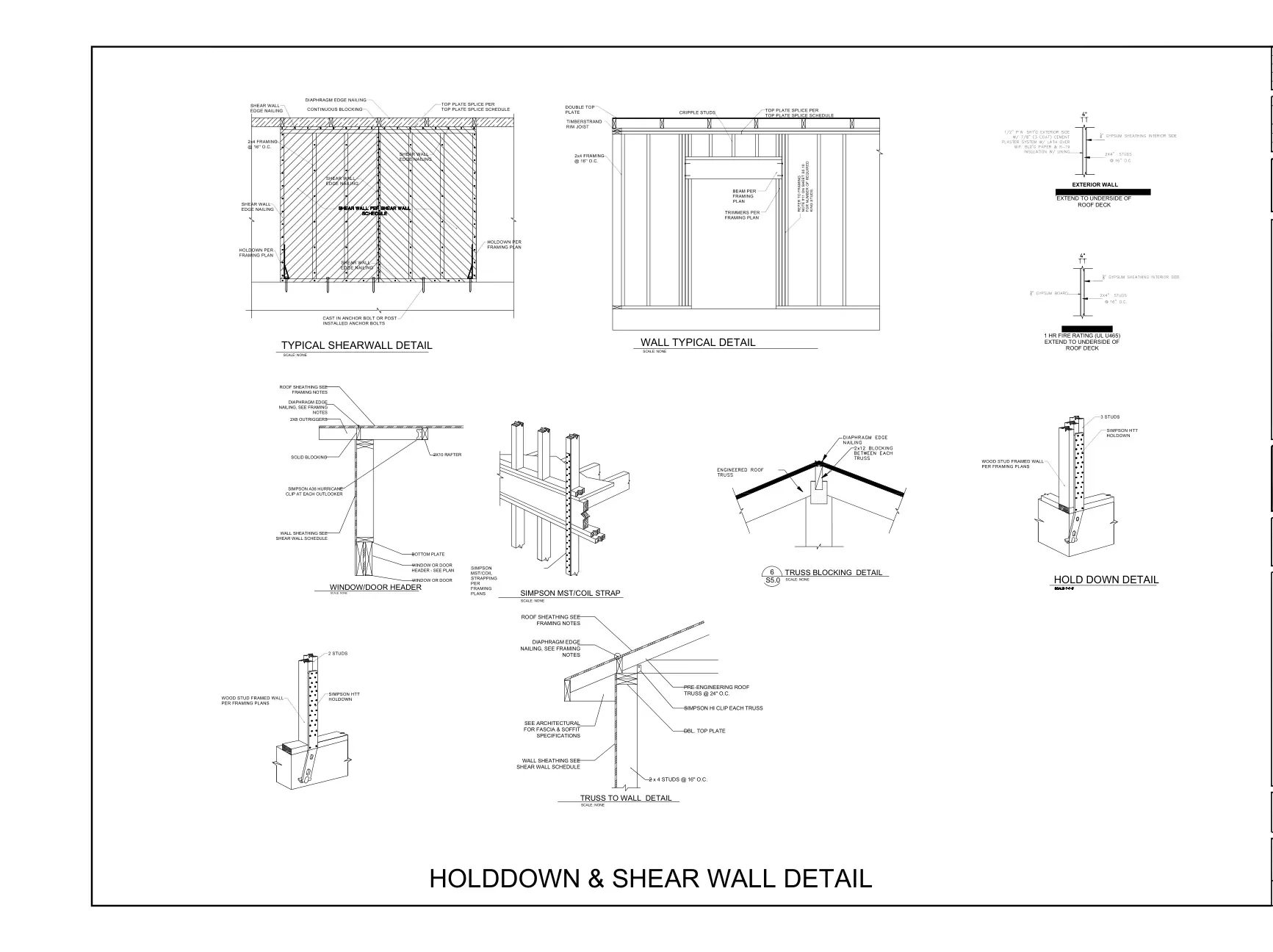

  • Shear wall details and holdown layout

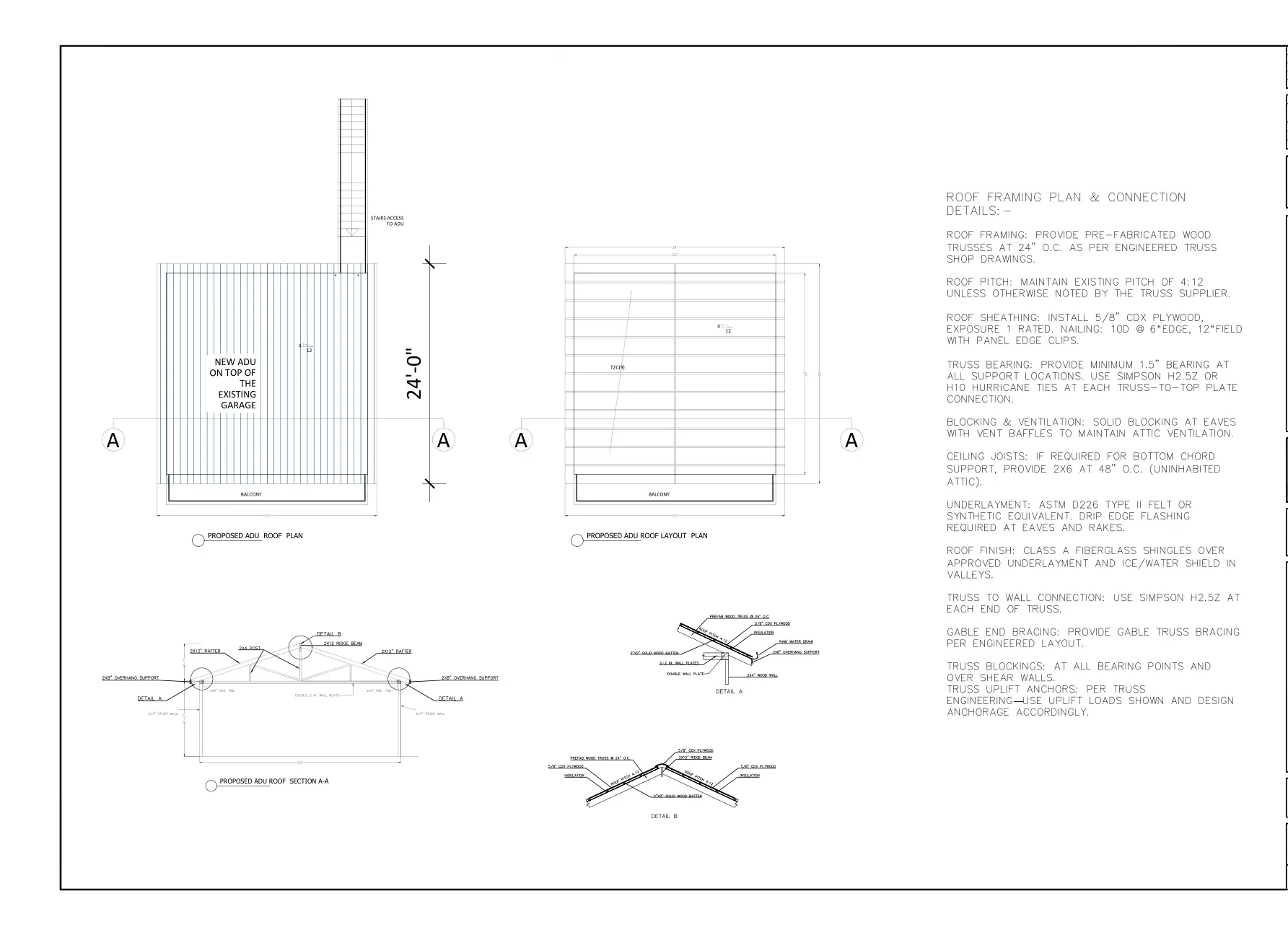

  • ADU roof plan

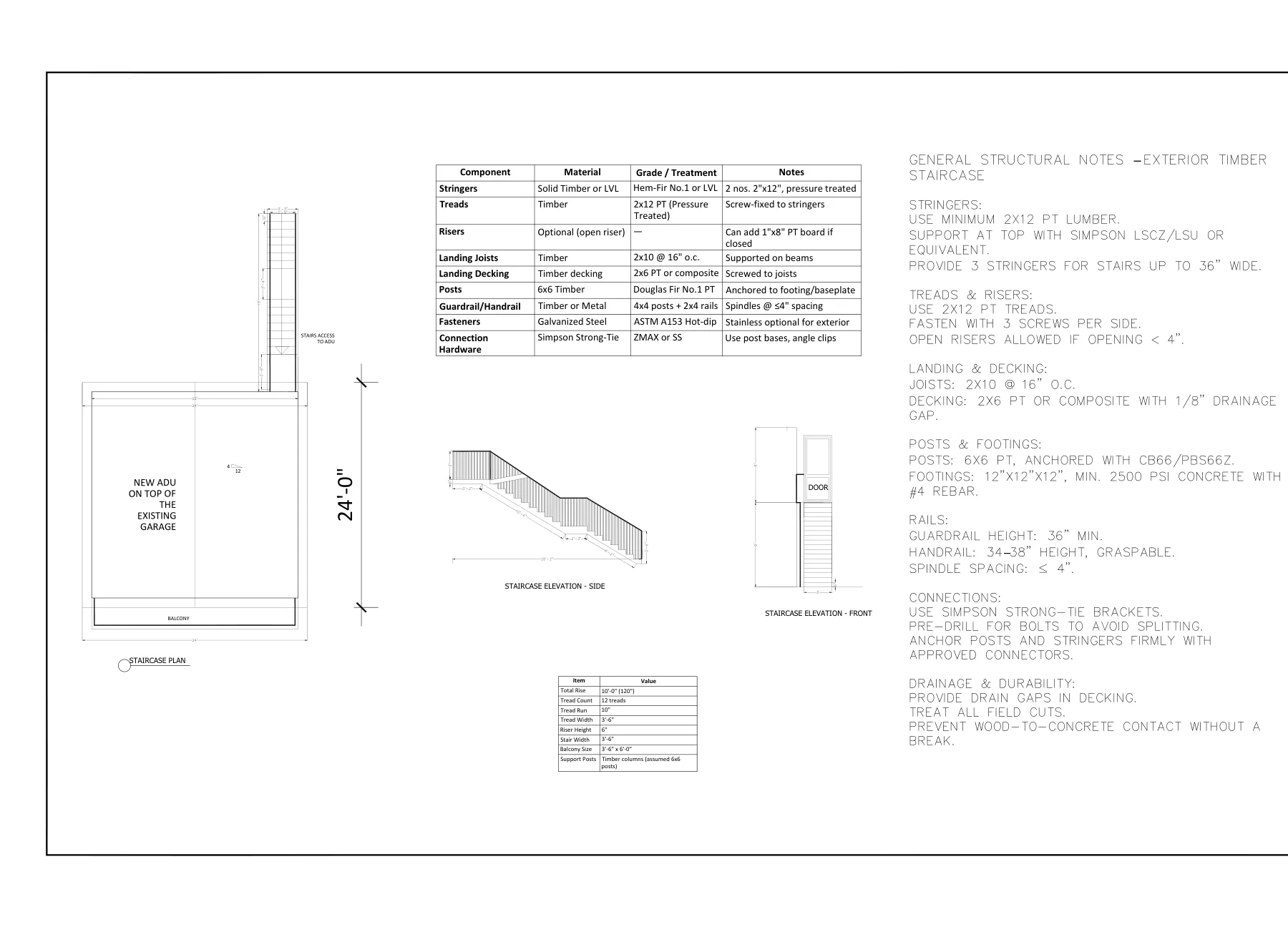

  • Staircase framing details

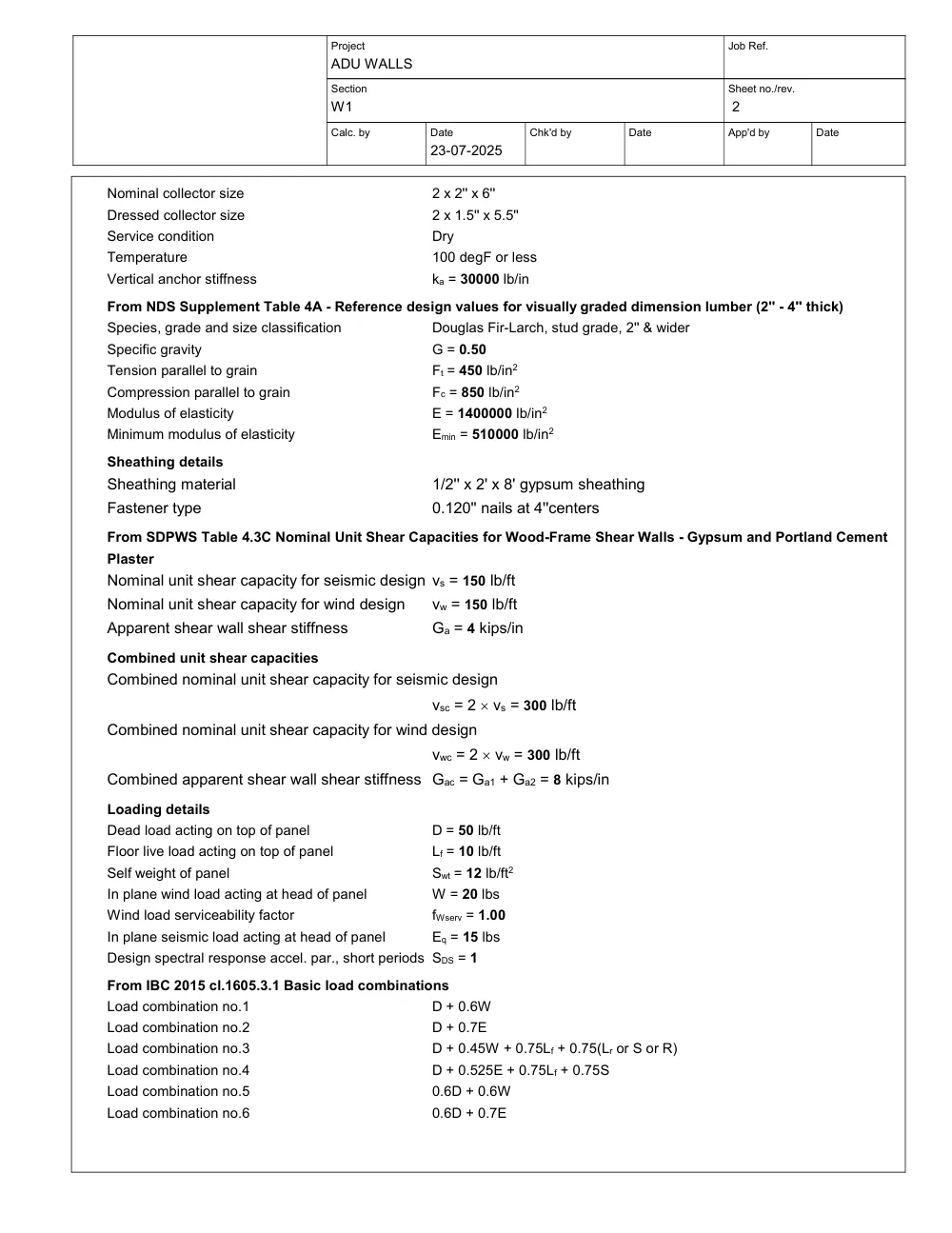

Drawings & calculations

6 sheets from the project — click any sheet to view it full size.
