As-Built JADU Permitting
Structural calculations and permit sheets for an as-built junior ADU, verifying shear walls, hold-downs, the roof diaphragm and headers to current code.
Scope of work

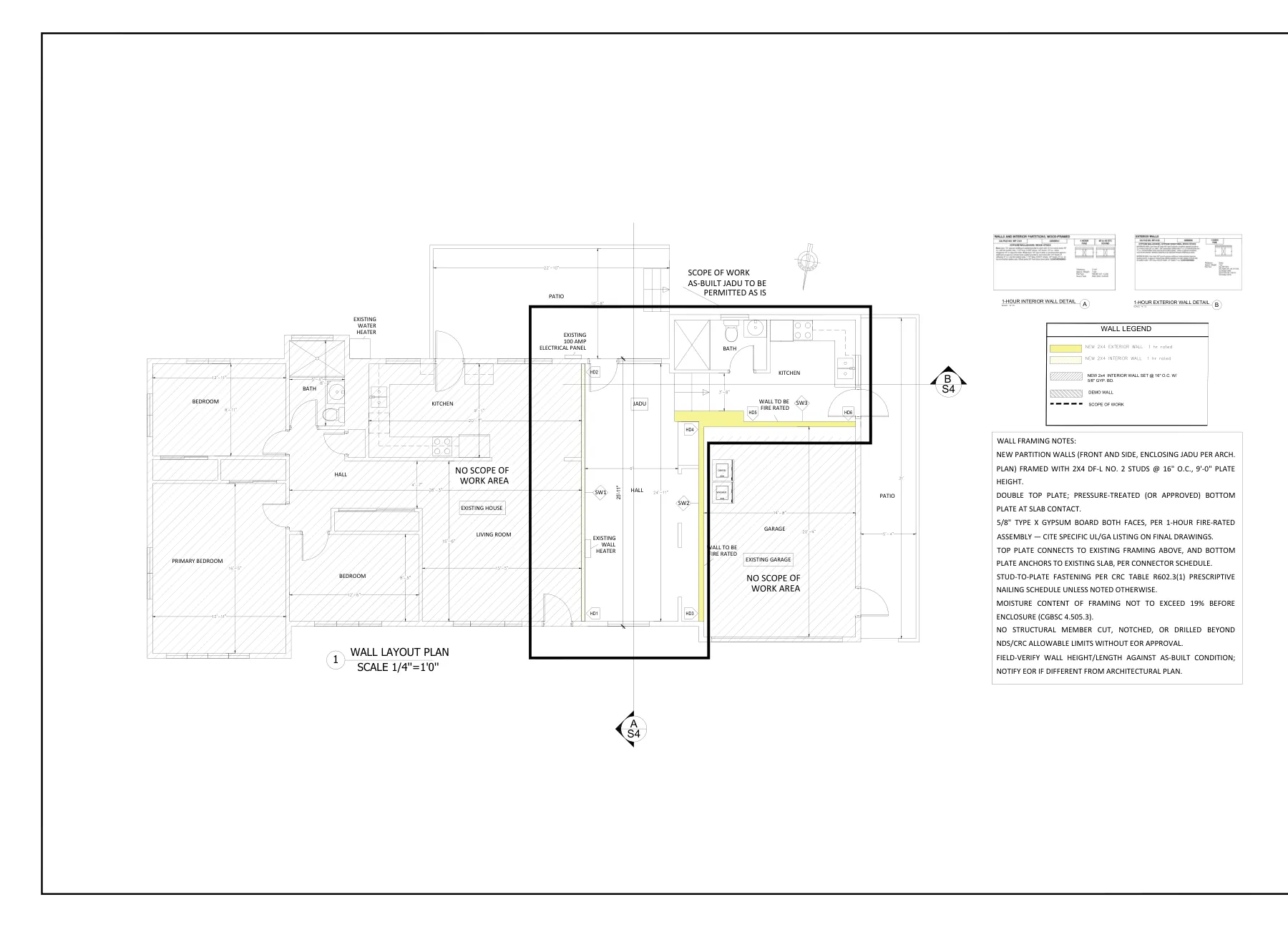

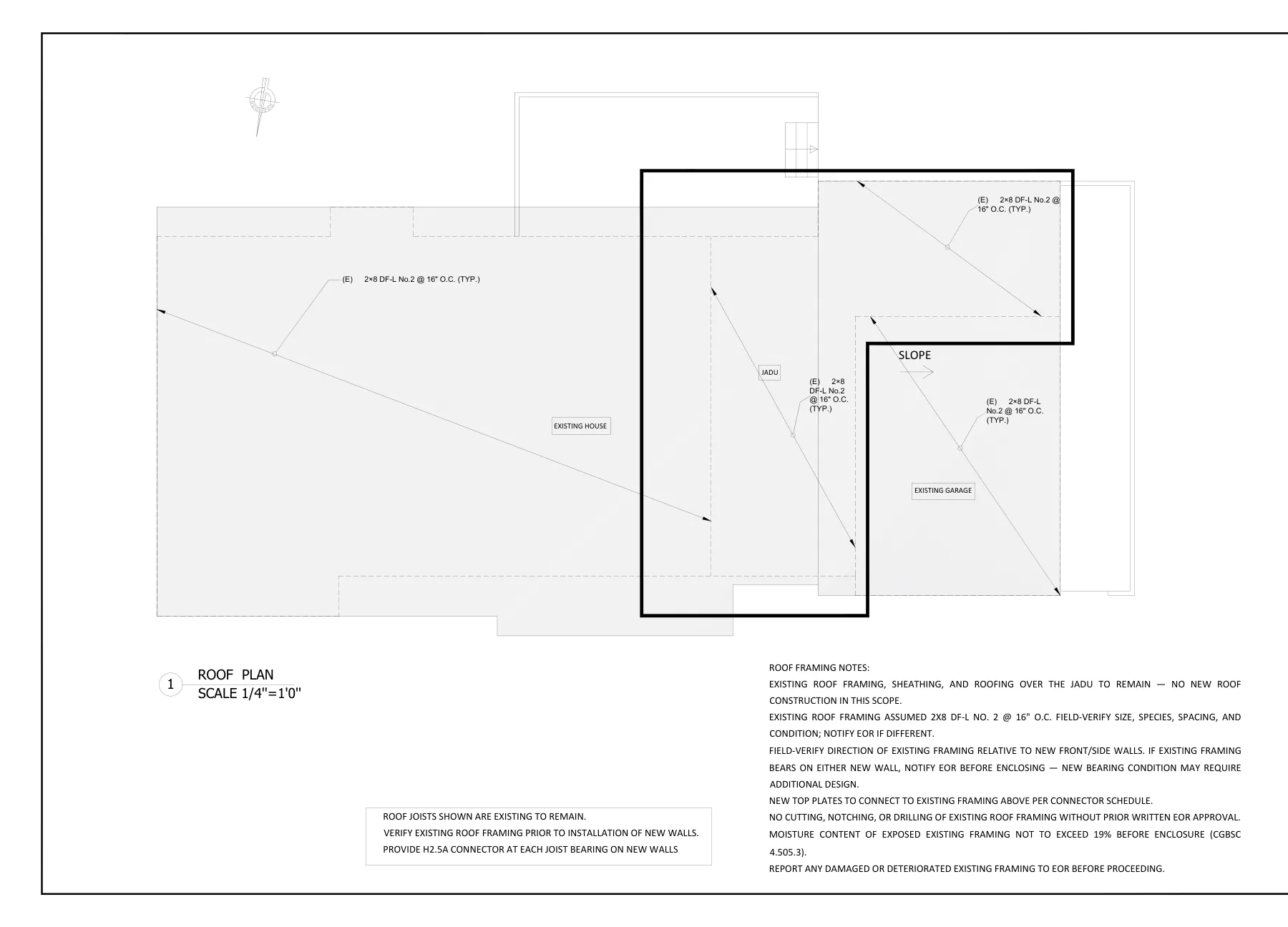

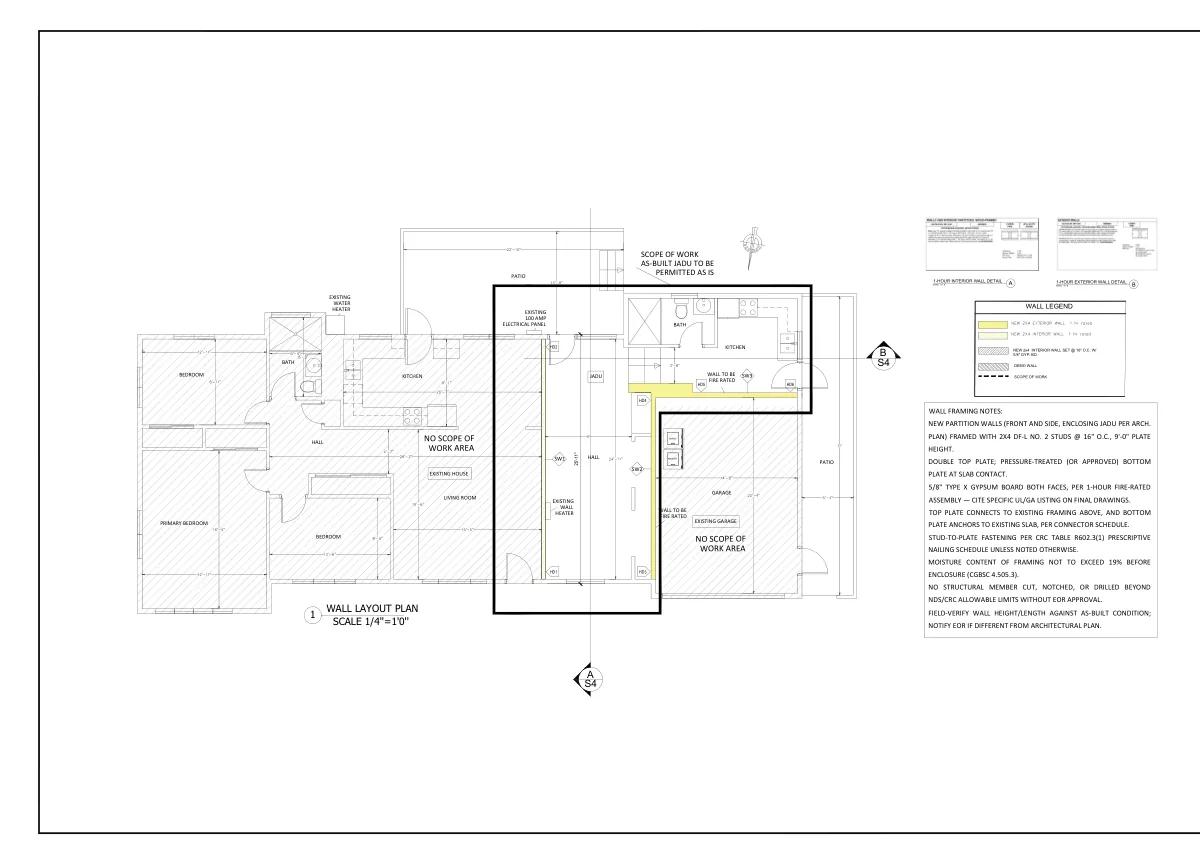

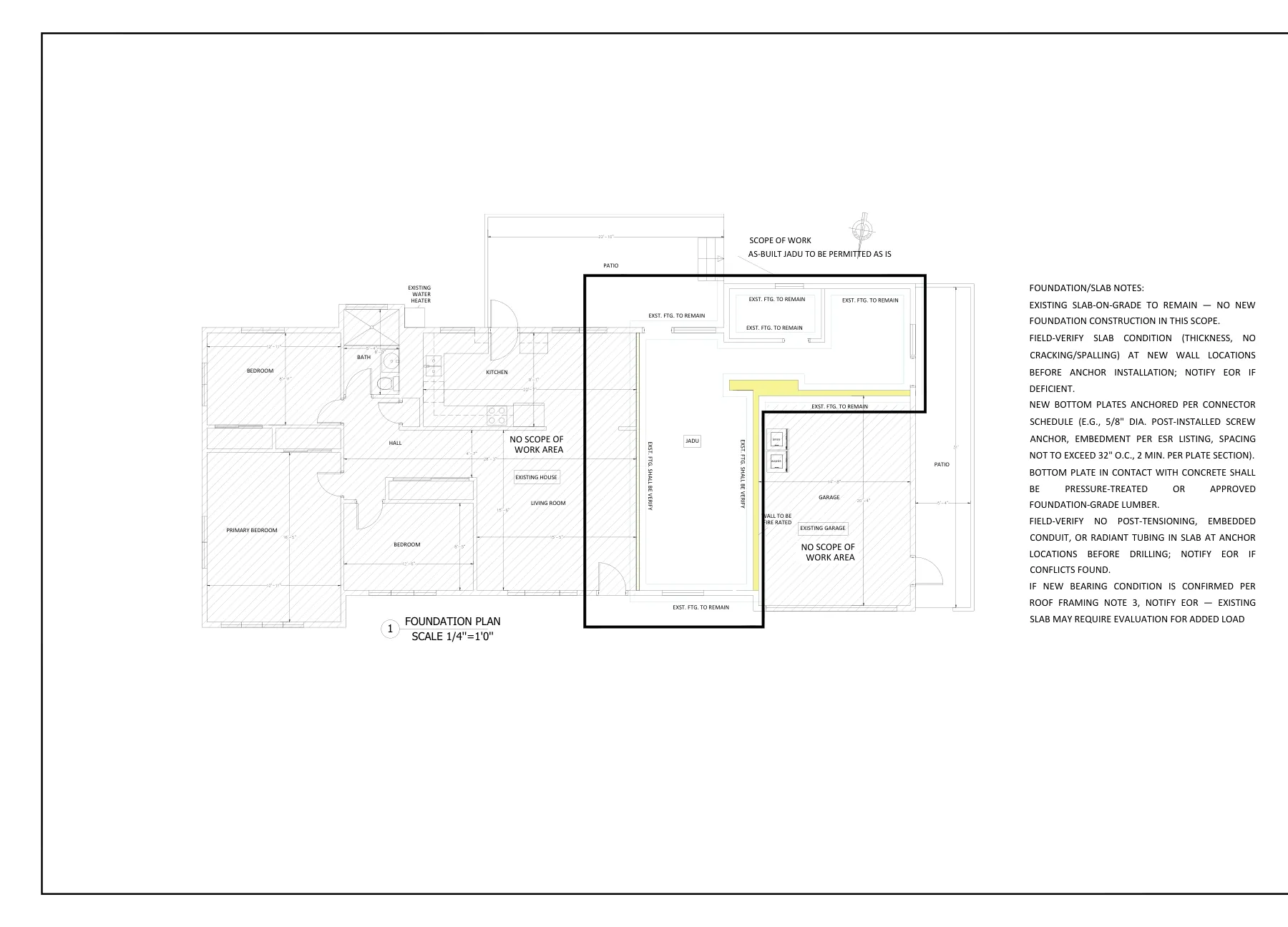

- Foundation plan, wall layout with shear wall marks SW1–SW3, roof framing plan

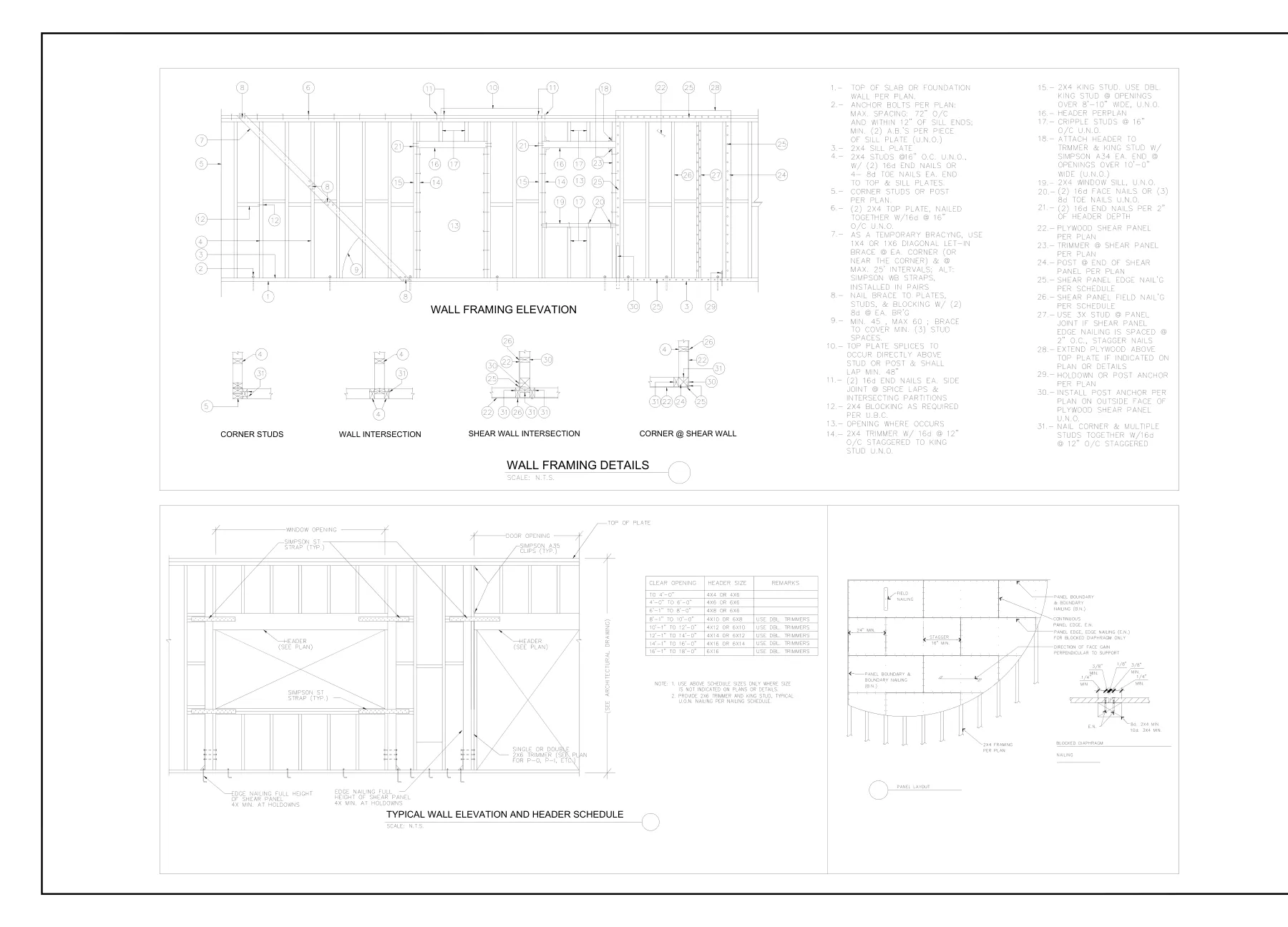

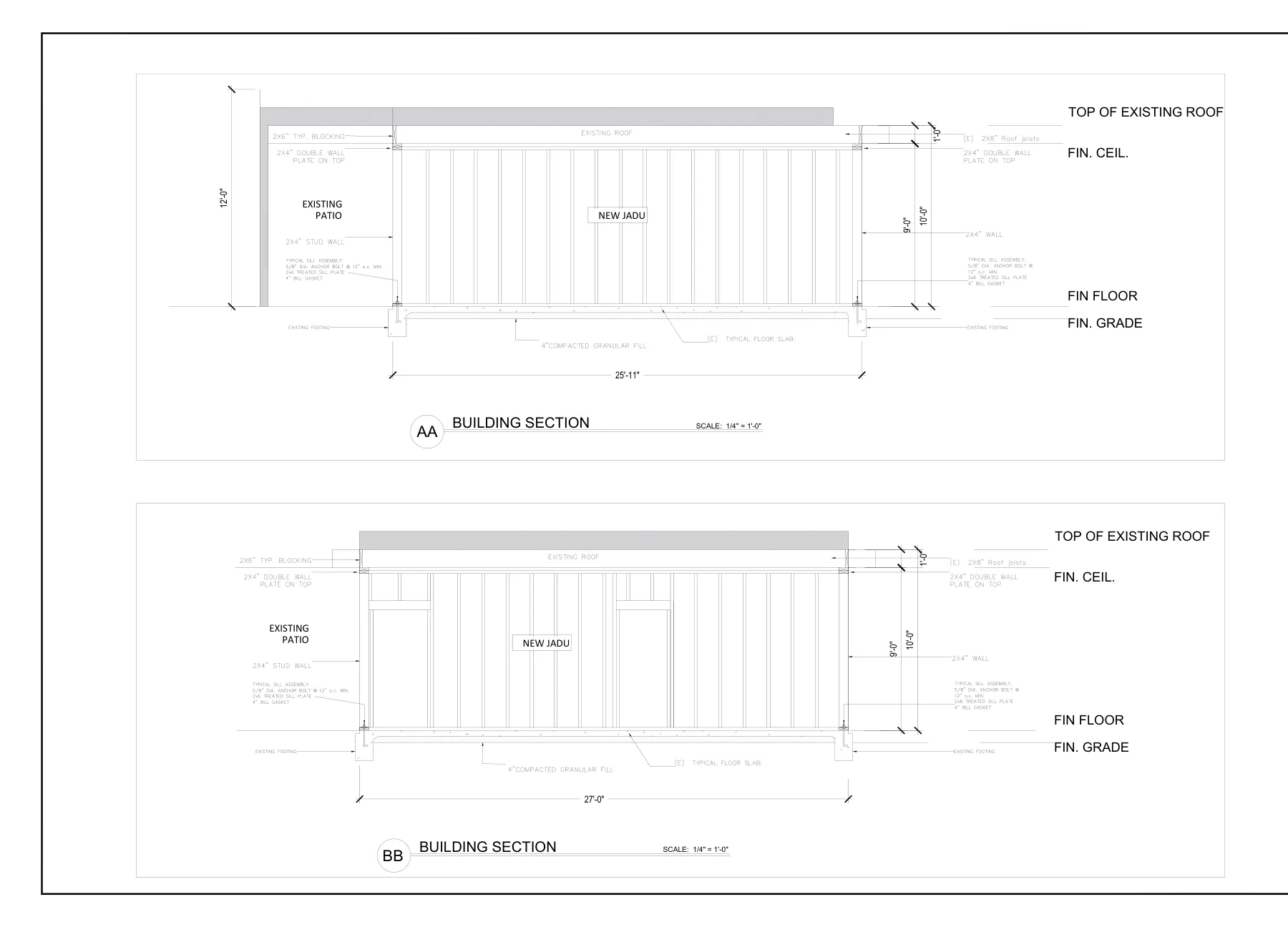

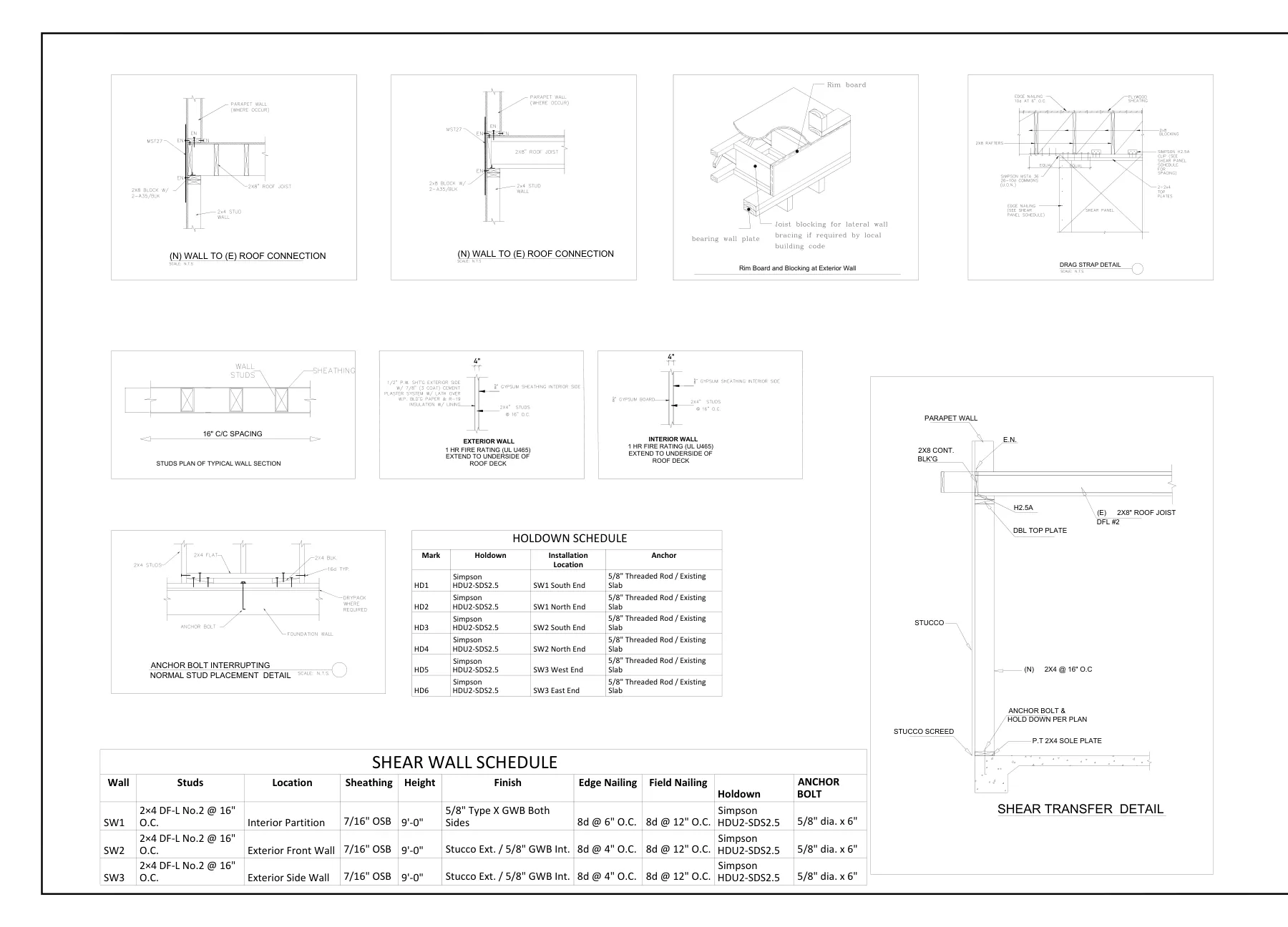

- Typical section, wall and 1-hr wall details

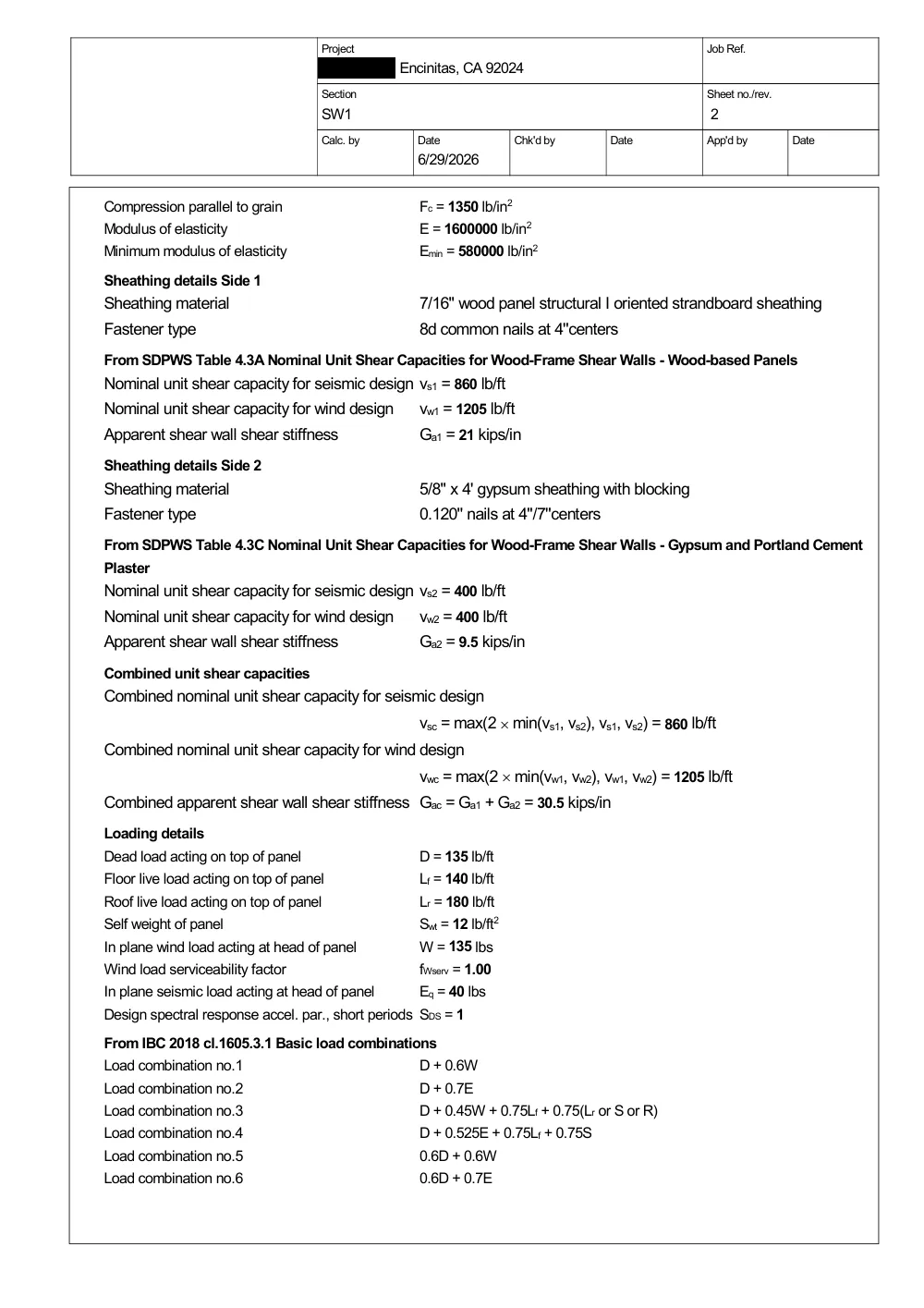

- Segmented shear wall design with Simpson HDU2 hold-downs

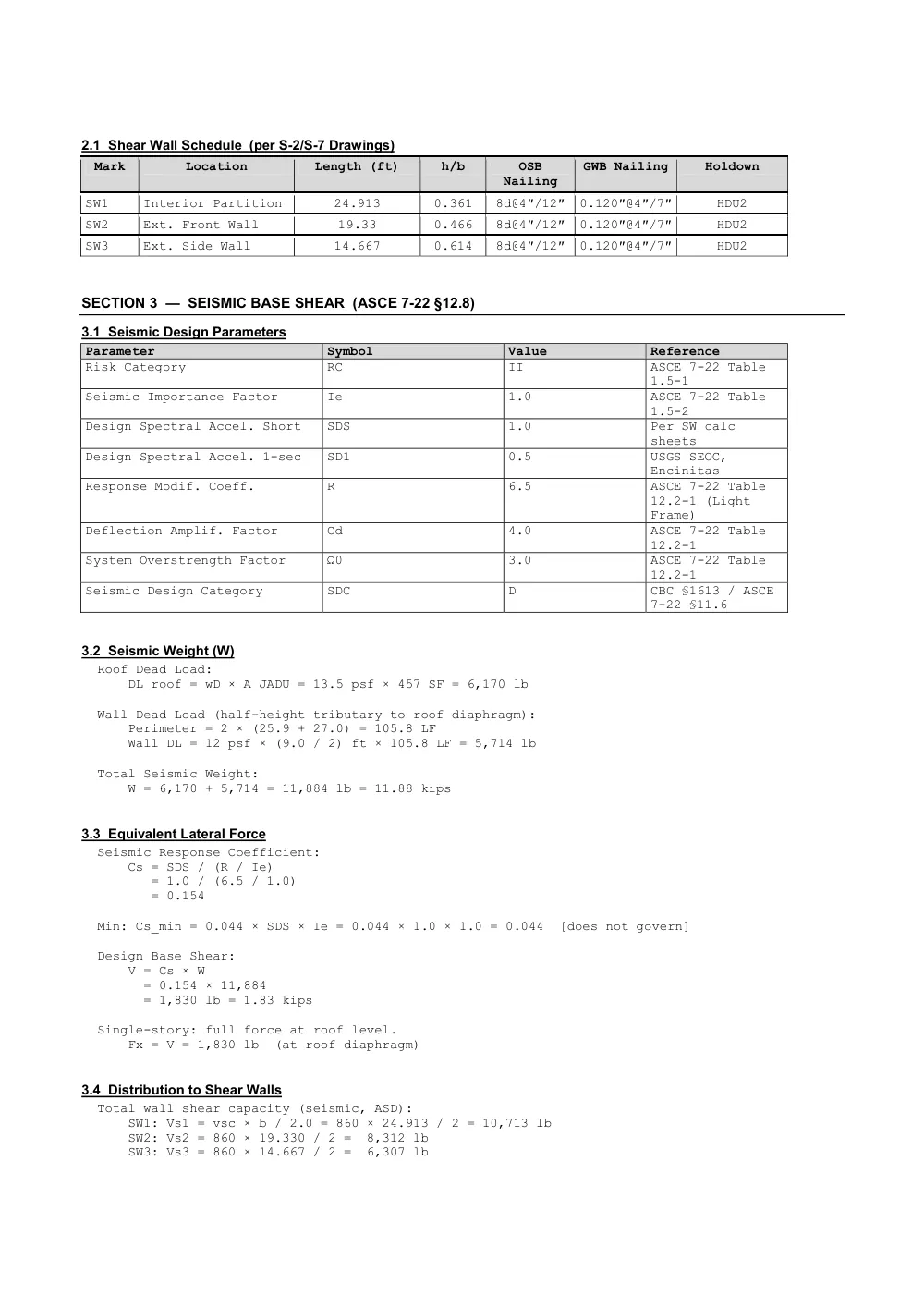

- Seismic base shear (ASCE 7-22), roof-to-wall shear transfer and diaphragm check
- Interior header and beam checks
Drawings & calculations
8 sheets from the project — click any sheet to view it full size.
