Covered Carport on CMU Footing
A new covered carport attached to an existing house, on a reinforced CMU stem wall and continuous footing.
Scope of work

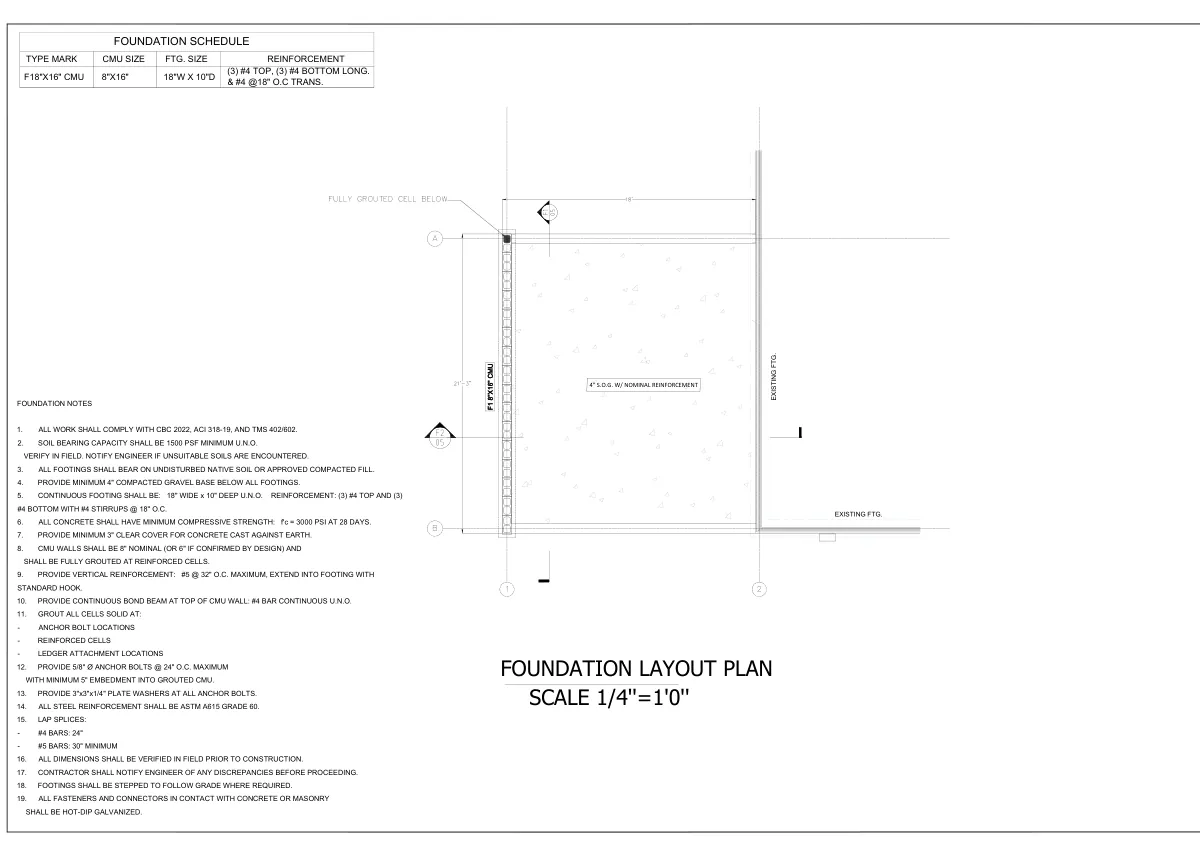

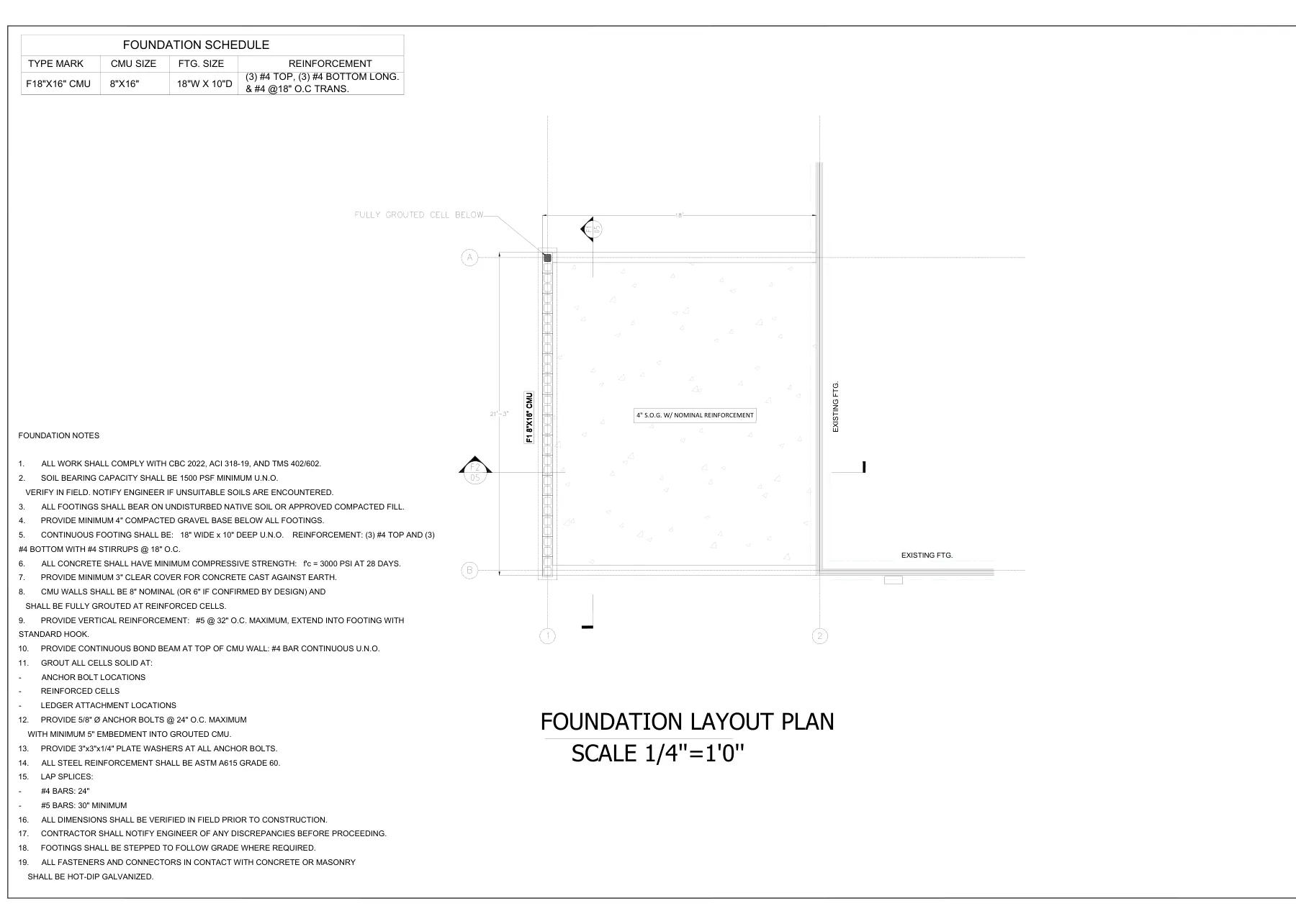

- Foundation schedule: 8"×16" CMU on 18"W × 10"D footing, (3) #4 top and bottom, #4 @ 18" O.C. transverse

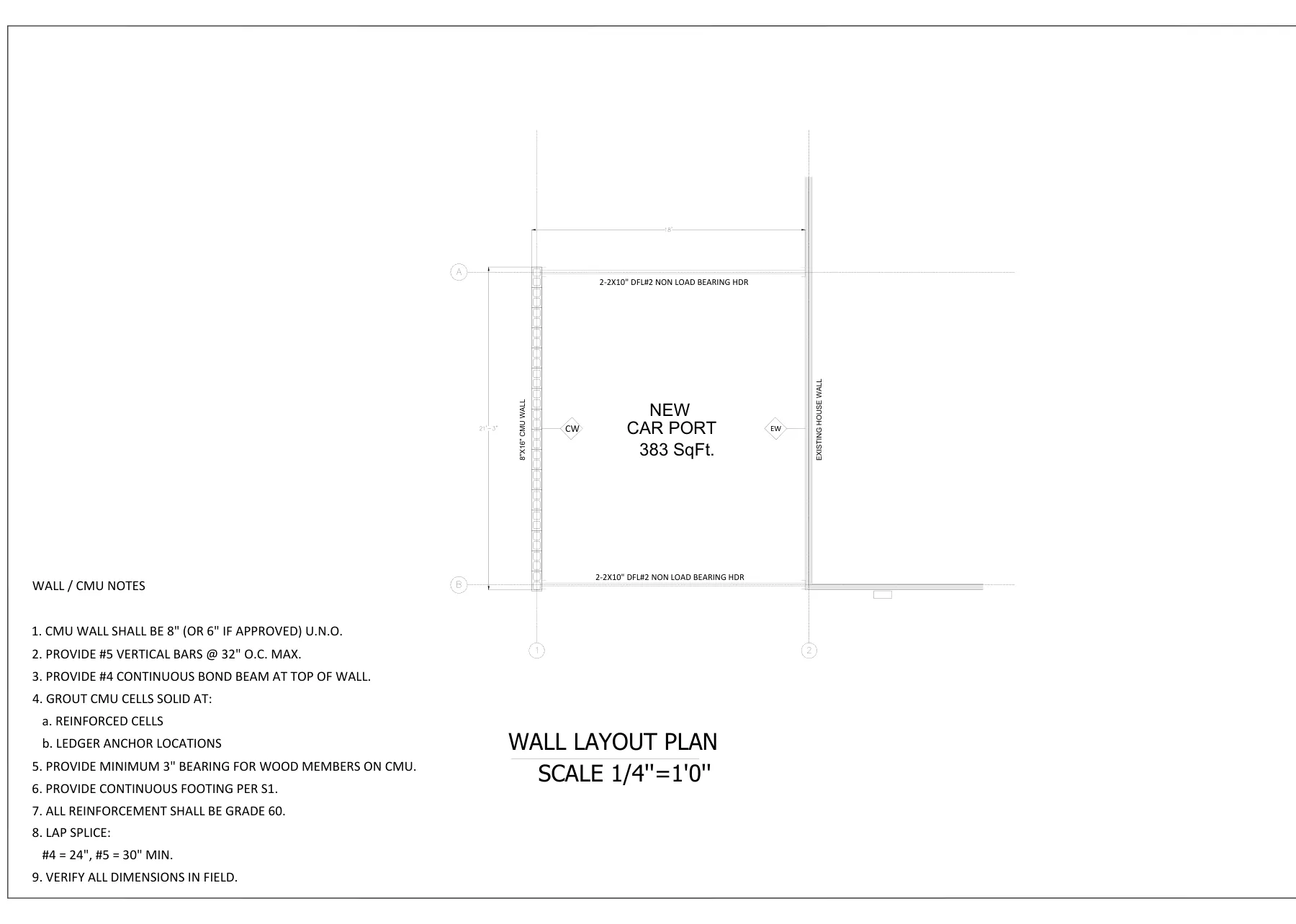

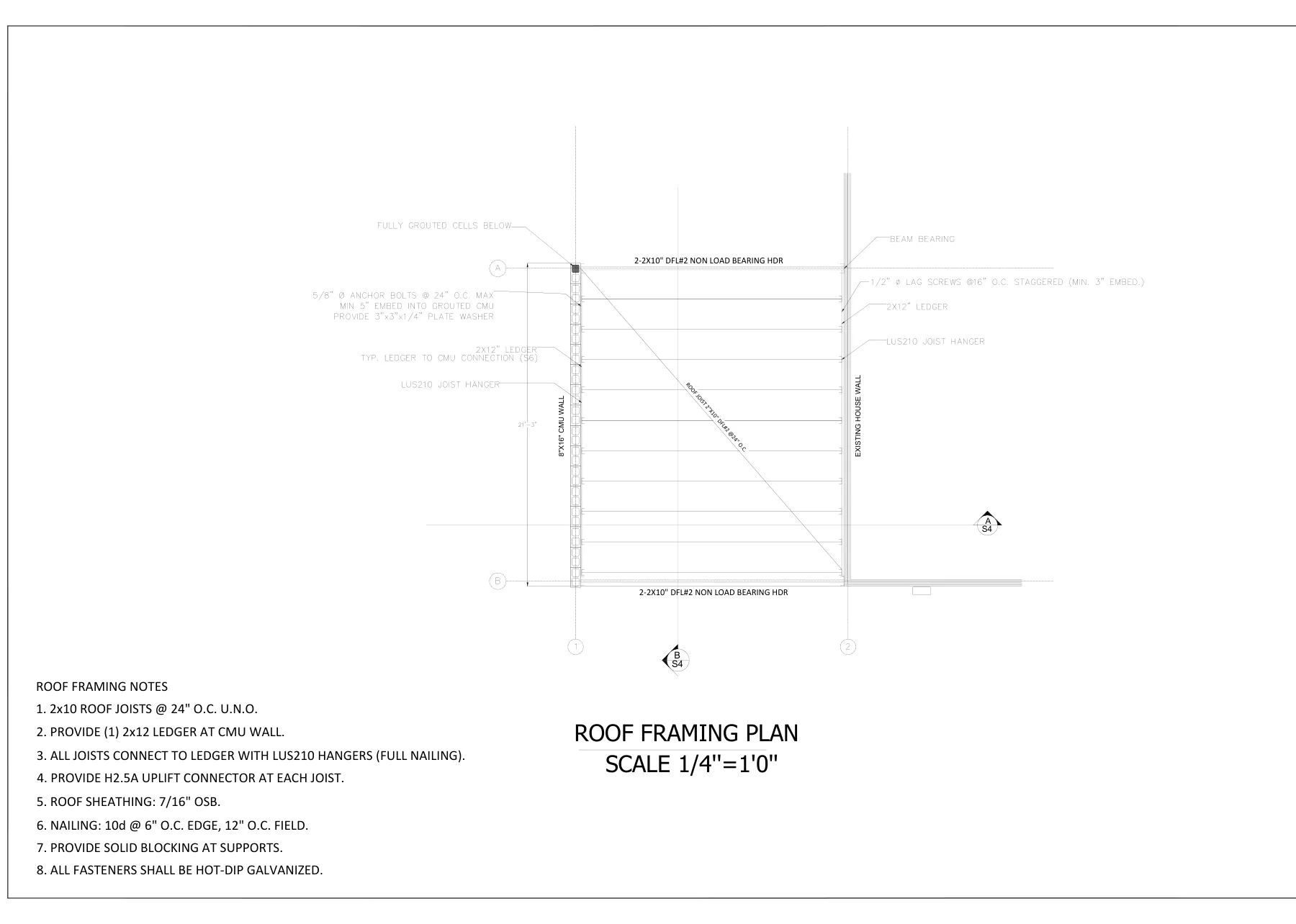

- Wall layout plan and roof framing plan

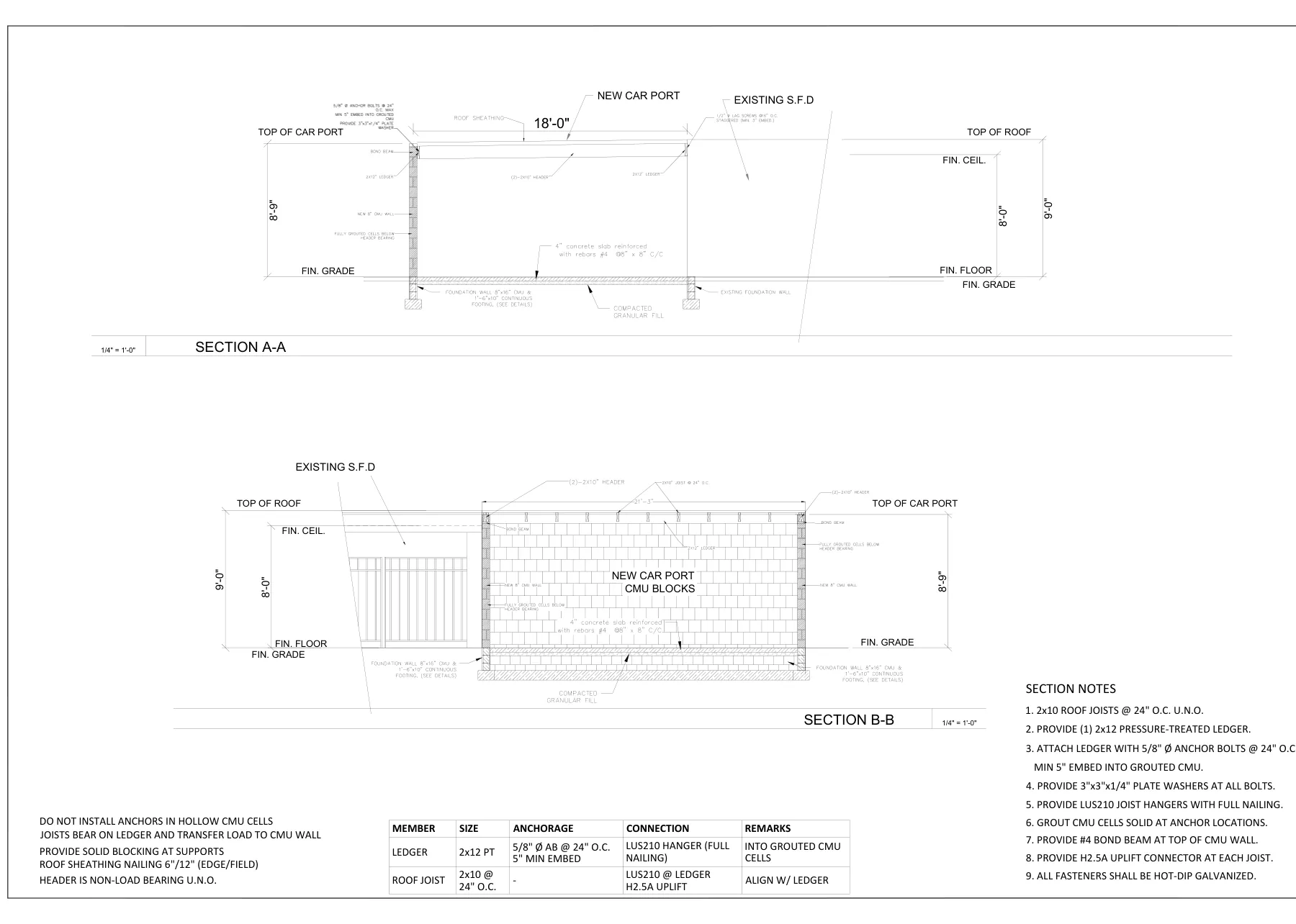

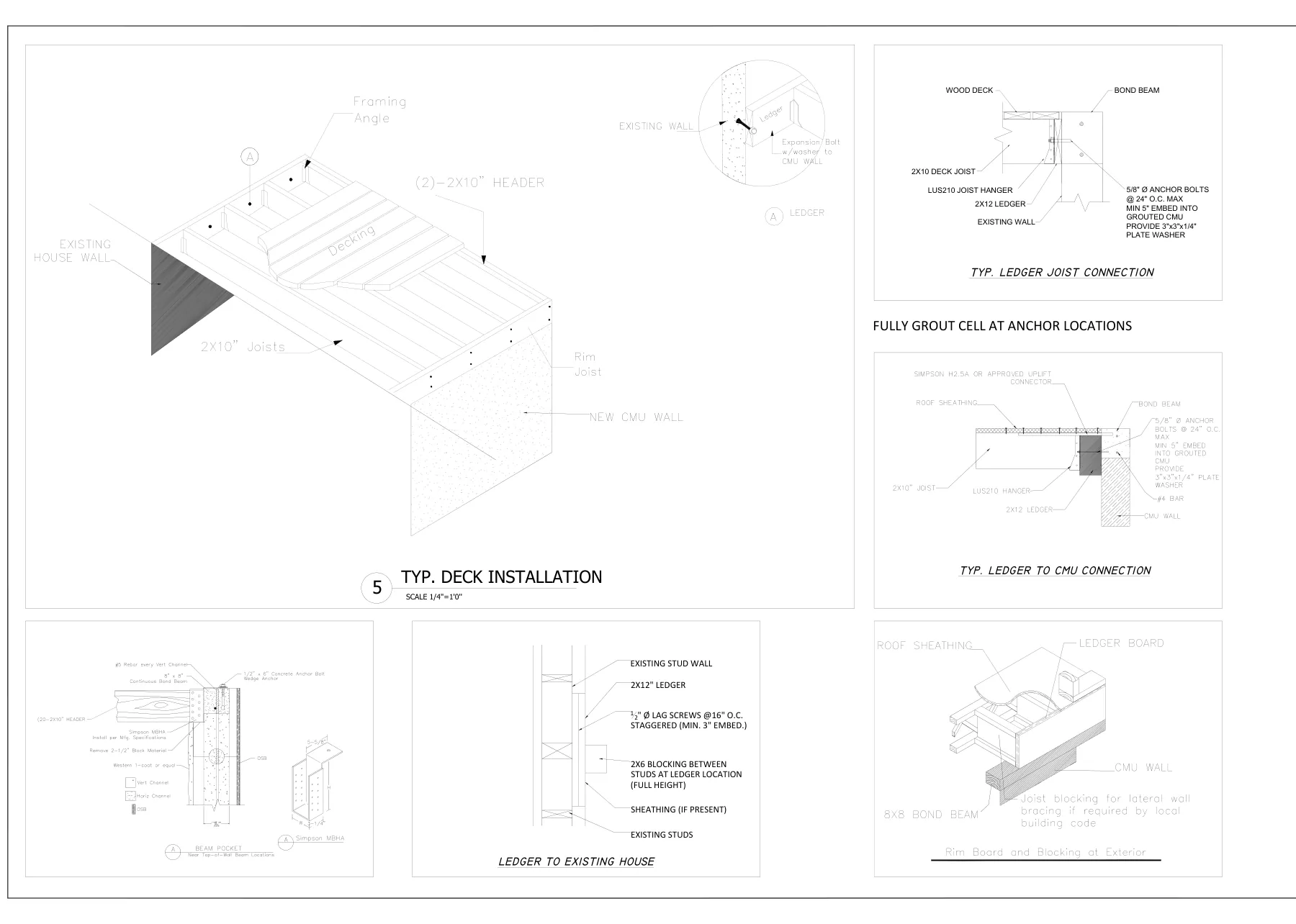

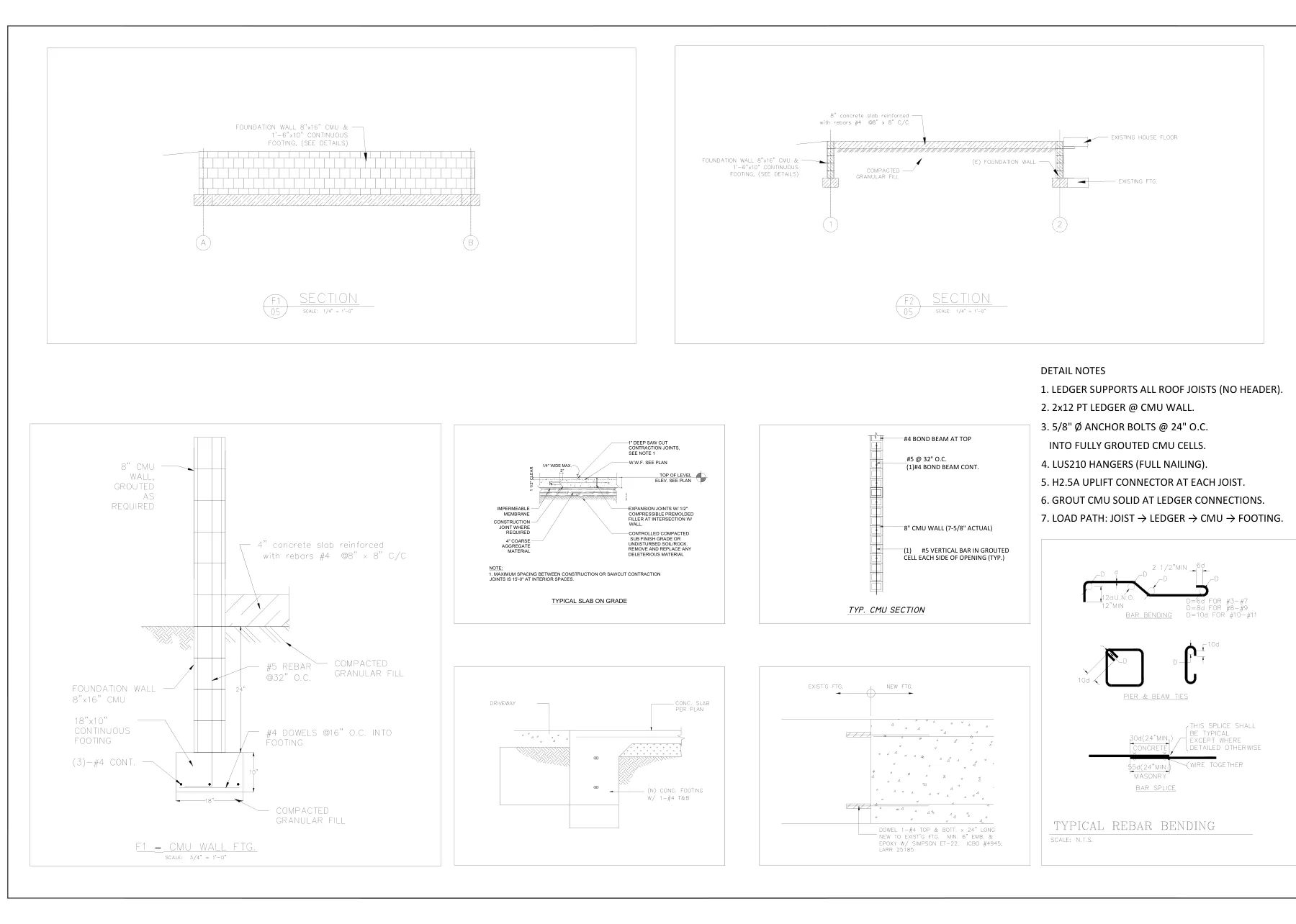

- Typical sections, footing details and deck / roof details
Drawings & calculations
6 sheets from the project — click any sheet to view it full size.
