Detached ADU
A new single-story detached ADU with foundation, shear wall and roof framing design.
Scope of work

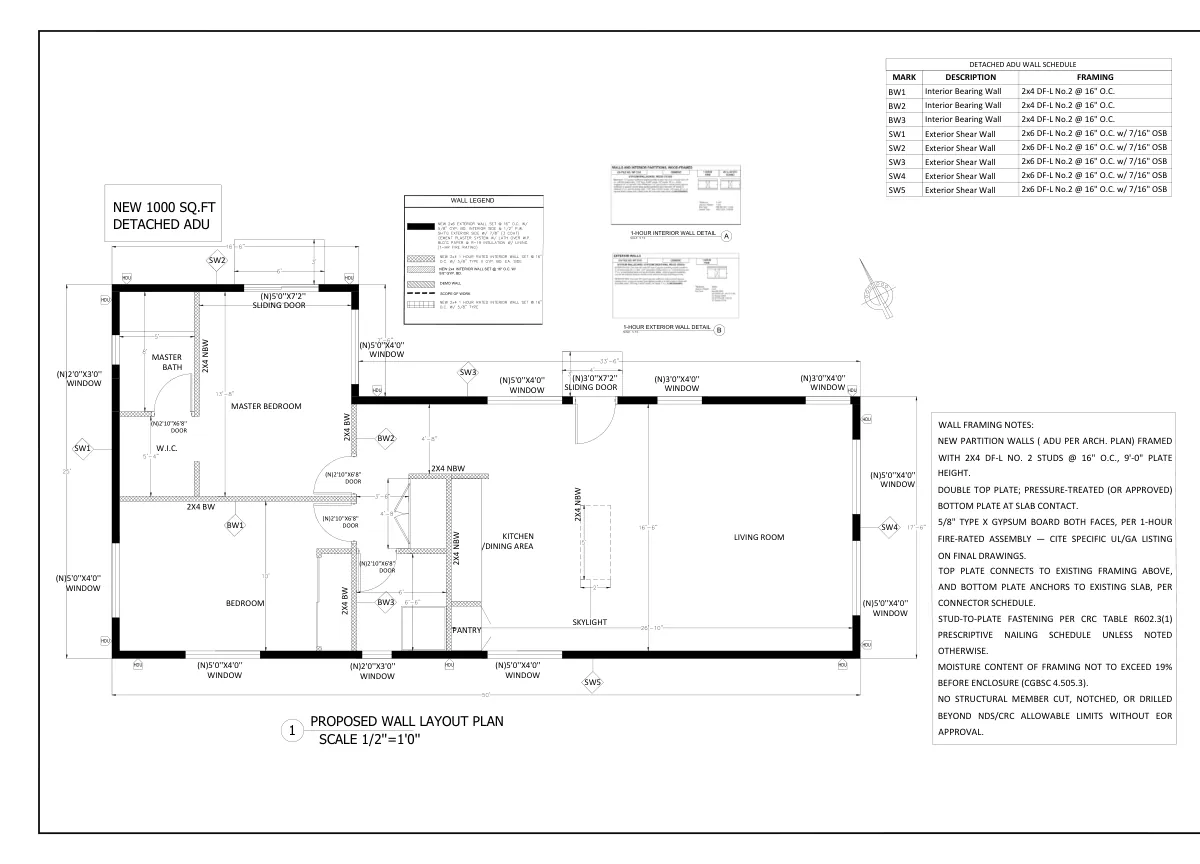

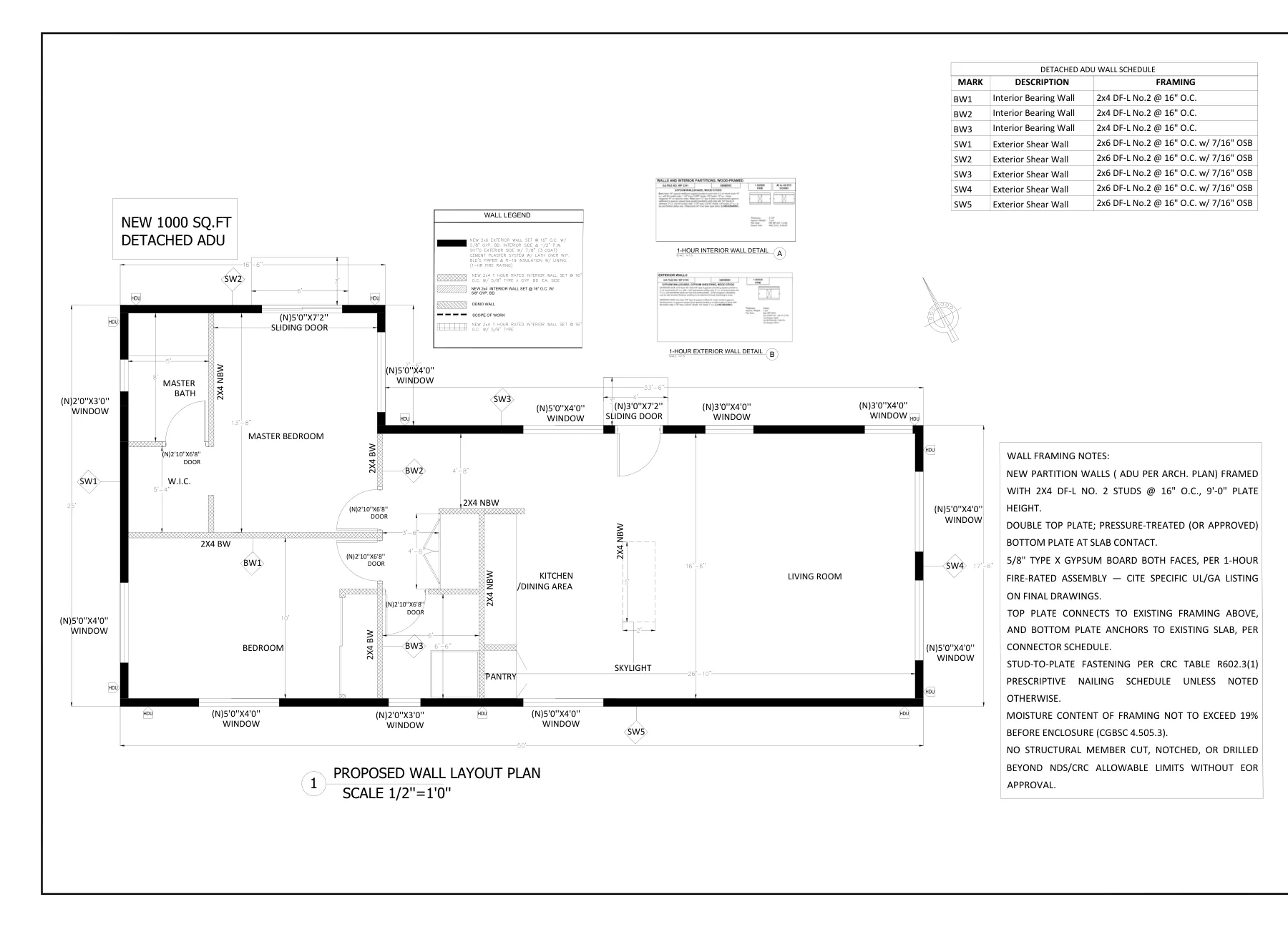

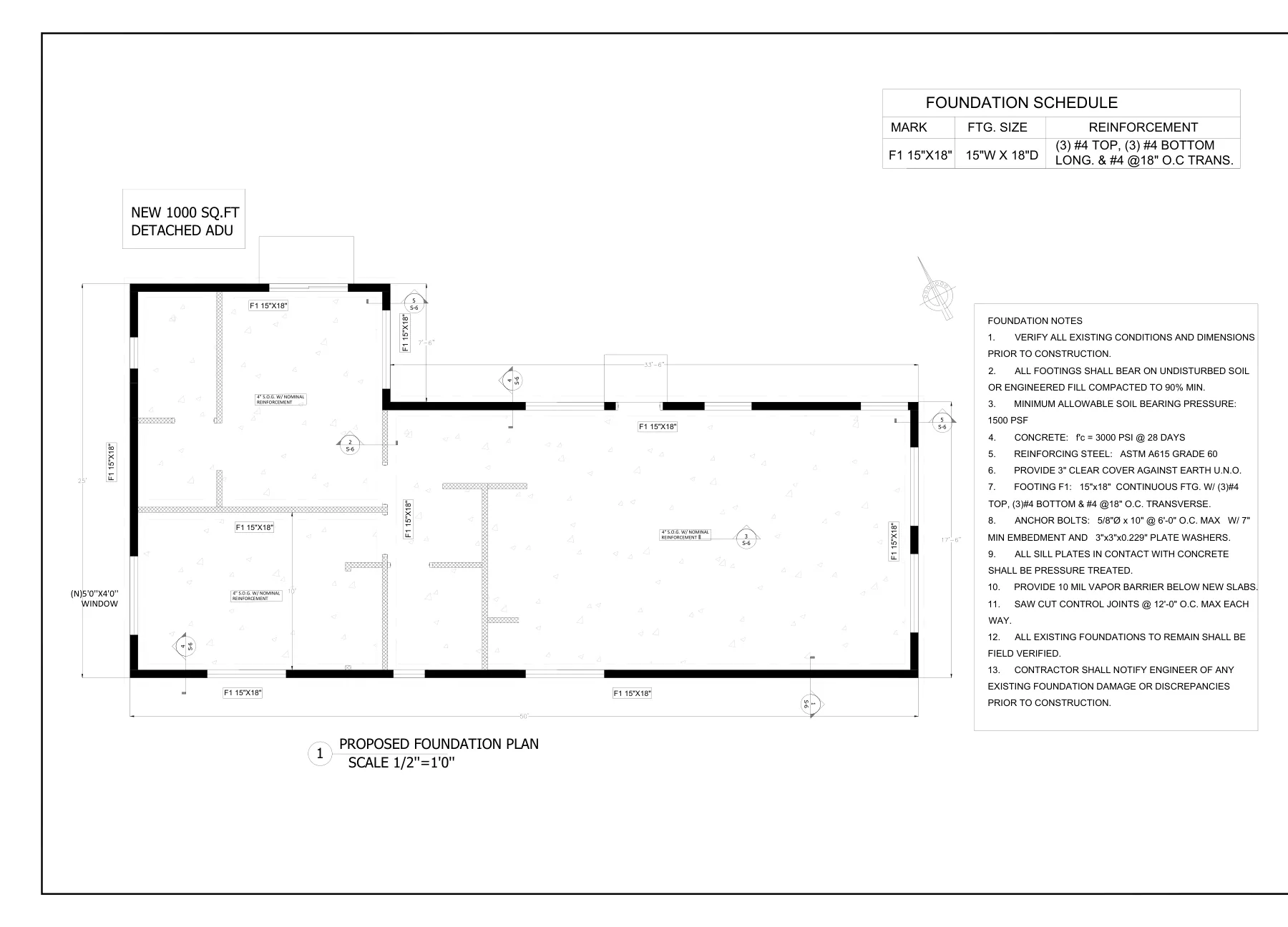

- Foundation plan and wall layout plan

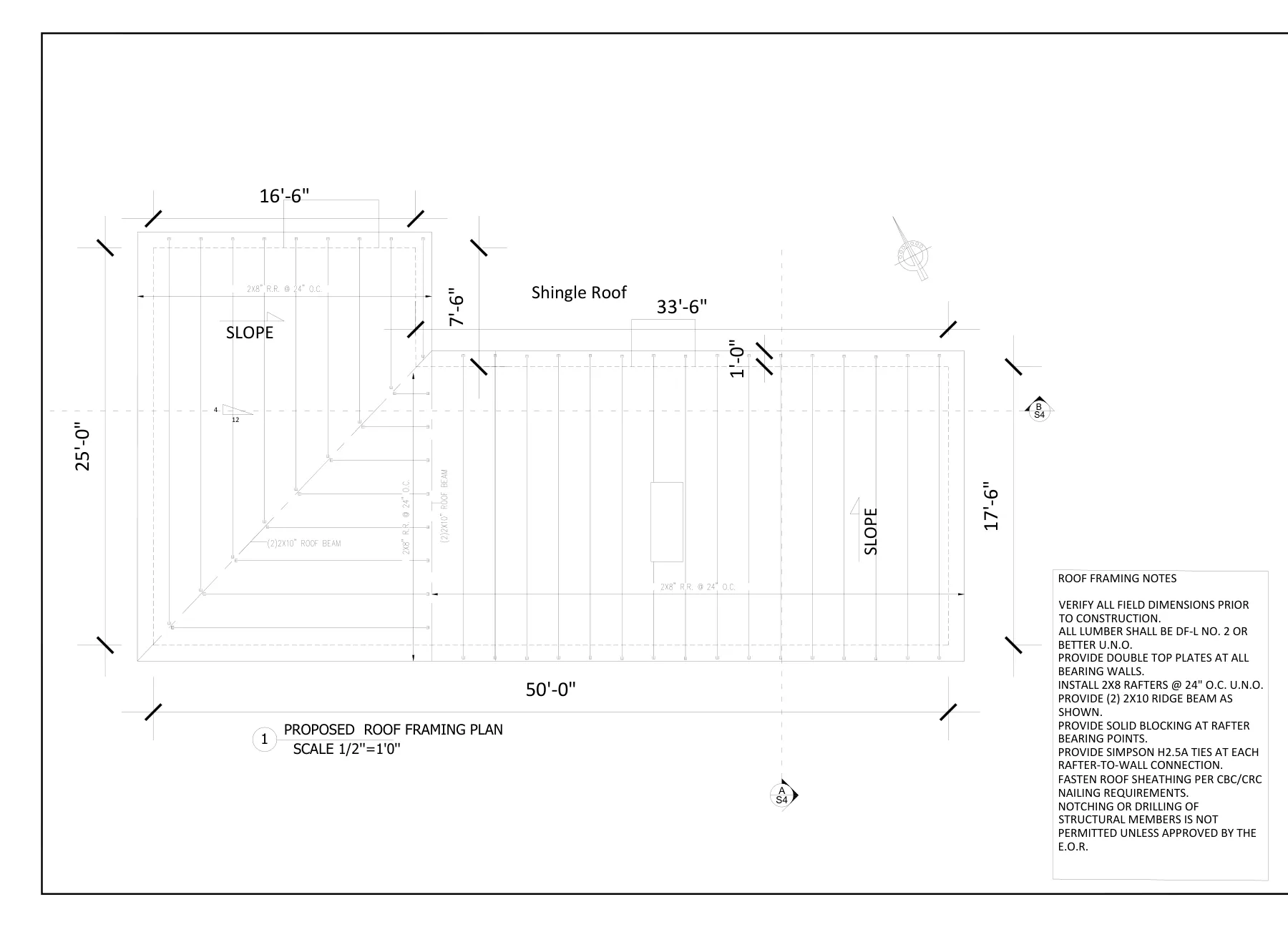

- ADU roof framing plan

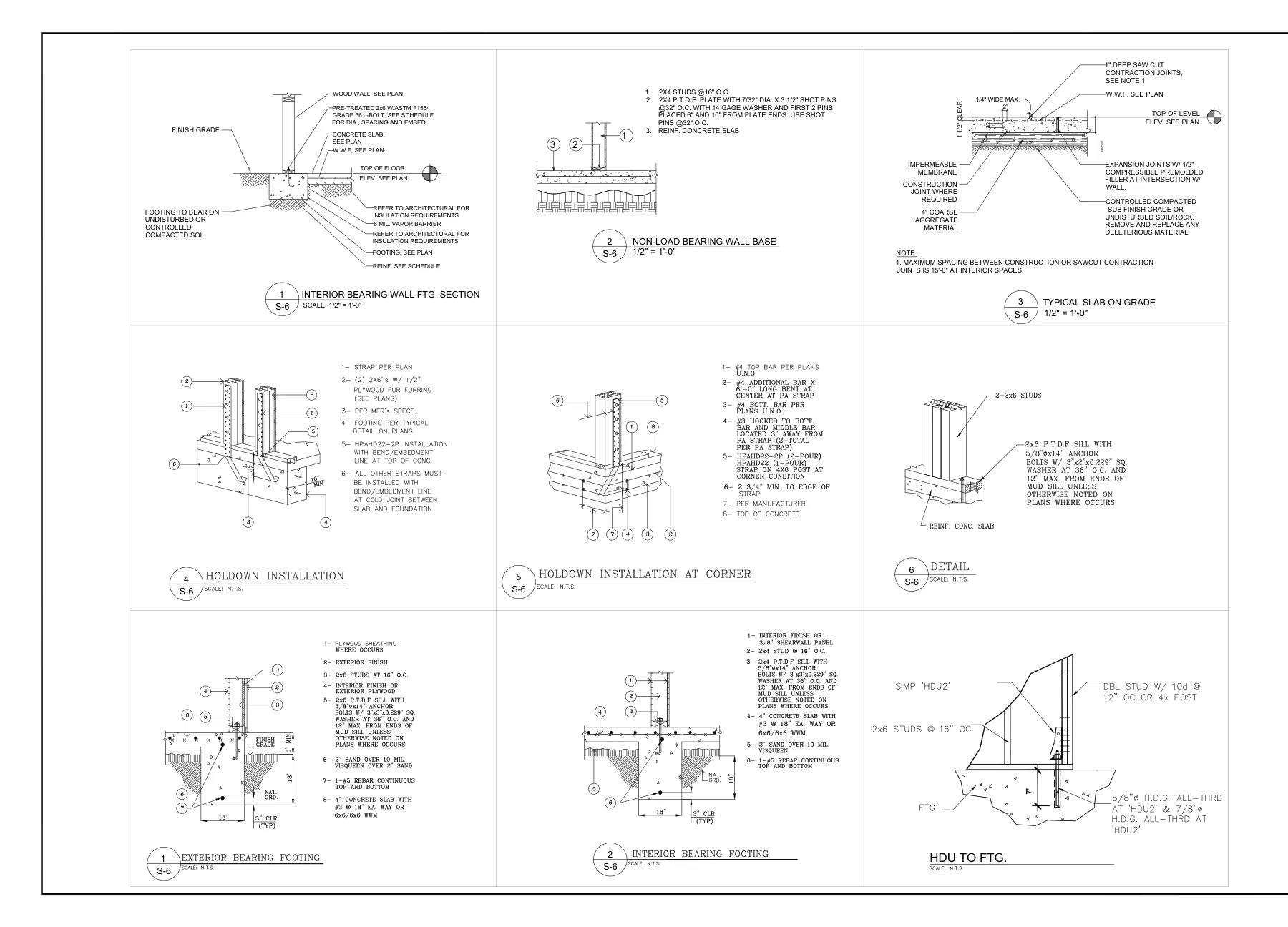

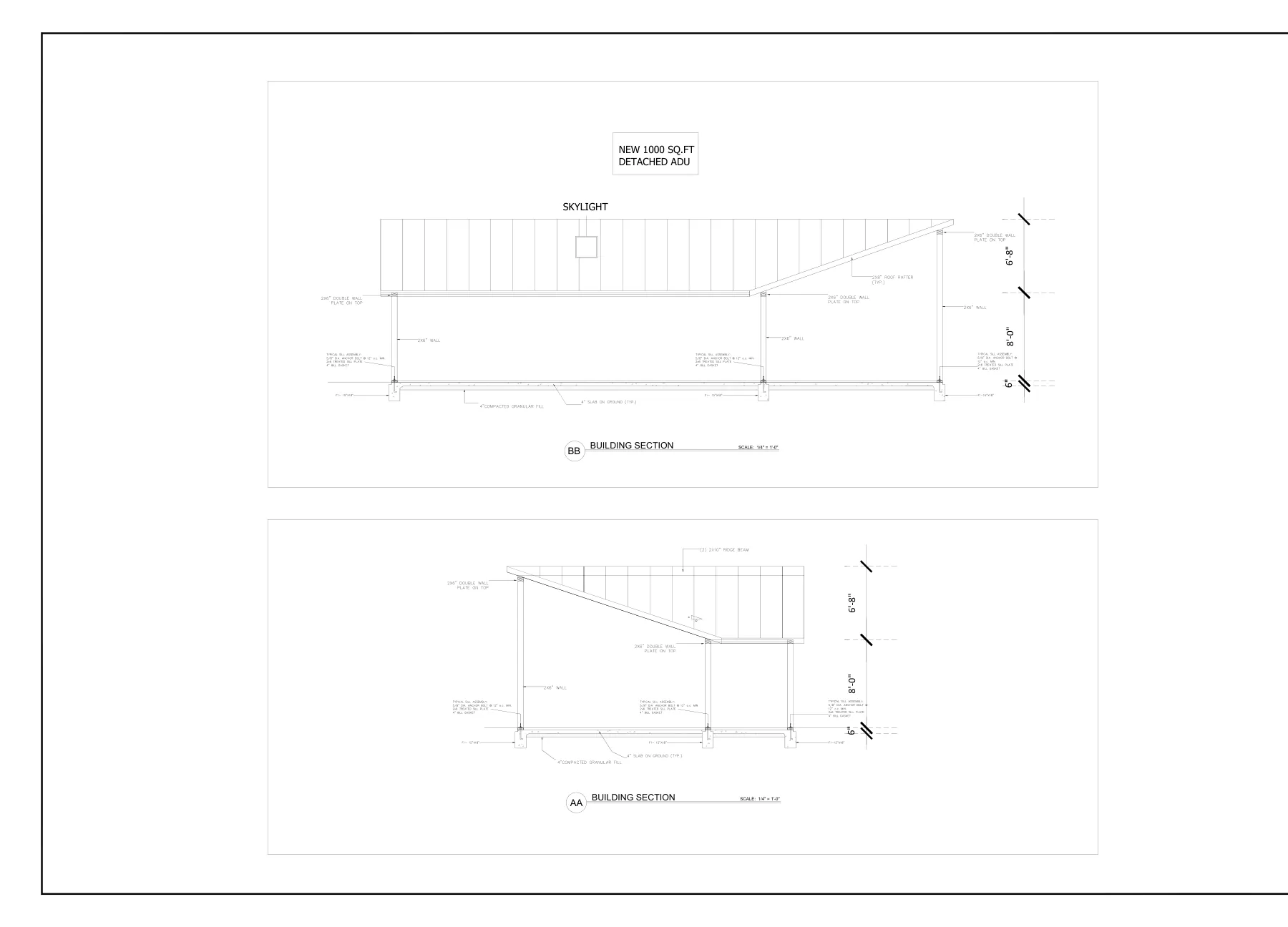

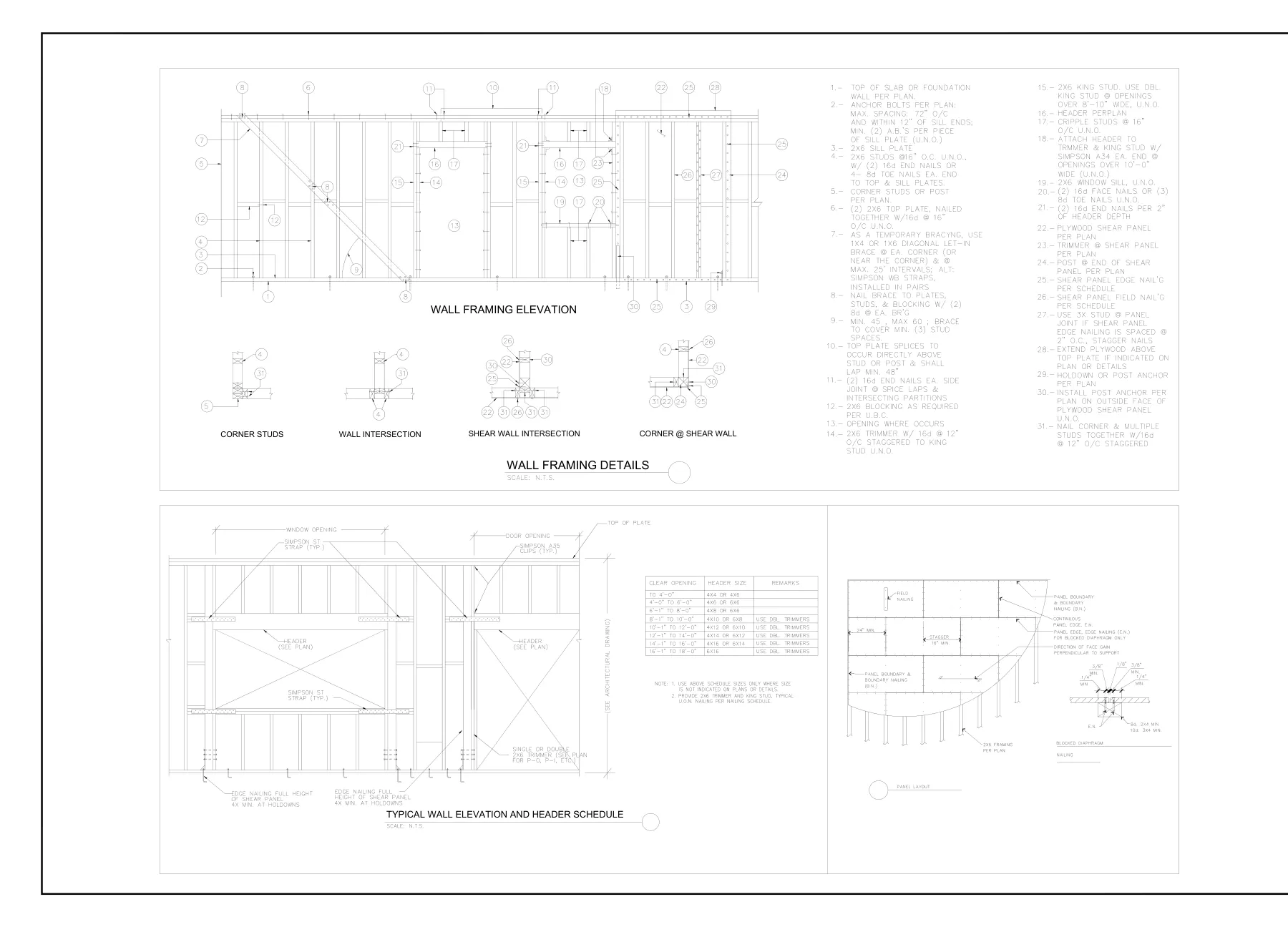

- Typical section and wall details

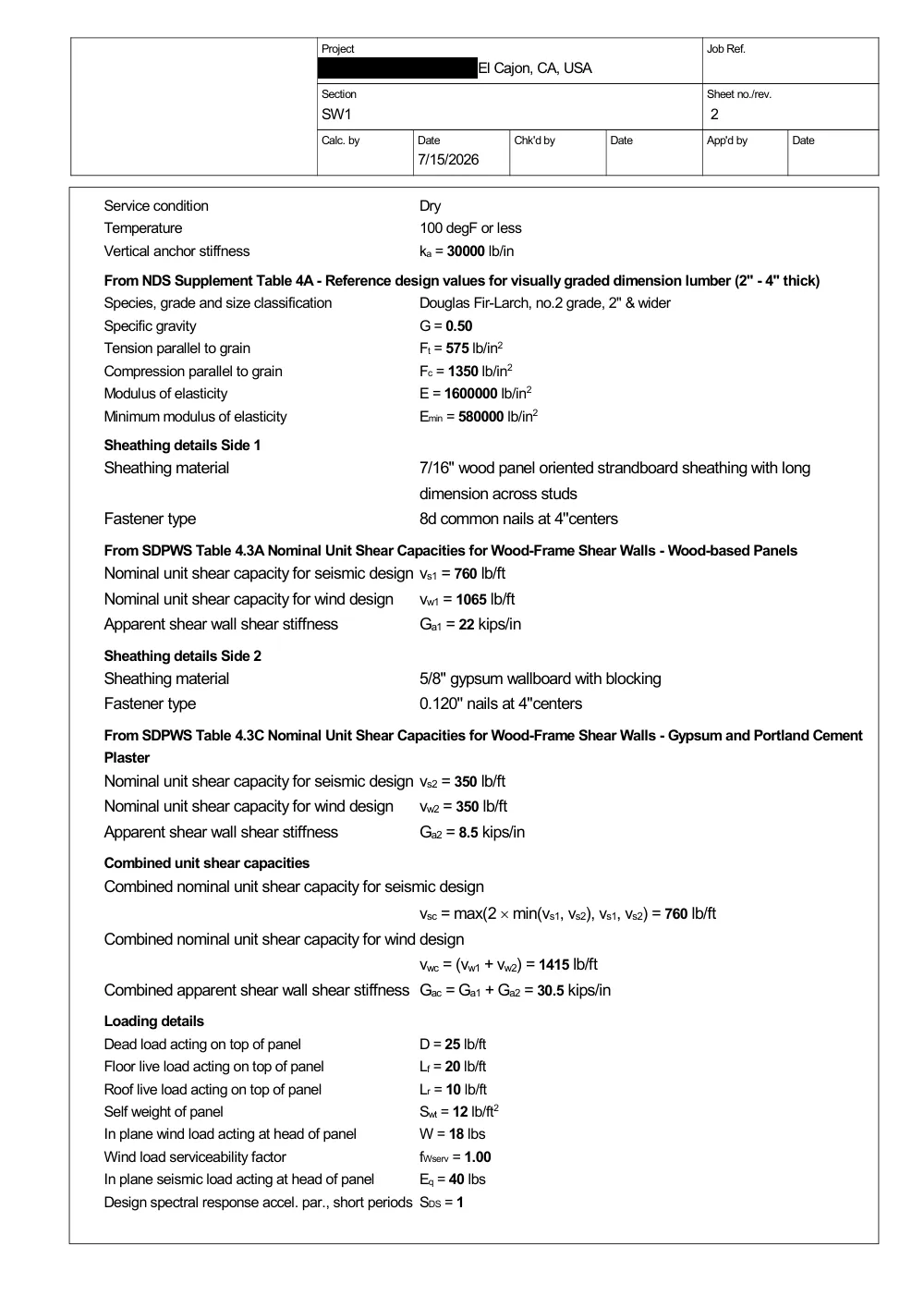

- Lateral analysis for wind and seismic loads
Drawings & calculations
7 sheets from the project — click any sheet to view it full size.
