RV Garage to ADU with Loft
Conversion of an existing RV garage into an ADU with a new loft, including the wall framing, shear walls, floor joists and stair.
Scope of work

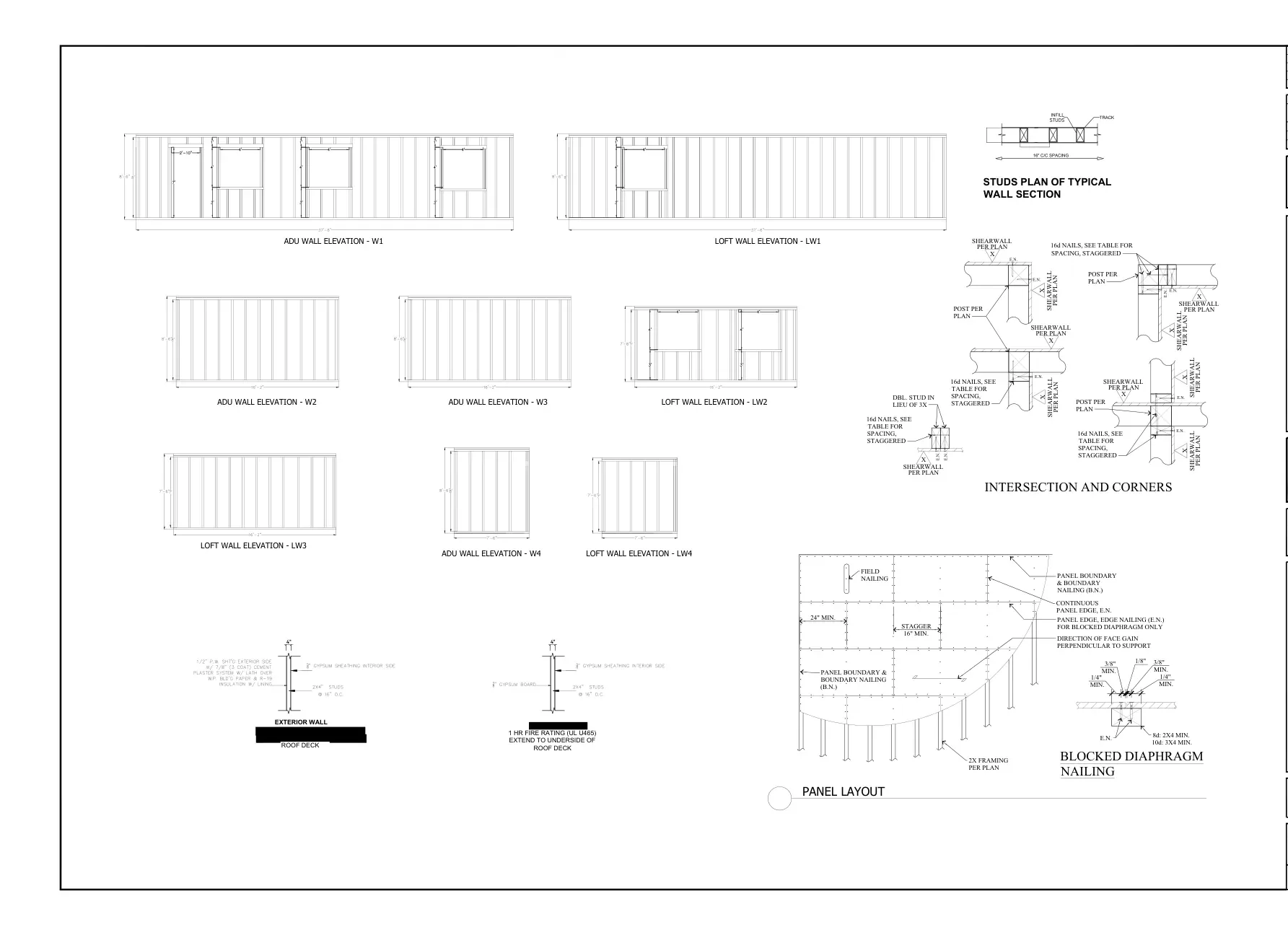

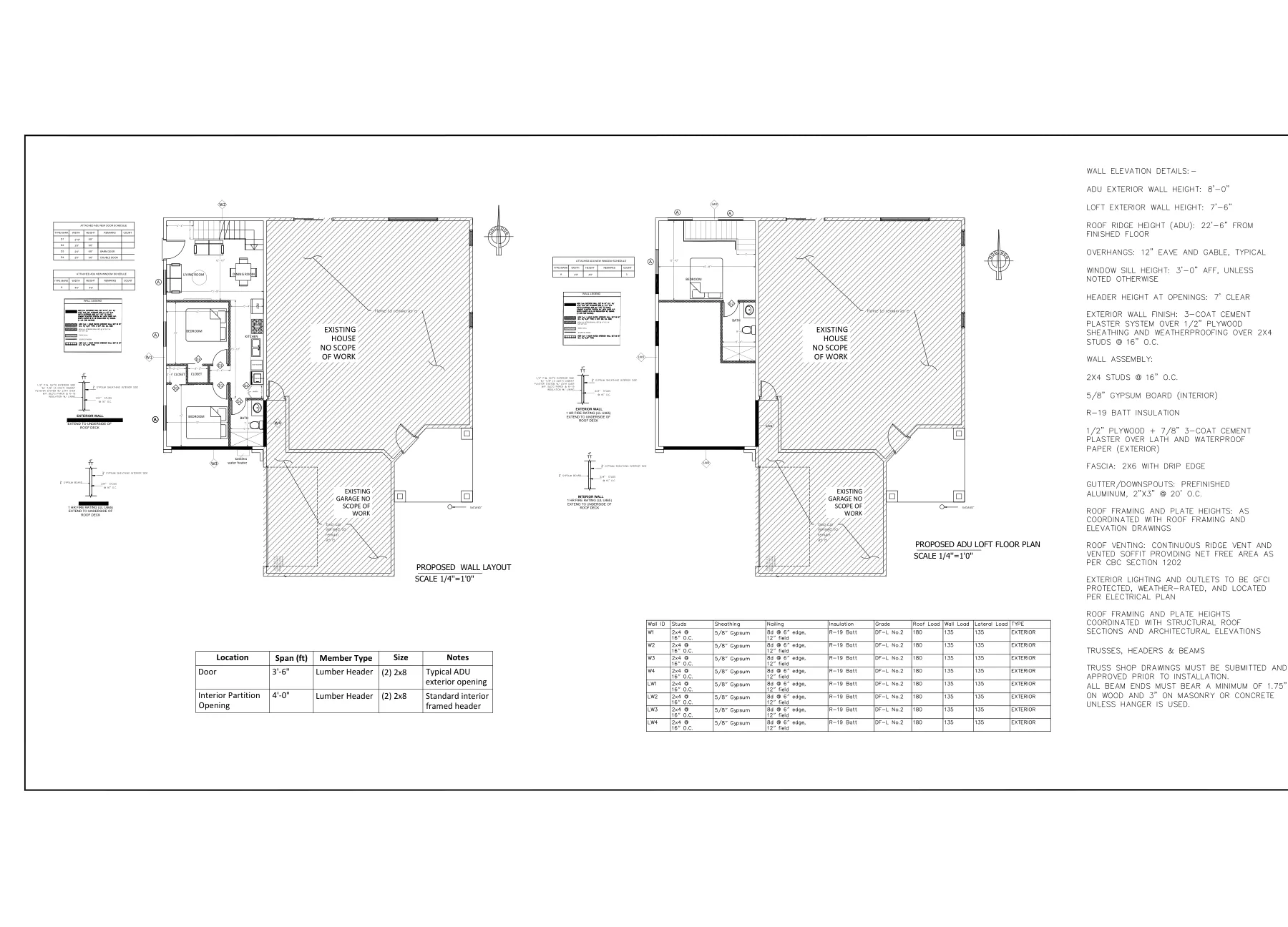

- ADU wall framing plan and wall elevations

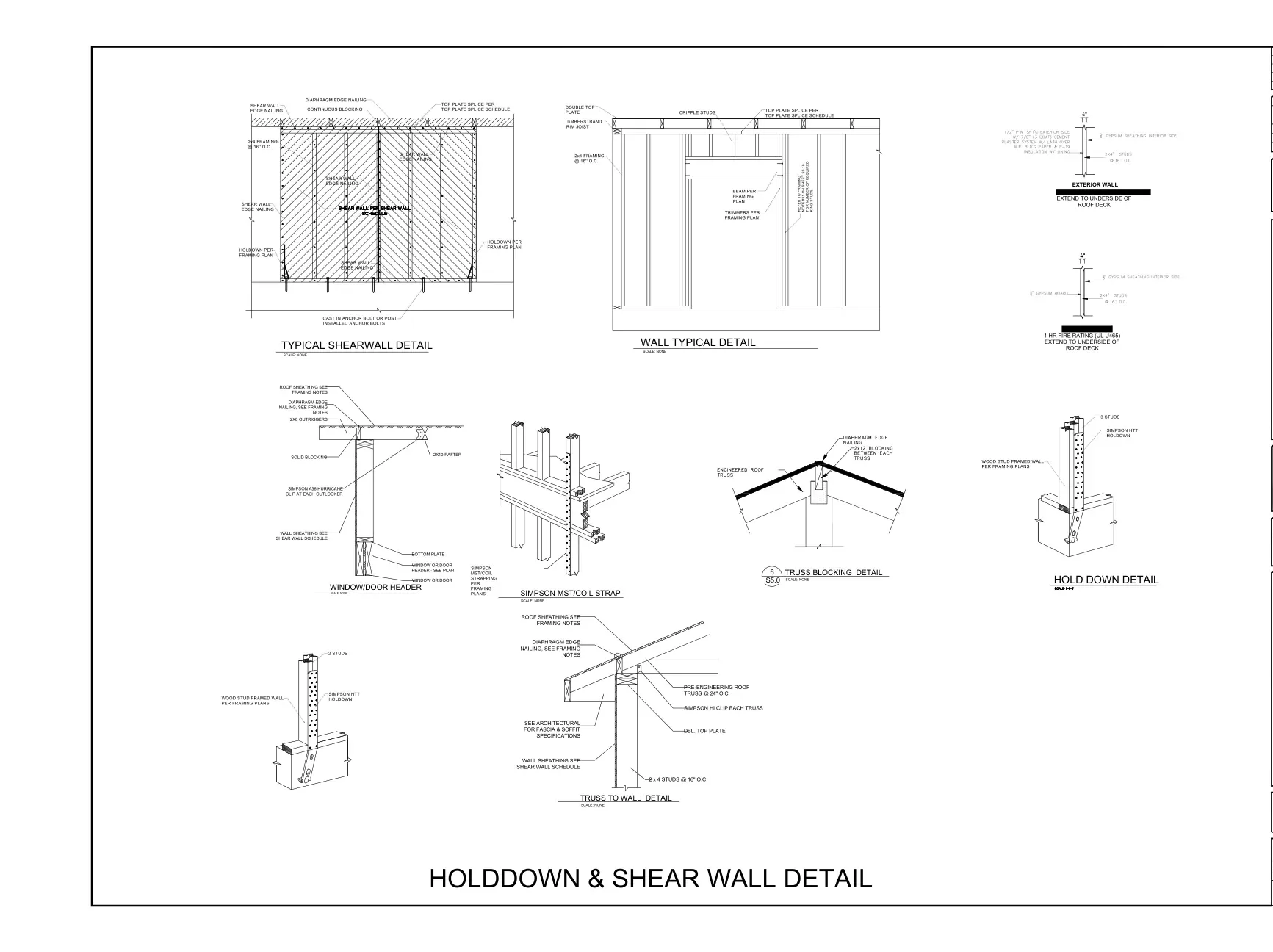

- Shear wall details

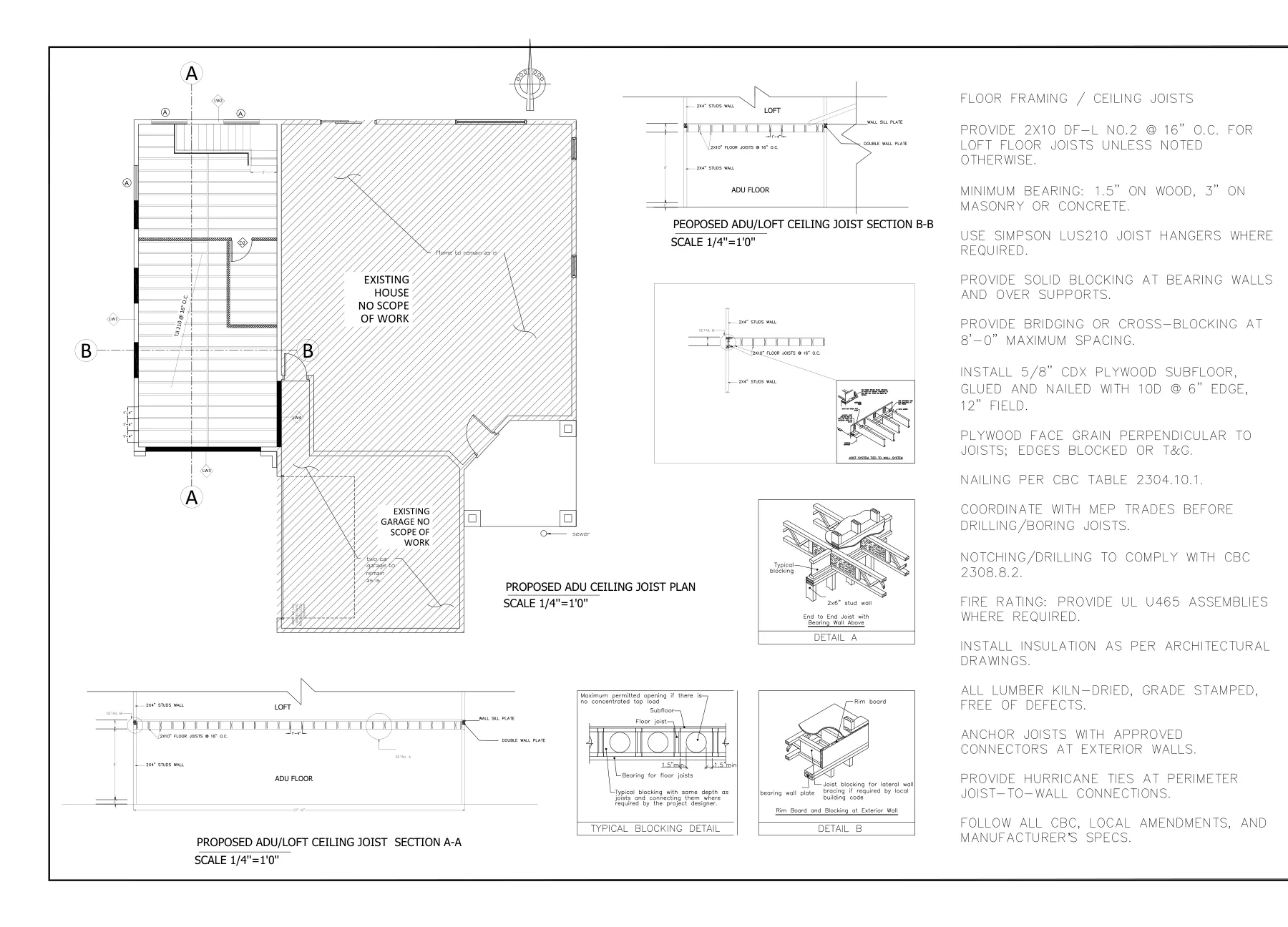

- Loft floor joist plan

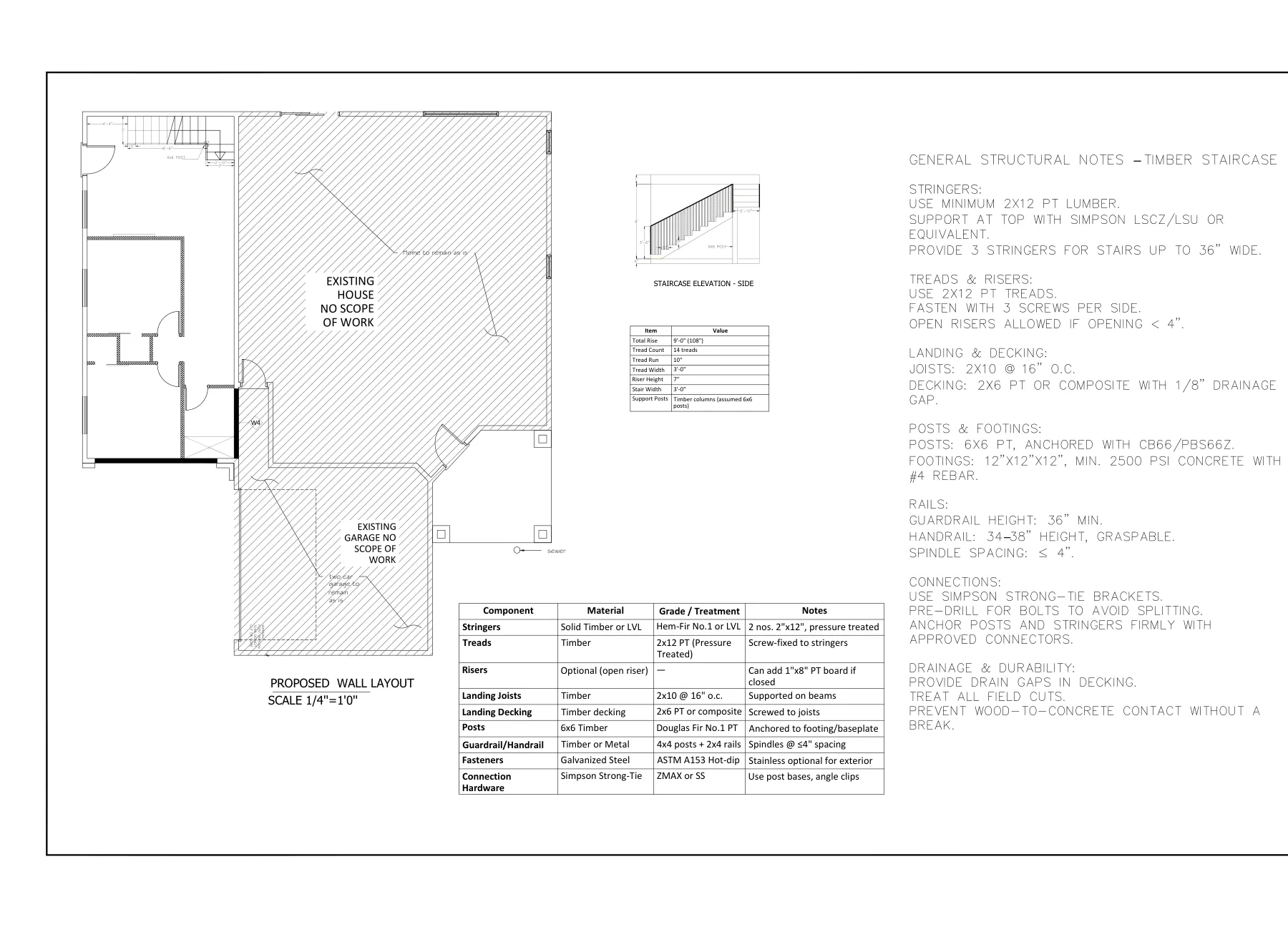

- Staircase details

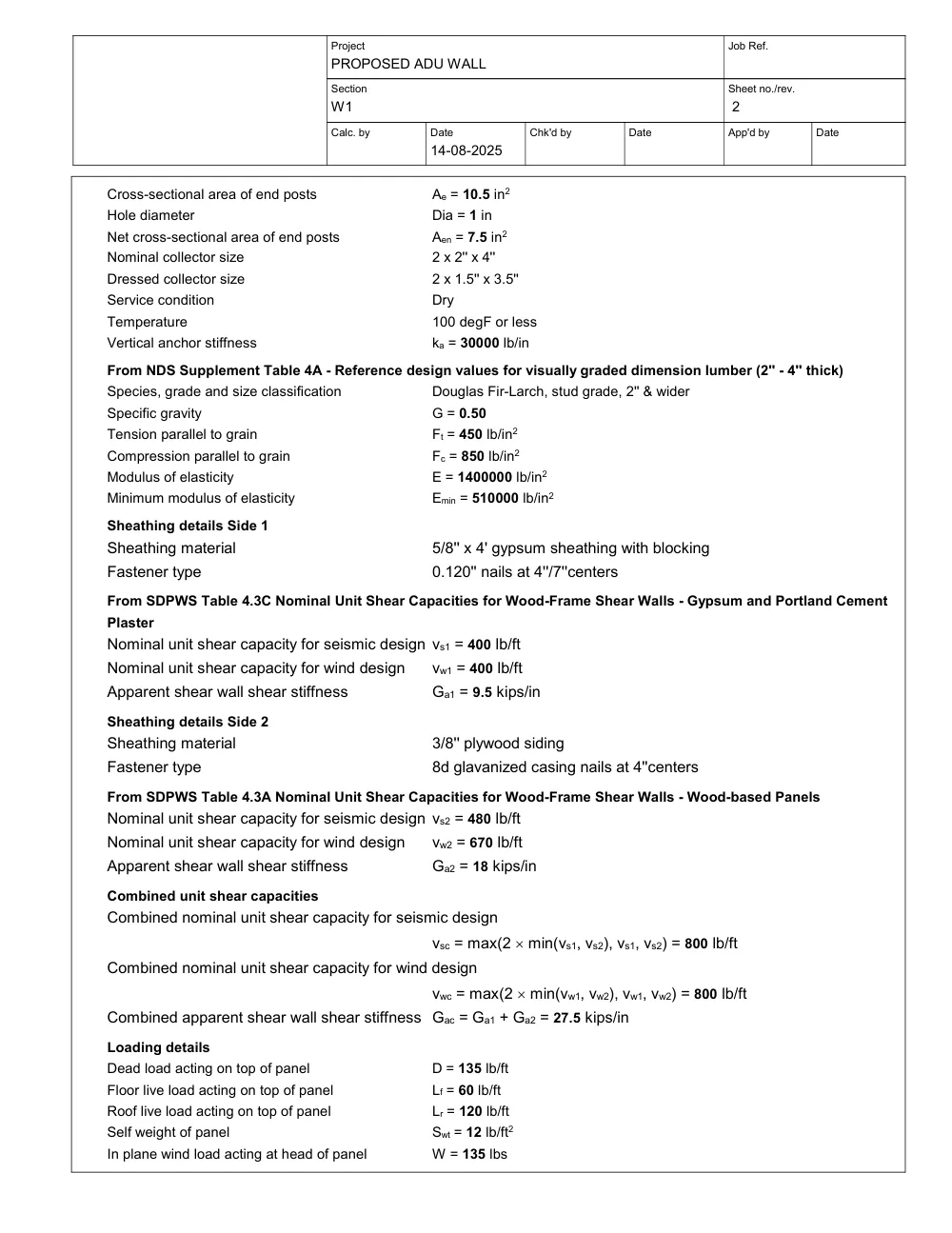

Drawings & calculations
6 sheets from the project — click any sheet to view it full size.
