Multi-Storey RC Frame with Shear Walls — 3D Model

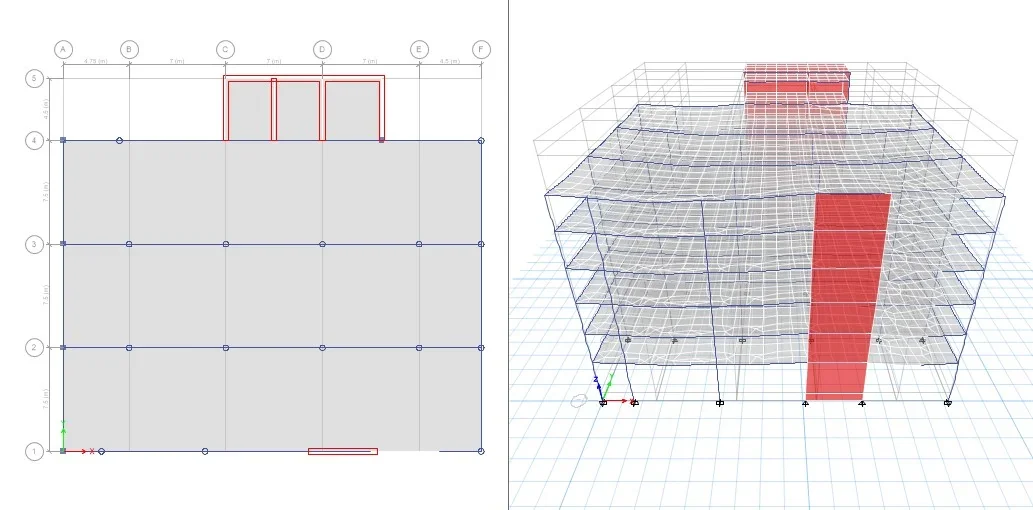

3D analysis model of a multi-storey concrete frame with floor diaphragms meshed as shells and shear walls at the core and perimeter.
Scope of work

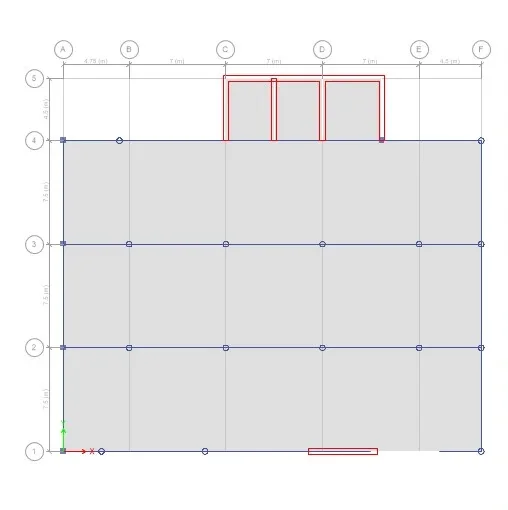

- Grid A–F (4.75 / 7 / 7 / 7 / 4.5 m) by grid 1–5 (7.5 / 7.5 / 7.5 / 4.5 m)
- Floor slabs meshed as shell elements; vertical wall elements at the core and on the perimeter

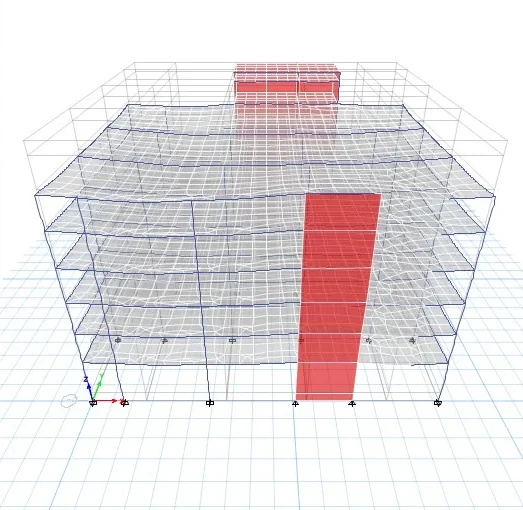

- Deformed-shape review of the floor plates under load
Drawings & calculations
3 sheets from the project — click any sheet to view it full size.
