Four-Cell Octagonal Concrete Structure — ETABS Model

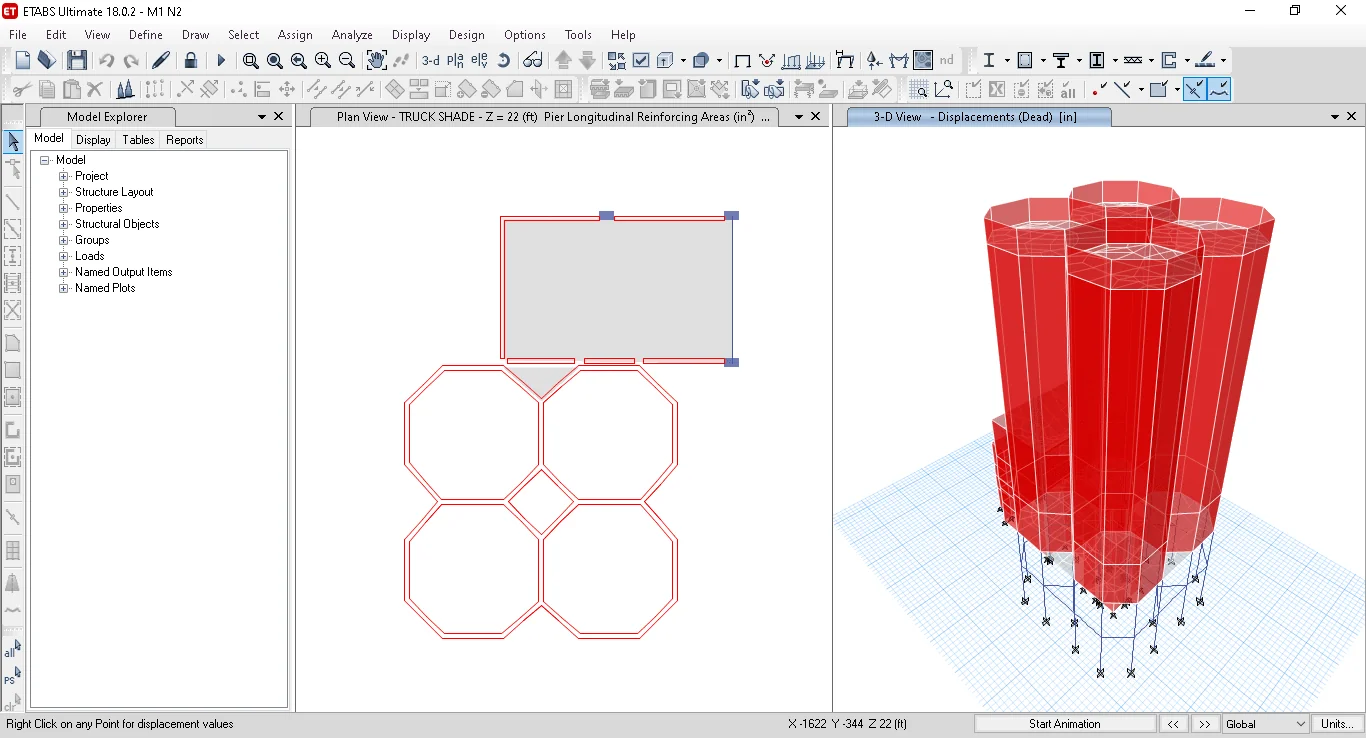

ETABS model of four interconnected octagonal concrete cells supported on a braced column frame, with an adjoining truck-shade level at 22 ft.
Scope of work
- 3D model of the octagonal cell walls as piers, the supporting column frame and the truck-shade roof

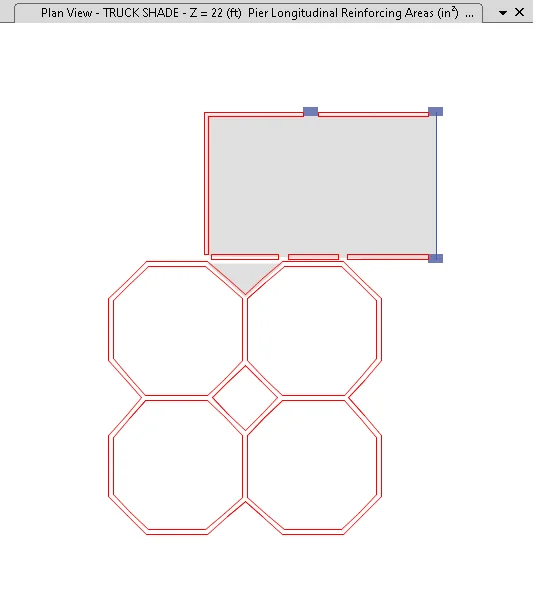

- Pier longitudinal reinforcing areas reviewed in plan at the truck-shade level (Z = 22 ft)

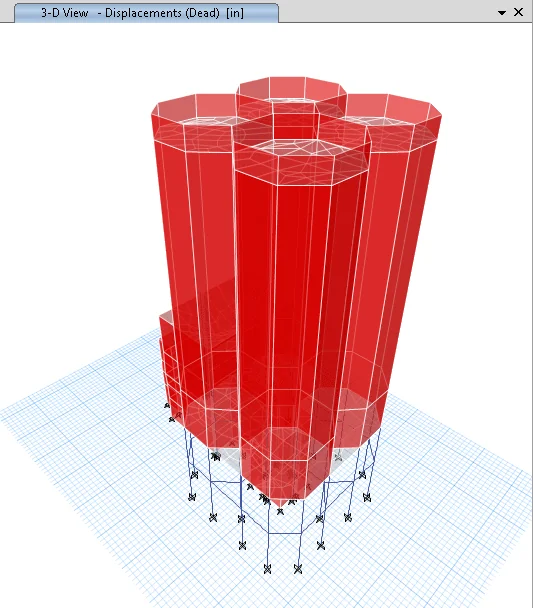

- Dead-load displacement check of the full structure
Drawings & calculations
3 sheets from the project — click any sheet to view it full size.
