40′ × 80′ Steel Tubular Carport Building
Long-span tubular-steel carport / utility building designed for 145 mph wind, with laced columns, trusses, purlins and slab foundation.
Scope of work
- Design loads: 145 mph ultimate wind, Exposure C, Risk Category II, 5 psf ground snow

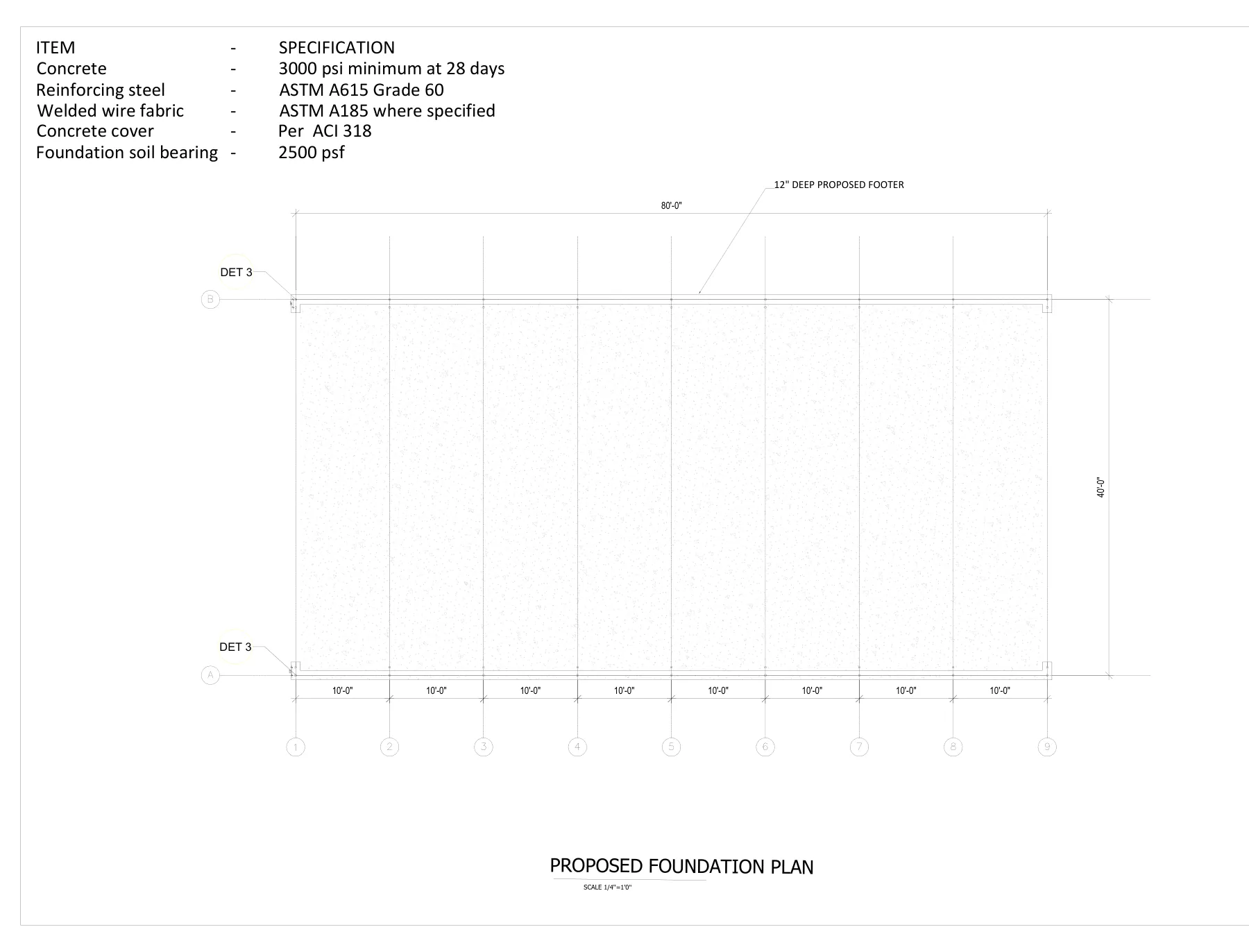

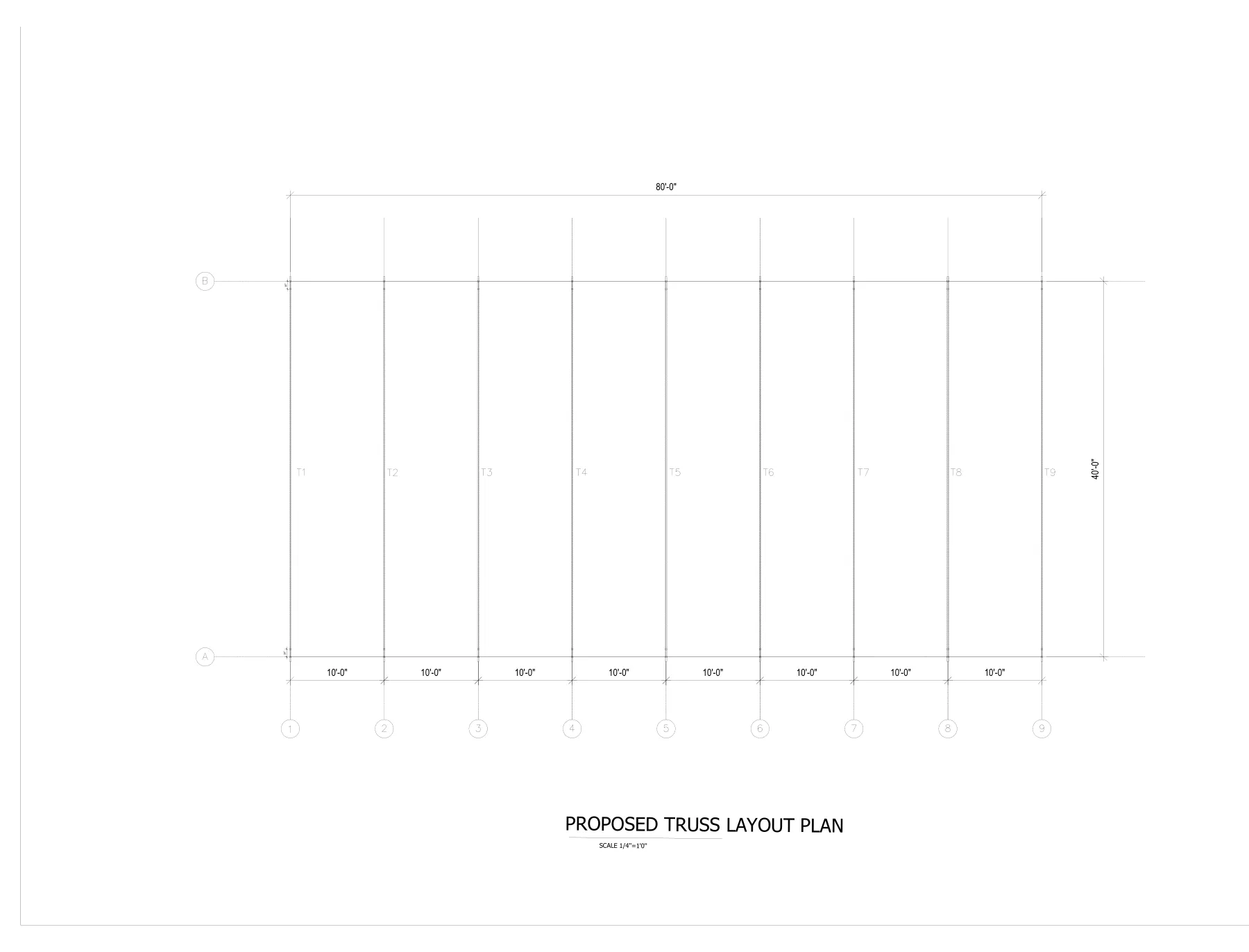

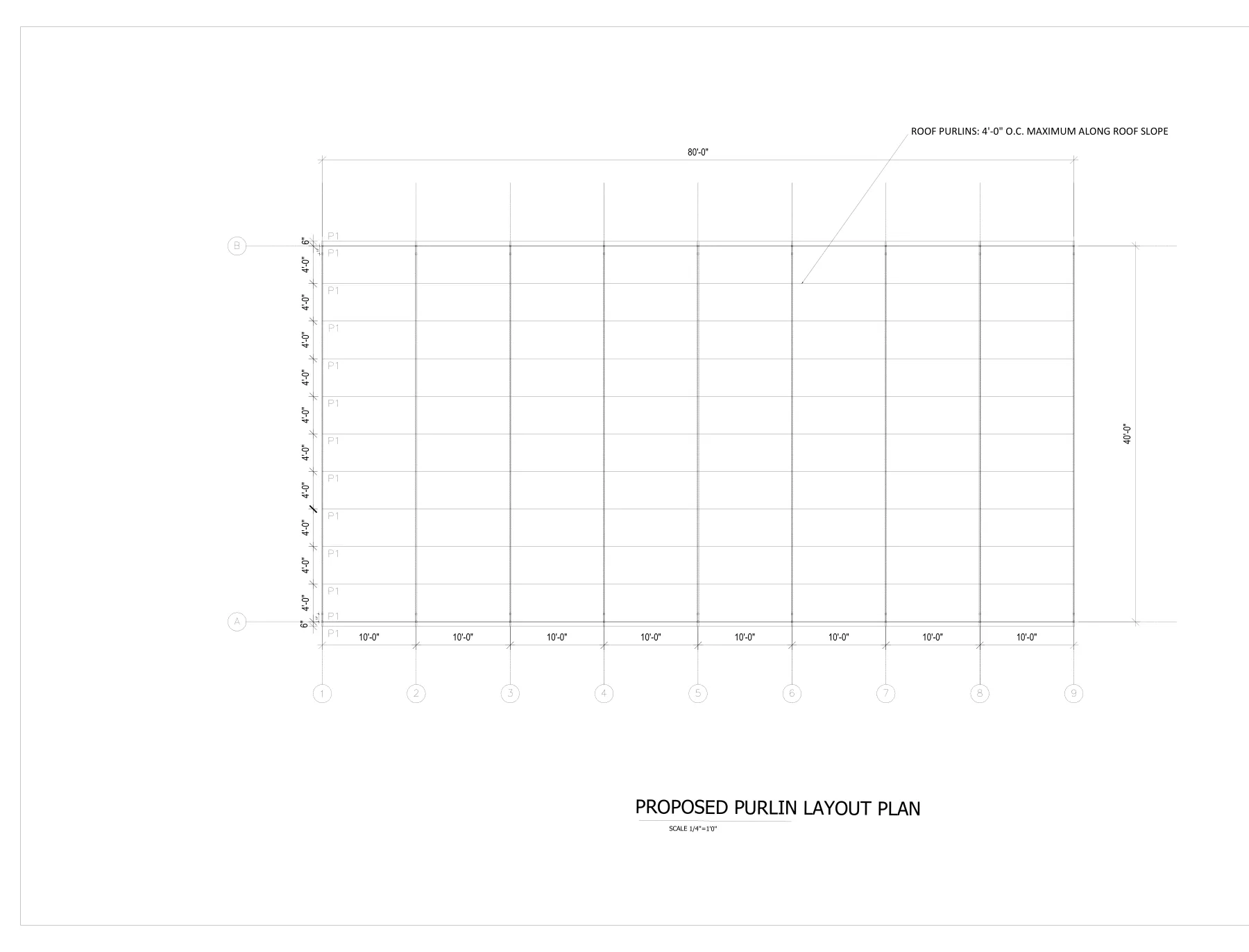

- Foundation, column, truss and purlin layout plans for an 80′ length

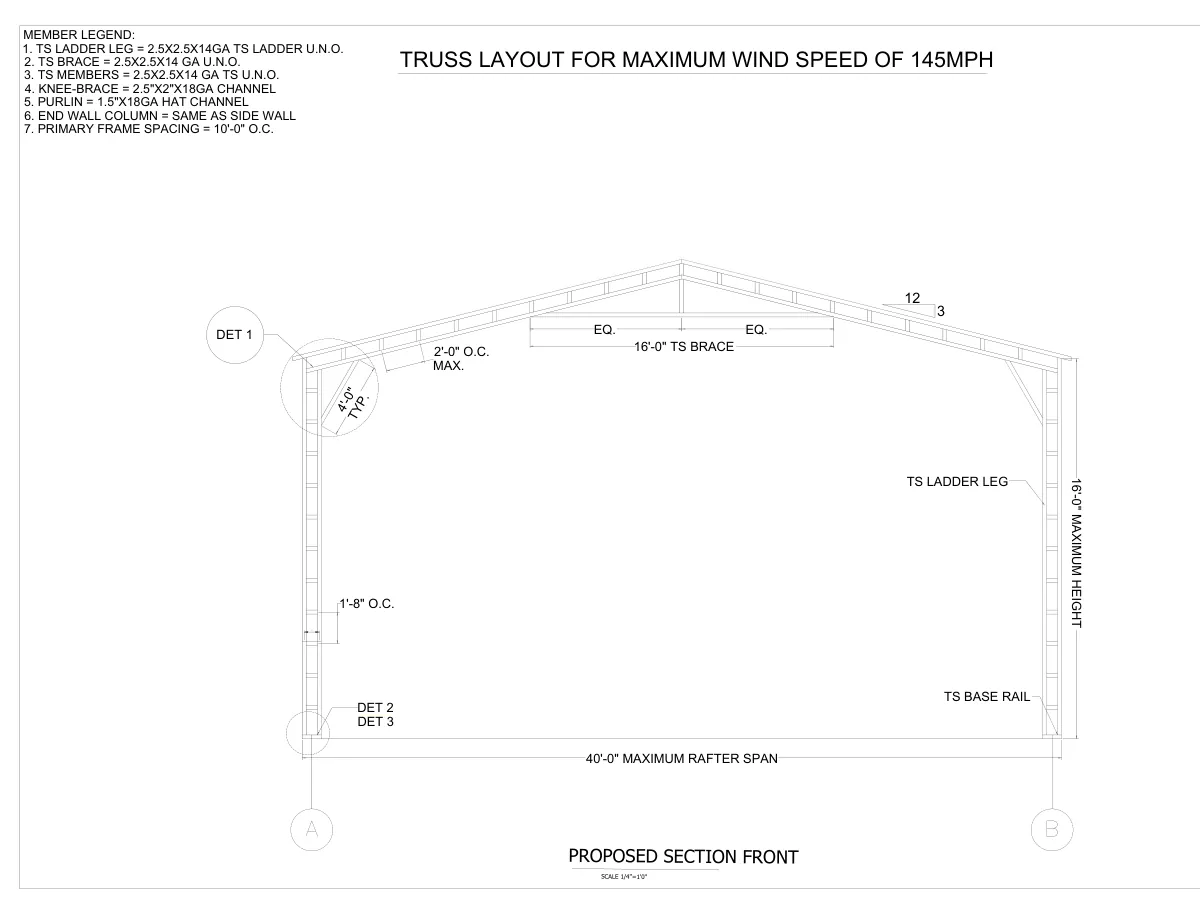

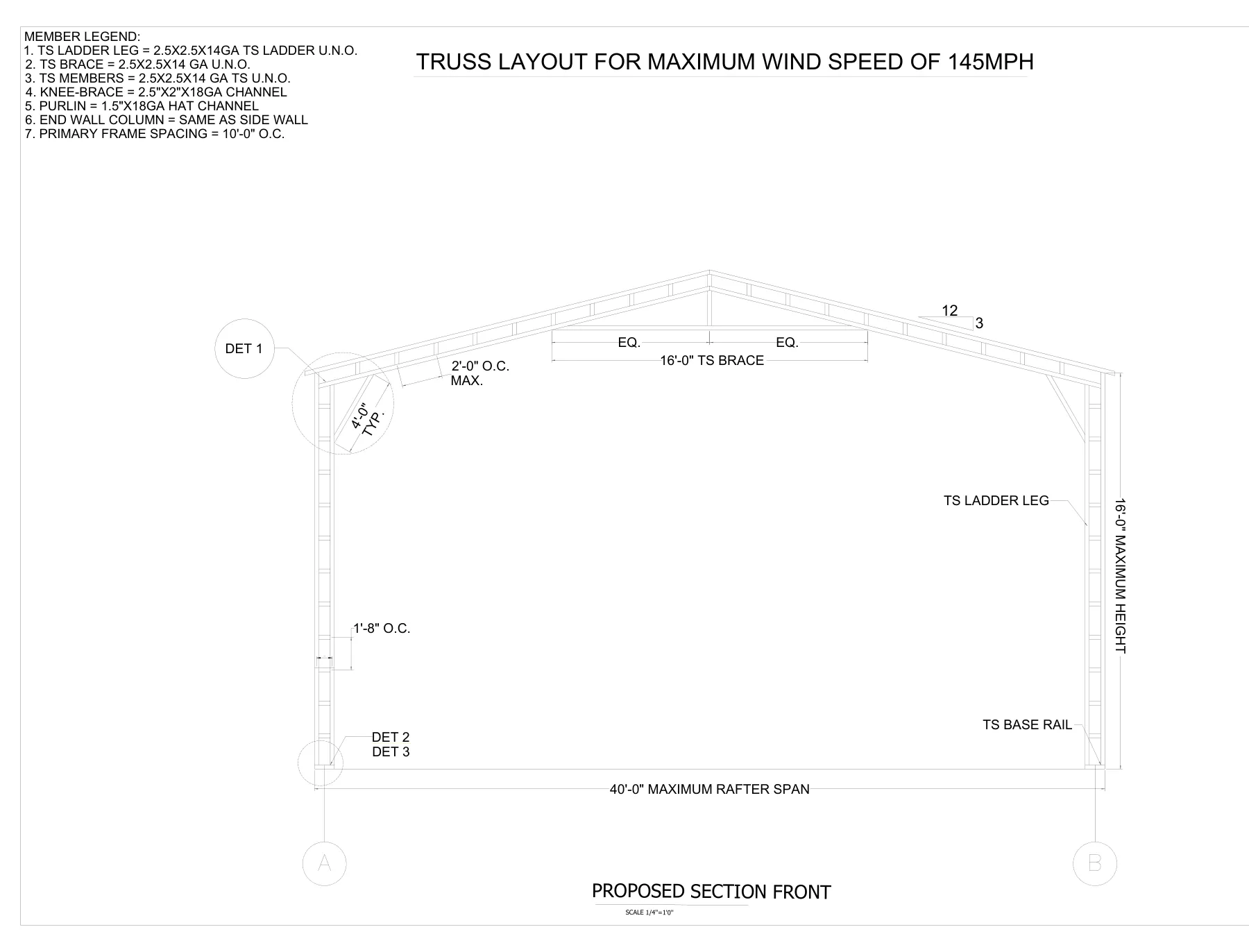

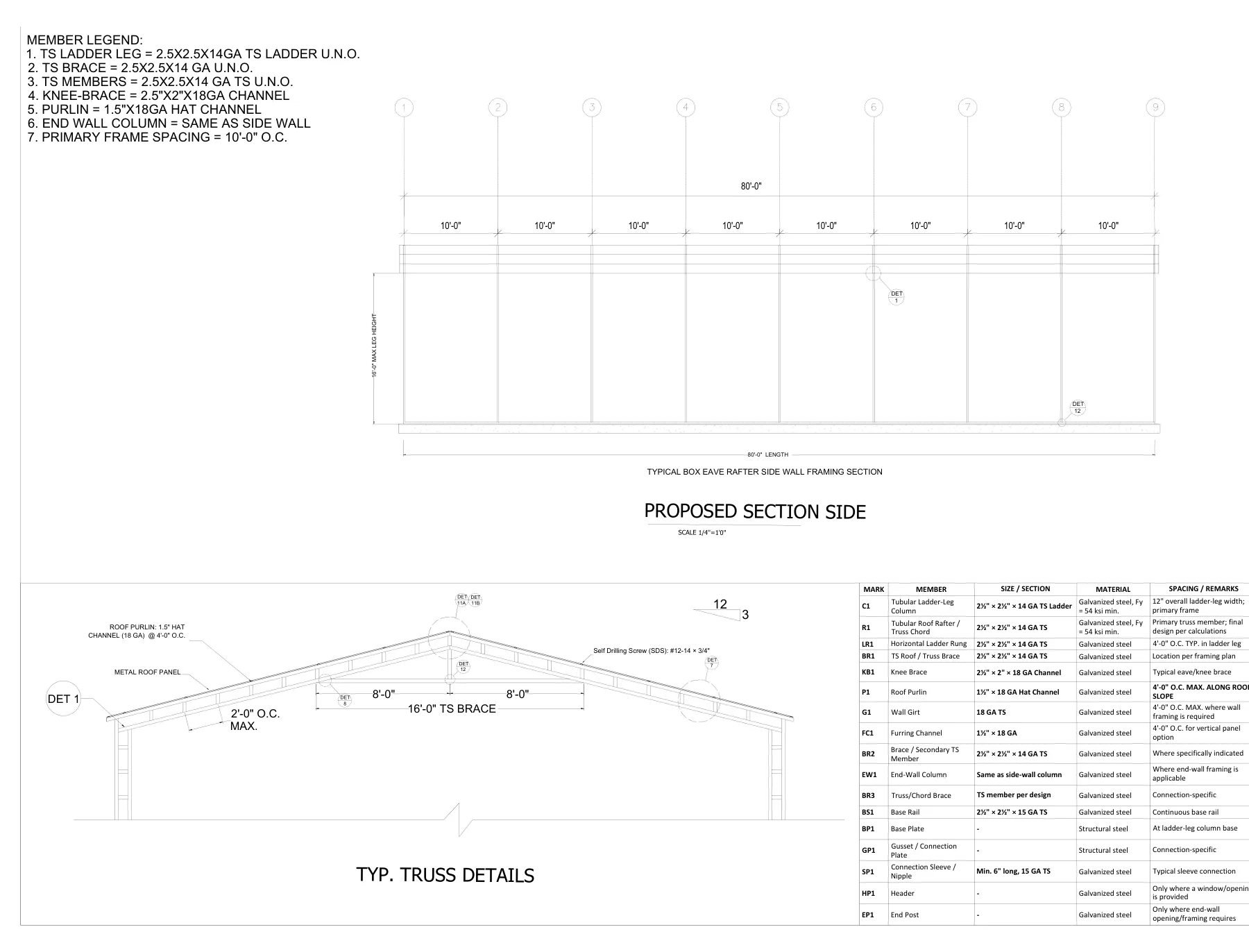

- Ladder-leg / laced tubular columns and trusses with full member legend

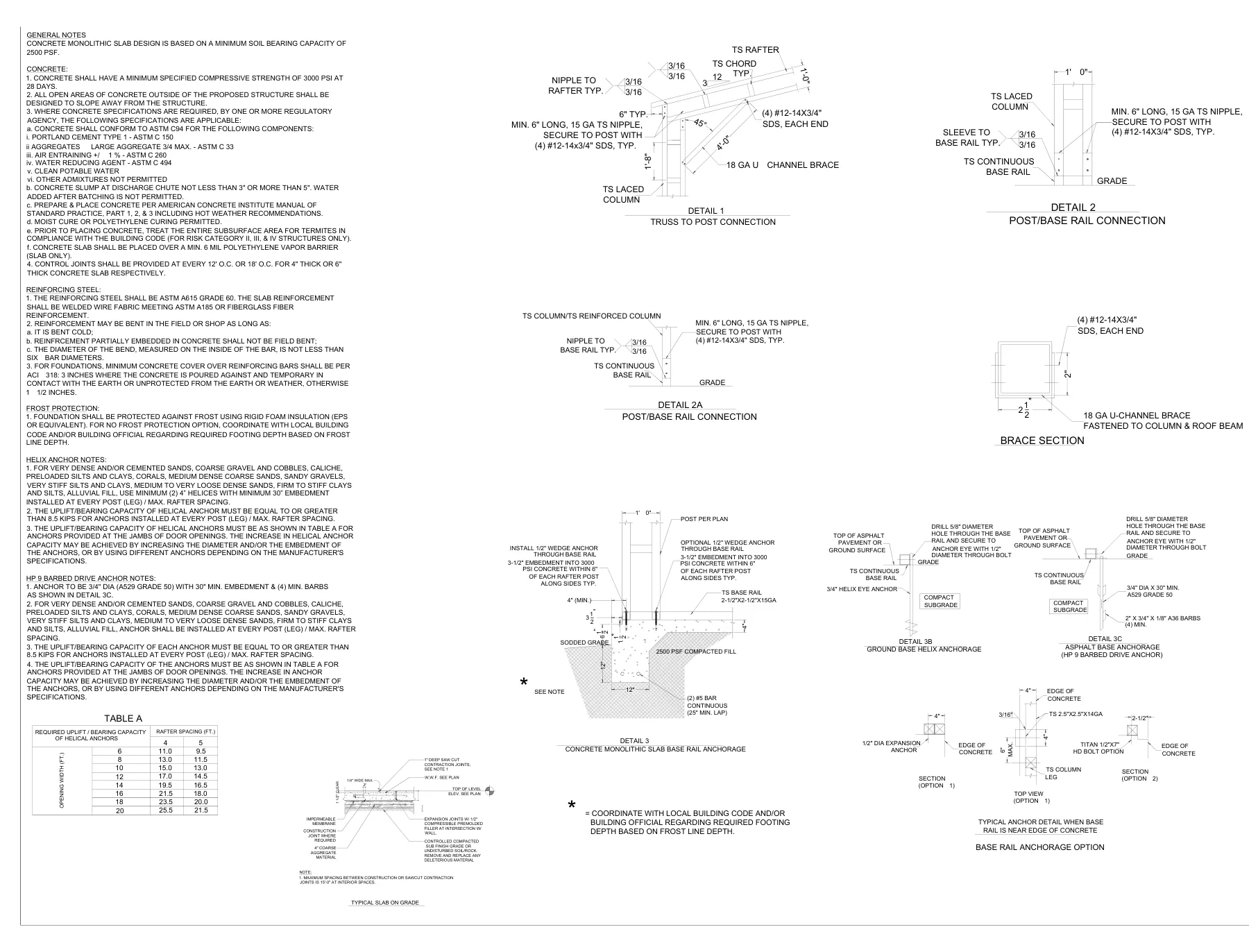

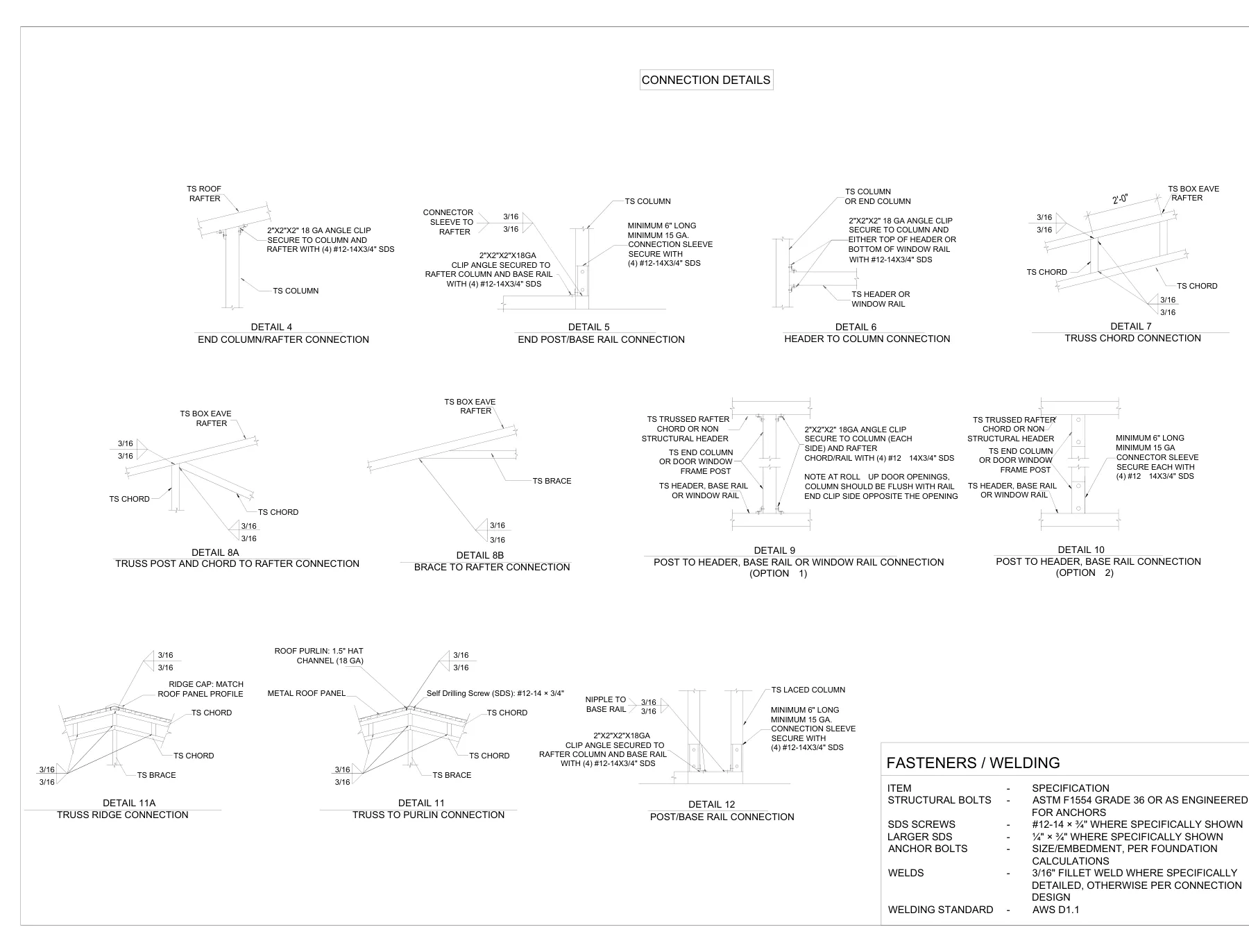

- Truss-to-post and roof-rafter connection details
Drawings & calculations

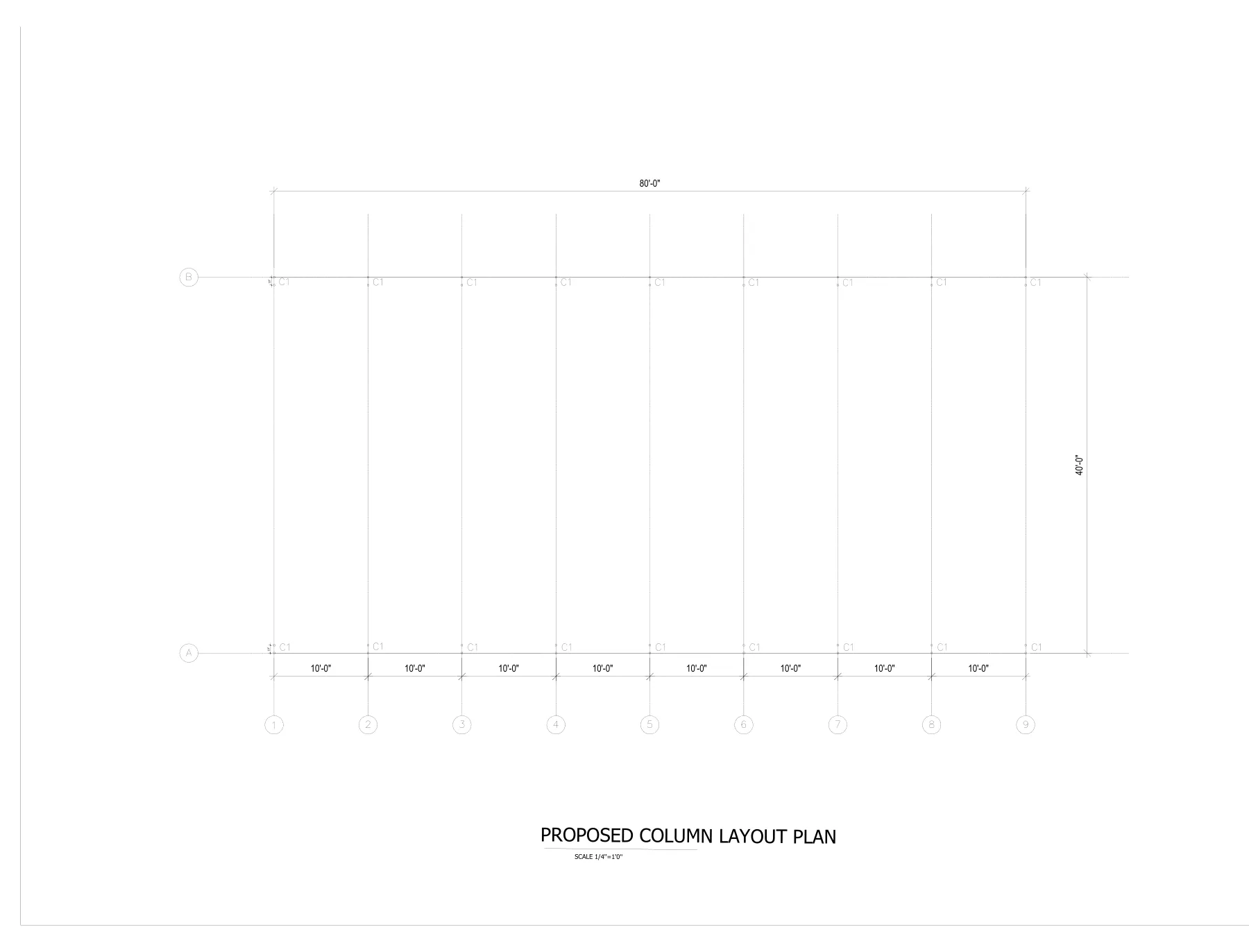

8 sheets from the project — click any sheet to view it full size.
