Steel Porch with Standing-Seam Metal Roof
A new galvanized-steel porch attached to an existing house, with 4×4 steel posts and beams, C-channel rafters and a standing-seam metal roof.
Scope of work

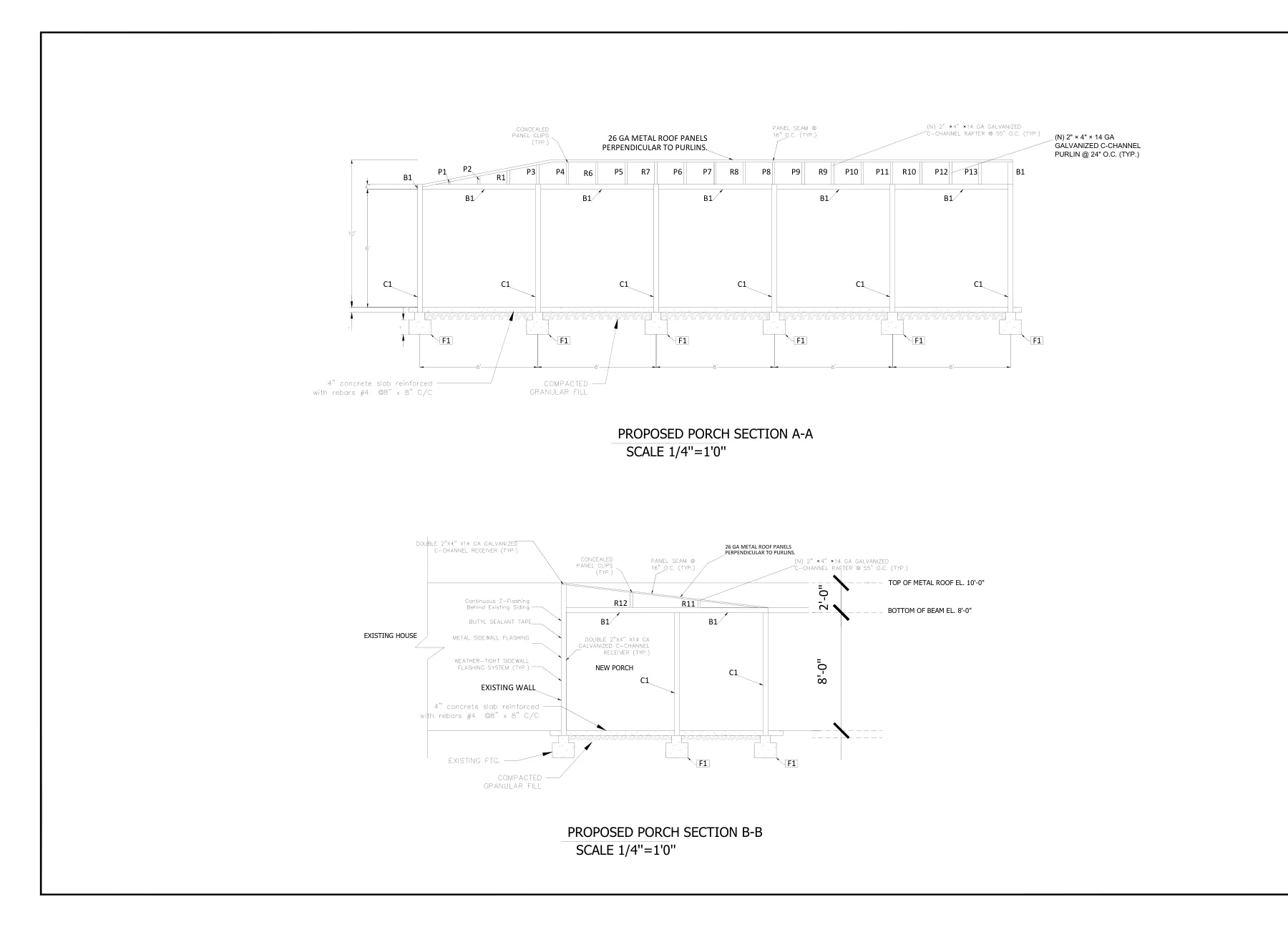

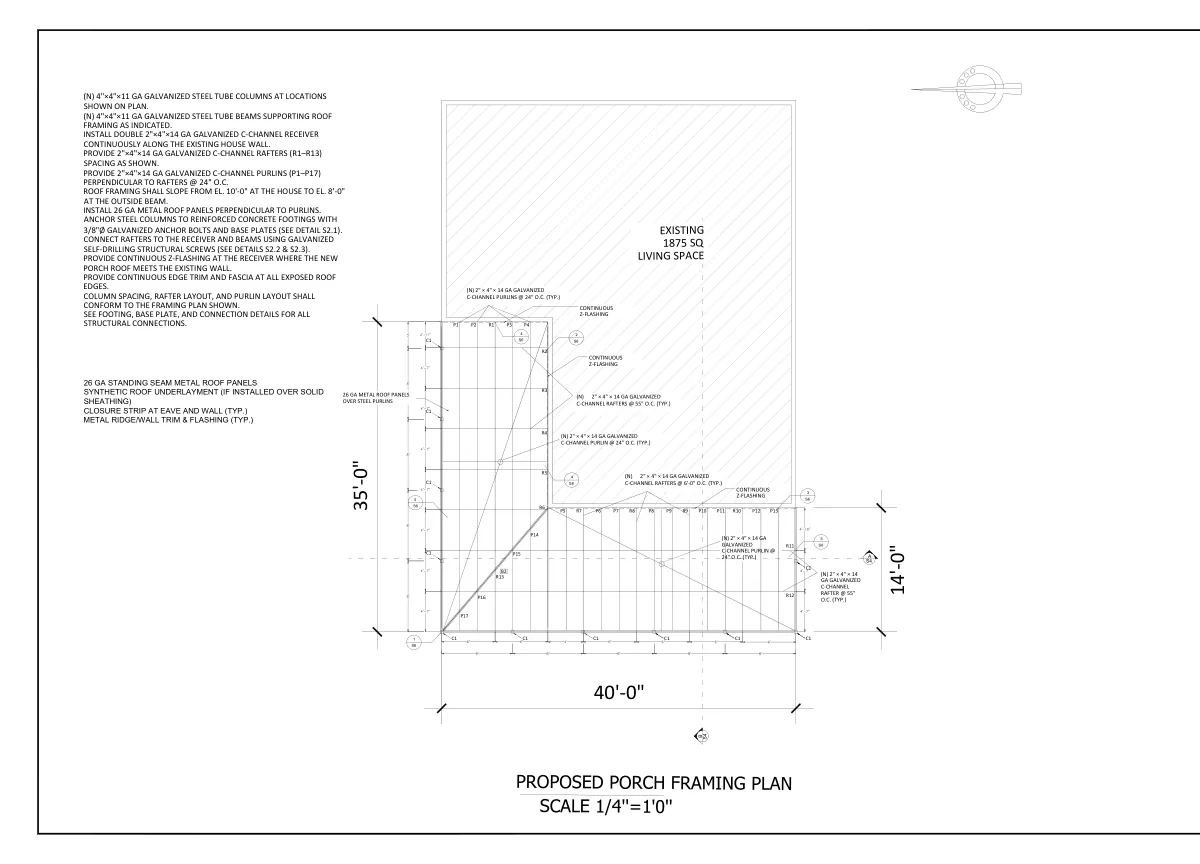

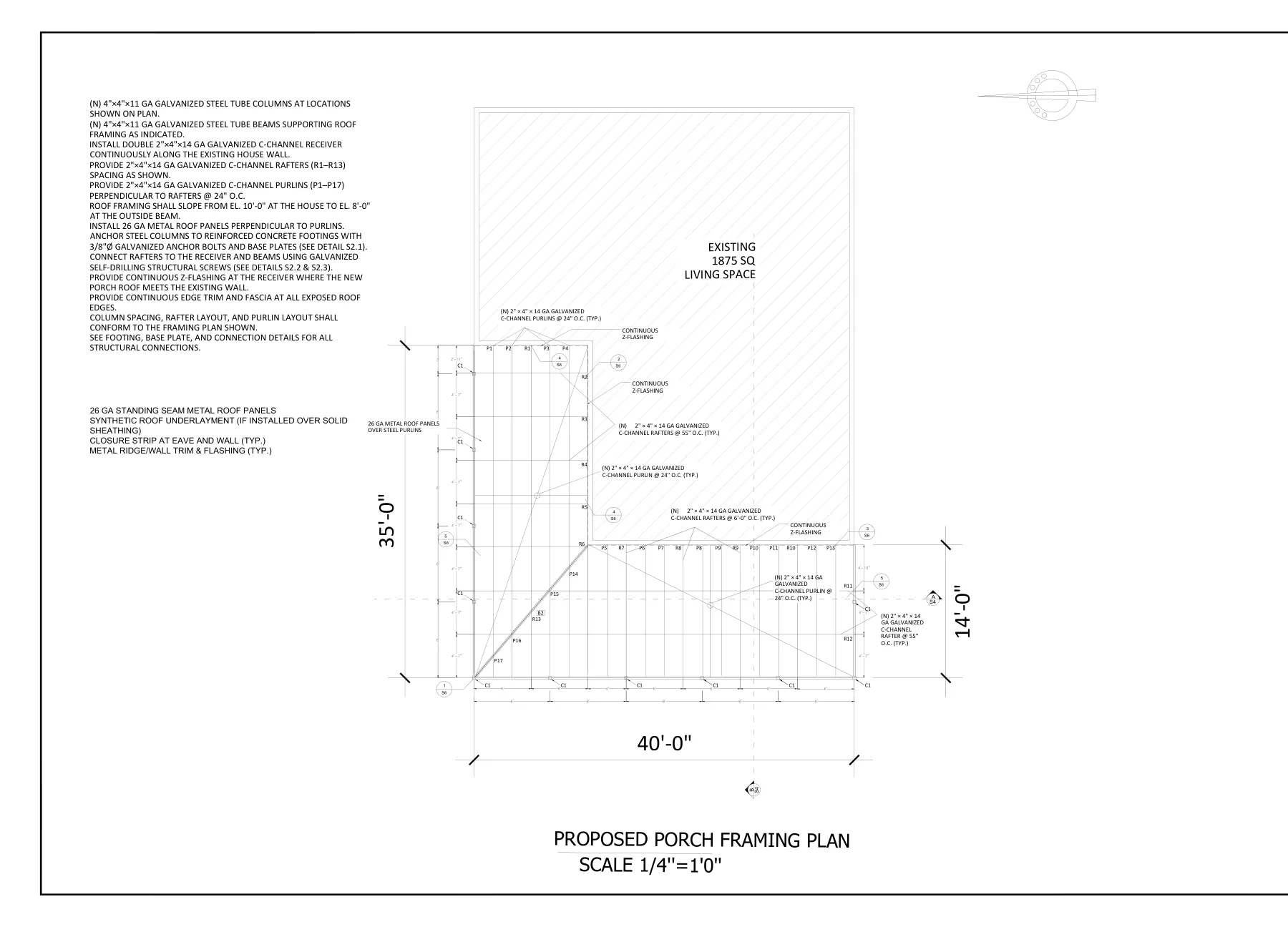

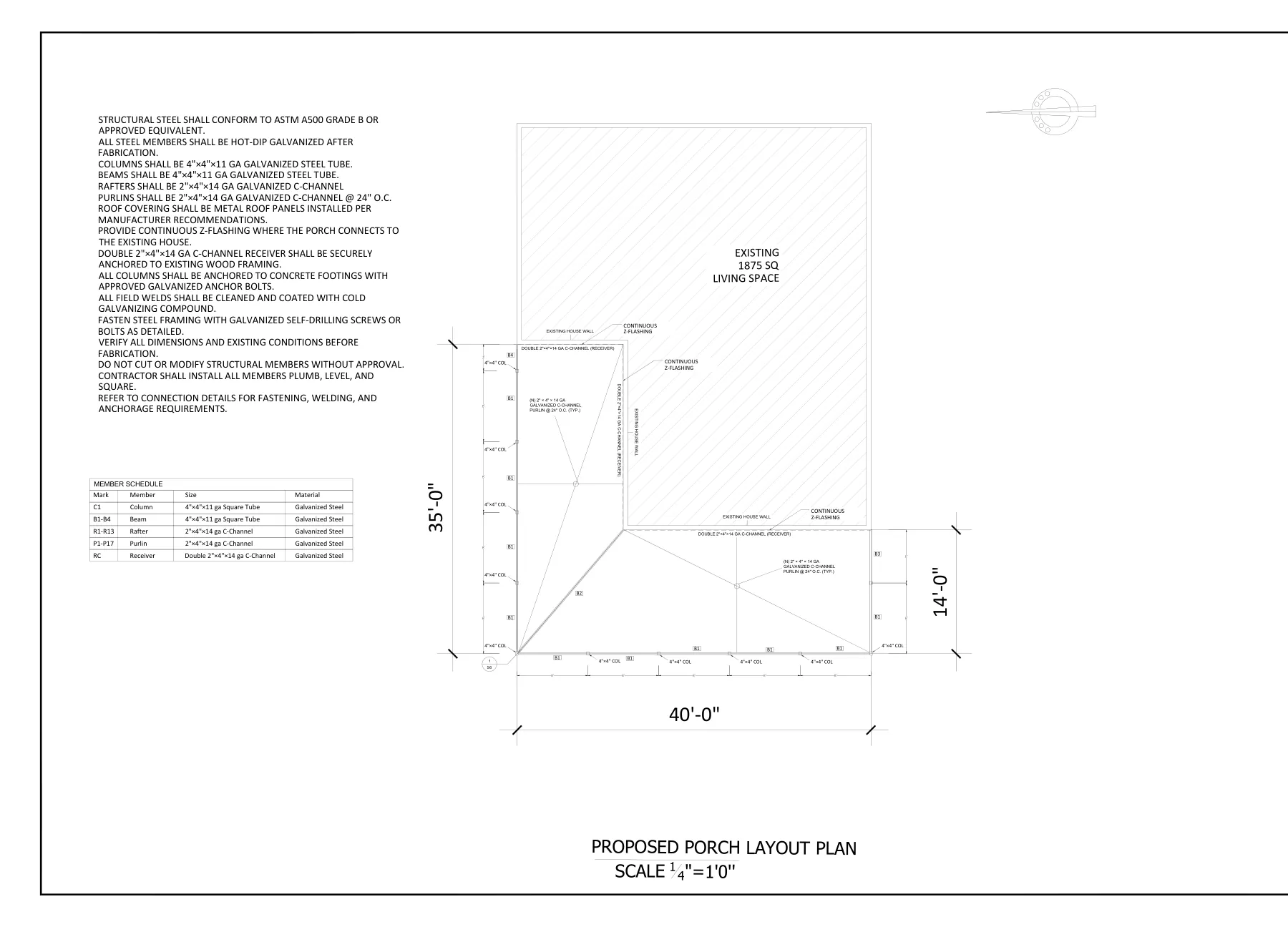

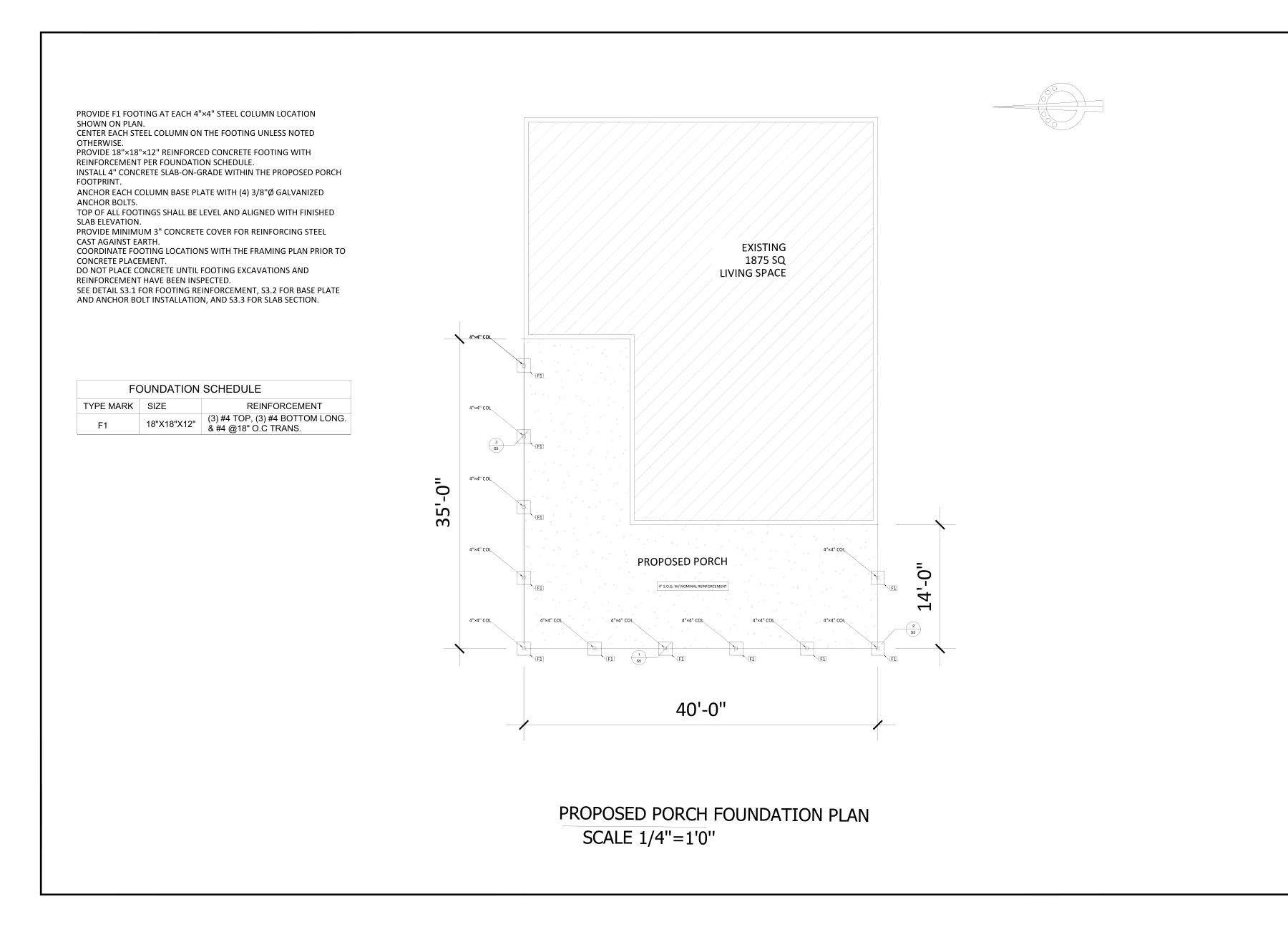

- Porch foundation plan, layout plan and framing plan
- 4×4×11 ga galvanized steel posts and beams; 2×4×14 ga C-channel rafters

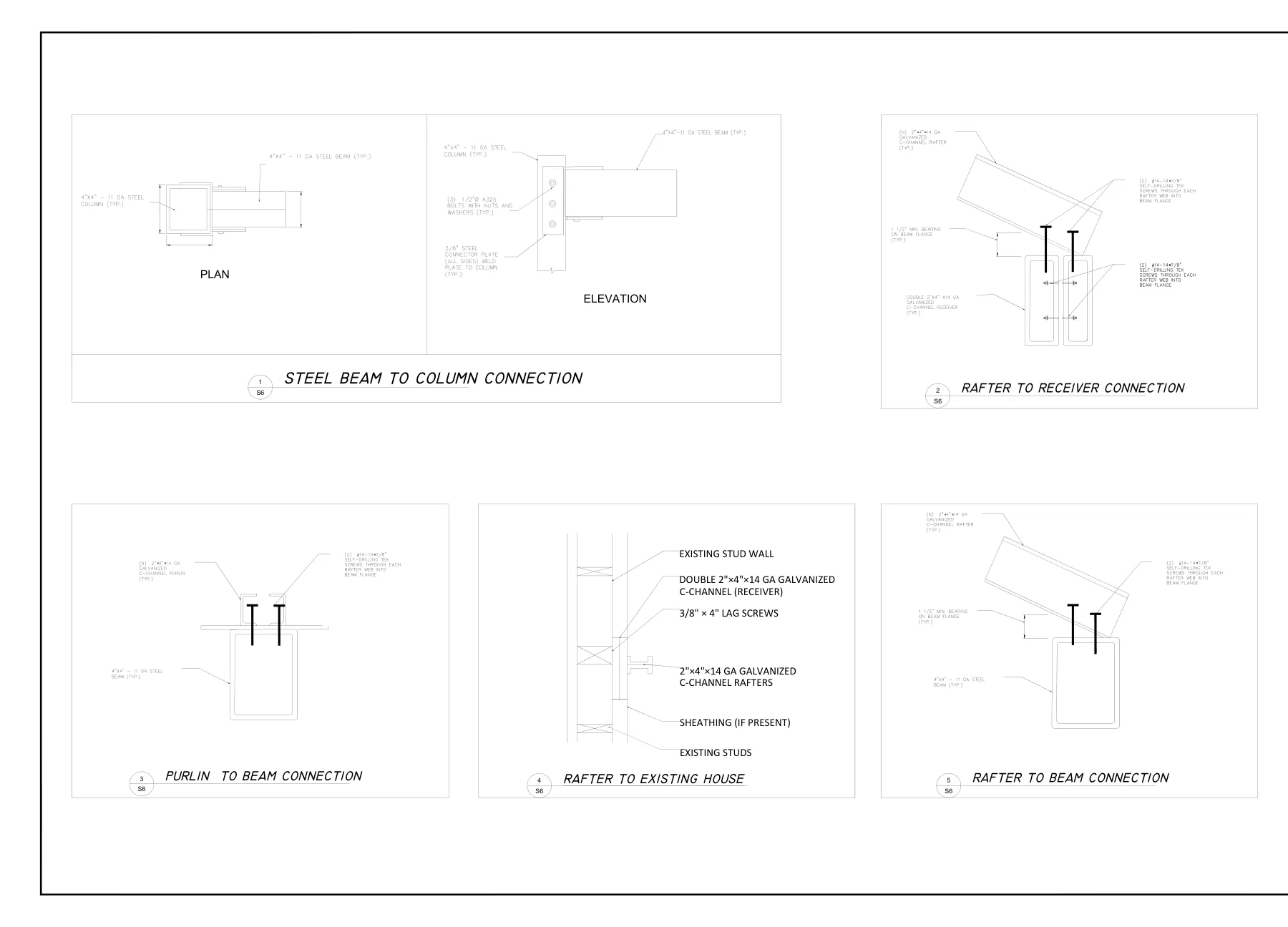

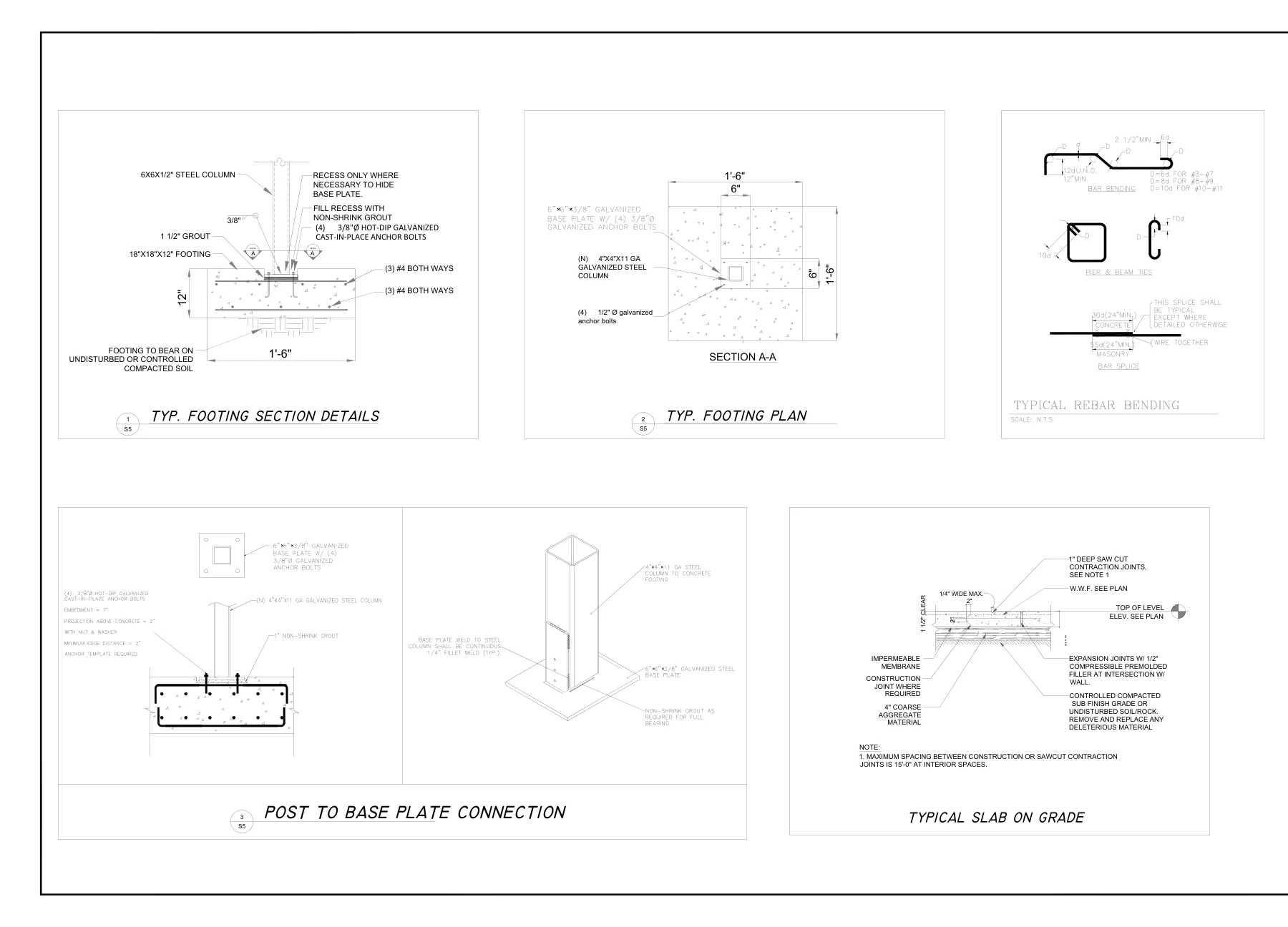

- Post-to-base-plate, beam-to-column and rafter-to-beam connections

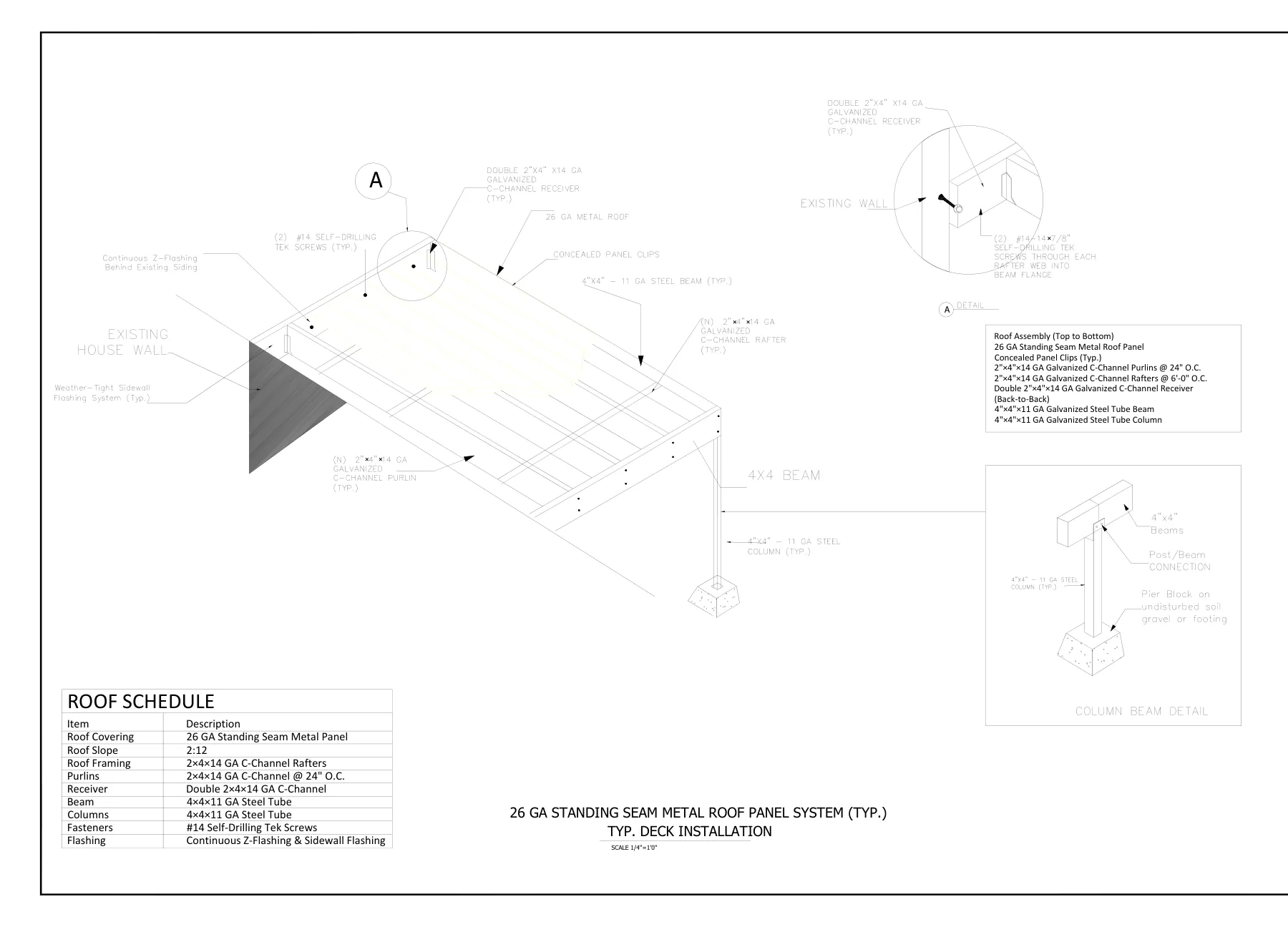

- Roof-to-existing-wall ledger and receiver details; 26 ga standing-seam roof system
Drawings & calculations
7 sheets from the project — click any sheet to view it full size.
