New Storage Building for Event Hall
A new storage building serving an existing event hall: wall layout, foundation, roof trusses and connection details.
Scope of work

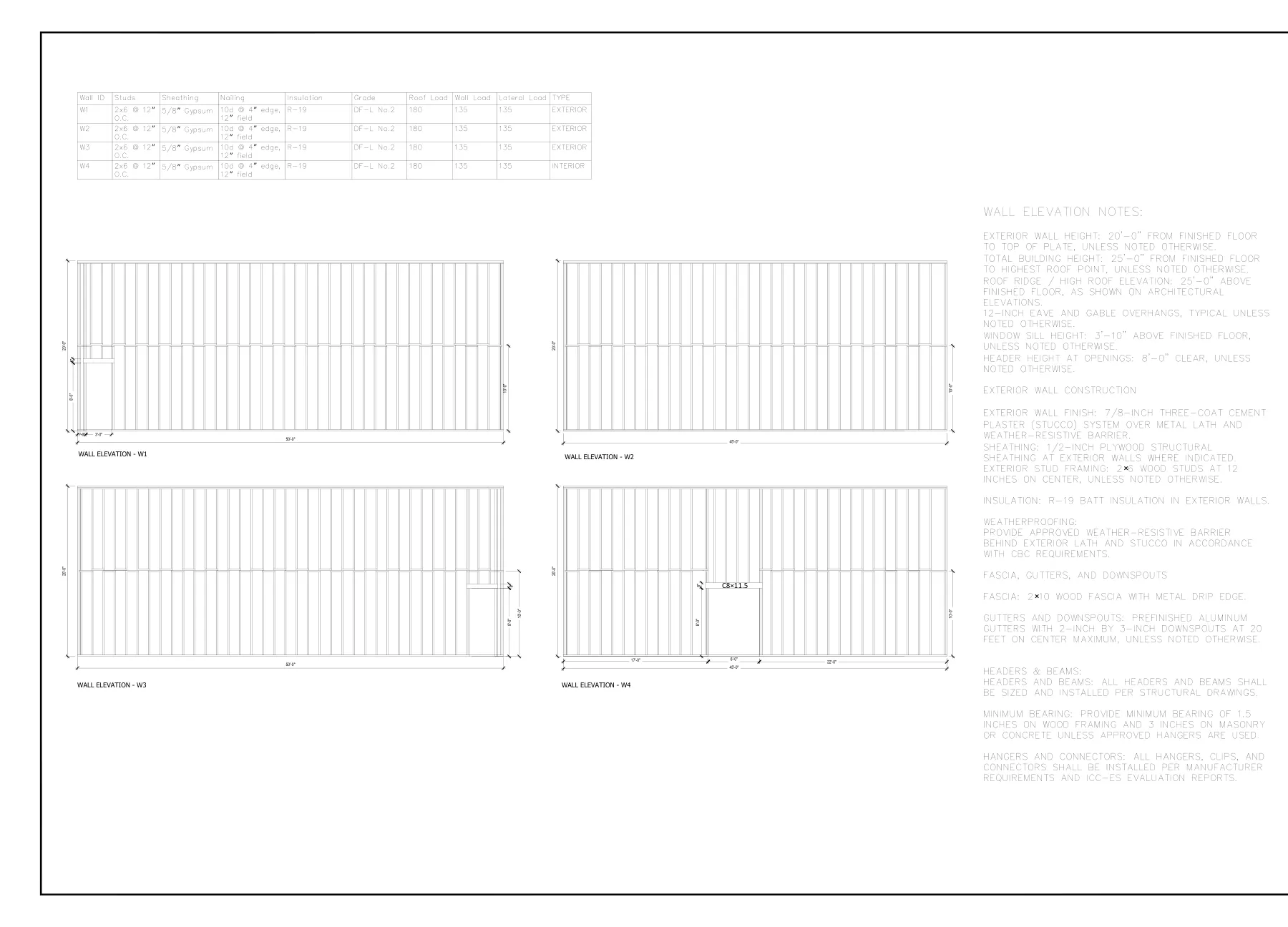

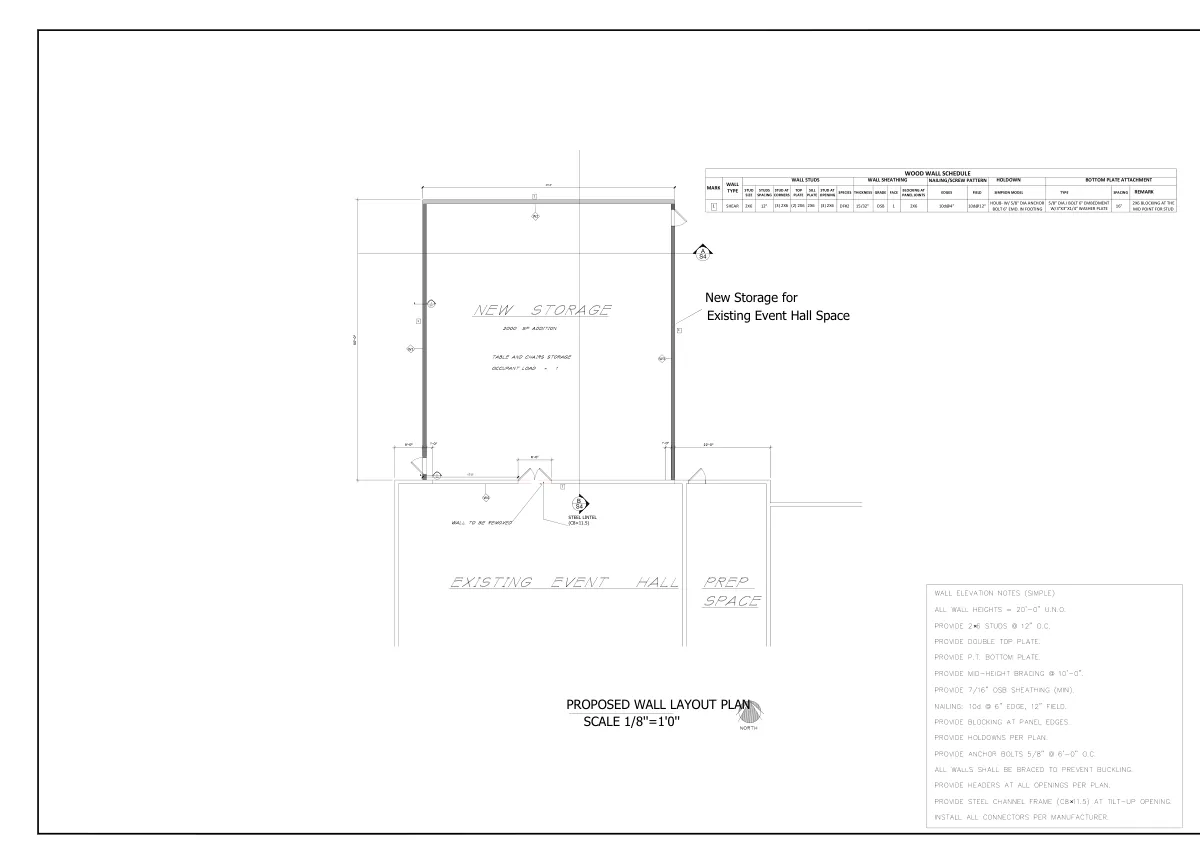

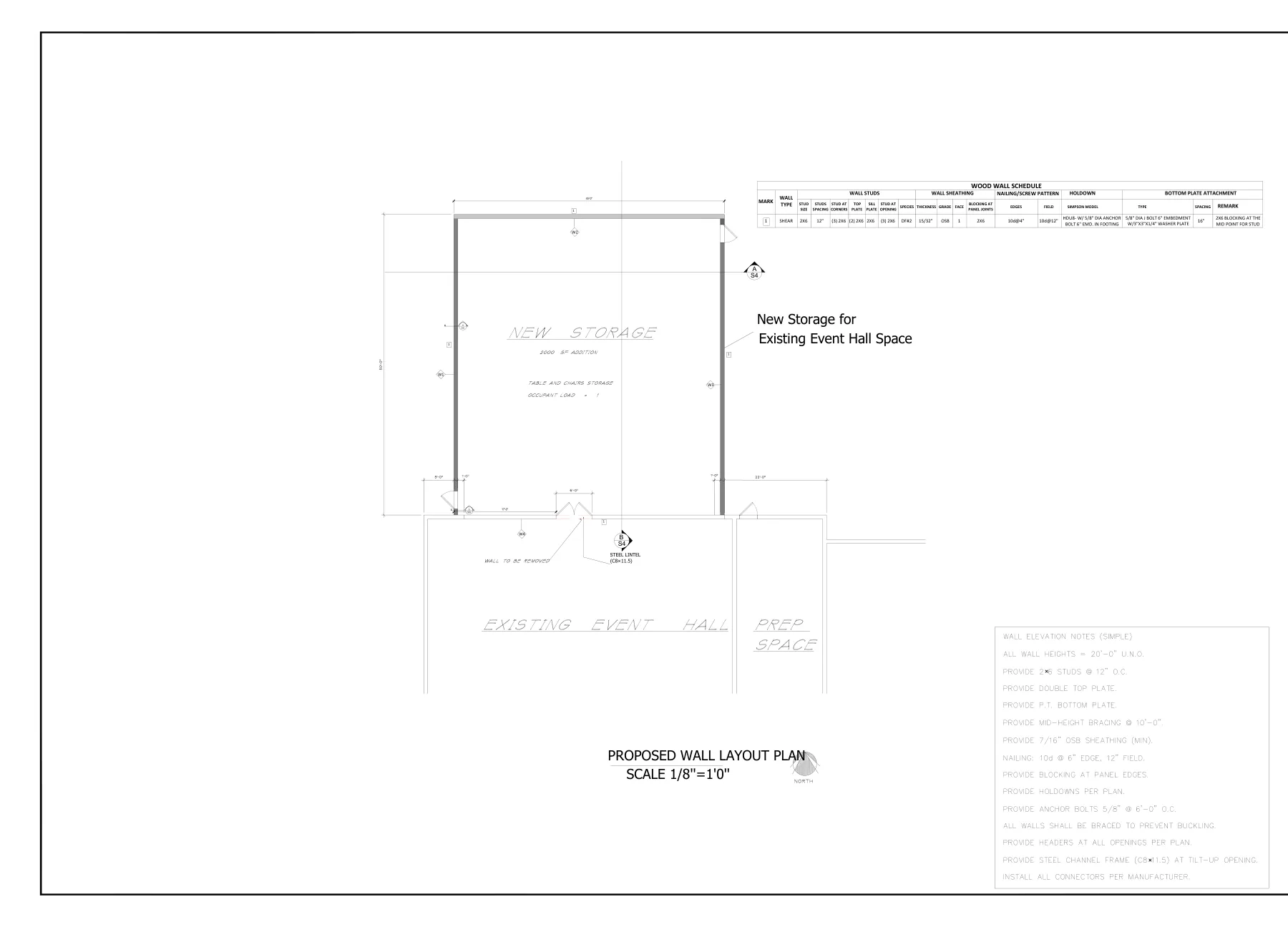

- Wall layout plan and wall elevations

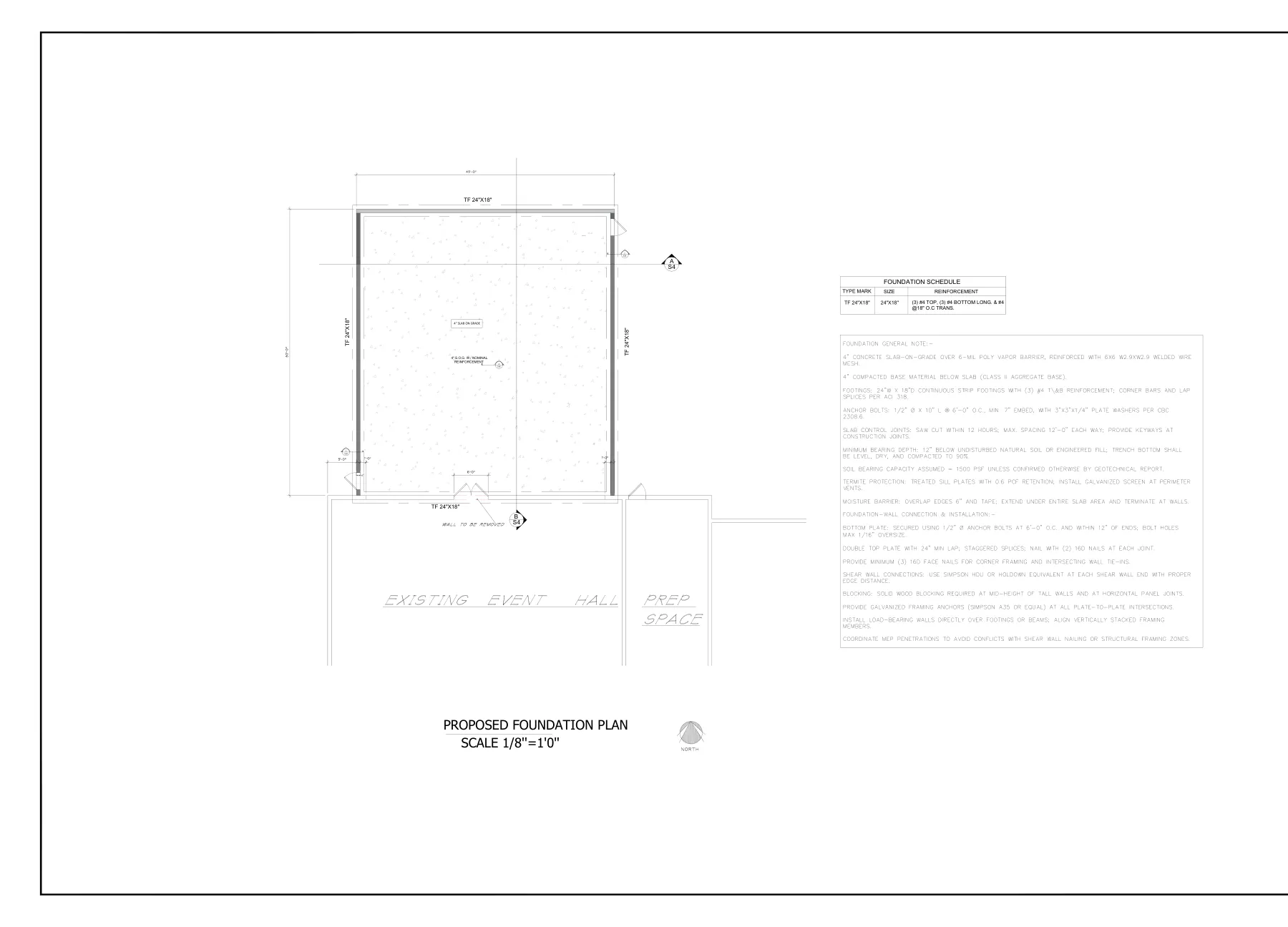

- Foundation plan

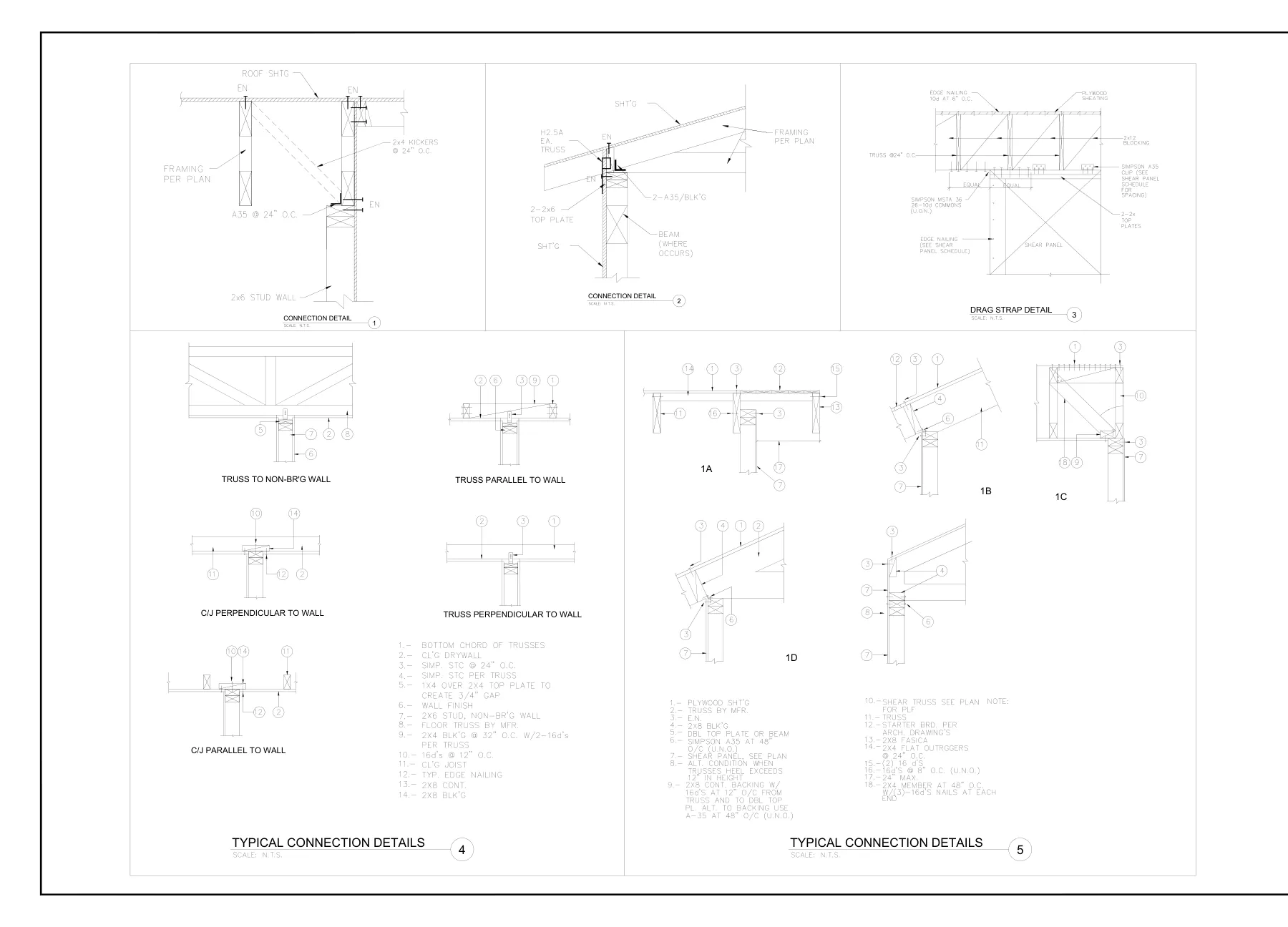

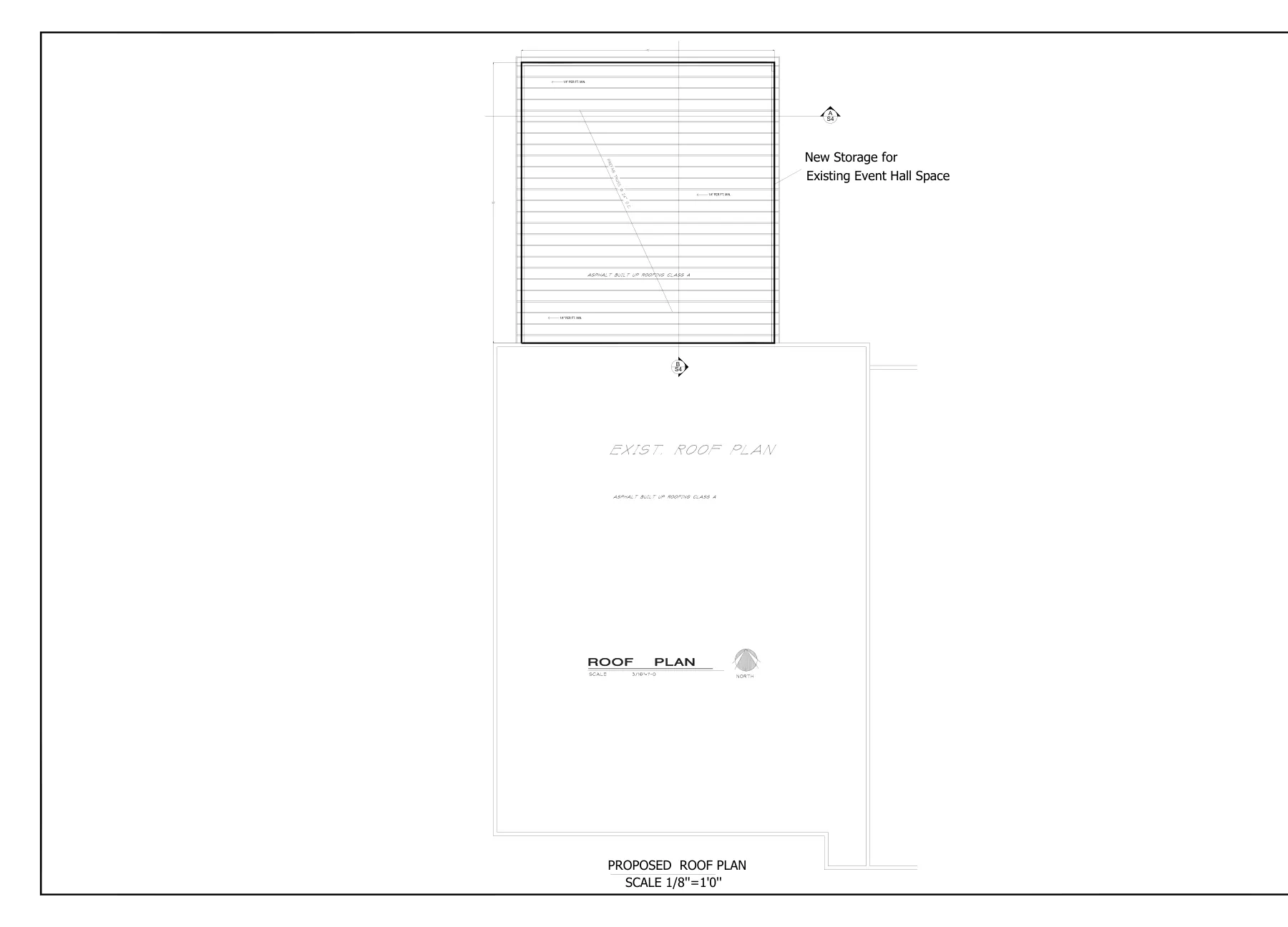

- Roof / truss layout and roof-framing connection details

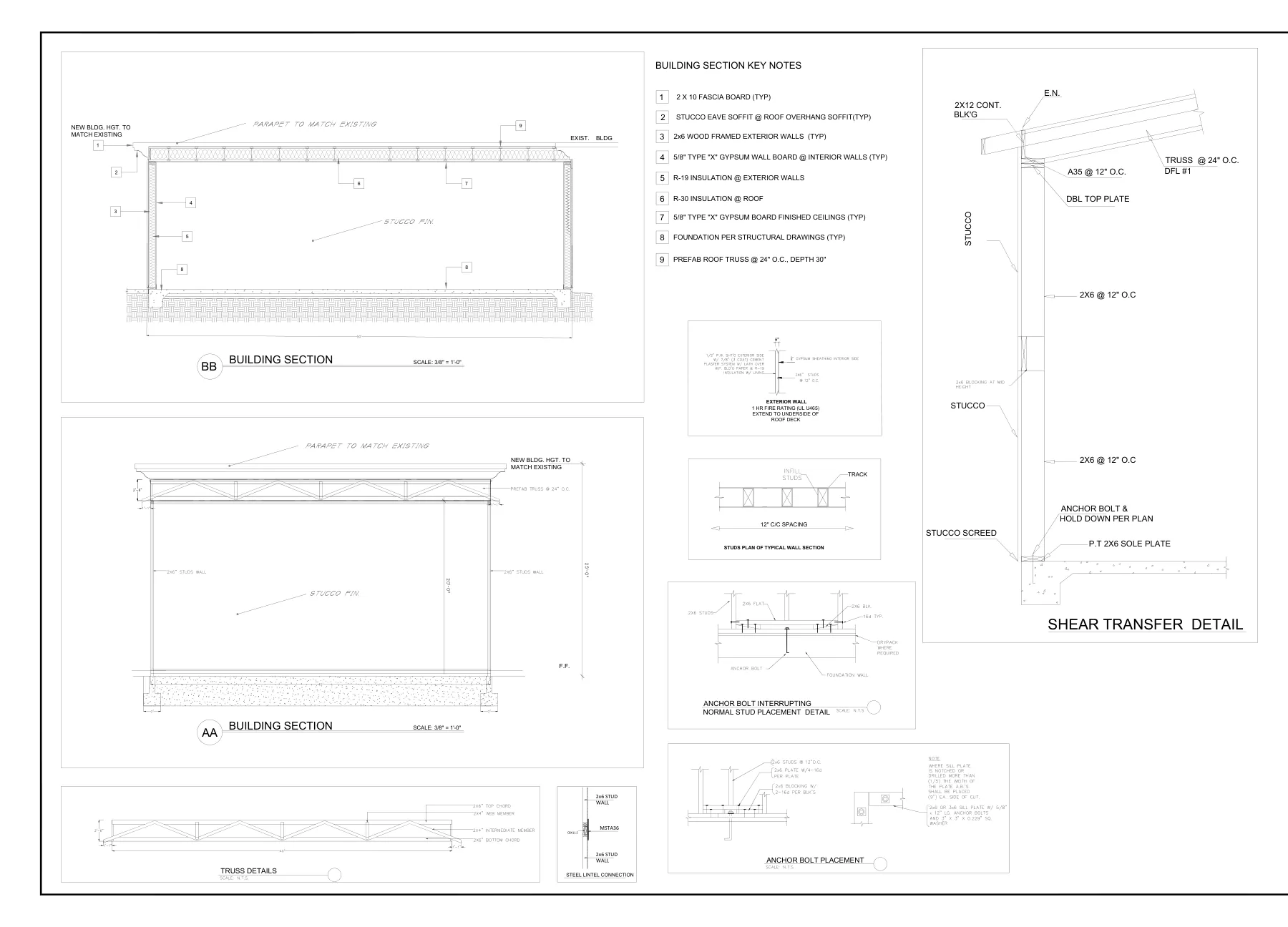

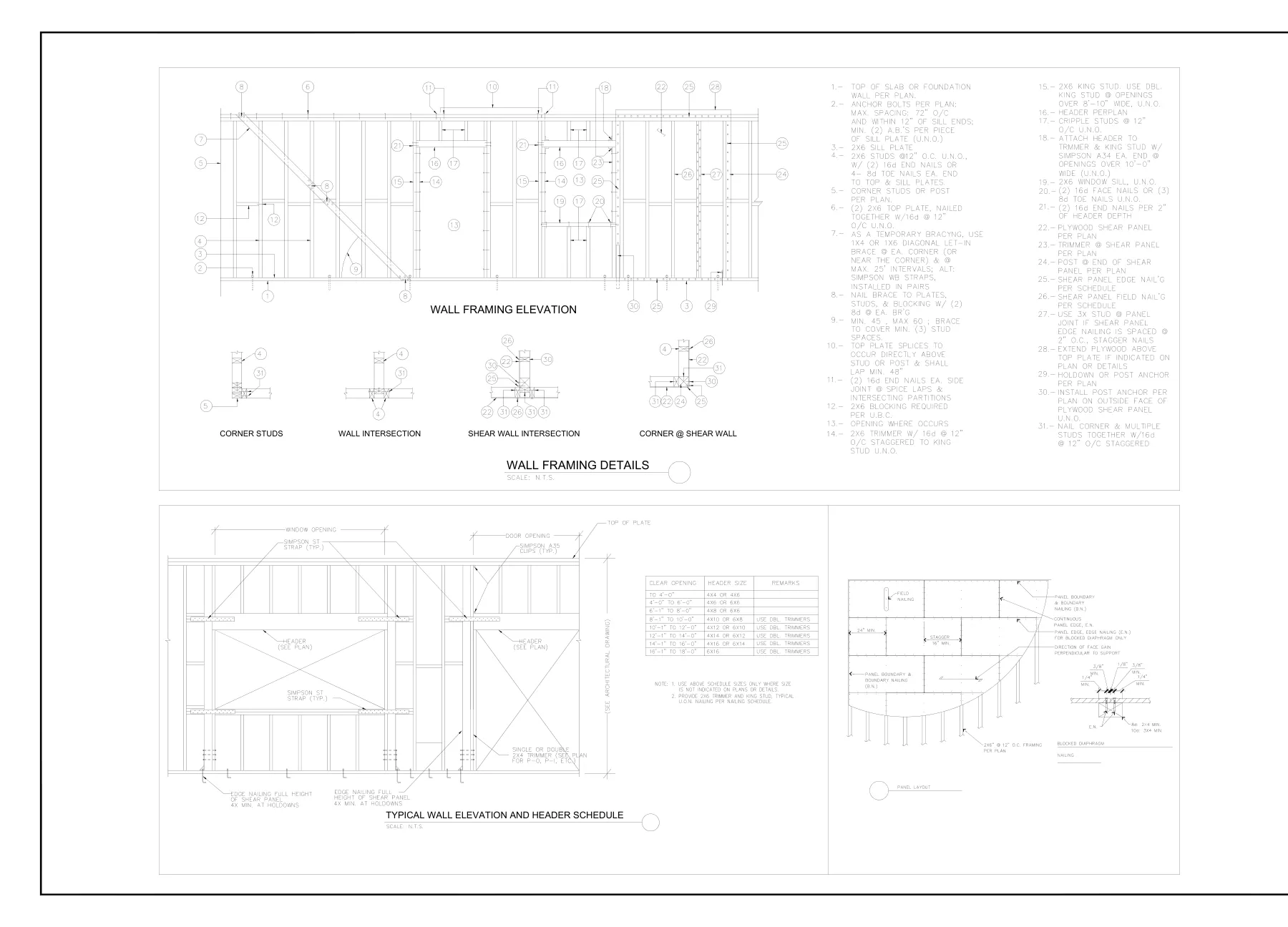

- Section and typical details

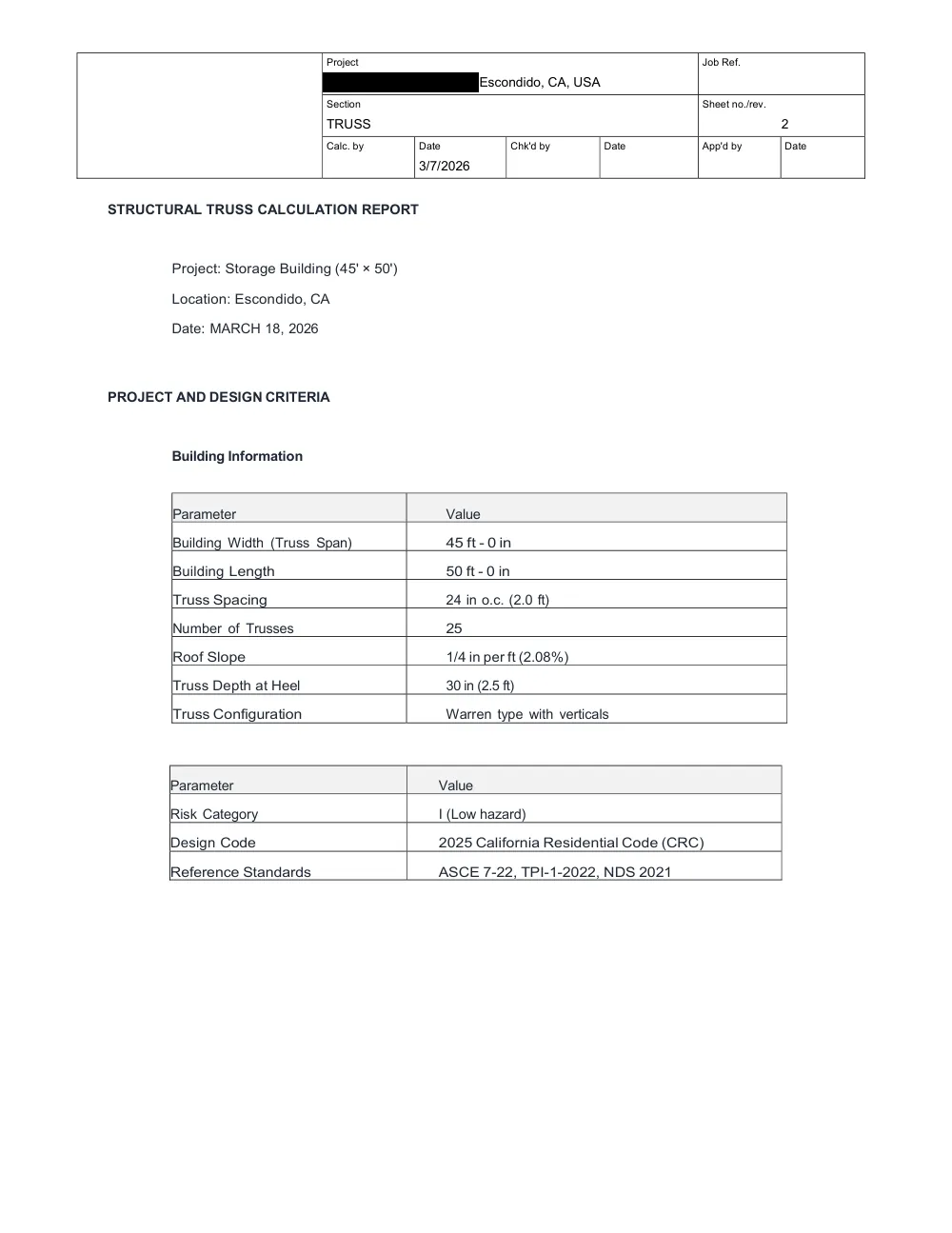

Drawings & calculations
8 sheets from the project — click any sheet to view it full size.
