Campus Storage Building with CMU Wall
A new two-room storage building adjacent to an existing school building, with strip footings, slab on grade, shear-wall framing and a CMU wall.
Scope of work

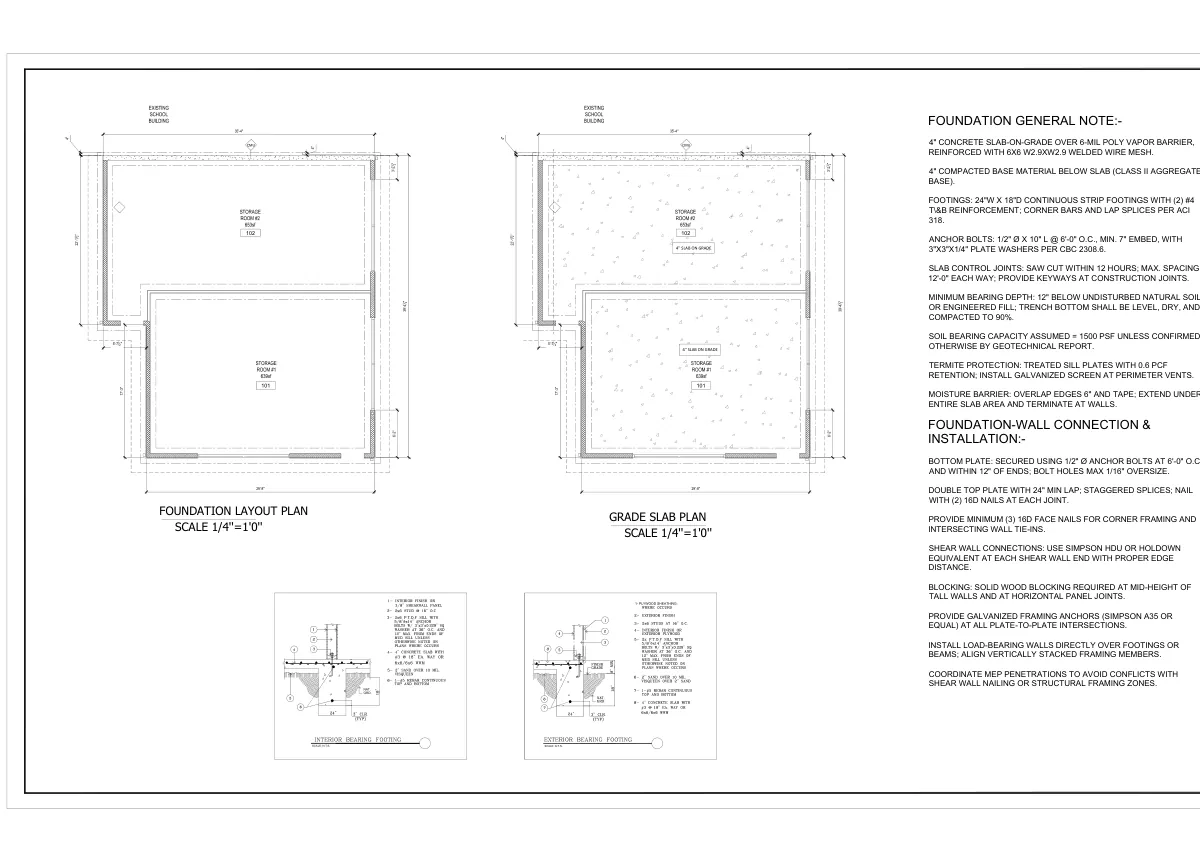

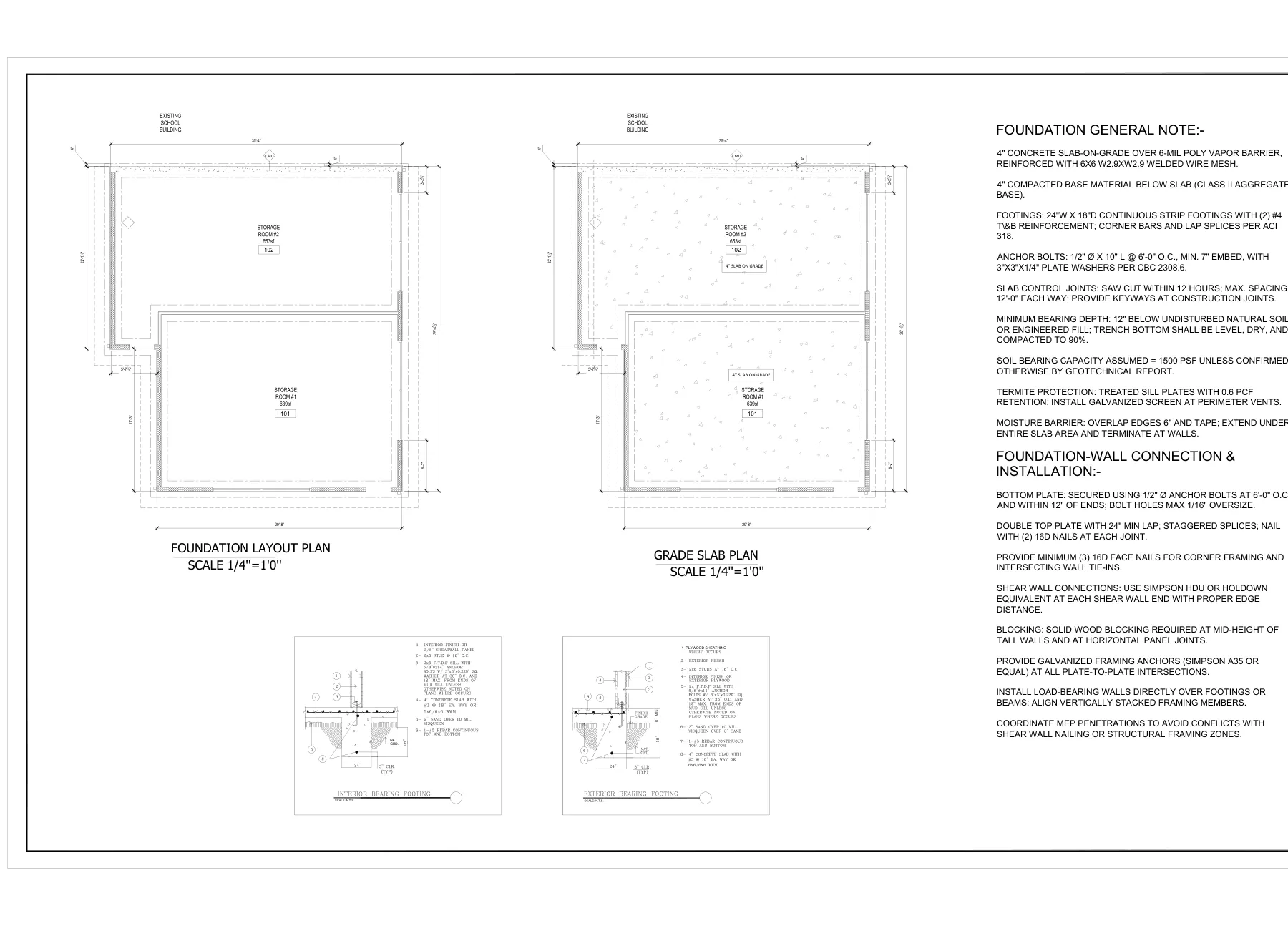

- Foundation and grade-slab plan: 24"W × 18"D continuous strip footings, 4" slab on grade

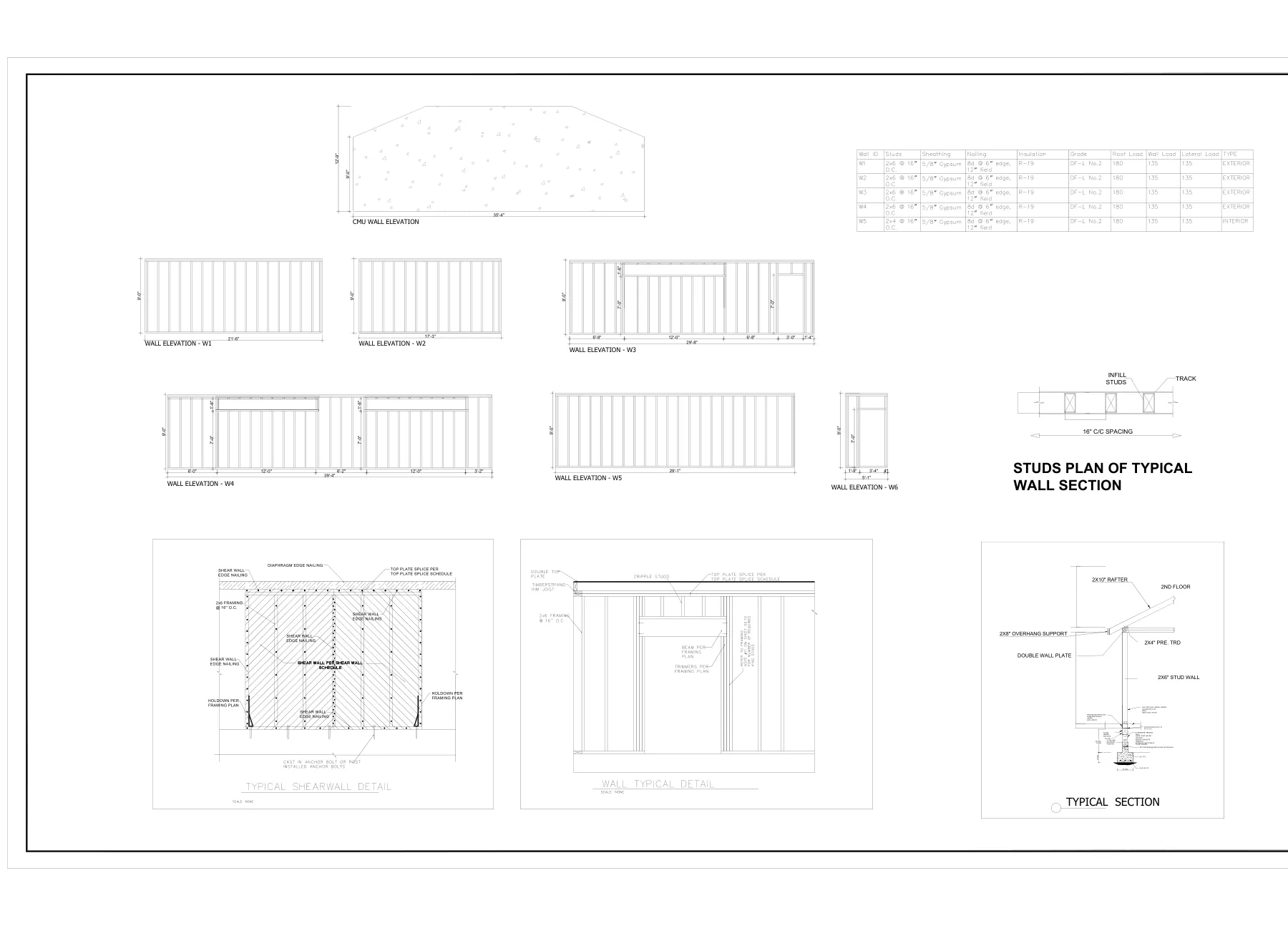

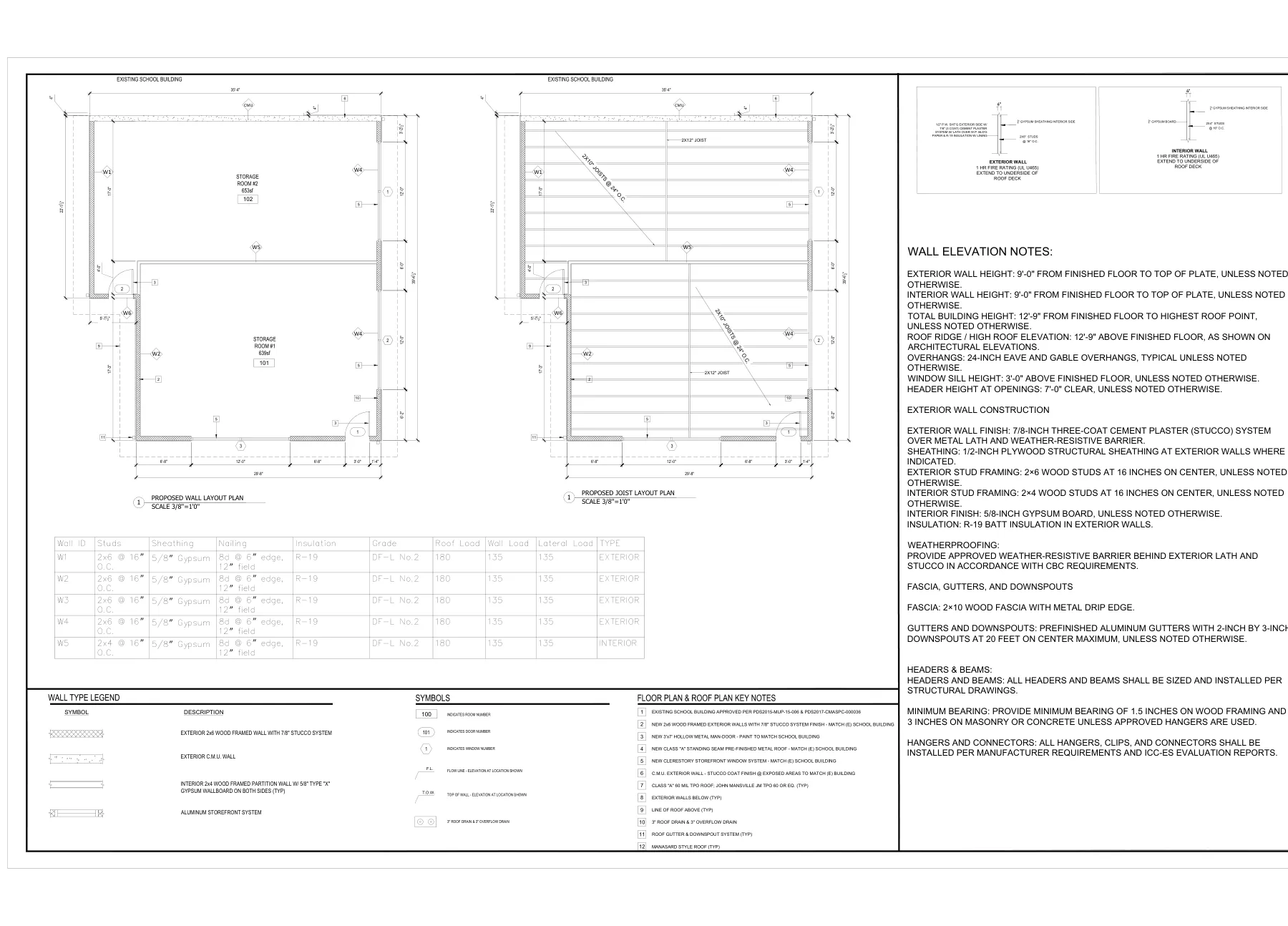

- Wall layout, wall elevations and shear-wall connection details

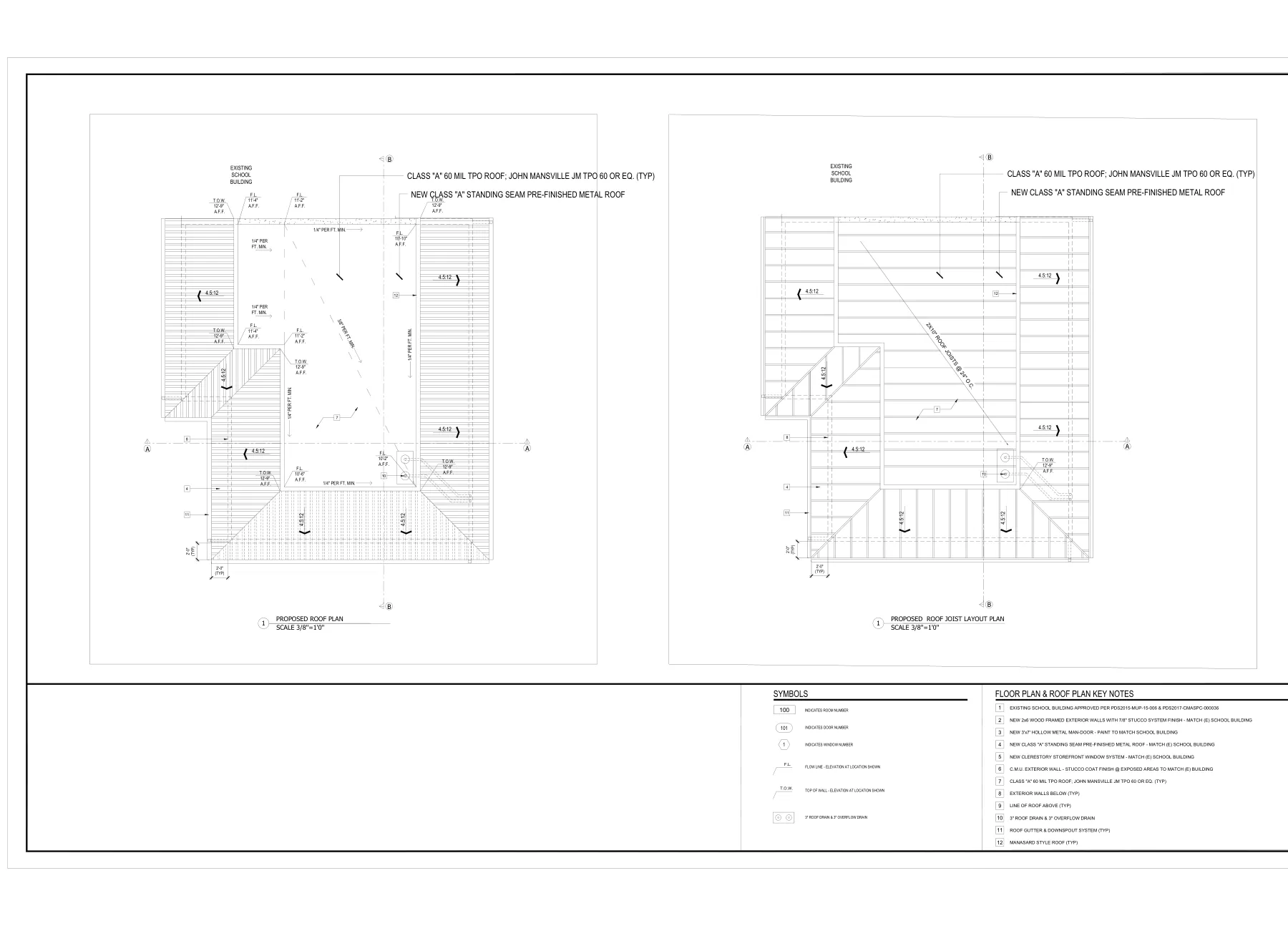

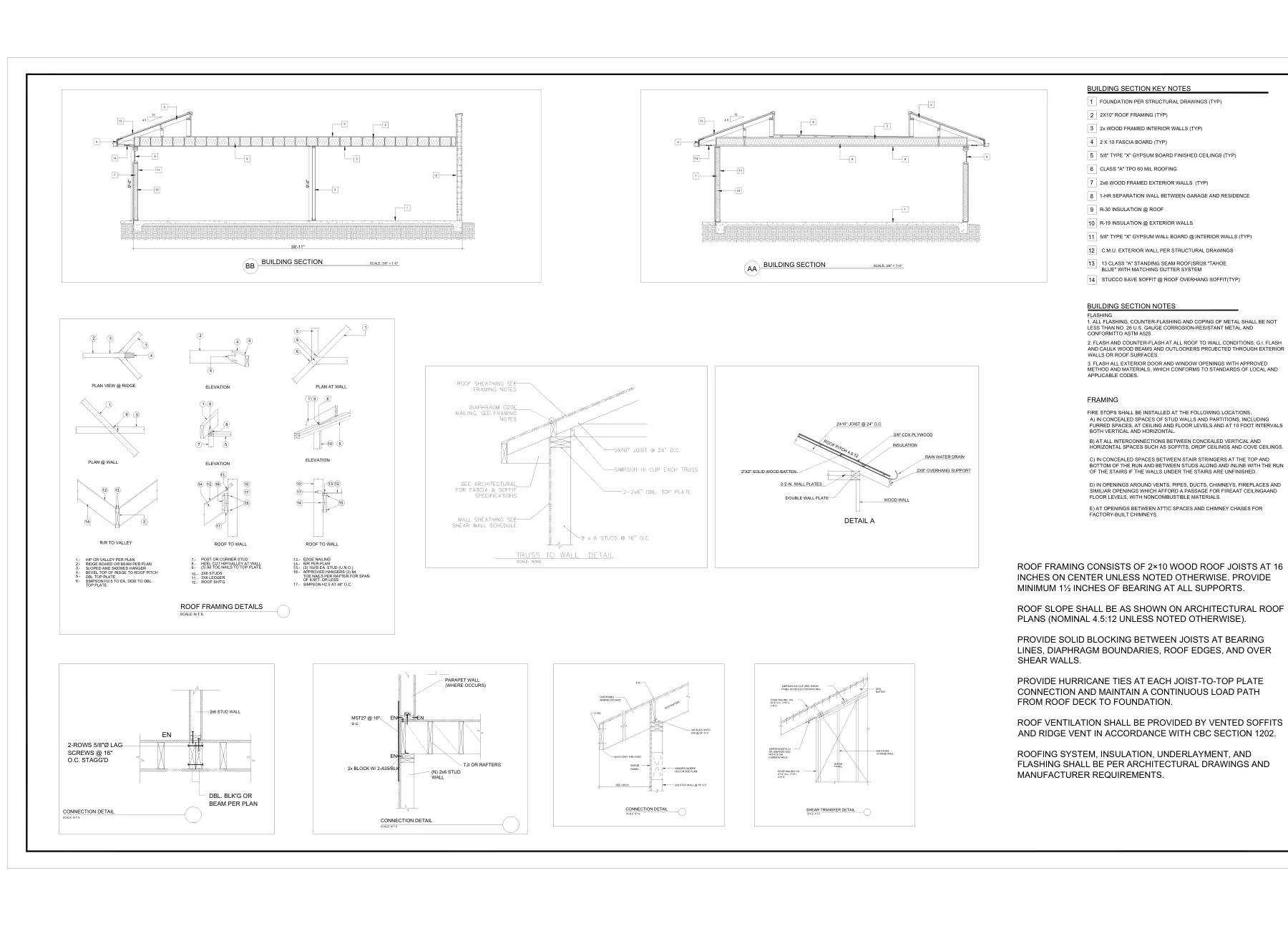

- Roof plan and roof-framing details

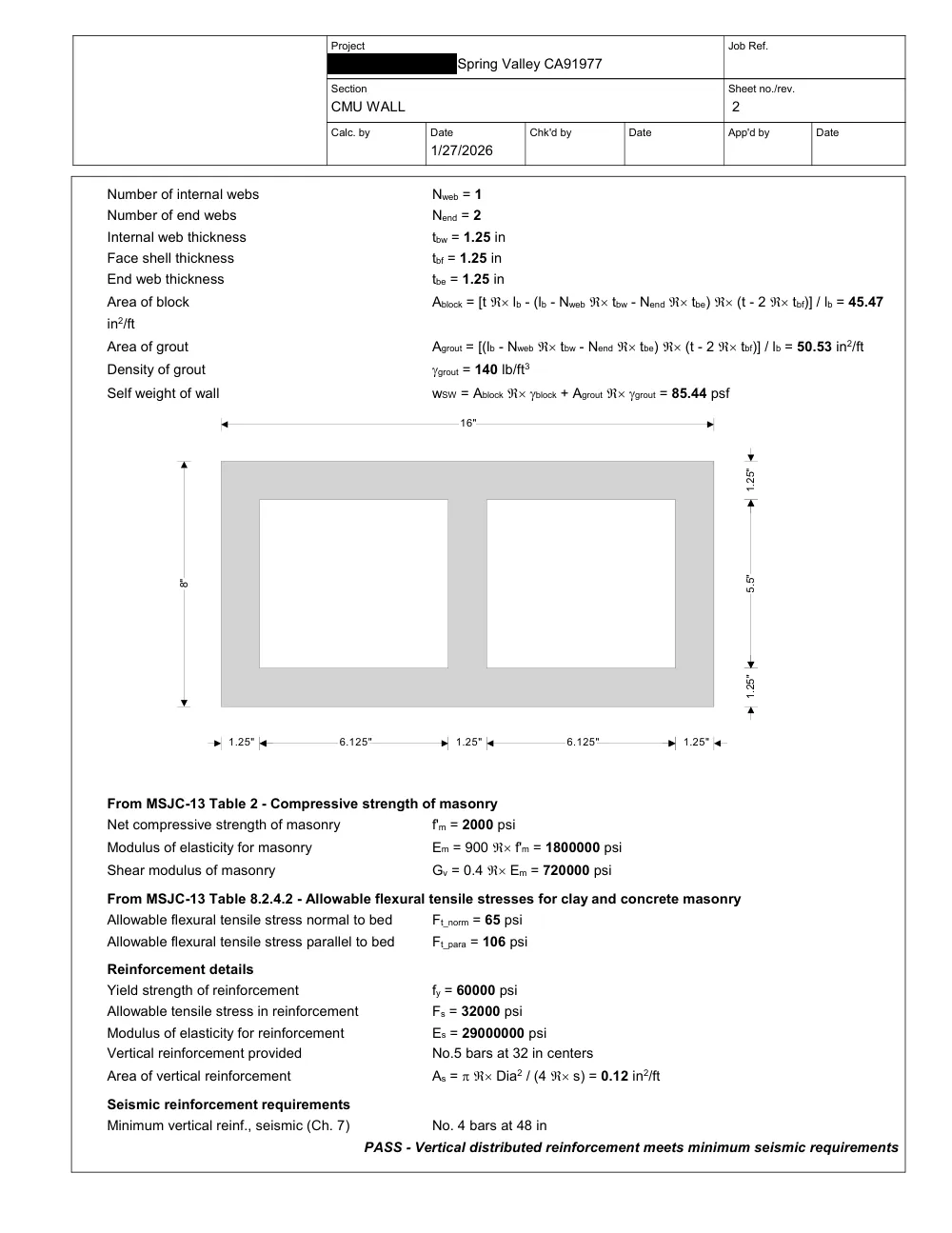

- CMU wall design calculations
Drawings & calculations
7 sheets from the project — click any sheet to view it full size.
