Two-Level Framed Structure — Analysis & Foundations

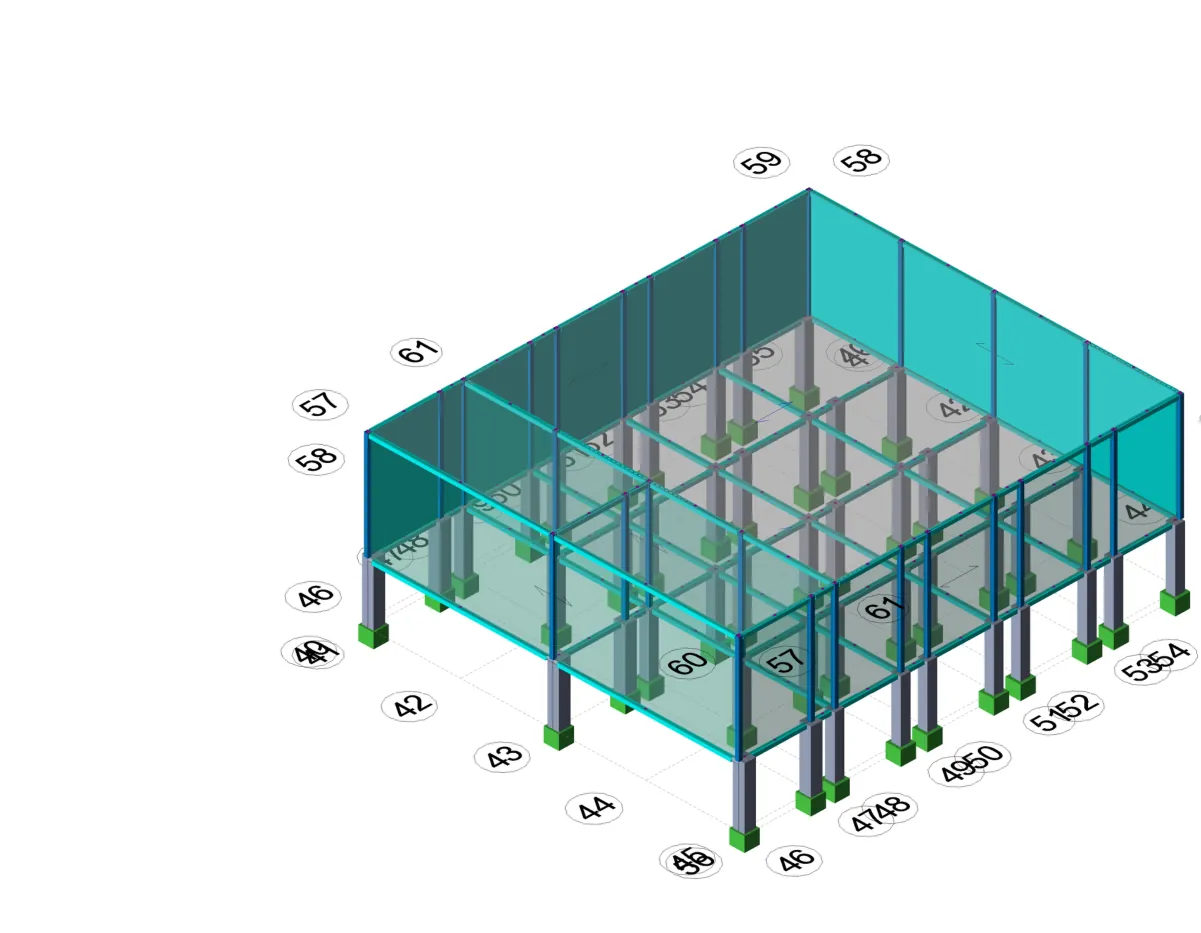

A 3D Tekla Structural Designer model of a two-level framed structure, used to derive foundation reactions and design the isolated footings.
Scope of work

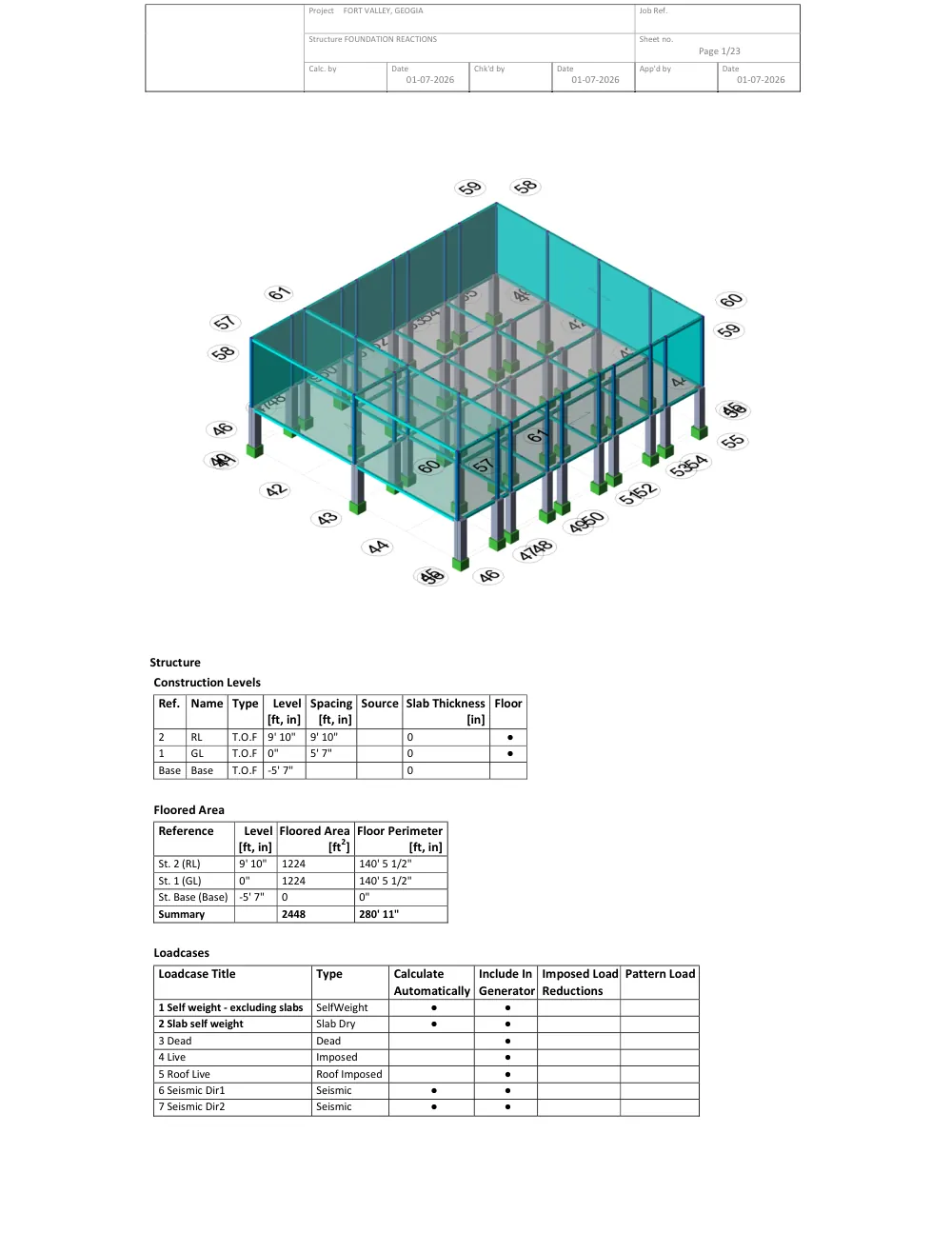

- 3D analysis model: two levels (1,224 sq ft each), 15′-5″ high, with full load combinations

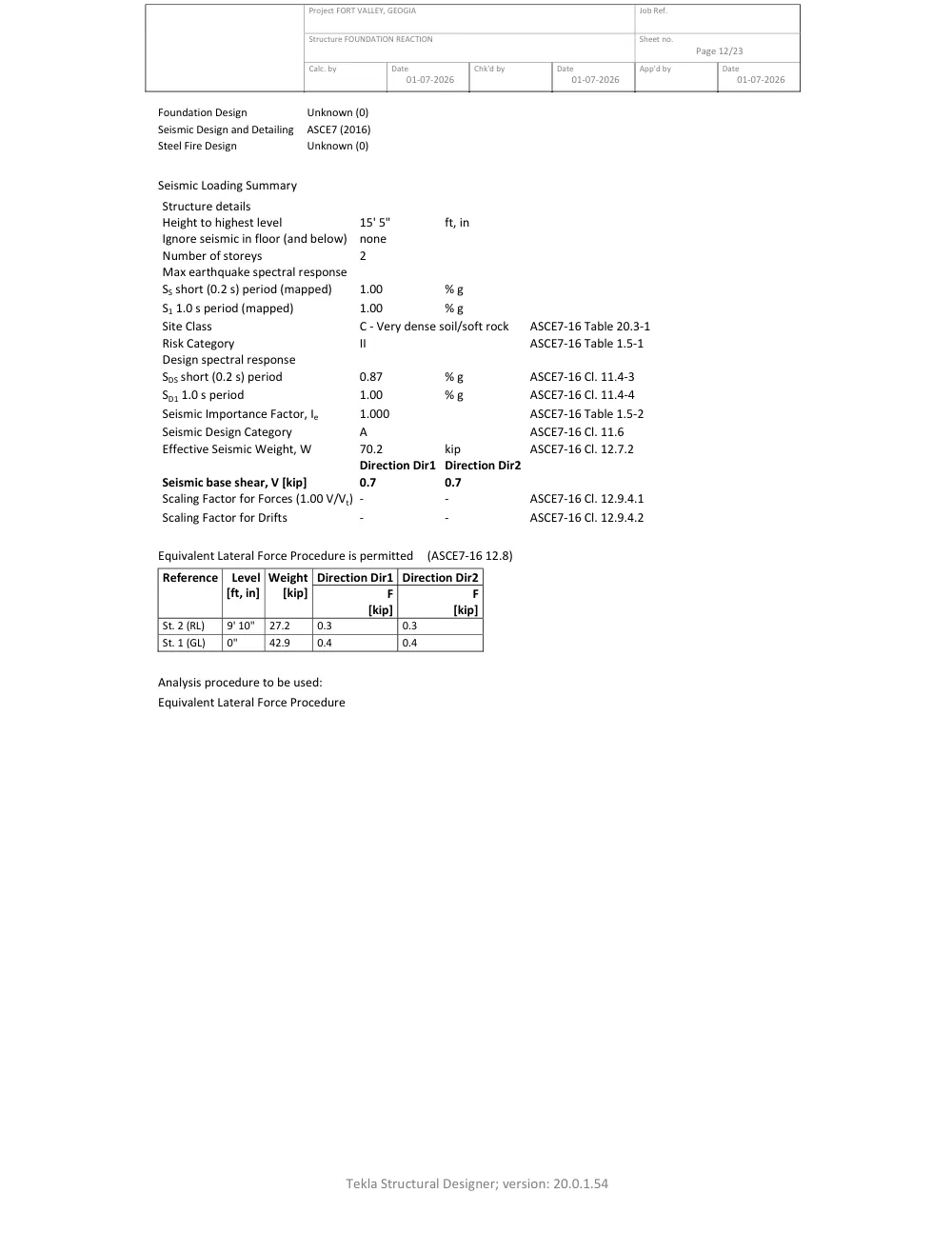

- Seismic loading summary to ASCE 7-16 (Site Class C, Risk Category II)
- Foundation reactions exported per load case

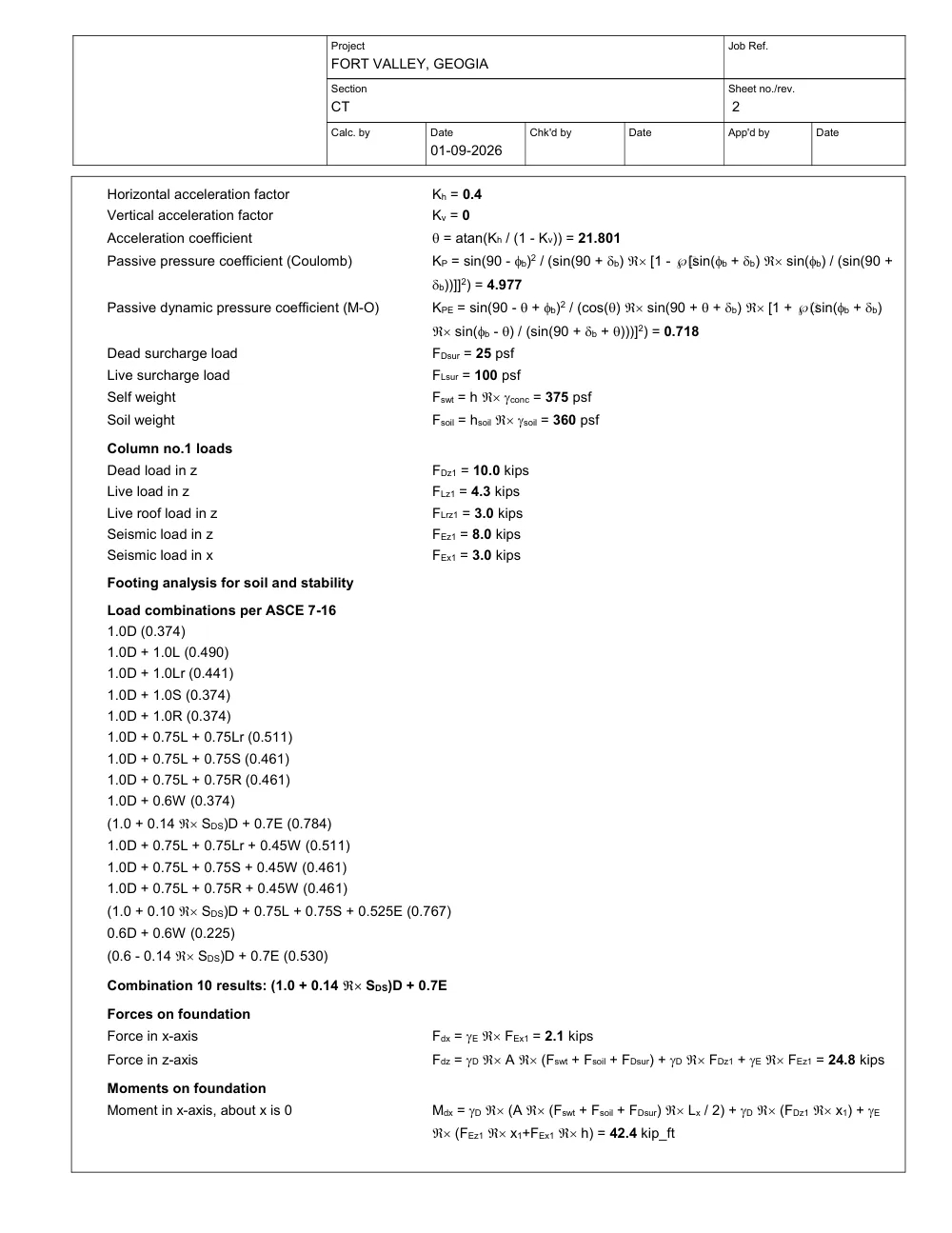

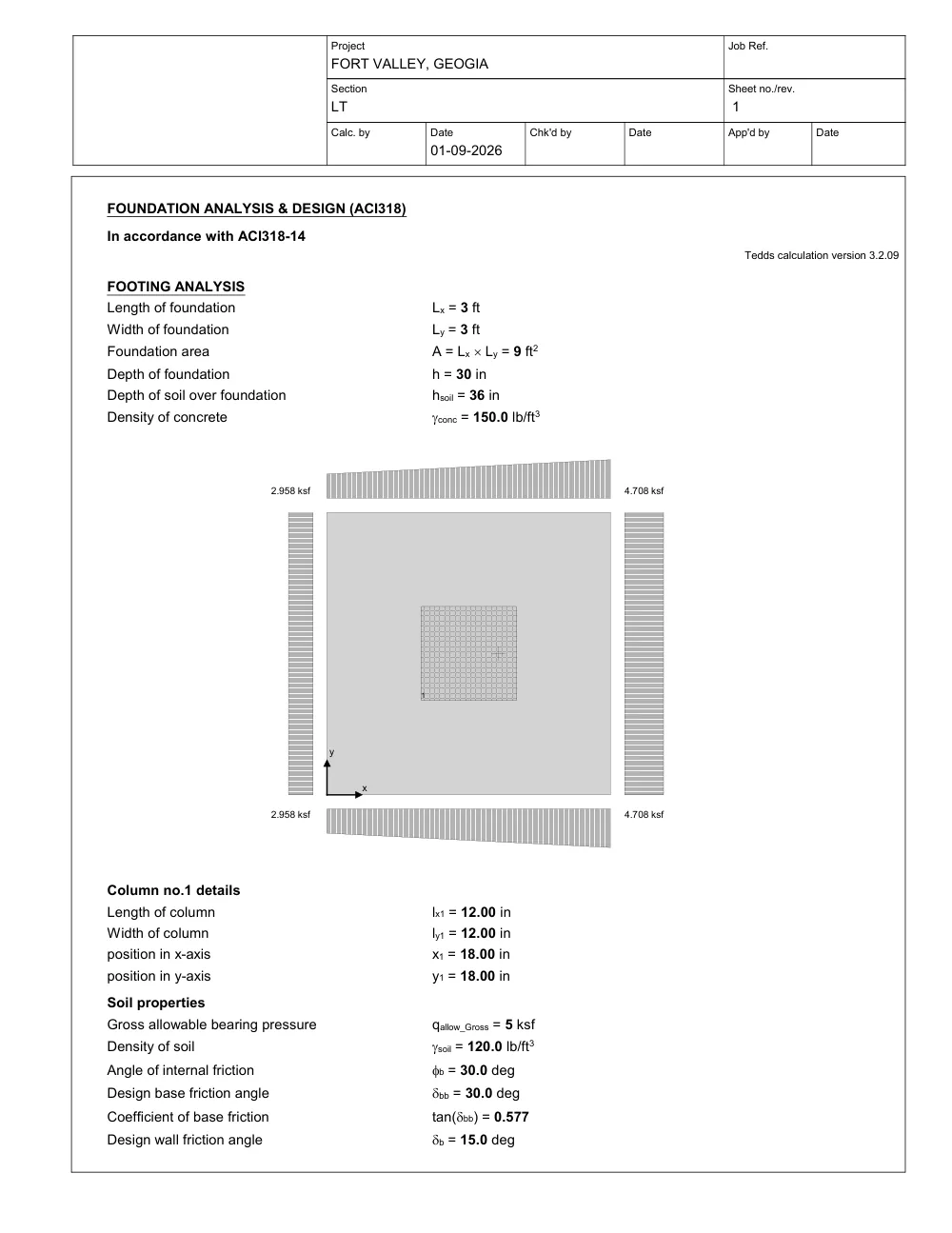

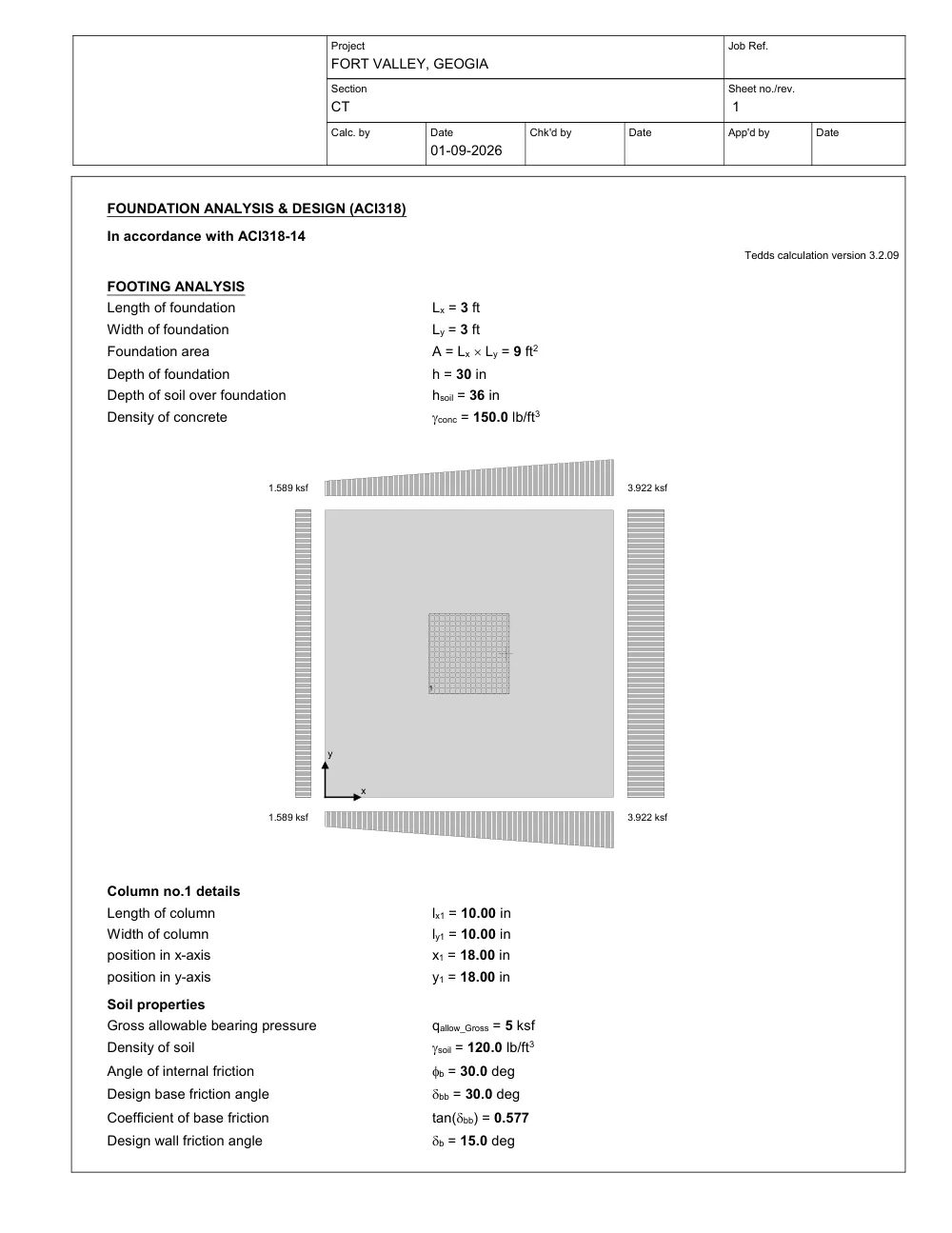

- Isolated footing analysis and design to ACI 318-14
Drawings & calculations
5 sheets from the project — click any sheet to view it full size.
