New Two-Story Home with Detached Garage
Complete structural design and permit drawings for a new two-story single-family dwelling and detached garage, with engineered-wood floors and a full calculation report.
Scope of work

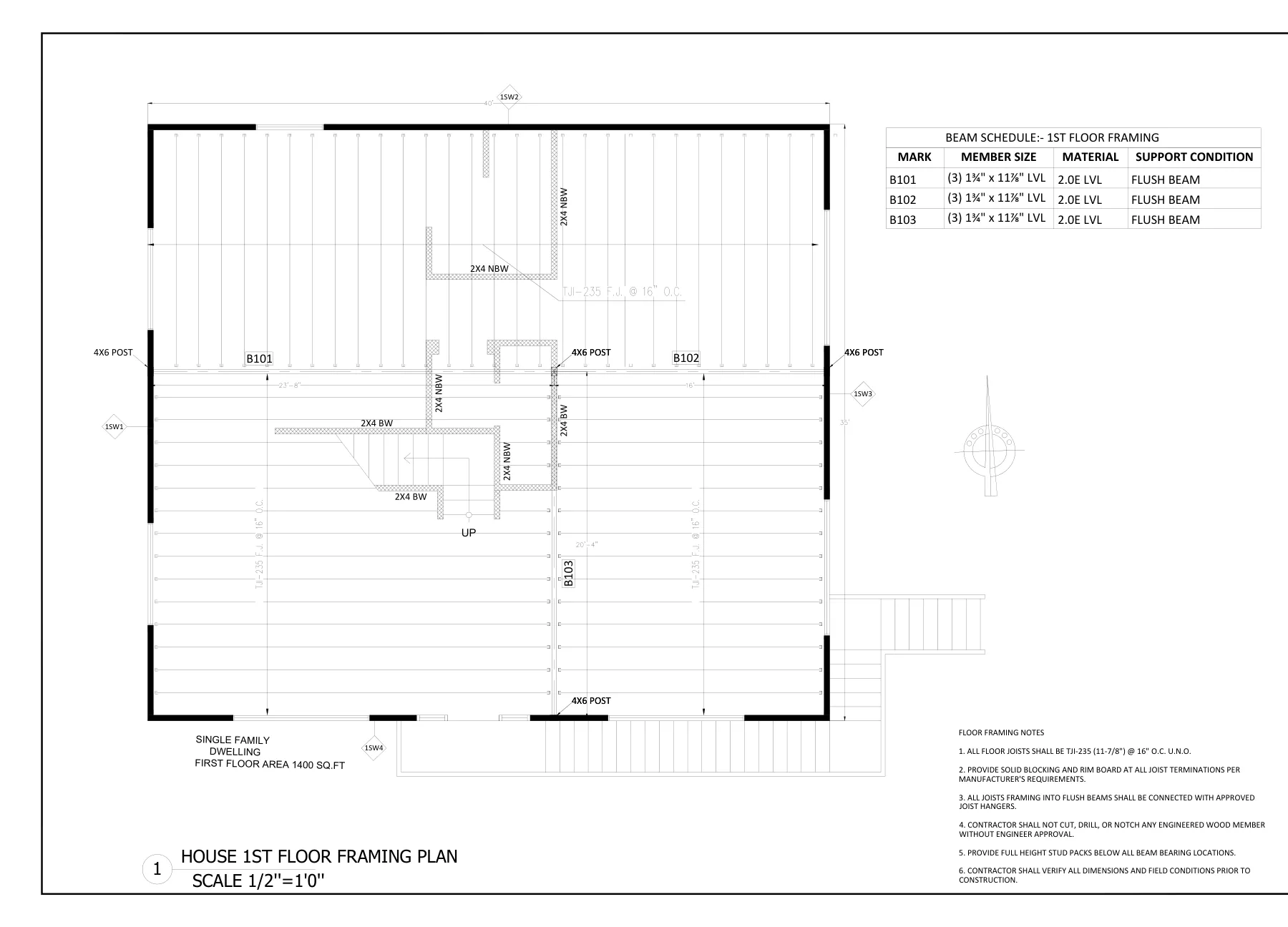

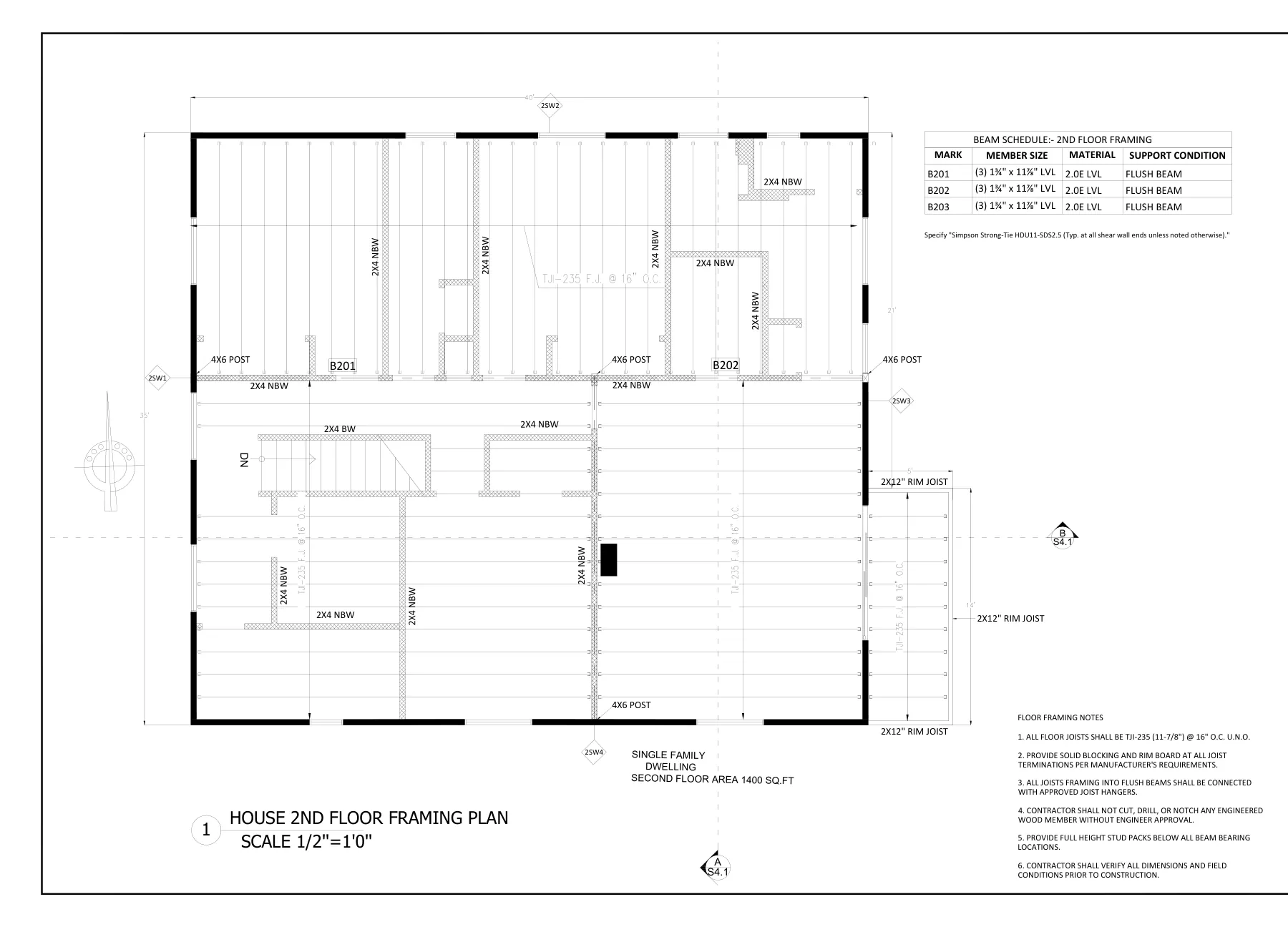

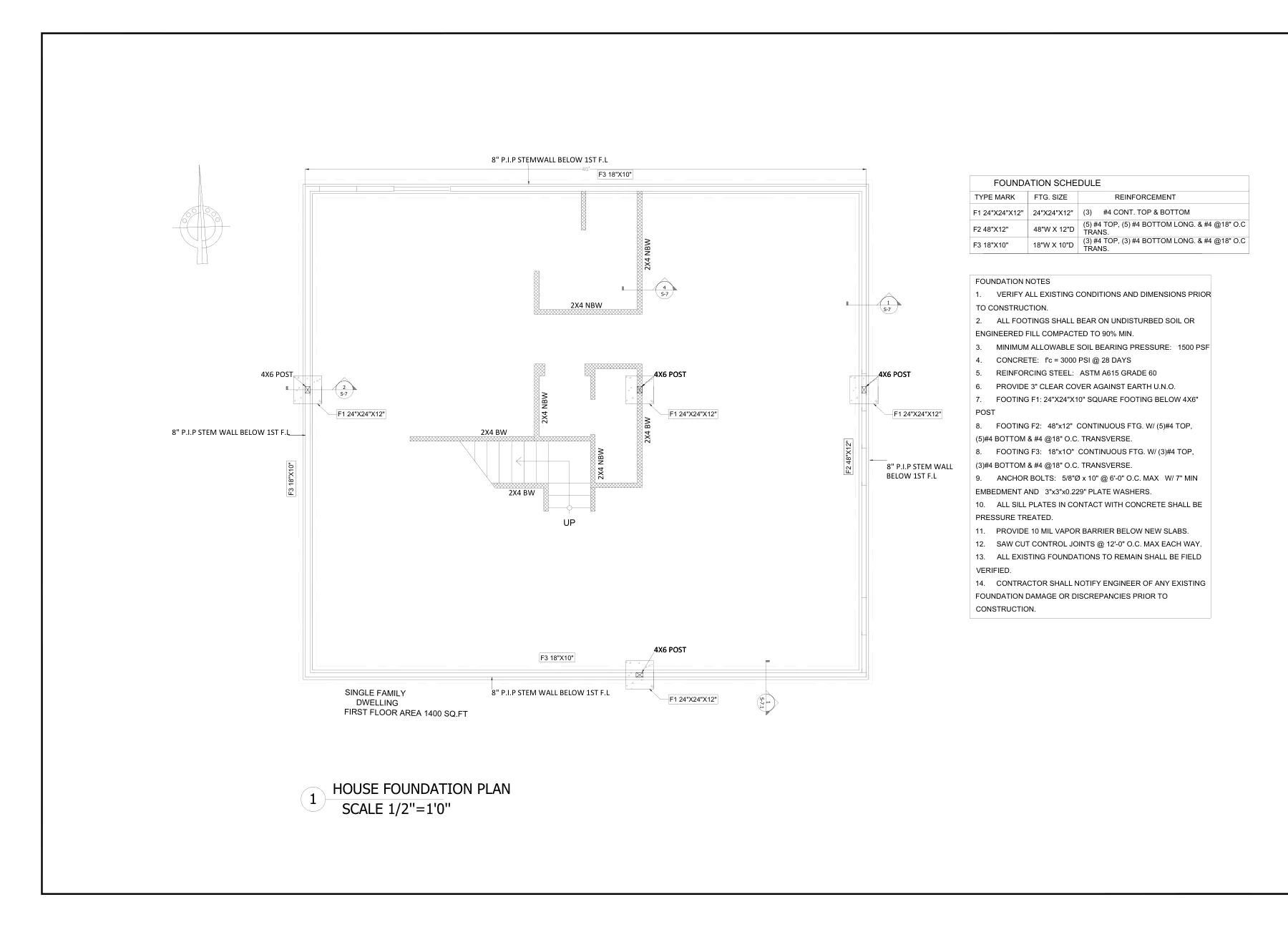

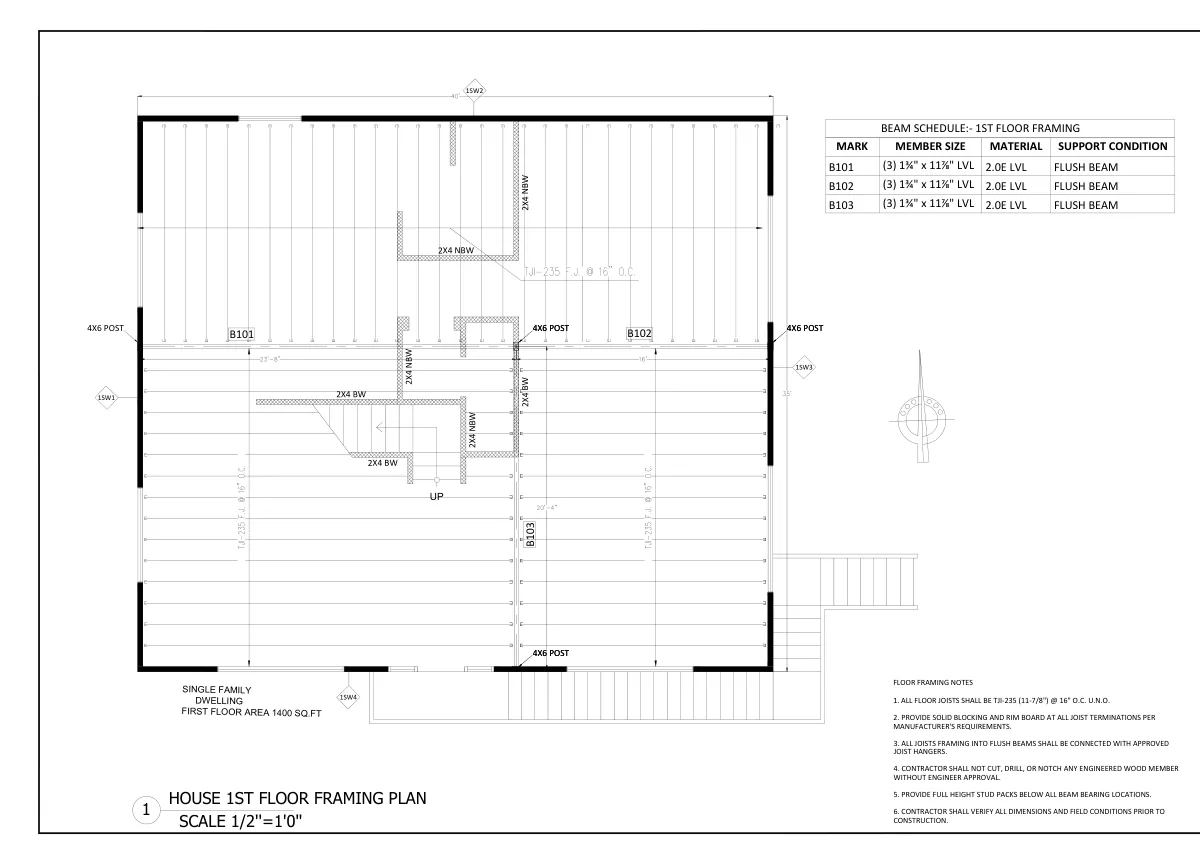

- Foundation plan, 1st and 2nd floor framing with LVL beams — B101–B103, (3) 1¾" × 11⅞" 2.0E LVL flush beams
- TJI-235 floor joists at 16" O.C., 4×6 posts

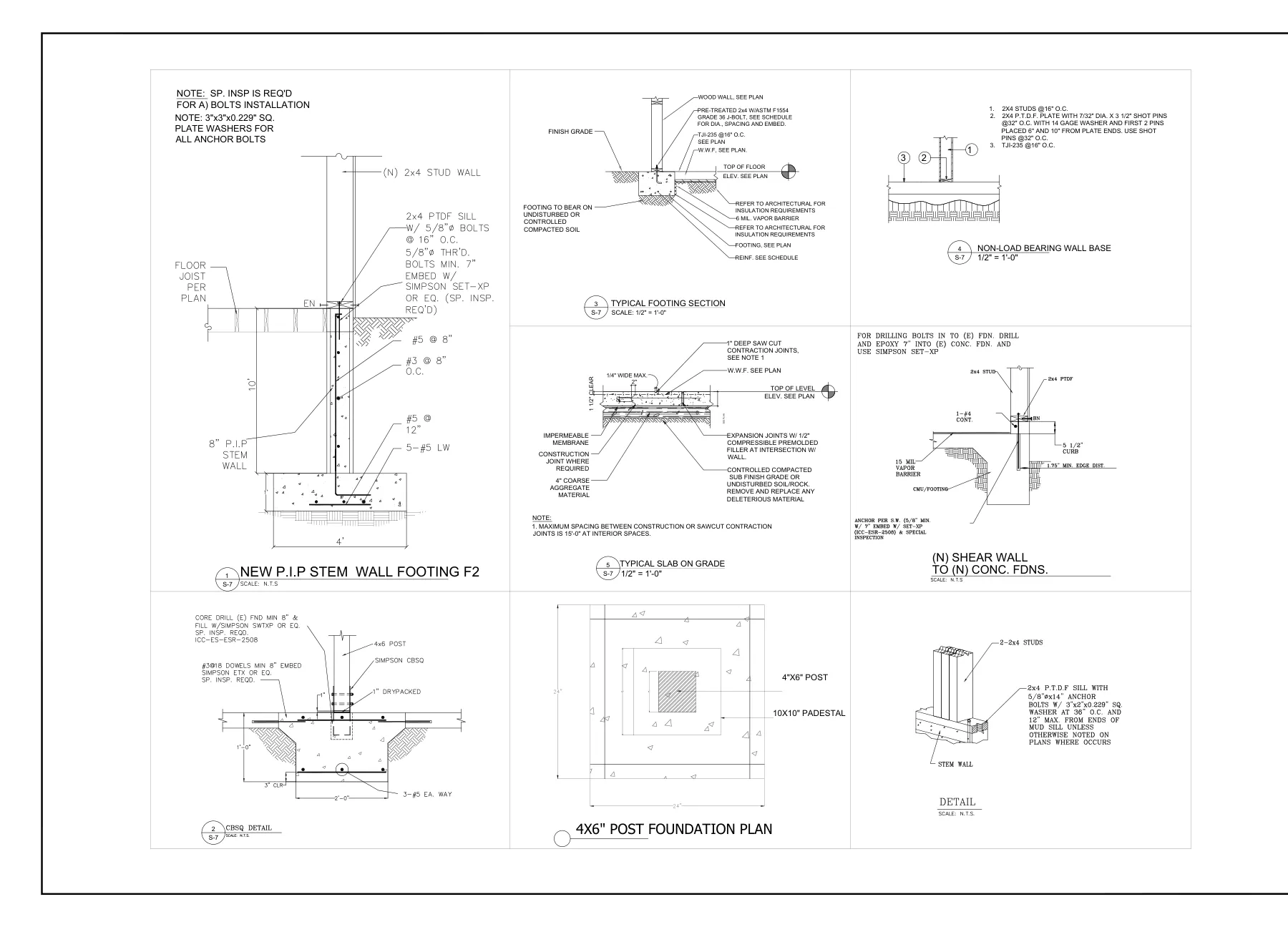

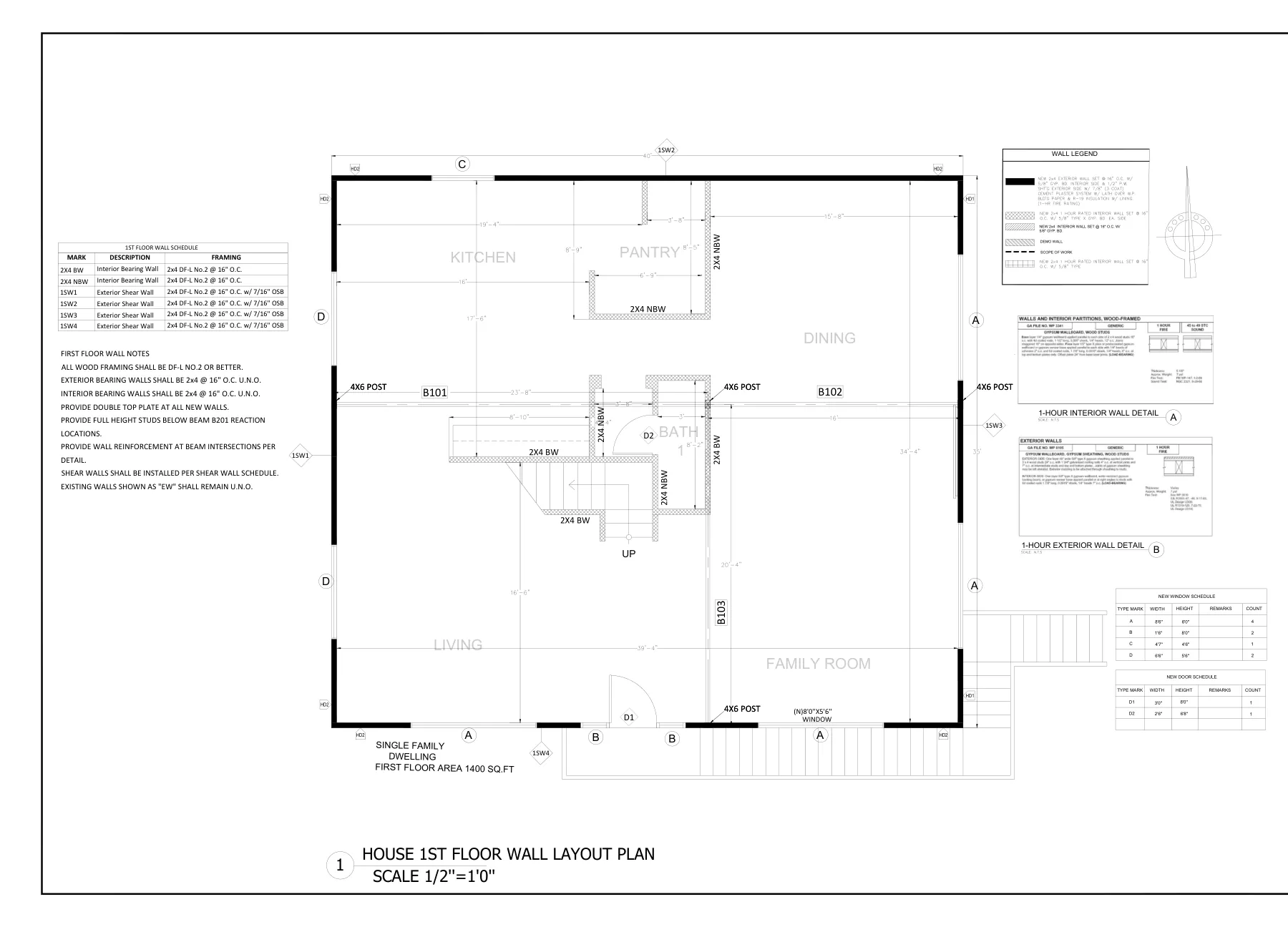

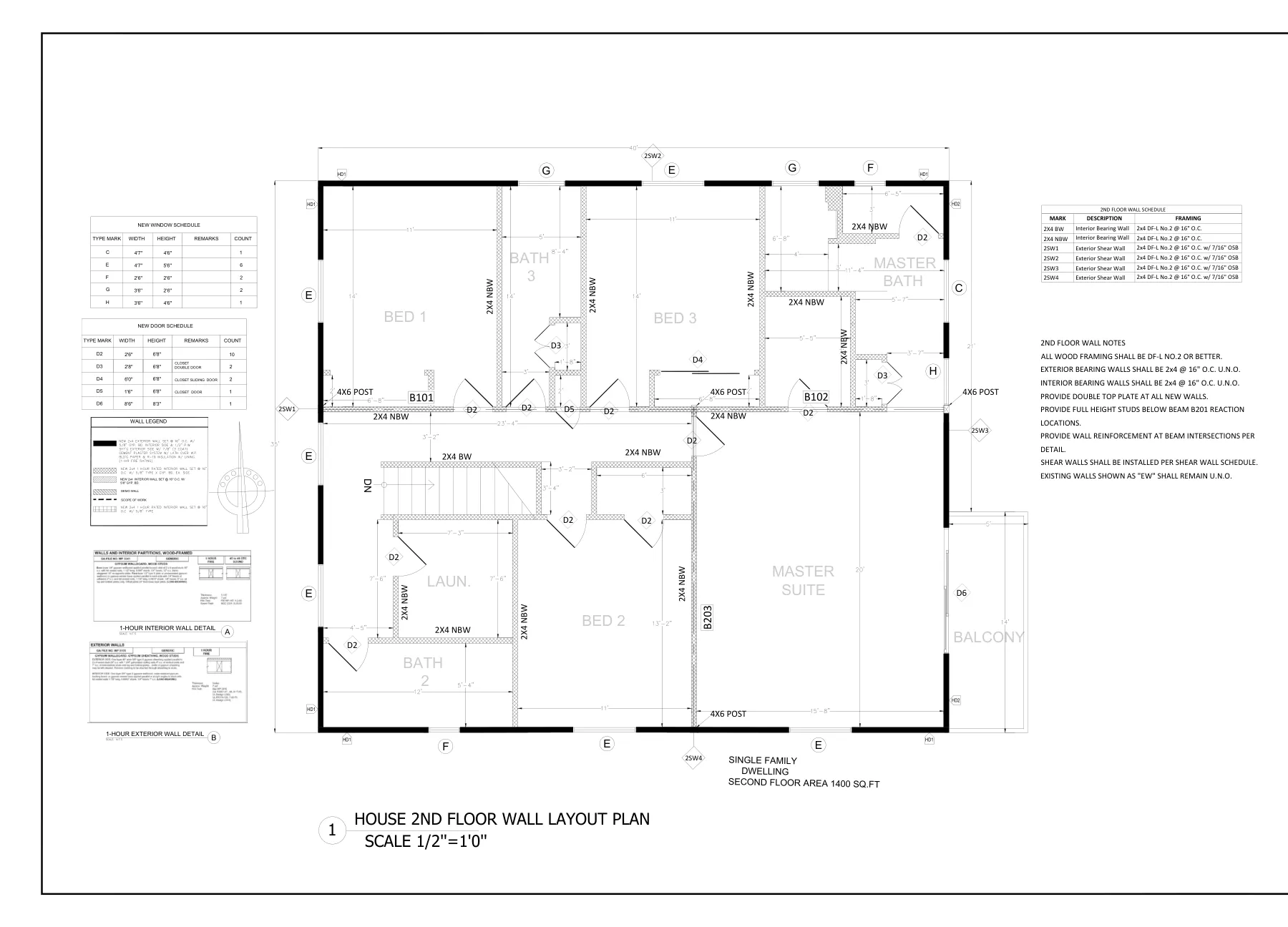

- Shear wall plan and schedule (1SW1–1SW4), hold-downs and connection details

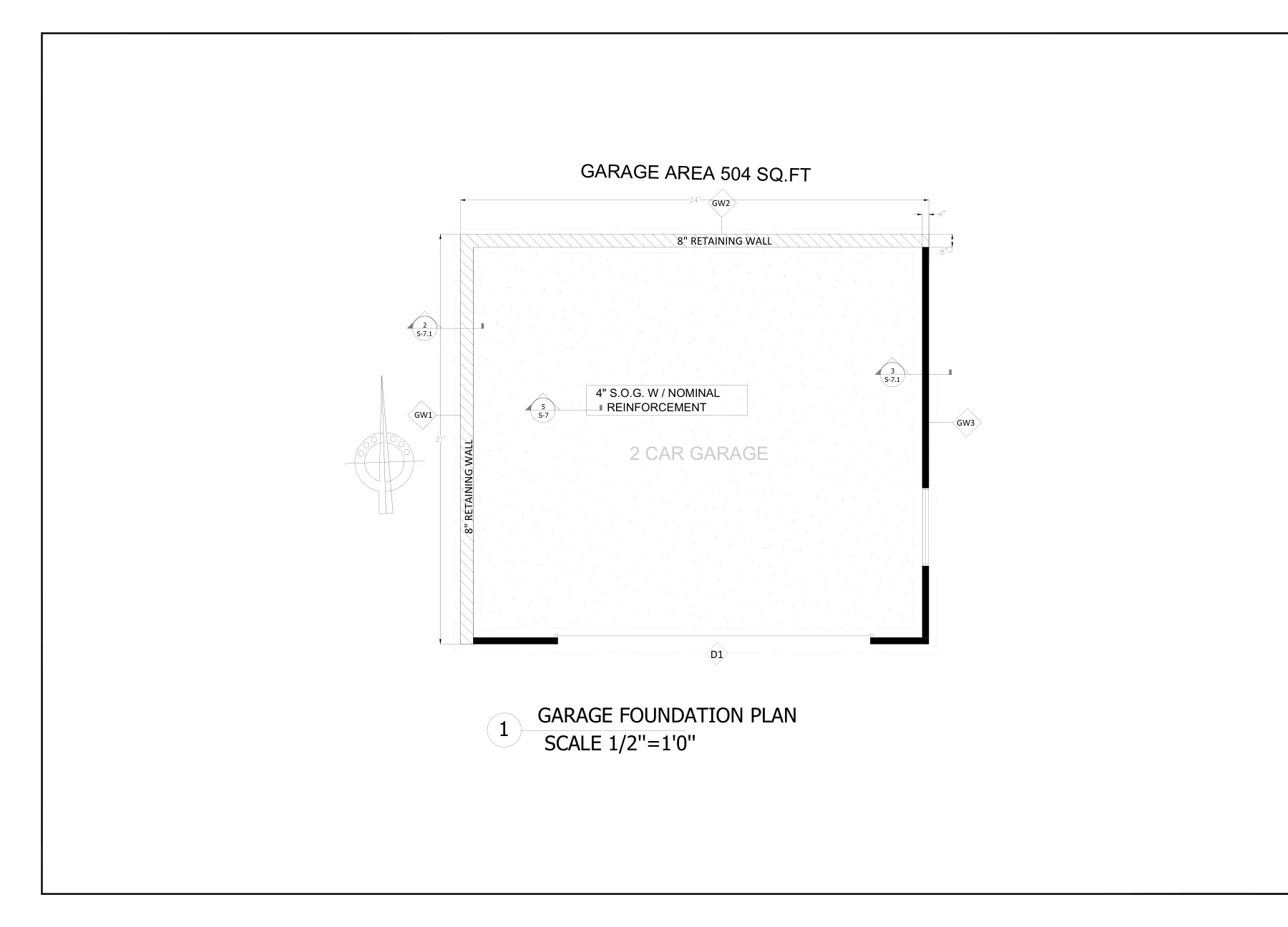

- Detached garage wall, roof and foundation design
- Full Tekla Tedds calculation report

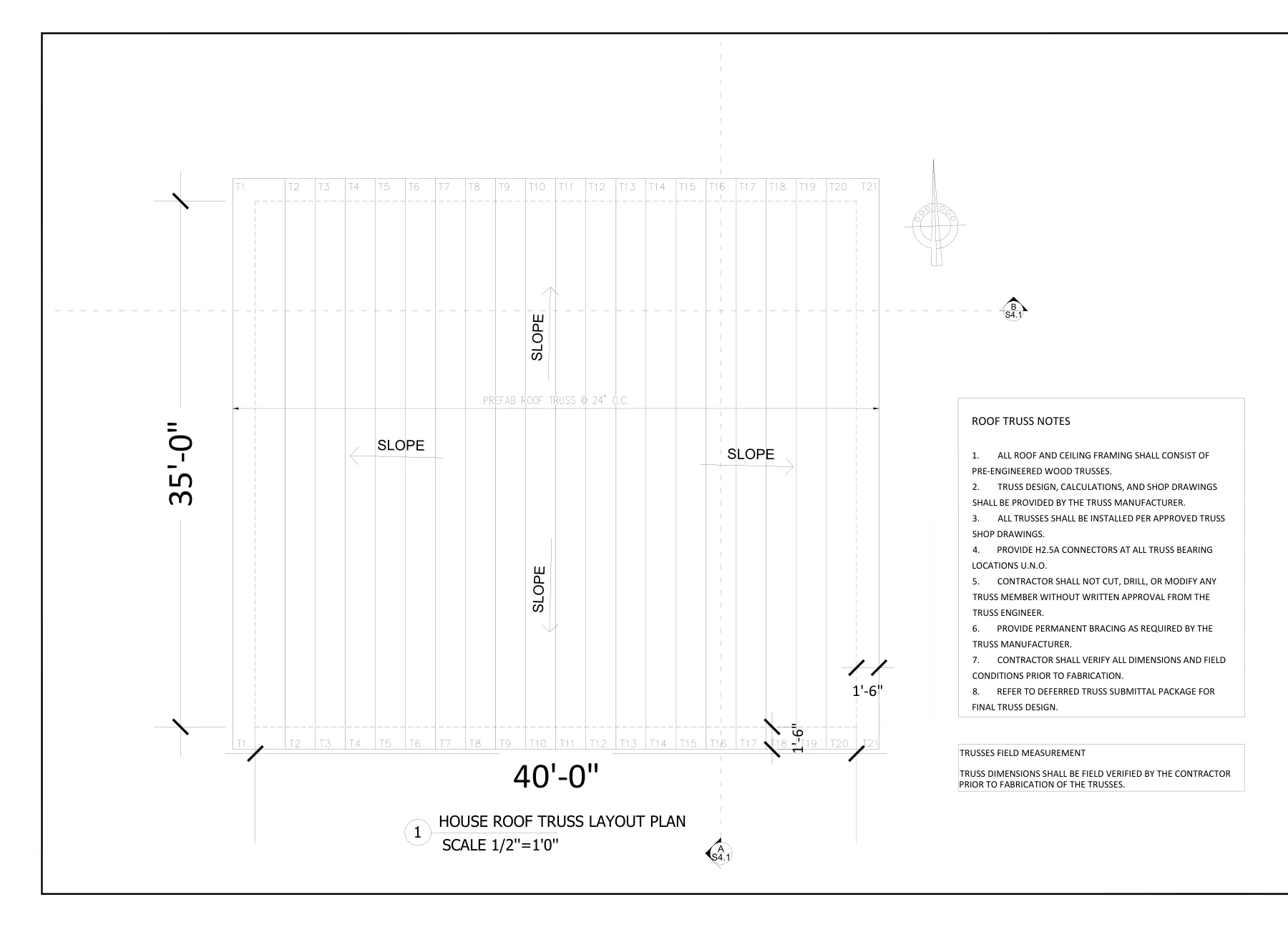

Drawings & calculations
8 sheets from the project — click any sheet to view it full size.
