Clear-Span LVL Beam Installation
A flush LVL beam that opens up a first-floor living space, with bearing on concrete and masonry walls and full connection details on a single sheet.
Scope of work
- Clear-span beam keyplan, Sections A-A and B-B
- 7" × 11⅞" LVL flush beam with Simpson HUC710 hangers and 4×4×¼" steel angles
- 6×8 header details; Ø5/8" thru-bolts and expansion-bolt anchorage
- Code compliance summary (OSSC 2018 / IBC 2018, SDC A) and load combinations
Drawings & calculations

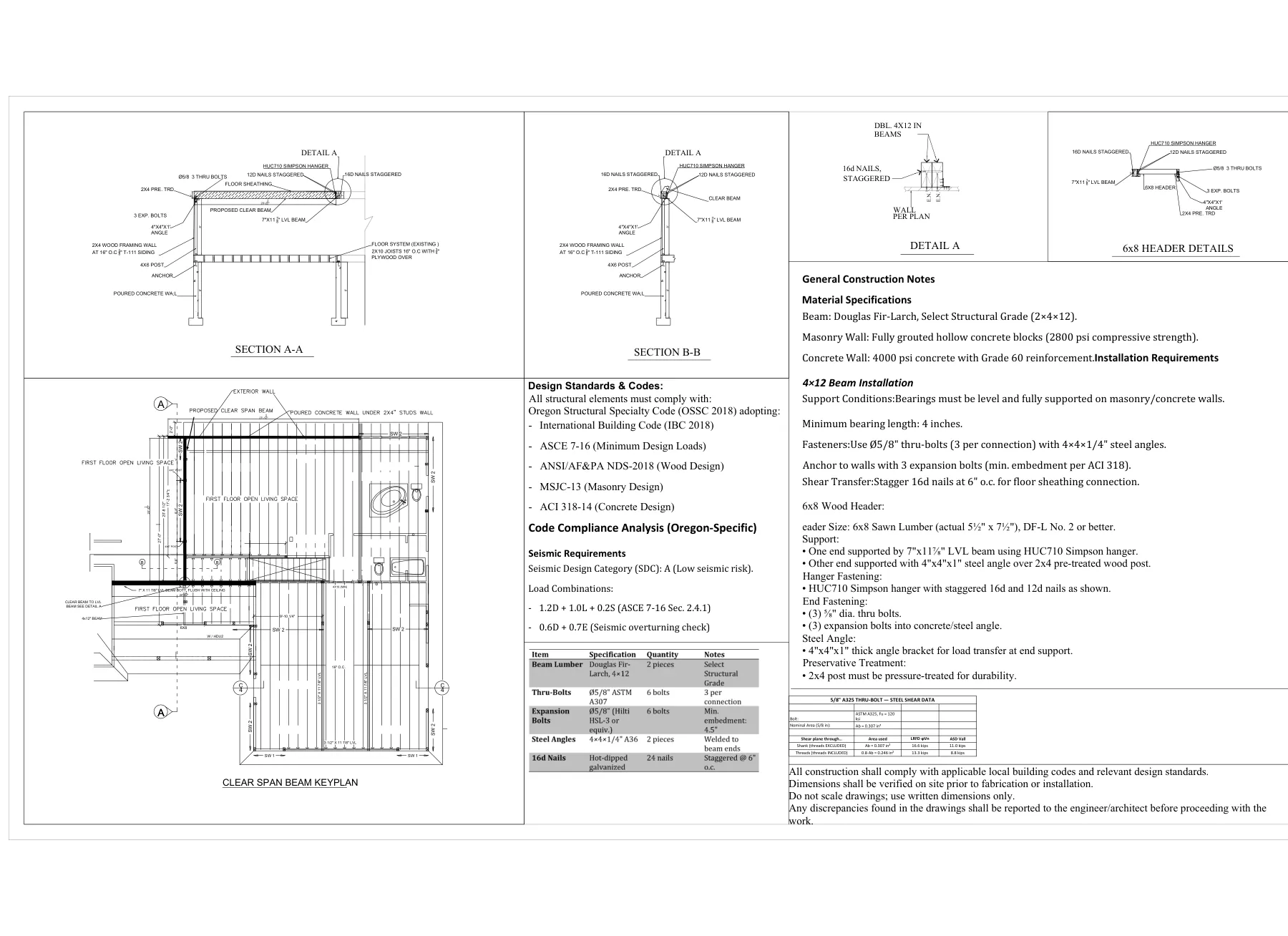

1 sheet from the project — click any sheet to view it full size.
