Six-Bay Garage Building Repair
A repair scheme for a two-level, six-bay garage building: damaged wall sections and framing are removed and replaced, with new floor joists and strapping.
Scope of work

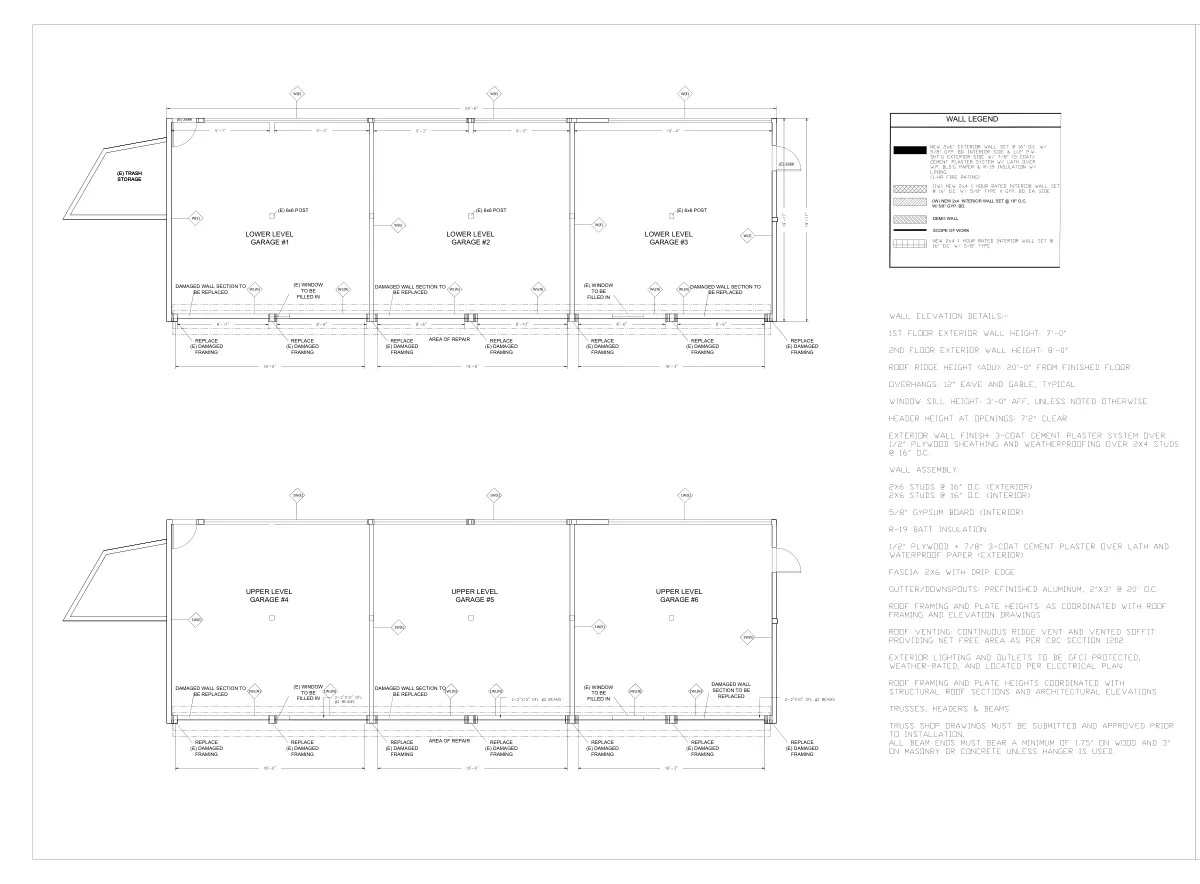

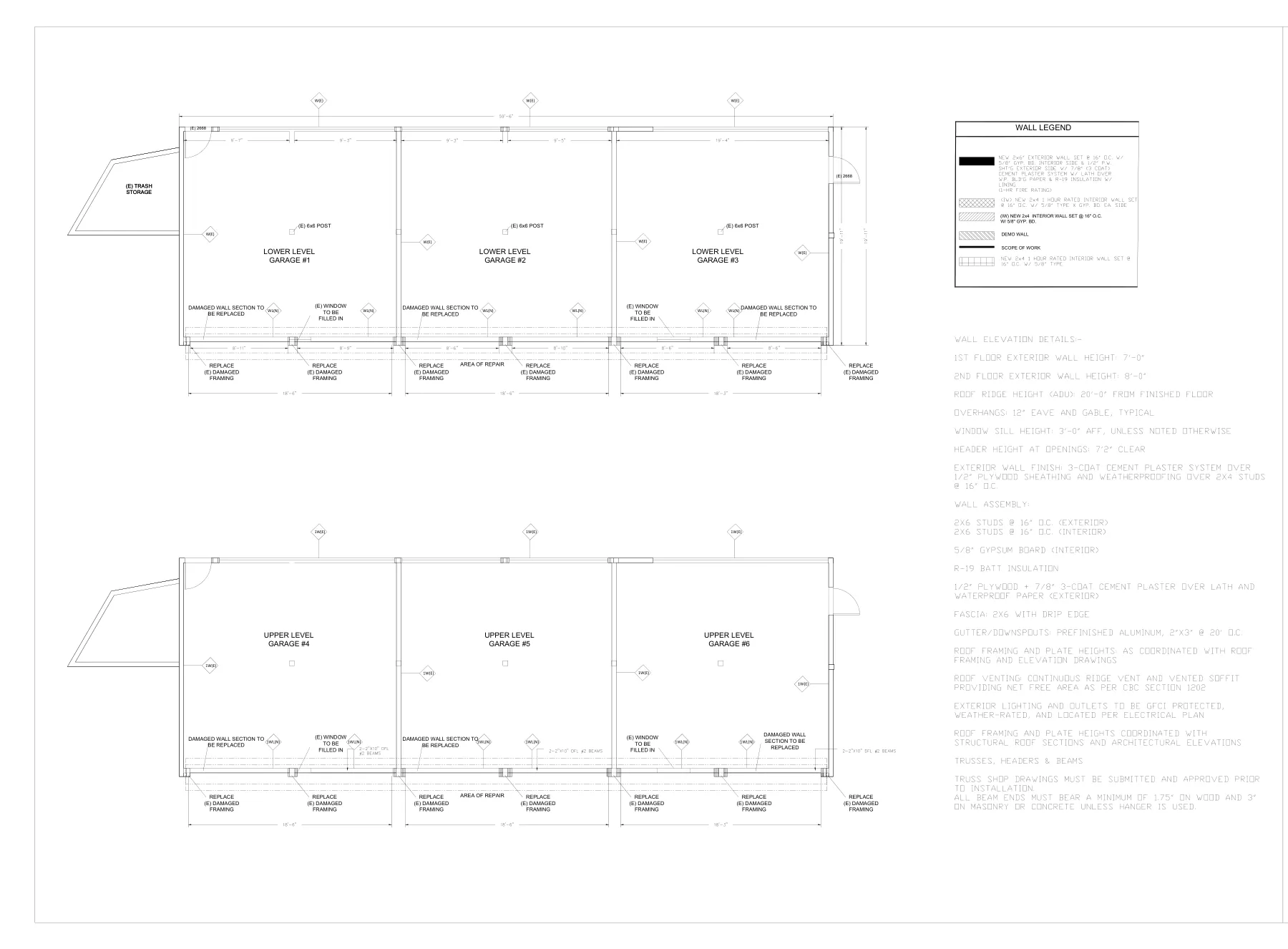

- Wall layout plan identifying damaged wall sections and framing to be replaced

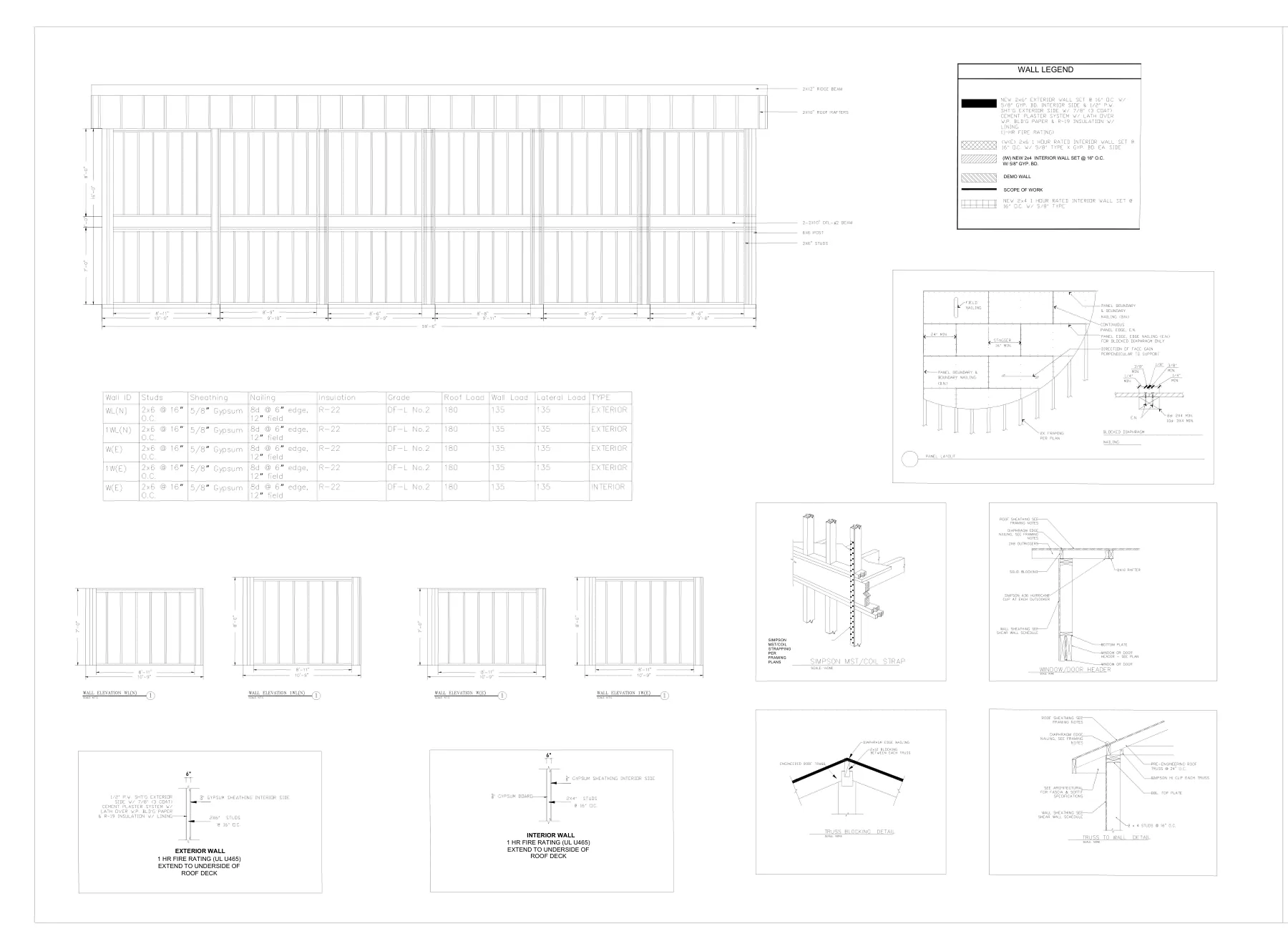

- Wall elevation details with 1-hr rated assemblies (UL U465)

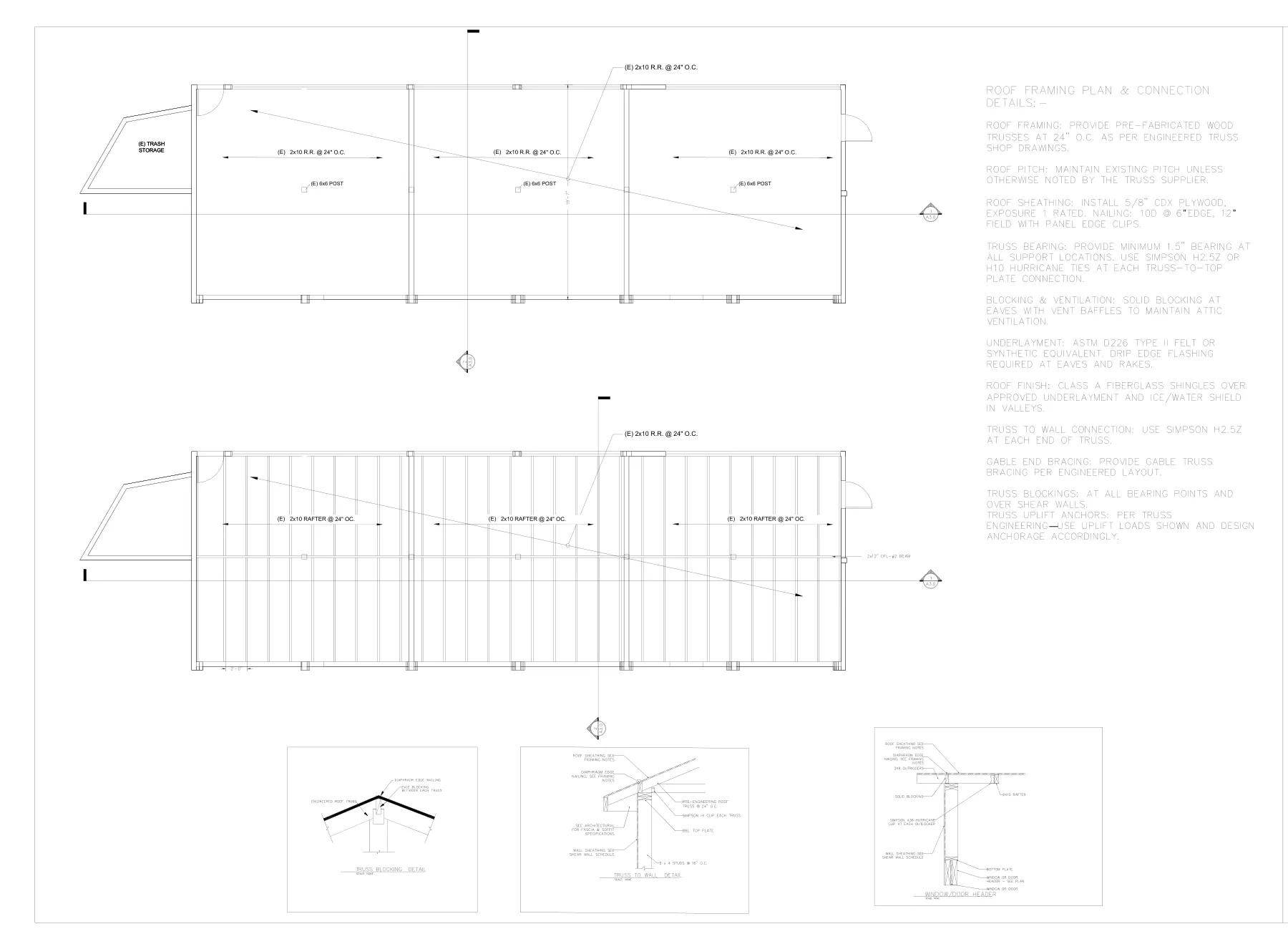

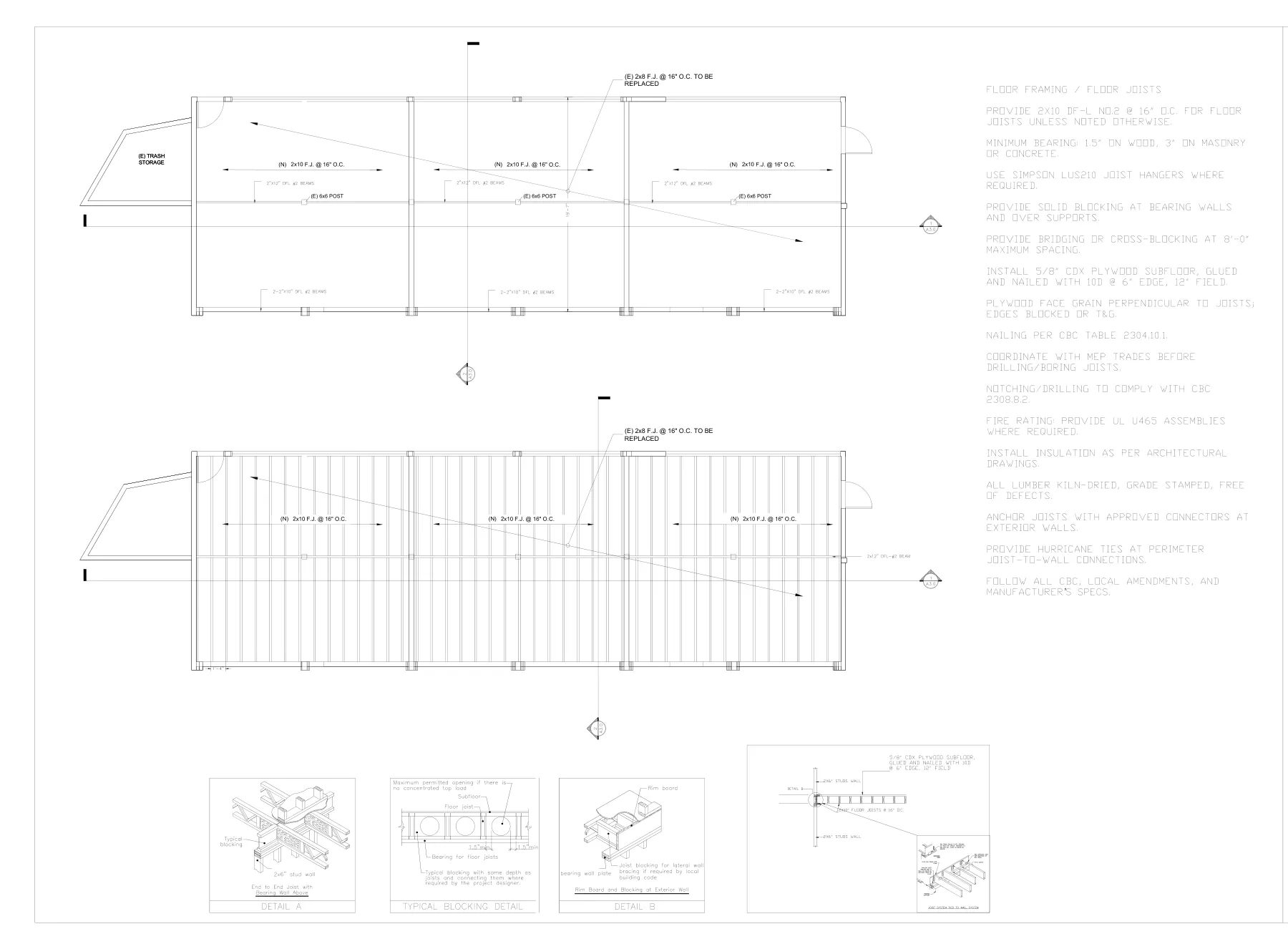

- New 2×10 floor joists @ 16" O.C. and roof framing at 2×10 @ 24" O.C.

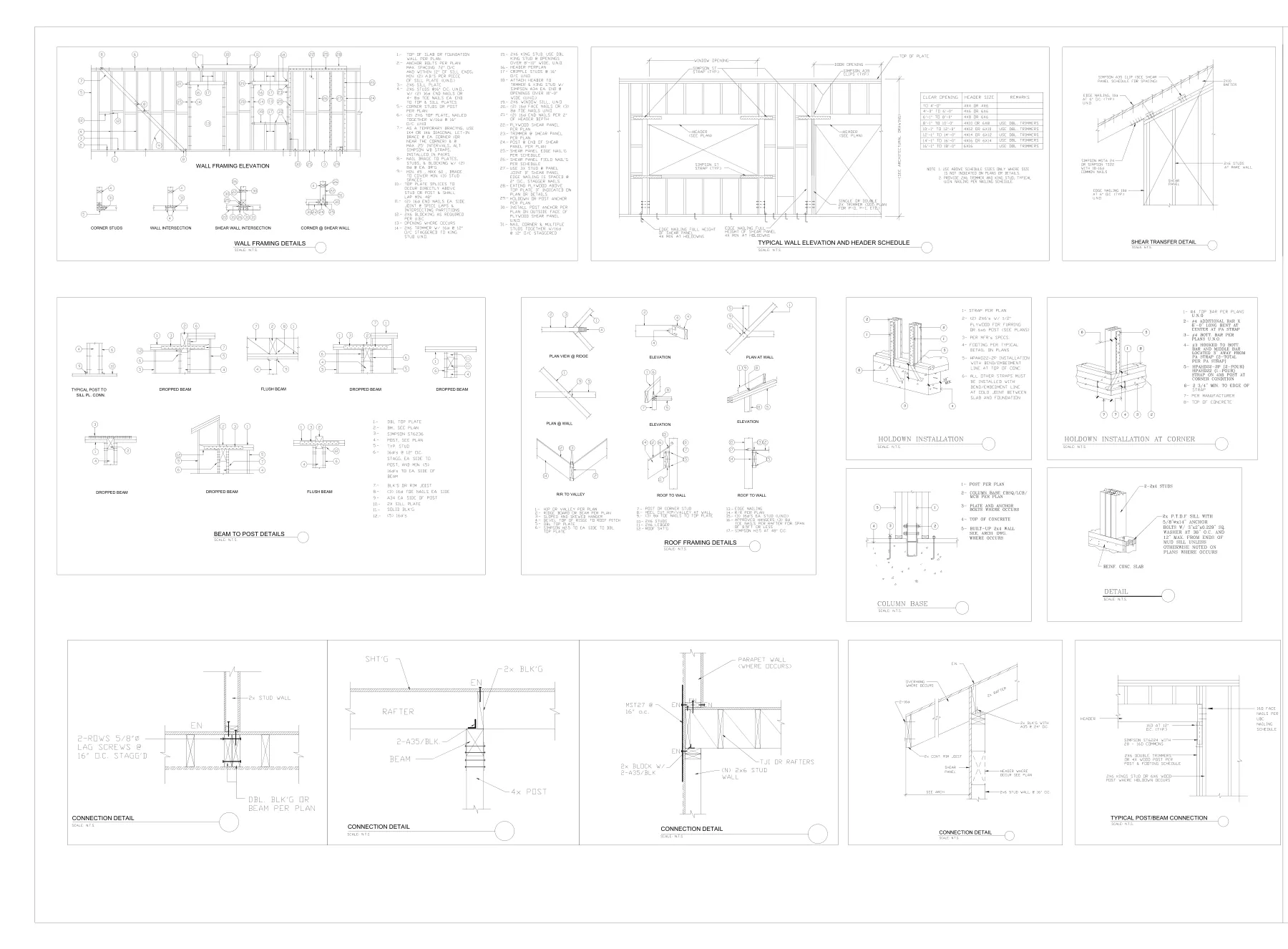

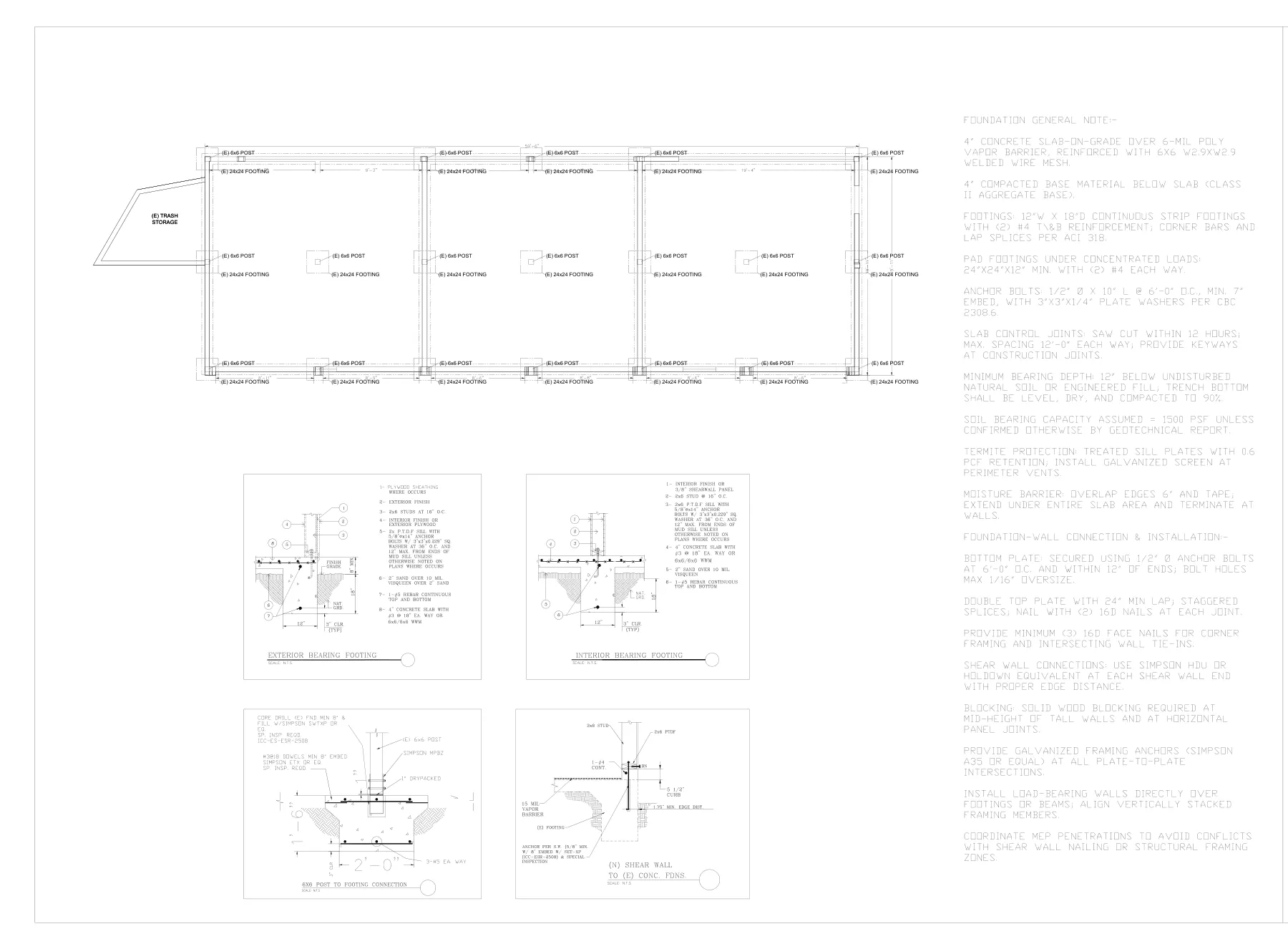

- Simpson MST / coil strapping and shear-transfer details
Drawings & calculations
6 sheets from the project — click any sheet to view it full size.
