Covered Patio Addition with LVL Beams
A new patio roof tied to an existing house, framed with 6×6 posts, triple LVL beams and an 8:12 engineered-wood roof.
Scope of work

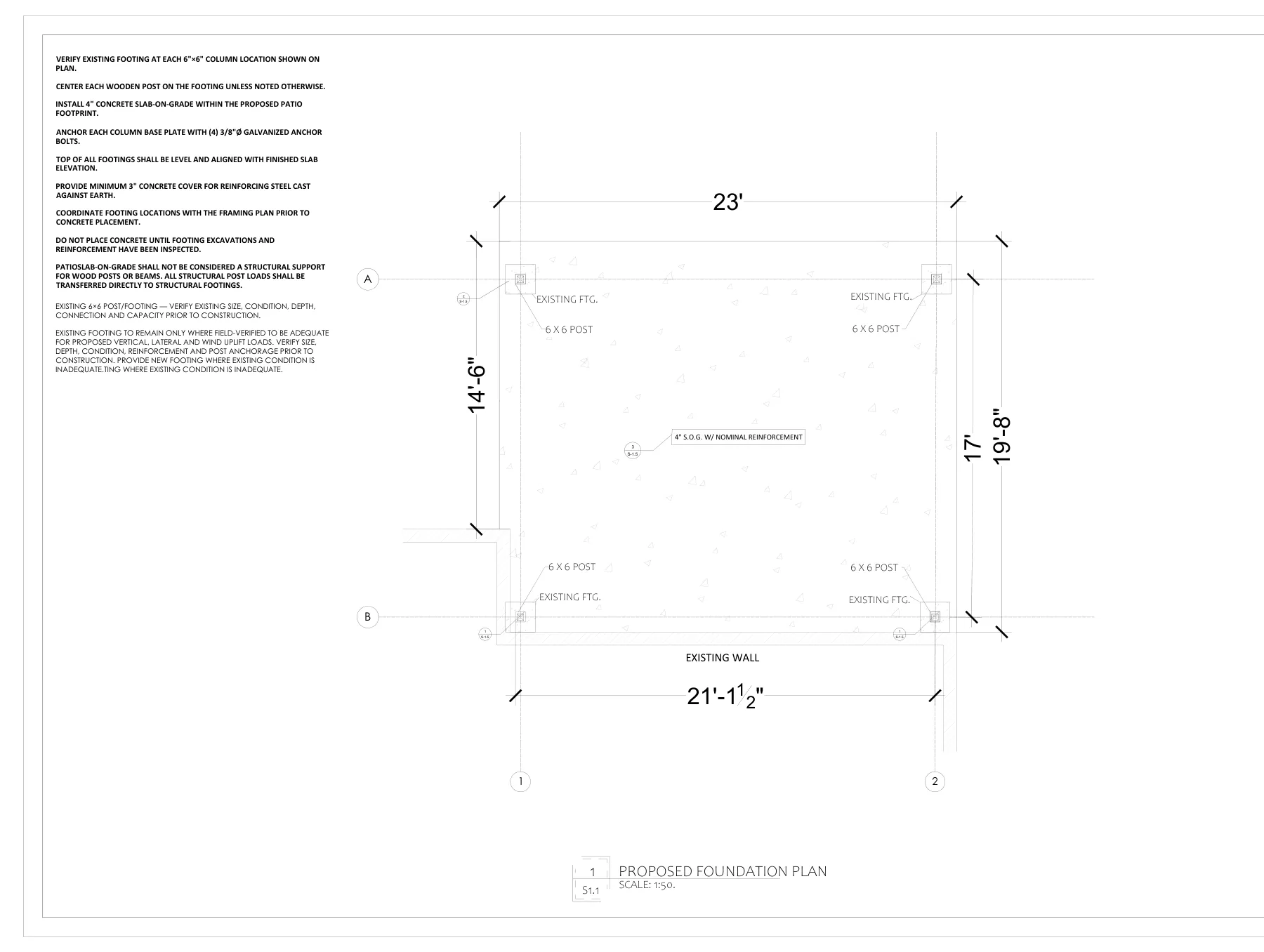

- Foundation plan with new footings and reuse of existing footings

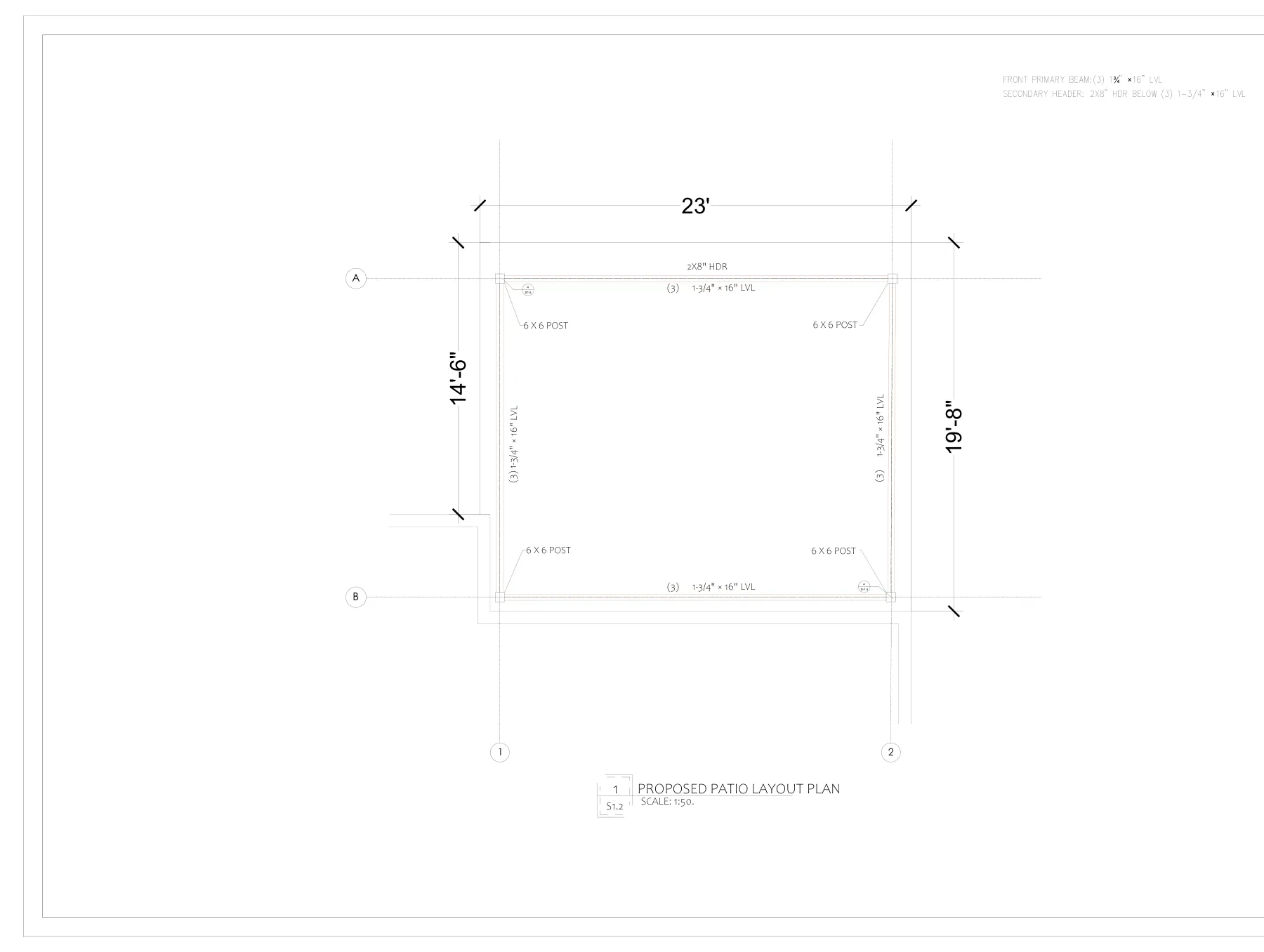

- (3) 1¾" × 16" LVL beams on 6×6 posts with Simpson post bases and caps

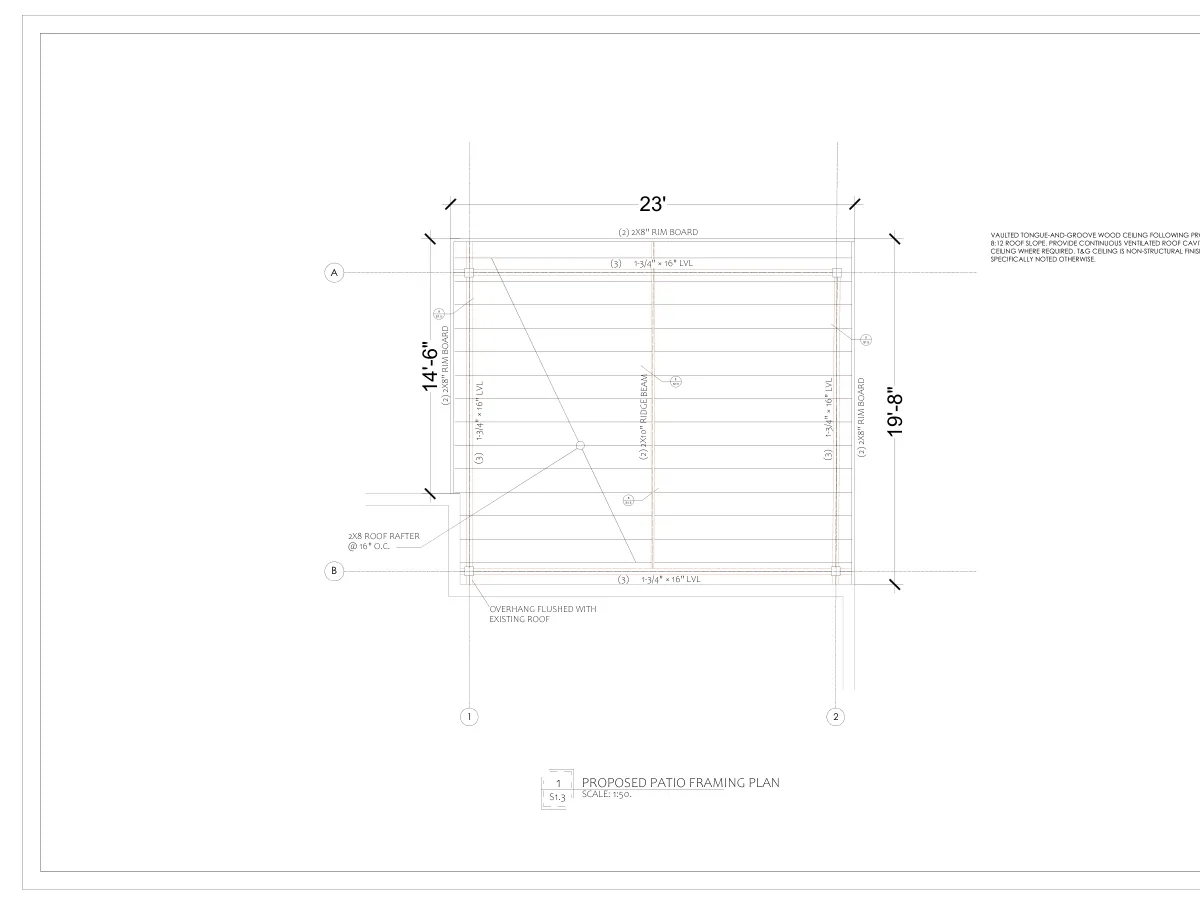

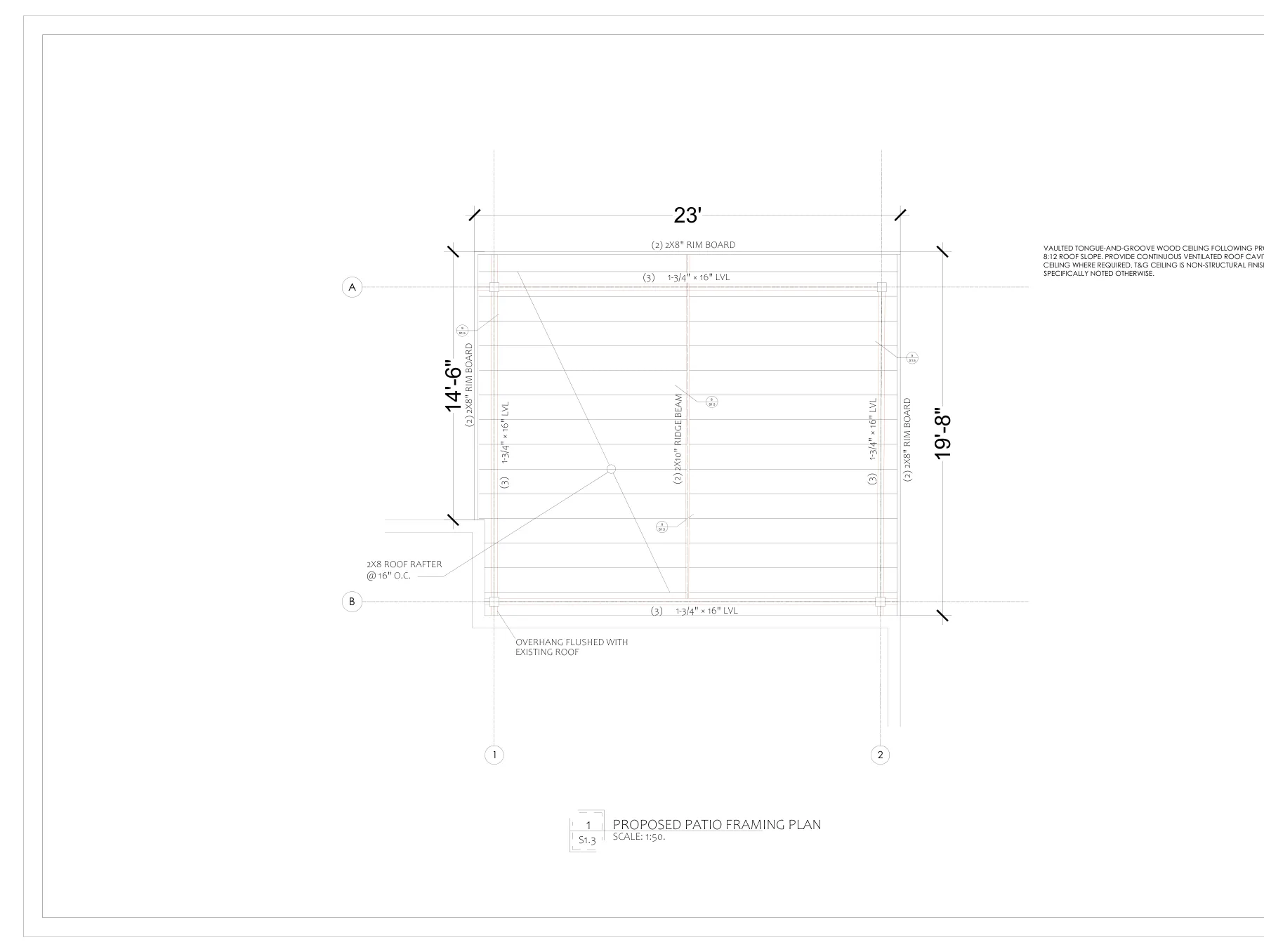

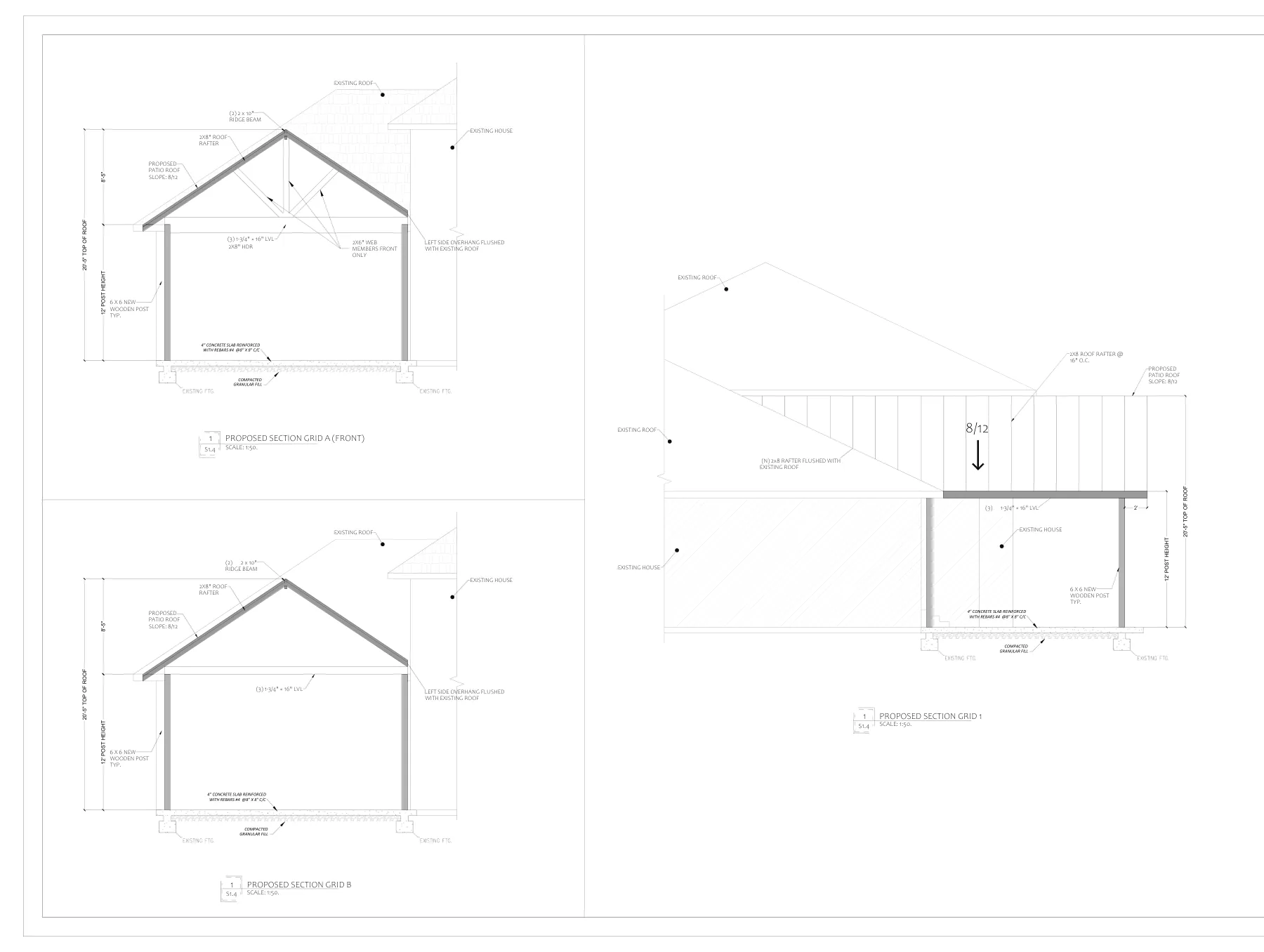

- (2) 2×10 ridge beam and engineered-wood rafters at an 8:12 slope

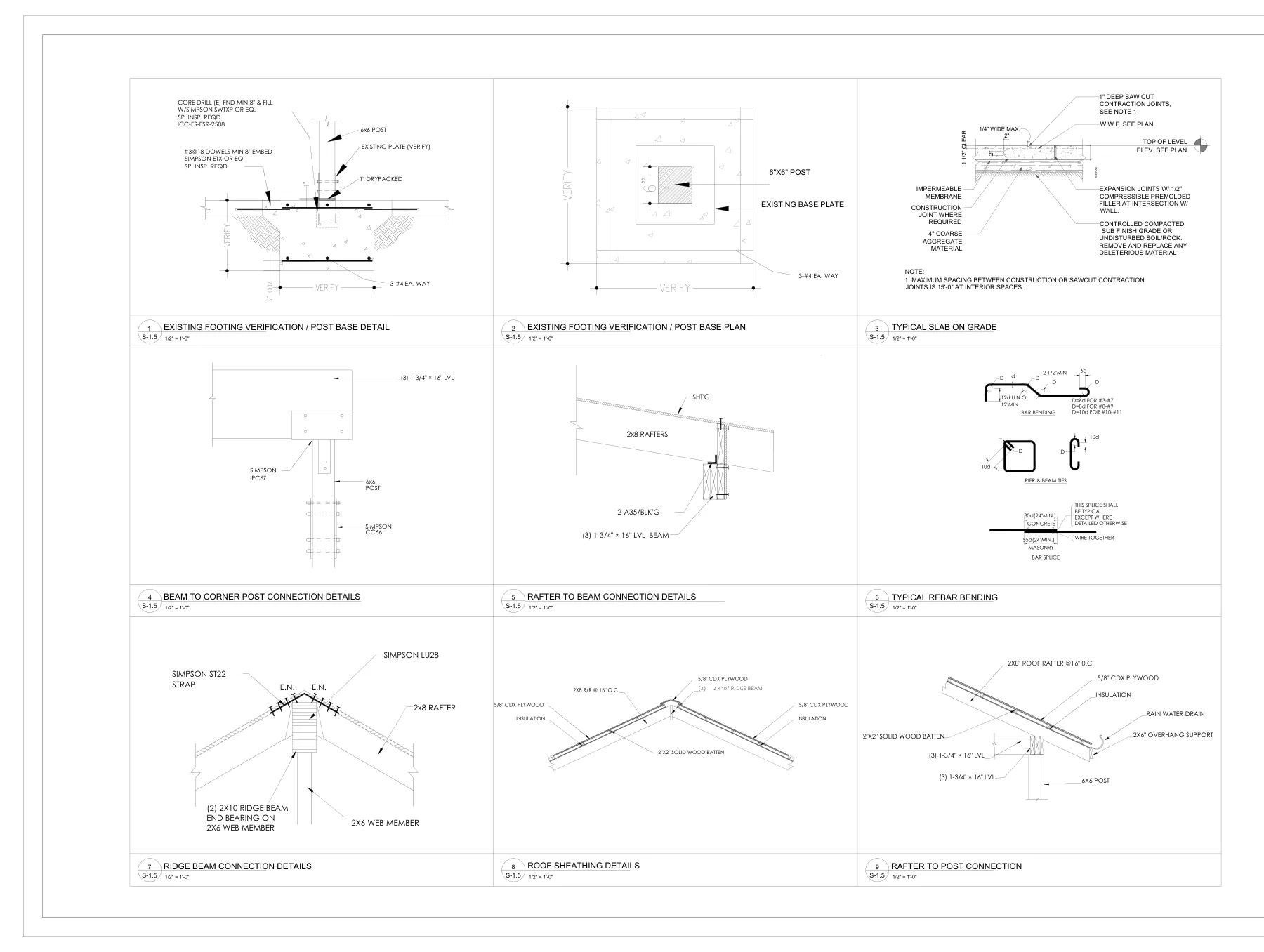

- House / roof interface and typical connection details
Drawings & calculations
5 sheets from the project — click any sheet to view it full size.
