Attached Garage Addition
A new 20′×24′ garage added to the side of an existing house, with a new foundation and roof framing tied into the existing structure.
Scope of work

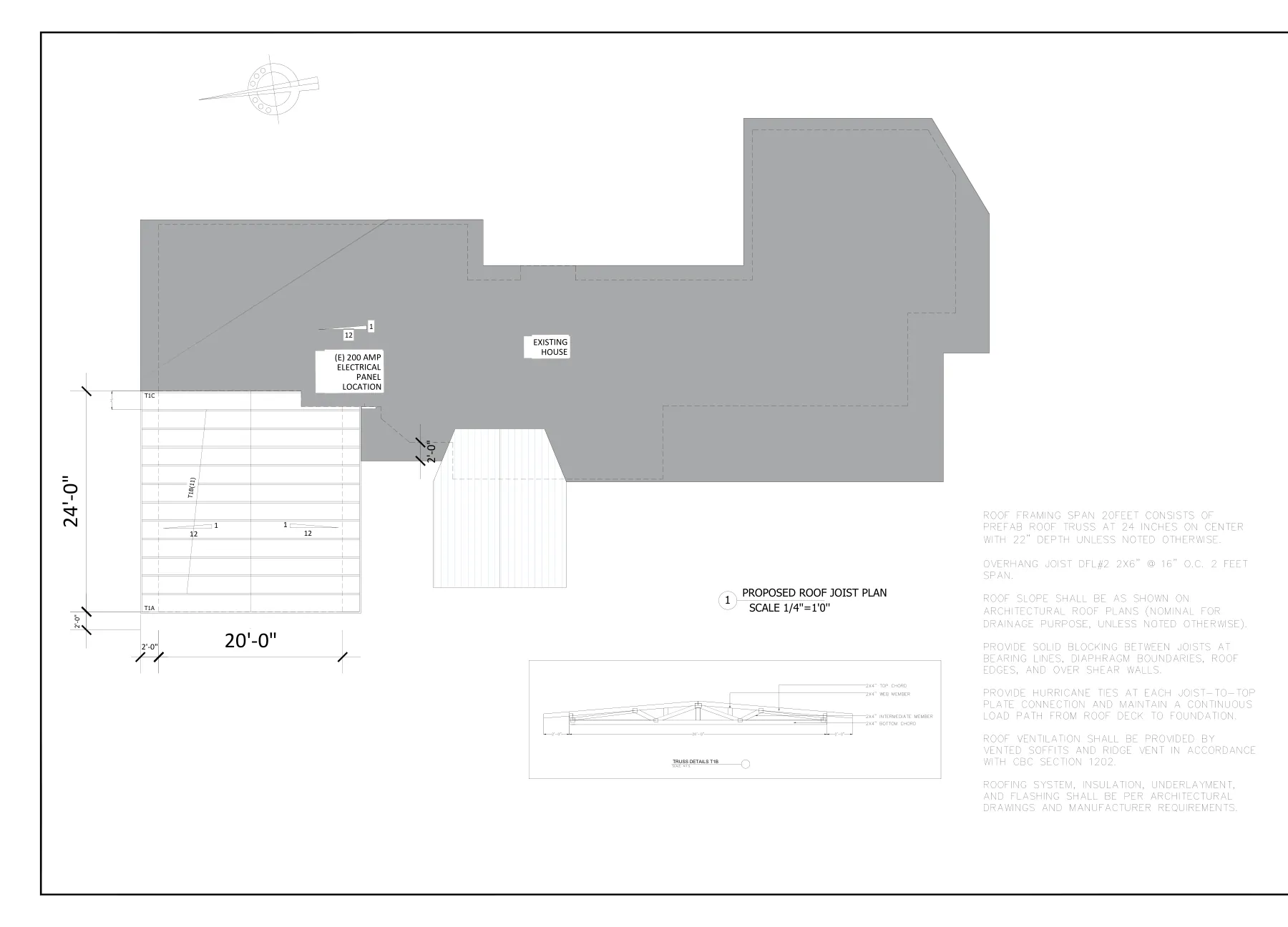

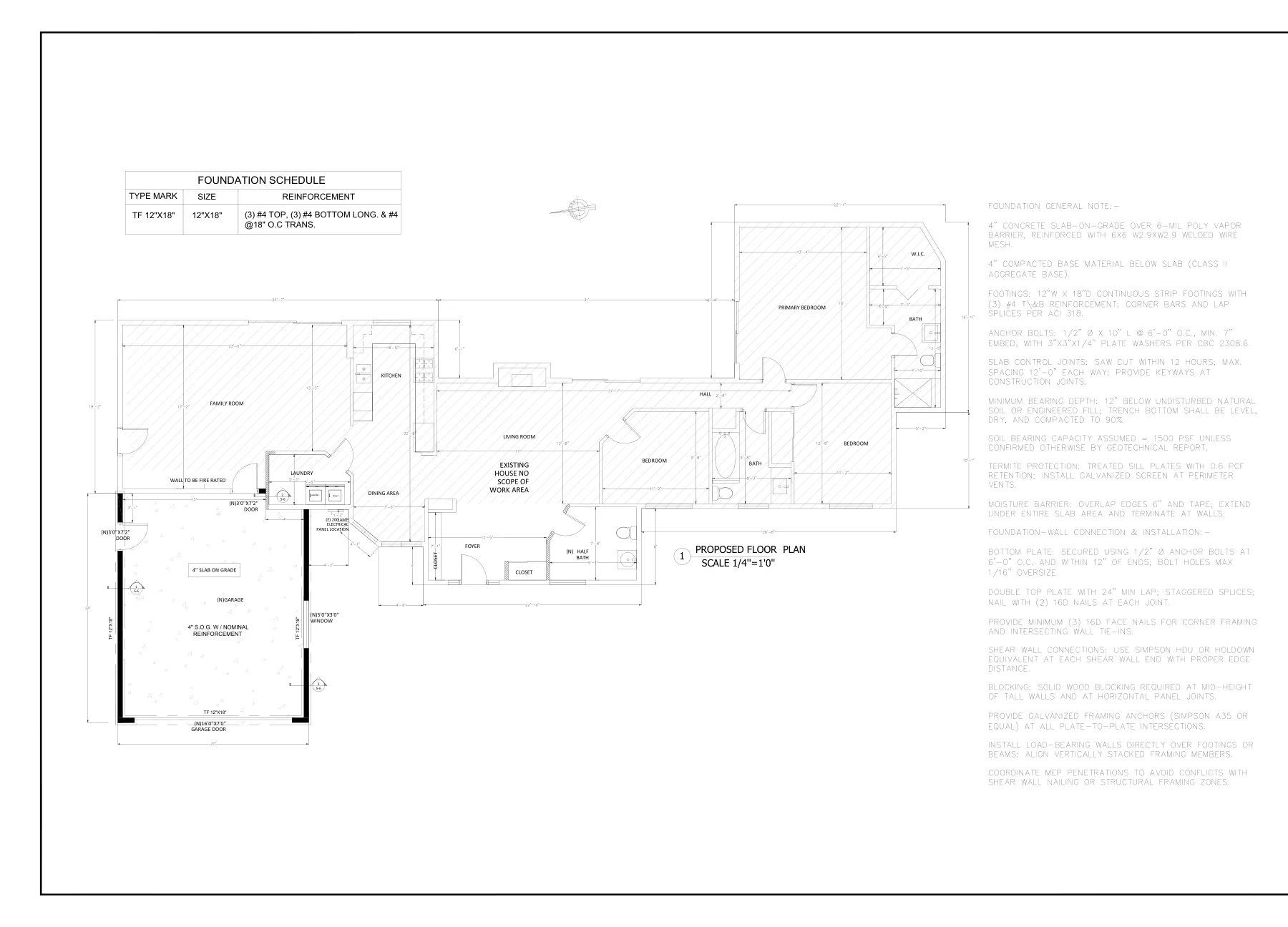

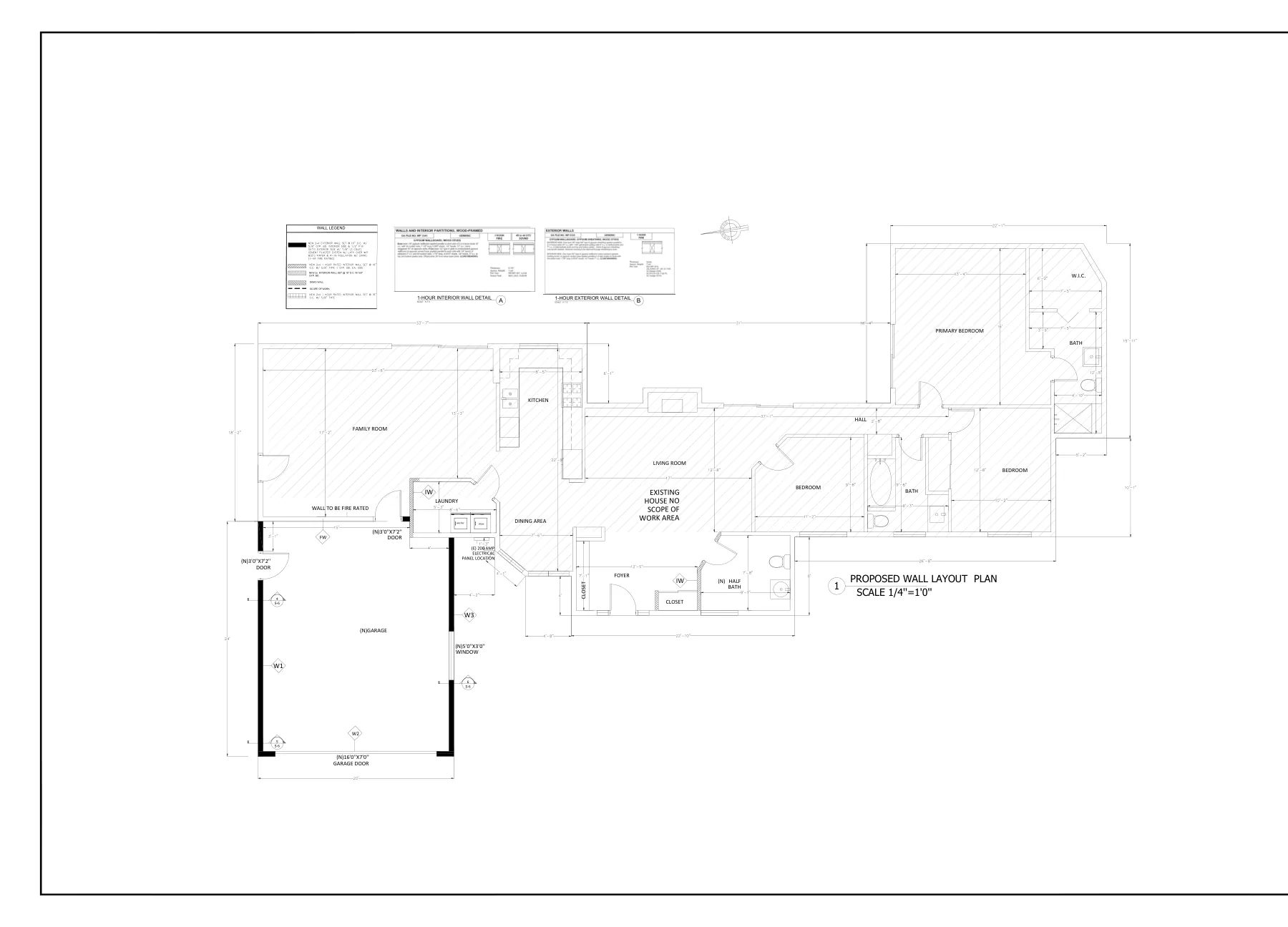

- Wall layout, foundation and roof framing plans

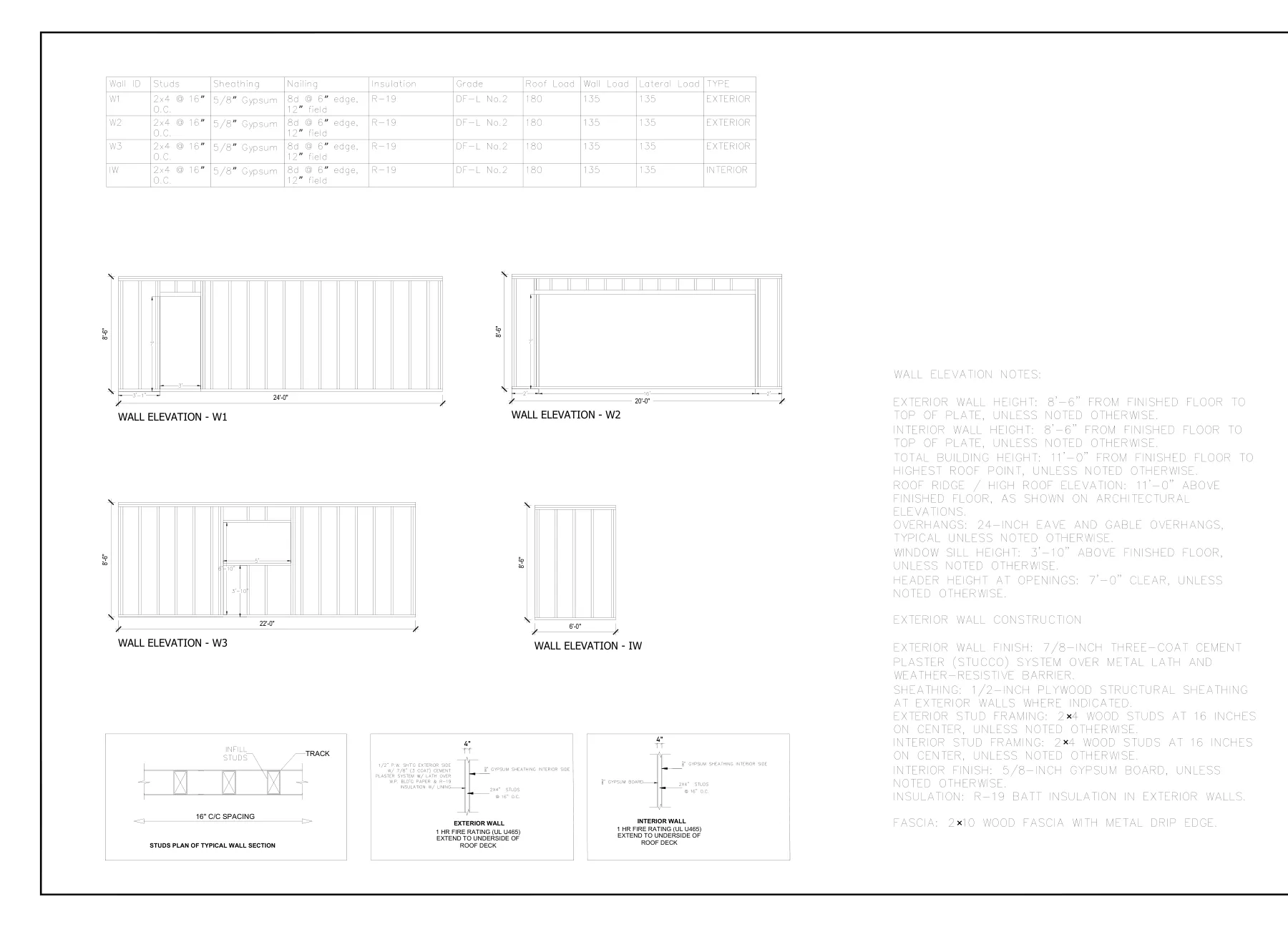

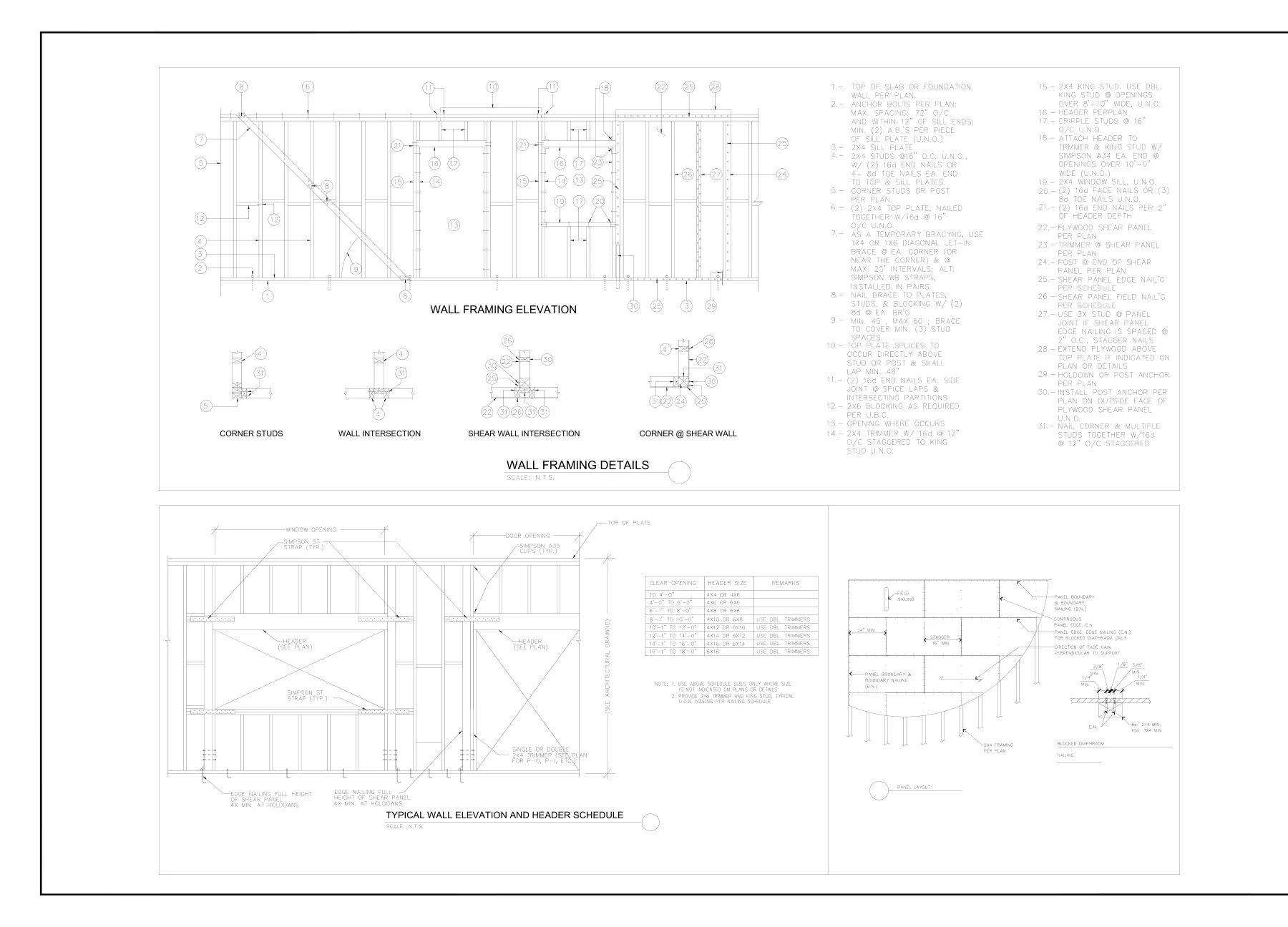

- Wall elevations and typical wall details

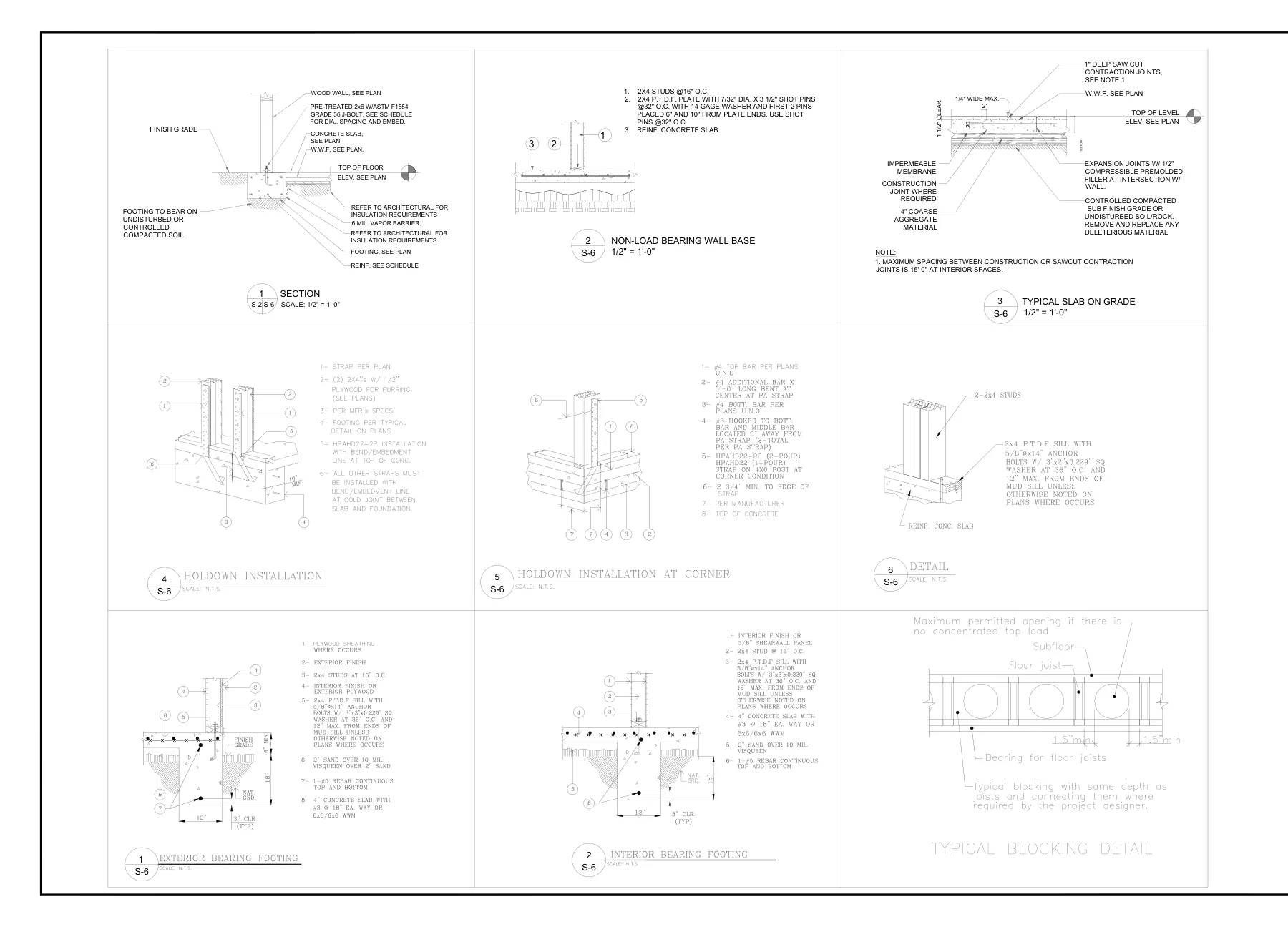

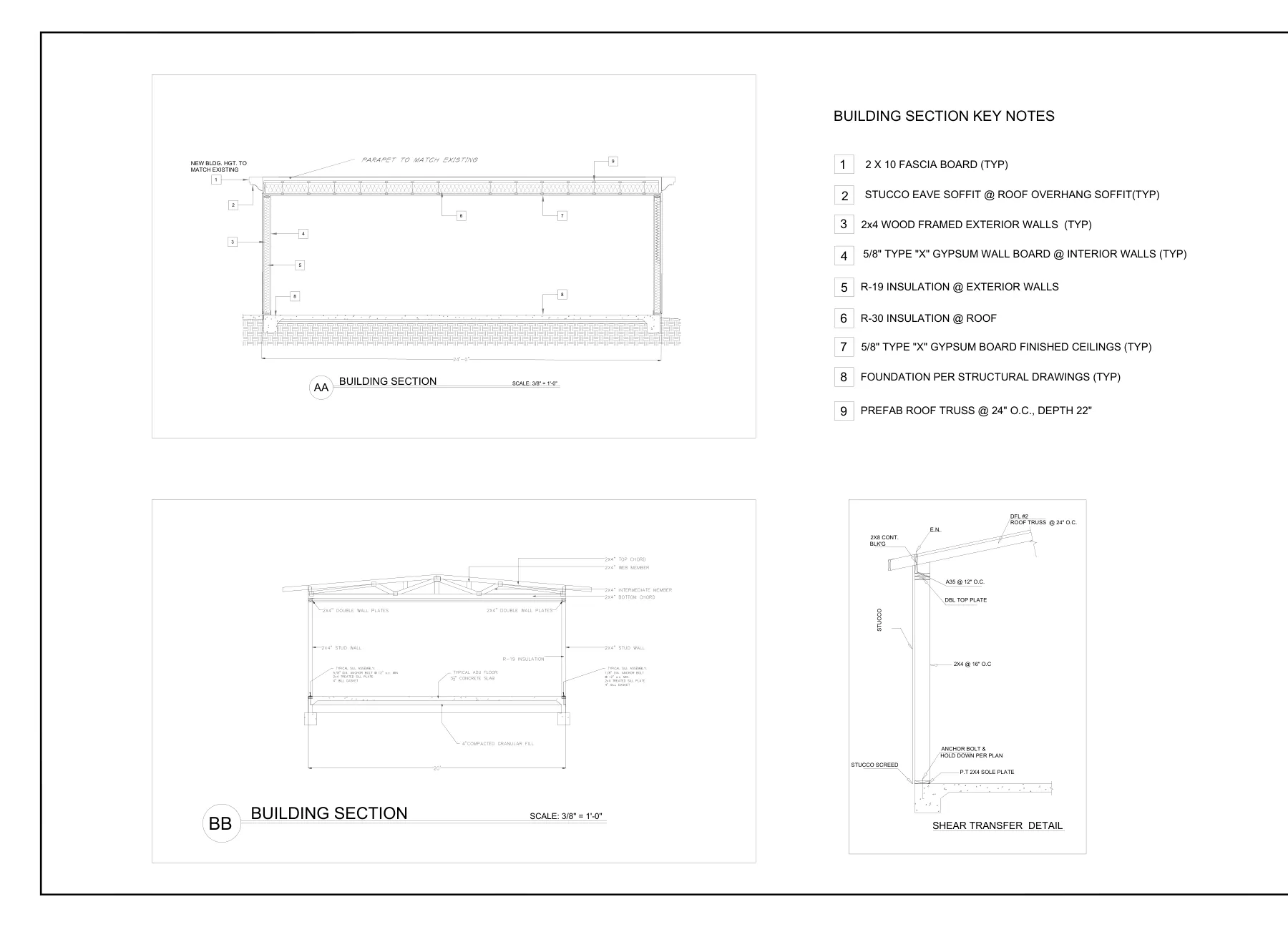

- Section and connection details

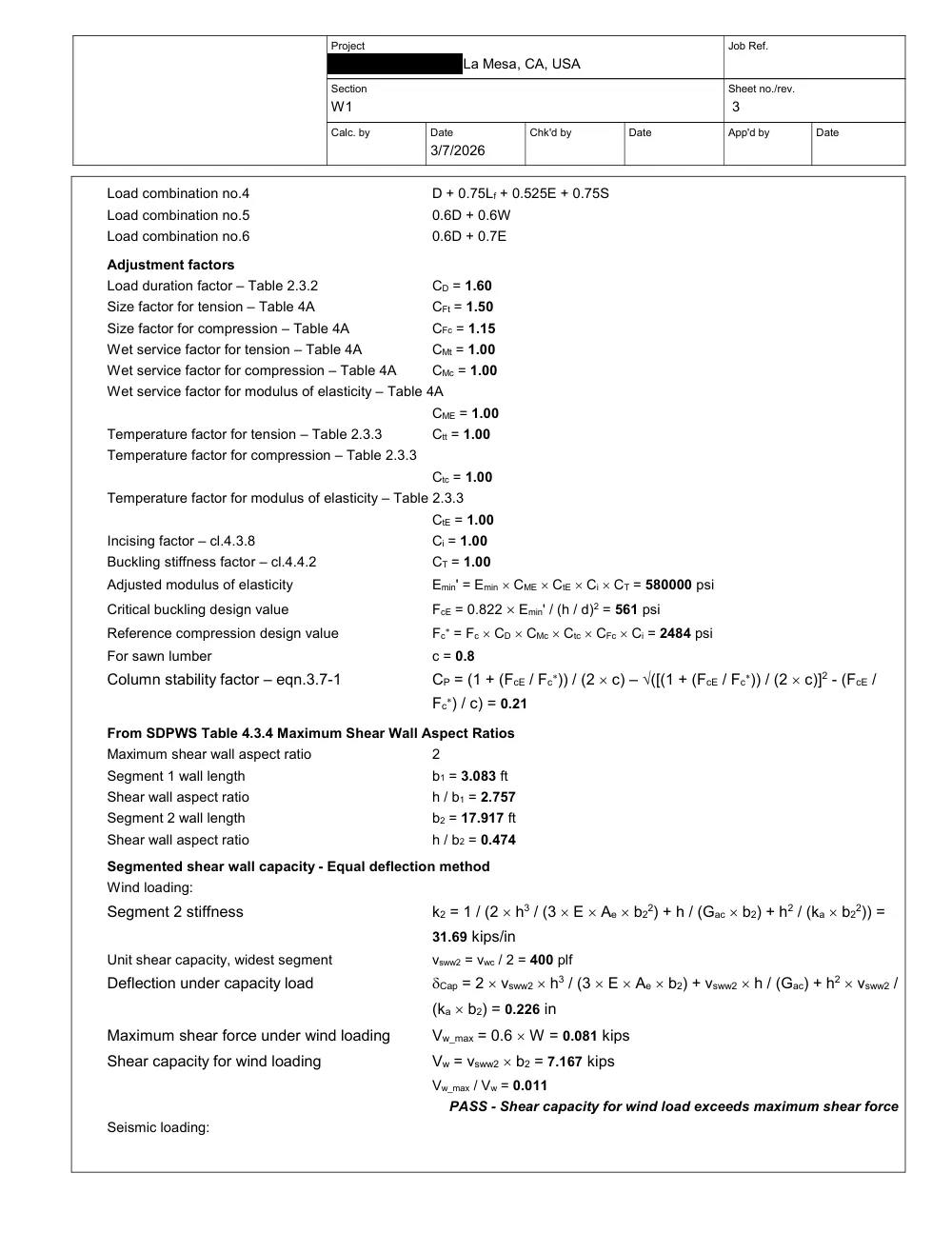

Drawings & calculations
8 sheets from the project — click any sheet to view it full size.
