Container Coffee Stand — CFS Walls & Footings
Calculations for a container-based coffee stand: cold-formed steel wall studs for each elevation and the strip footings beneath them.
Scope of work

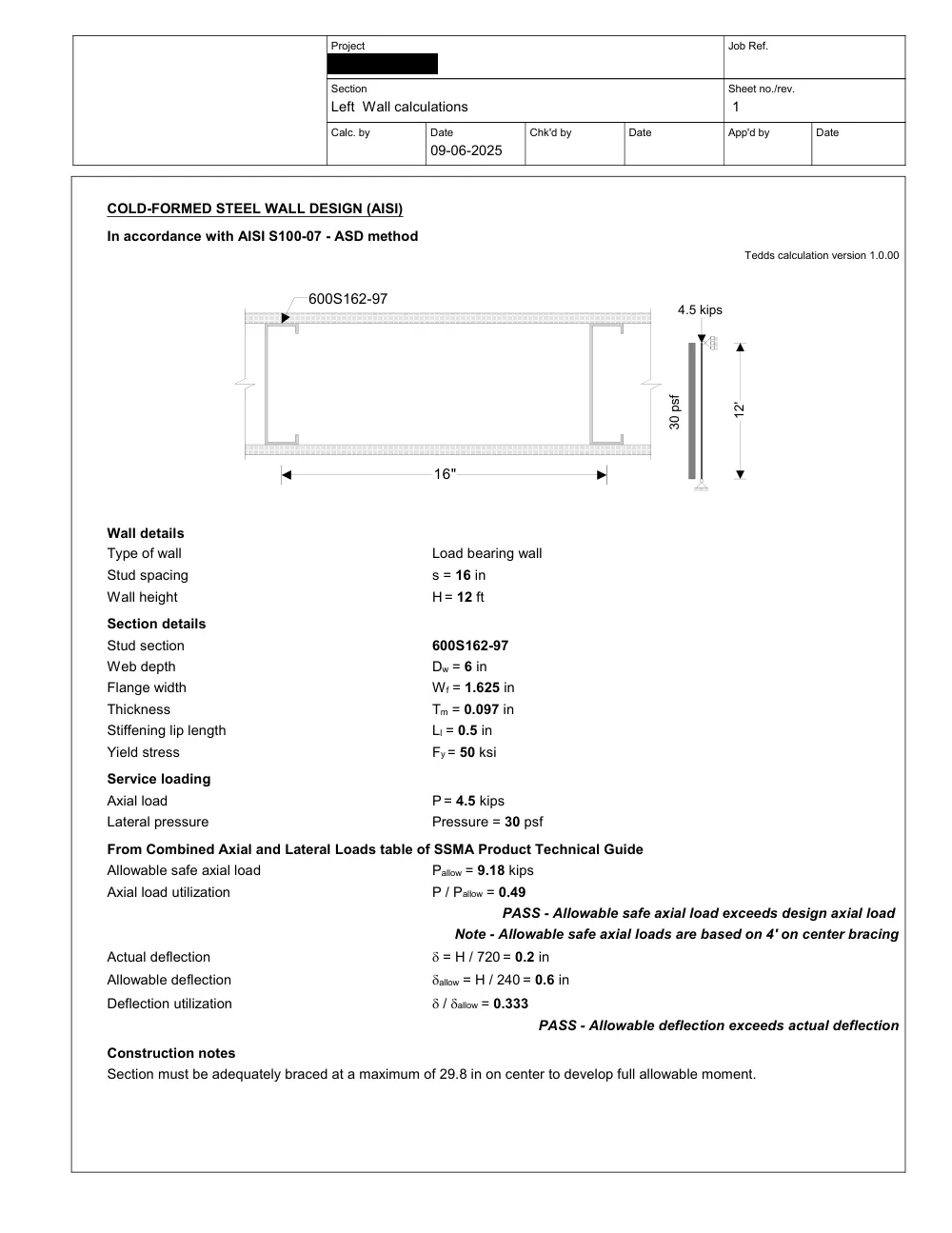

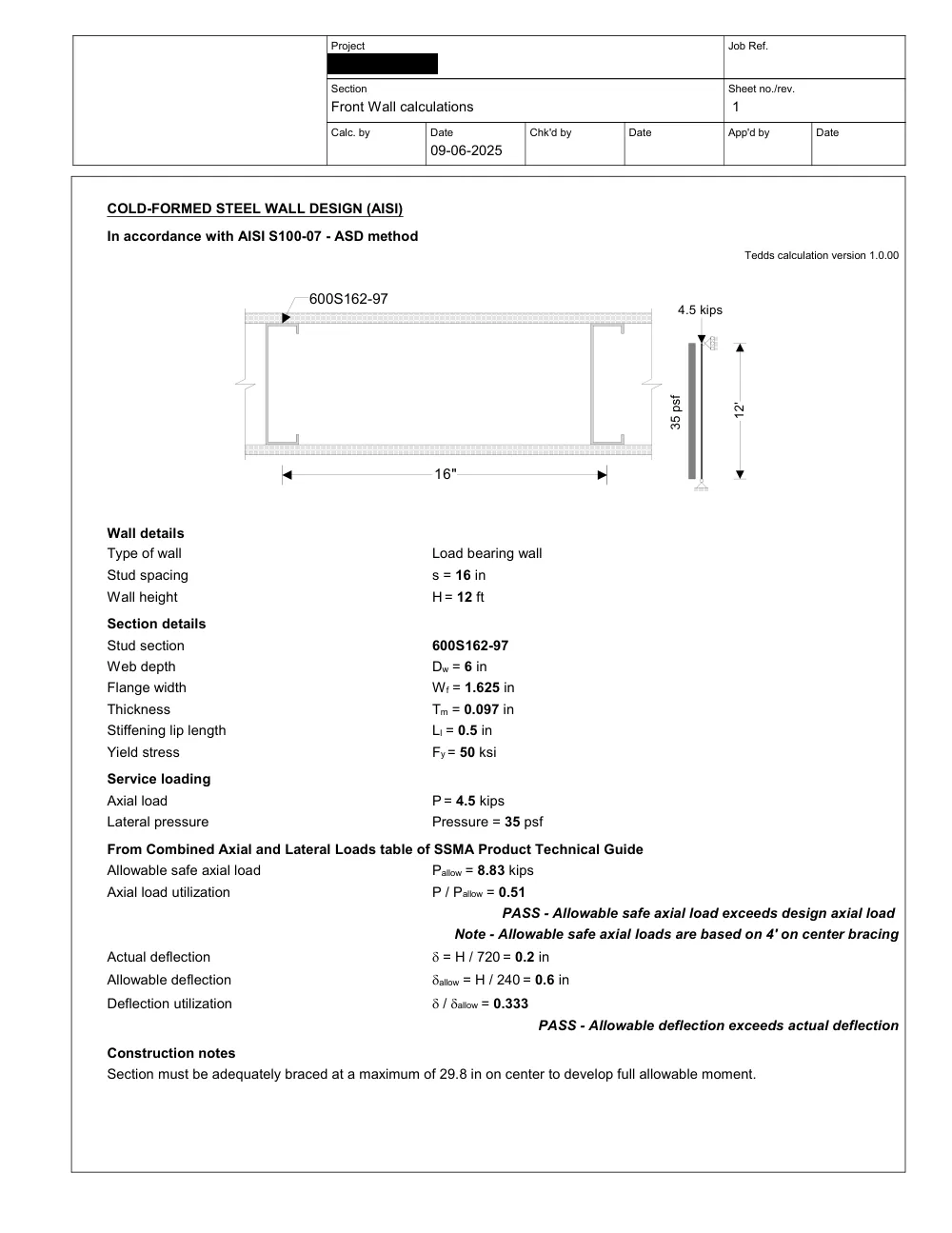

- Front, rear and side walls in 600S162-97 cold-formed steel studs @ 16″ O.C. (12′ walls)
- Combined axial and lateral (35 psf) stud checks to AISI S100 (ASD)

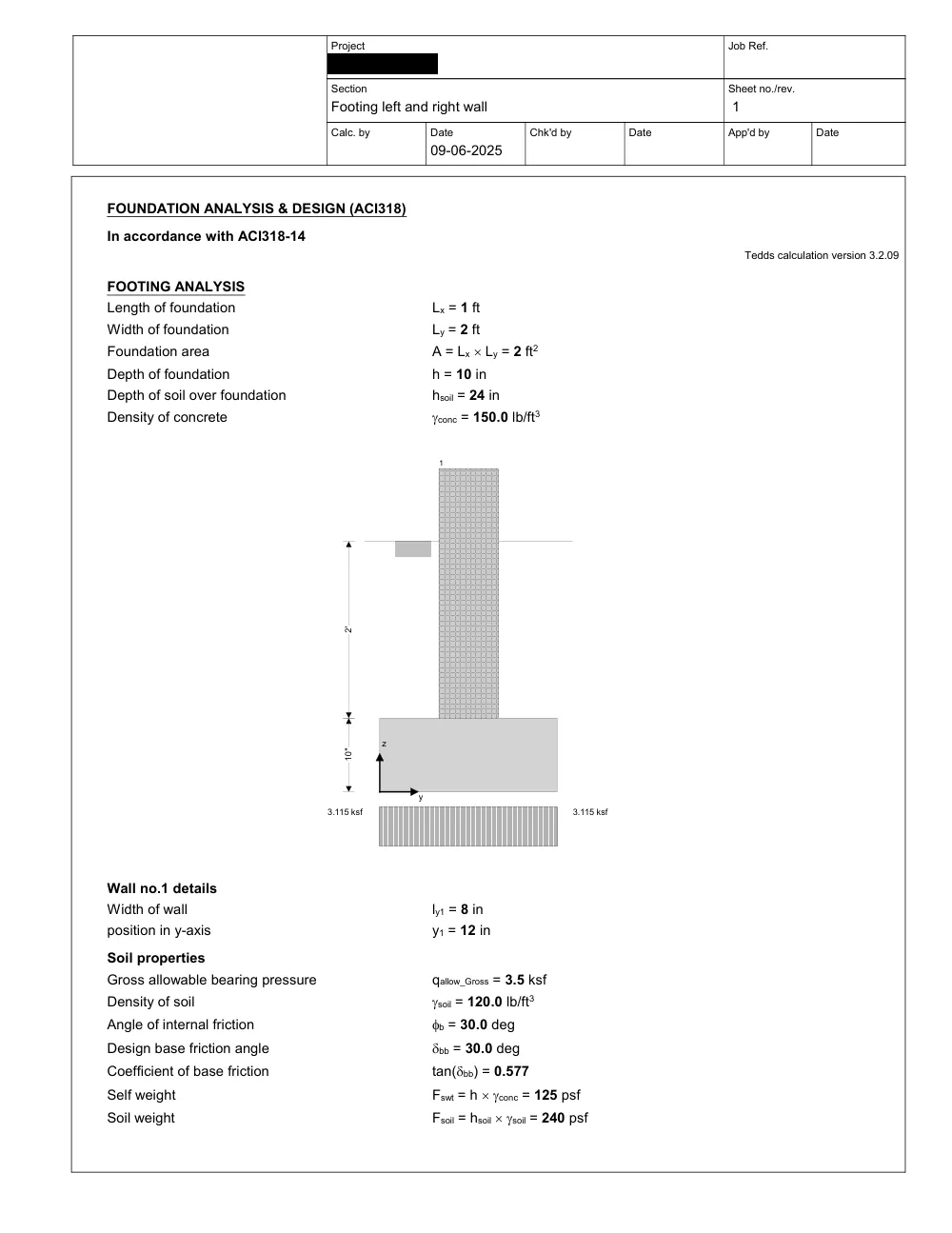

- Strip footing analysis and design for each wall line (ACI 318)
Drawings & calculations
4 sheets from the project — click any sheet to view it full size.
