20′ × 36′ Metal Building for 150 mph Wind

A tubular-steel metal building on the Texas Gulf Coast designed for a 150 mph ultimate wind speed, with single-leg frames, purlins, slab and base-rail anchorage.

Scope of work

  • Design criteria: IBC 2021, 150 mph ultimate wind (Exposure C), 20 psf design snow load

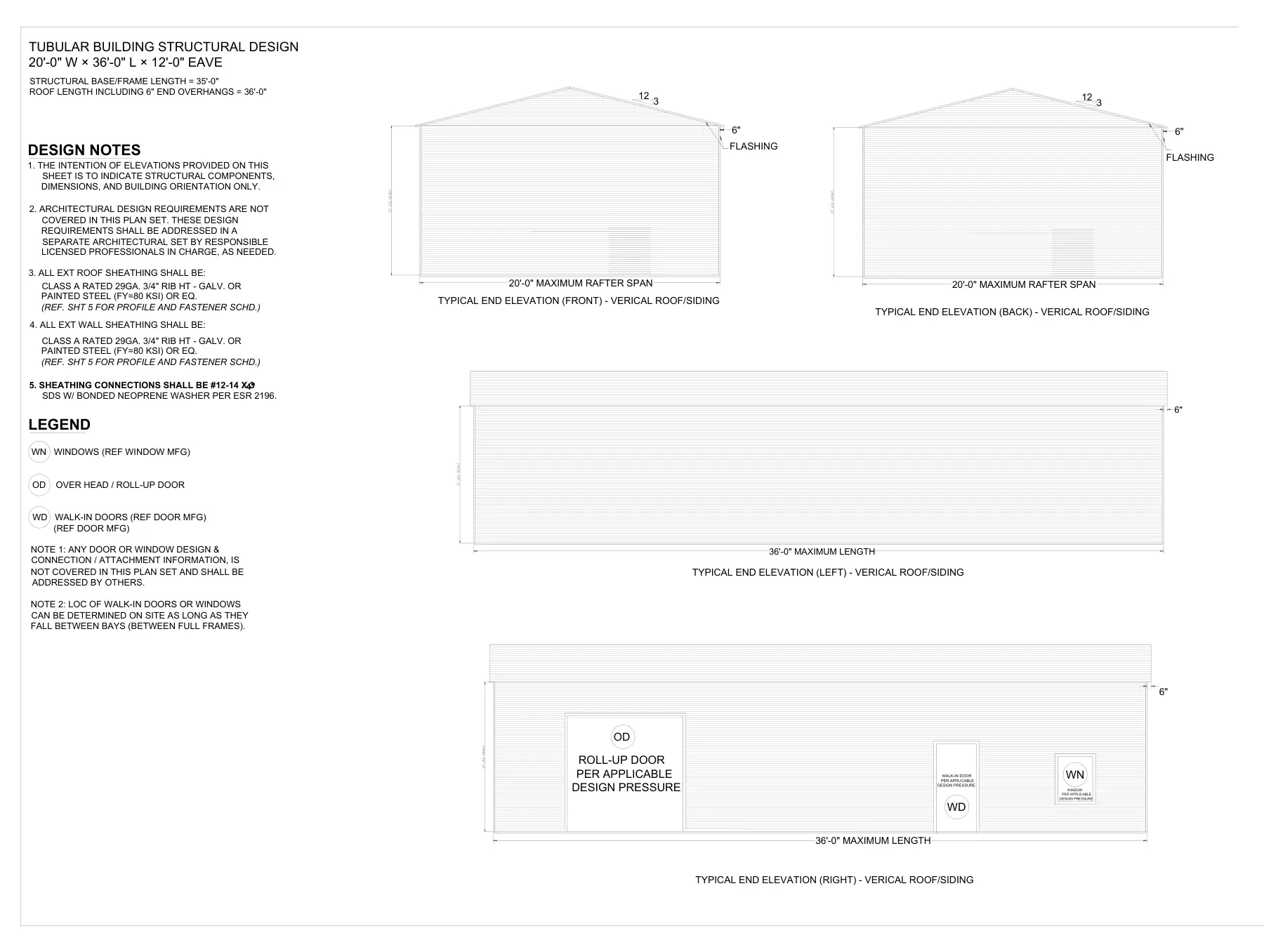

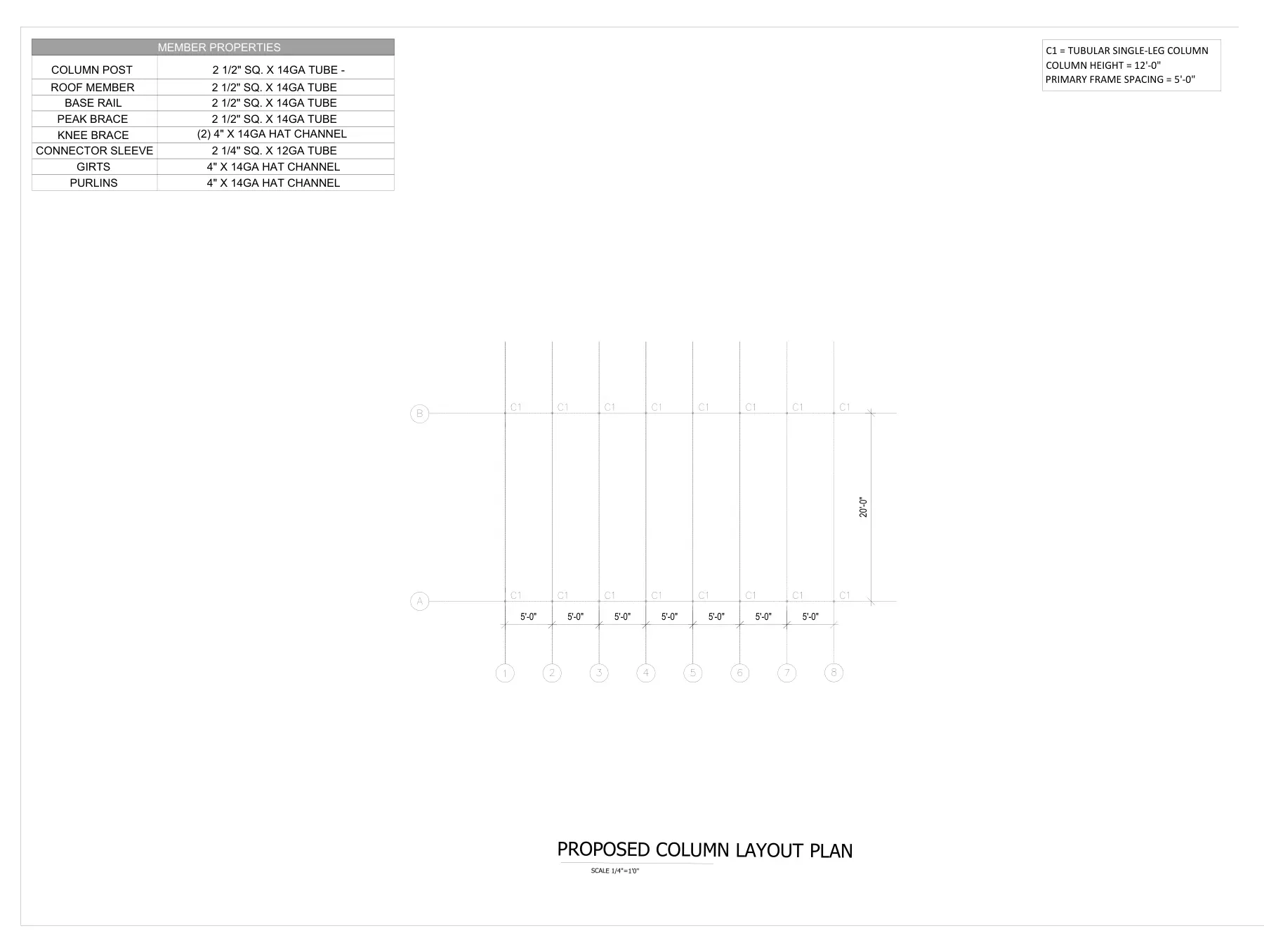

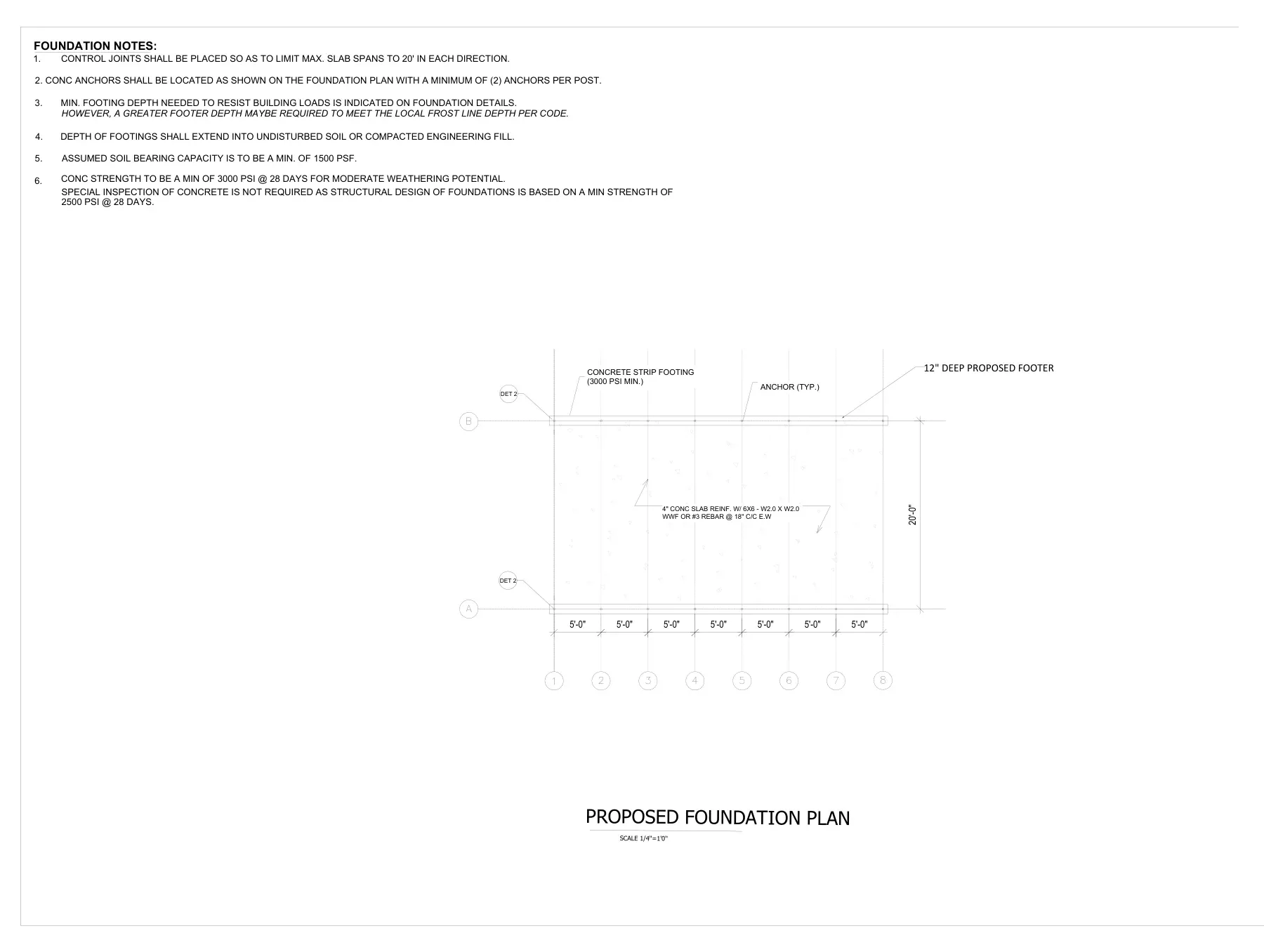

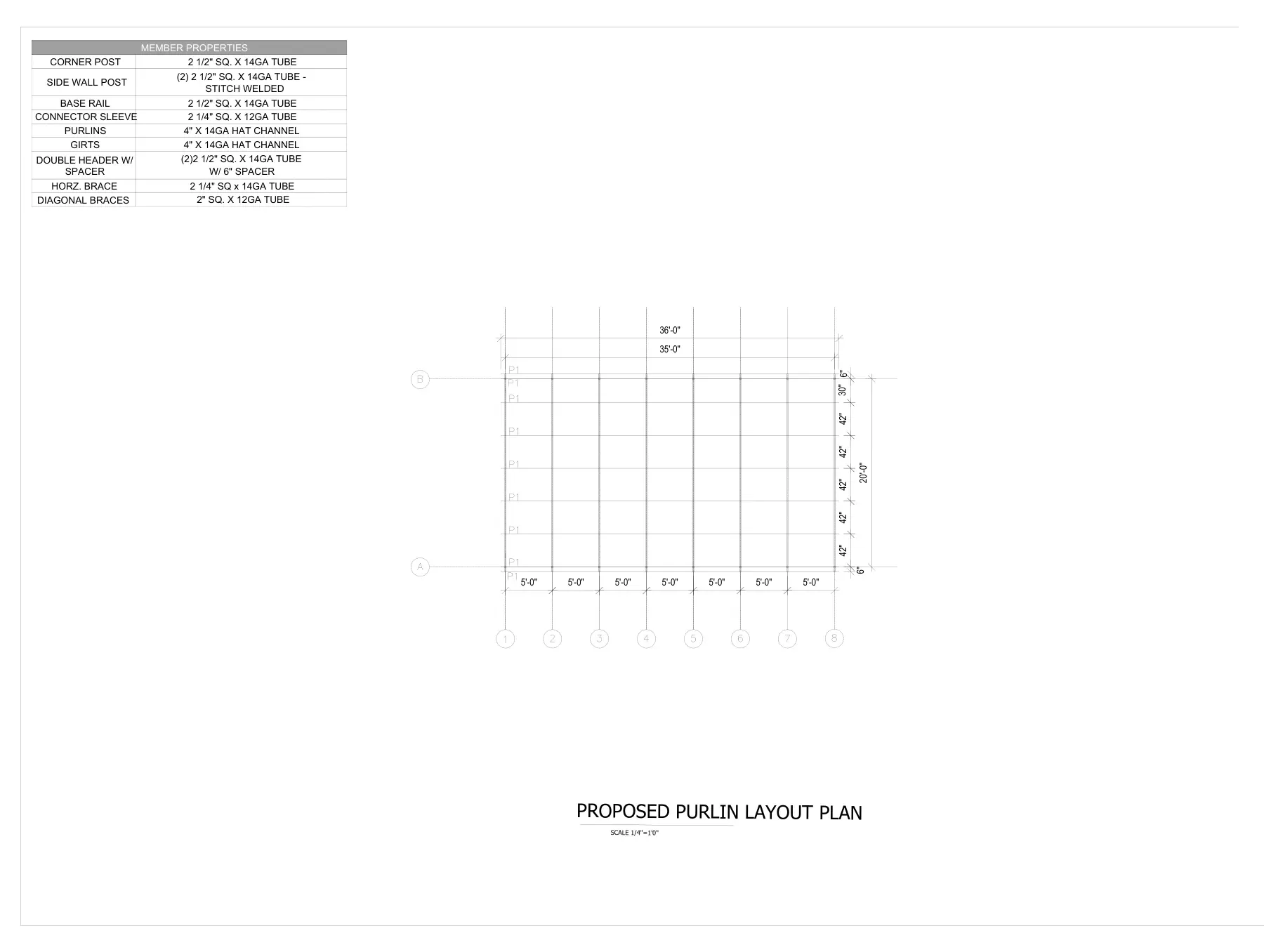

  • Foundation plan with strip footing, column, rafter and purlin layout plans

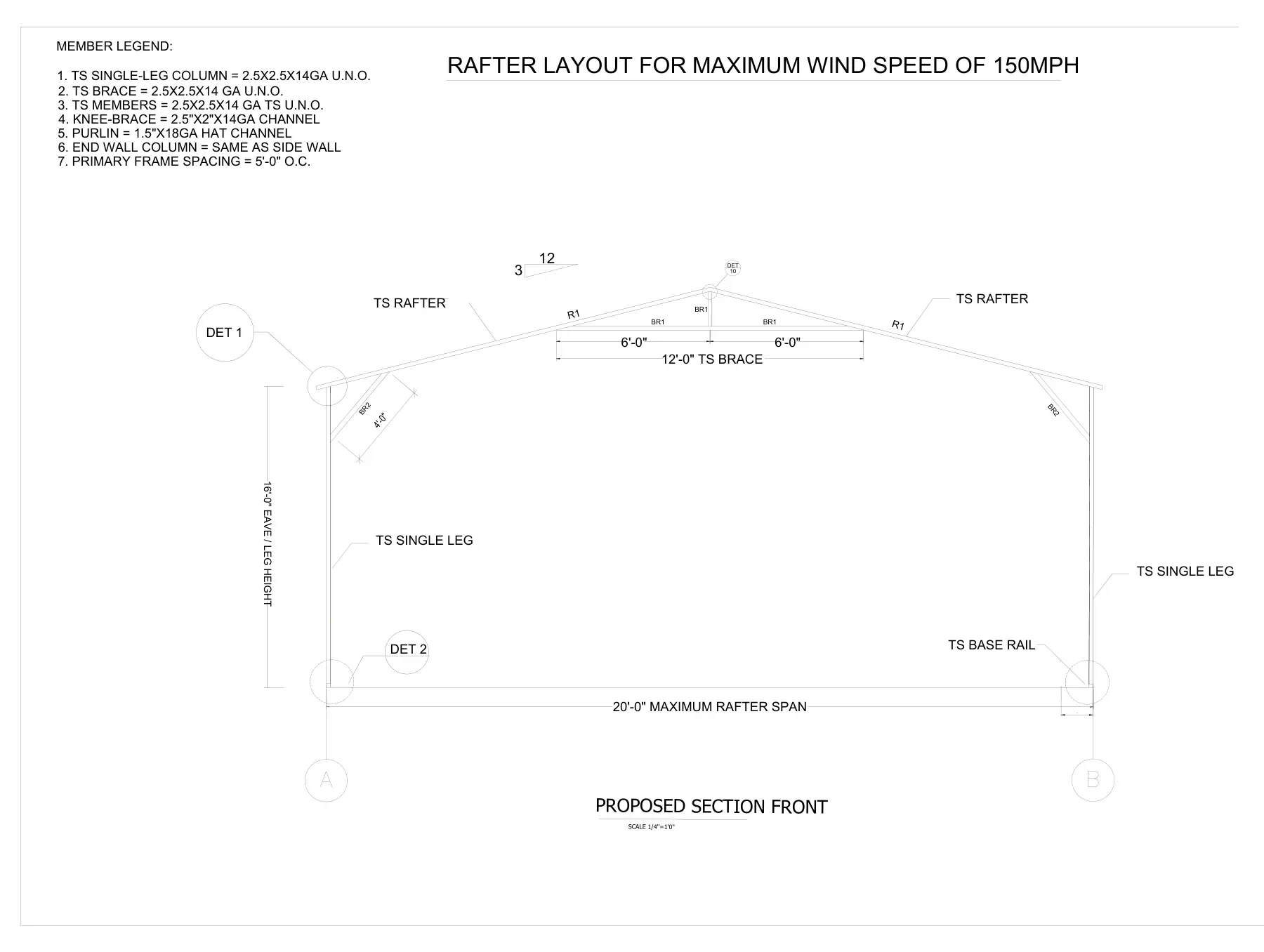

  • Single-leg 2½″×2½″×14 ga tubular columns and rafters at 5′-0″ frame spacing

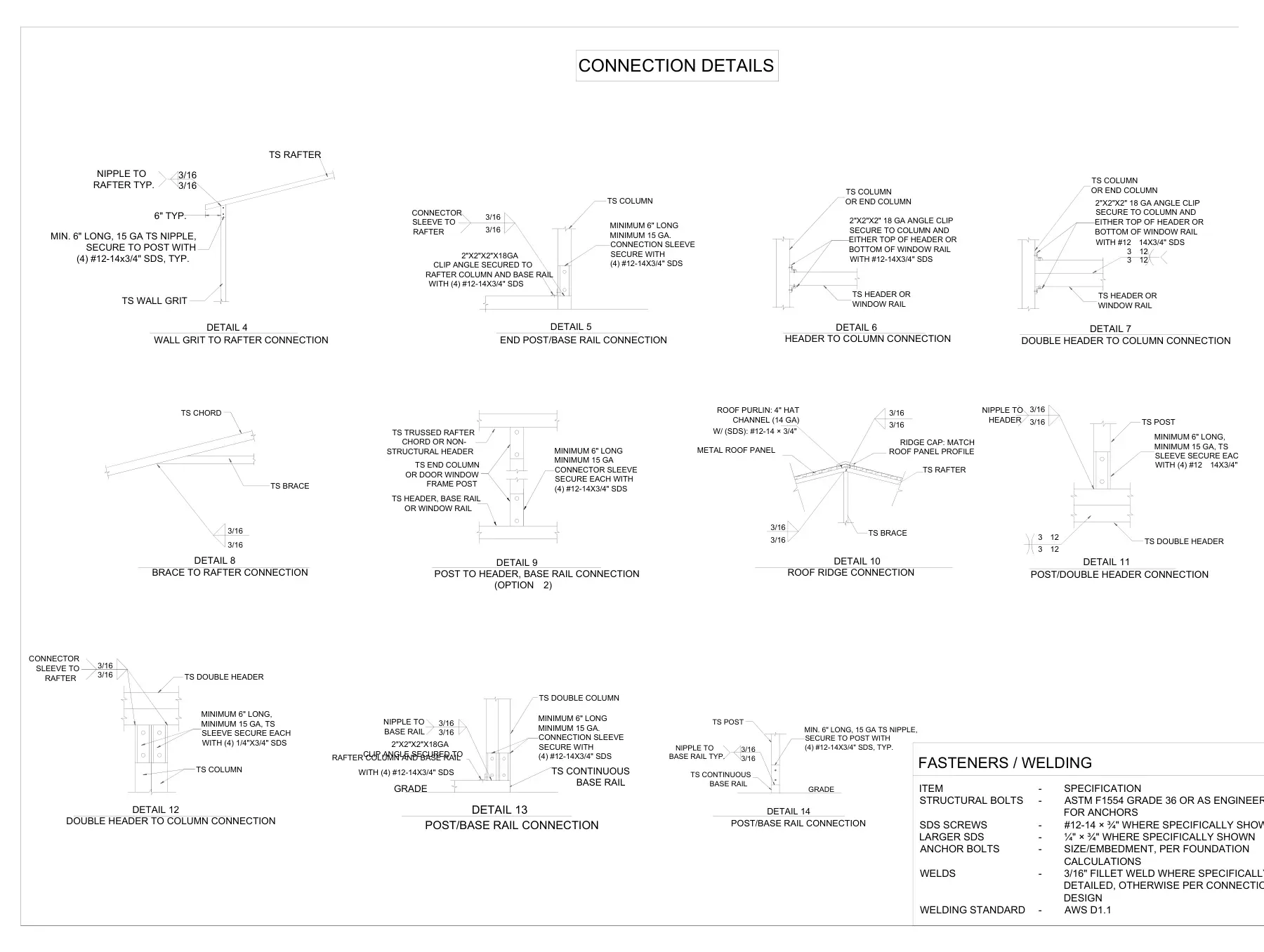

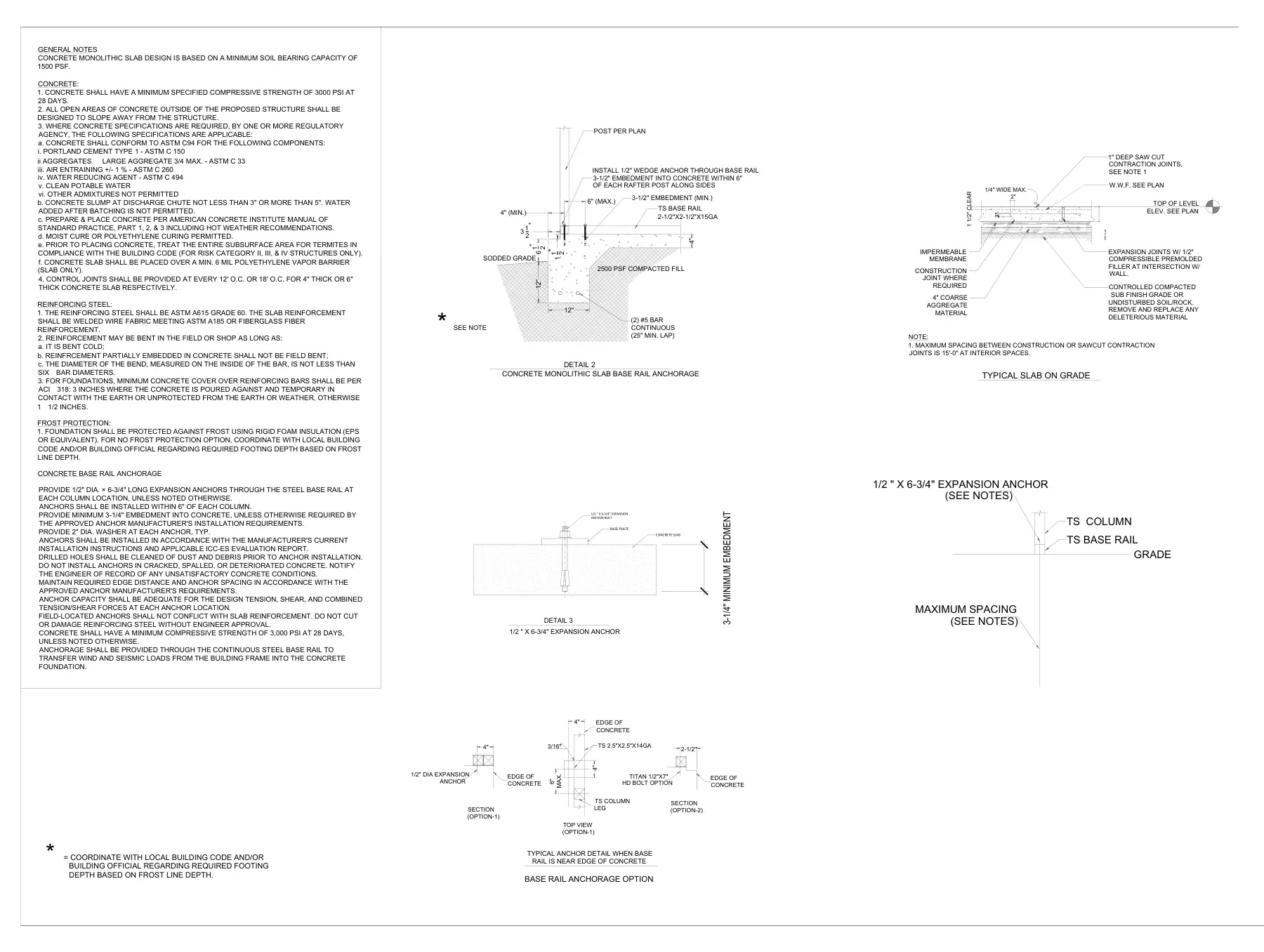

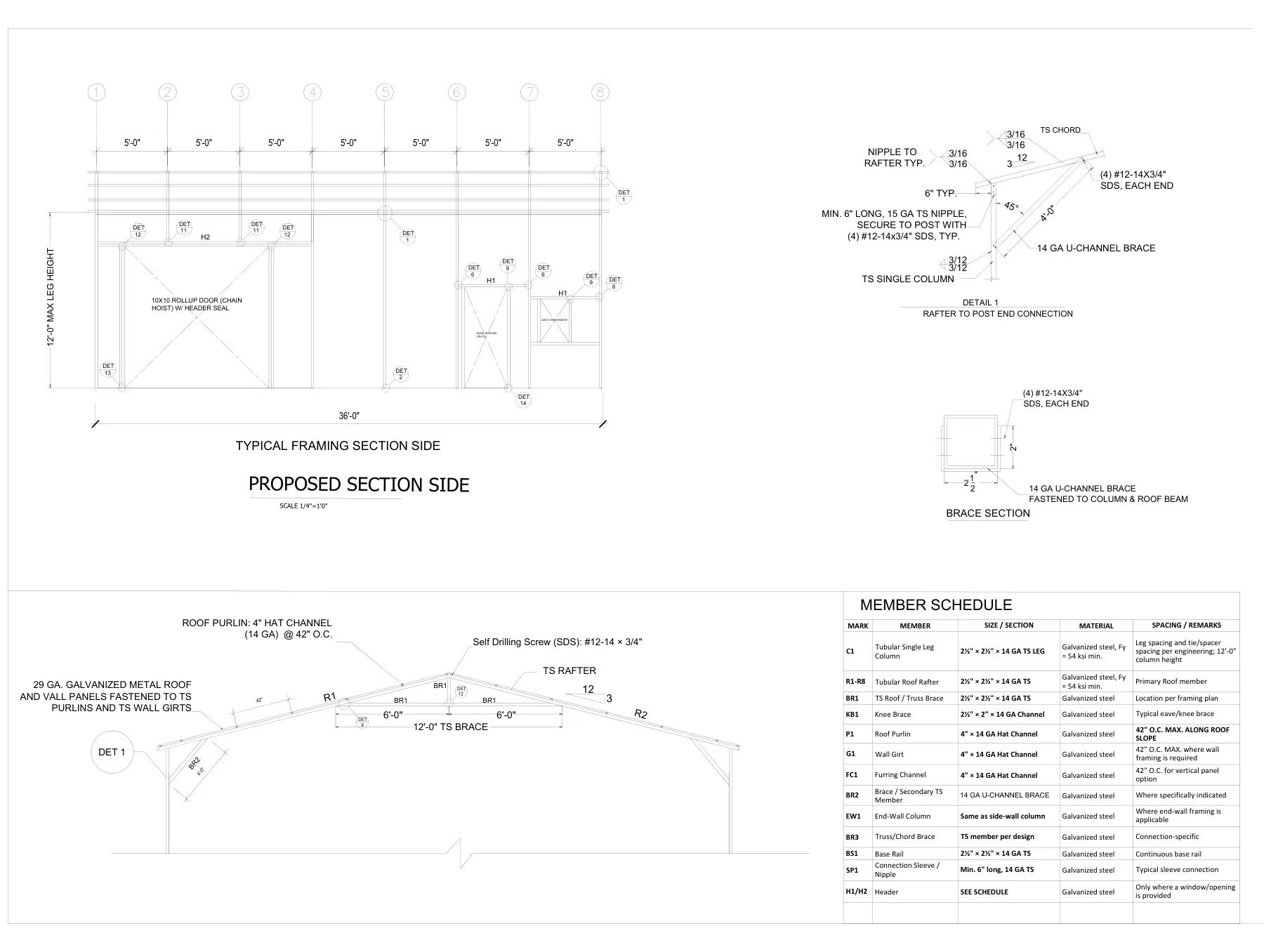

  • Side-wall framing sections, slab / grade anchorage and connection details

Drawings & calculations

8 sheets from the project — click any sheet to view it full size.
